Do the Hipermax R Coilovers for ZD8 fit the Toyota GR86?

No. HKS registers part number 80310-AF005 to the ZD8 Subaru BRZ only and lists a separate Hipermax R kit, part number 80310-AT006, for the ZN8 GR86. GR86 owners should order the kit HKS lists for their own car rather than the Hipermax R Coilovers for ZD8.

Is this kit comfortable enough for a daily driven BRZ?

Yes, for most owners. HKS built the Hipermax R line for drivers who want circuit performance without giving up everyday comfort, and from its Fuji Speedway testing HKS recommends a damping setting of about 5 to 10 clicks. The spherical bearing upper mounts do pass more road noise into the cabin than rubber mounts.

How low does the kit sit compared with a stock BRZ?

As delivered, HKS sets the kit 24mm below stock height at the front and 29mm below at the rear. The front adjusts from stock height to 41mm lower and the rear to 55mm lower. HKS recommends the delivered setting and warns that body or arm contact can occur even inside the range.

How is this kit different from the HKS GR86/BRZ Cup kit?

The Cup kit is a designated professional series product developed for the GR86/BRZ Cup one-make race series, with settings HKS optimized for circuit driving. The Hipermax R Coilovers for ZD8 are aimed at owners who want track ability while keeping comfort on the road. Bulletproof Automotive carries the HKS Hipermax R GR86/BRZ Cup Coilover Kit as well.

Can HKS change the spring rates on this kit?

Yes. HKS can fit different springs at its factory before the kit ships. The front can go 10 N/mm softer or firmer, and the rear 10 N/mm softer or up to 20 N/mm firmer, although an 11 kgf/mm rear spring in the 150mm length is not available. The upper mounts cannot be changed before shipping.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

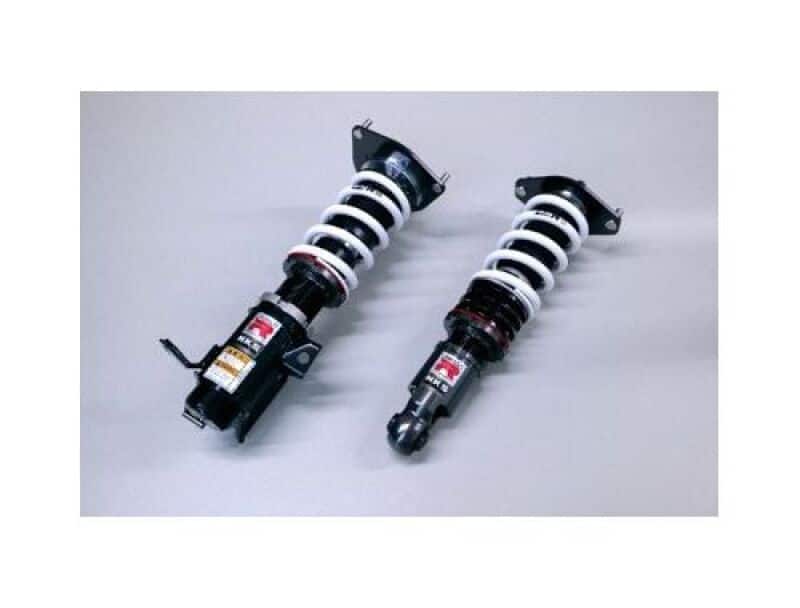

HKS Hipermax R Coilovers for ZD8 Subaru BRZ

The HKS Hipermax R Coilovers for ZD8 are the HKS all-round track and road kit for the second-generation Subaru BRZ with the FA24 flat-four and rear-wheel drive. Hipermax R builds on the HIPERMAX S damper and adds three parts found only on the R line: SRF damper oil, LVS high-strength springs and an upper spring retainer. HKS tested the kit at Fuji Speedway on ADVAN A052 tires in 235/40R18. That makes it a strong match for a ZD8 that is driven to an autocross or HPDE event and home again; owners building a dedicated race car should look at the HKS GR86/BRZ Cup kit instead.

Features

Single-tube dampers with a large-diameter piston for stable damping force
Inverted dampers at the front and normal-type dampers at the rear, with a helper spring on the rear
Dual PVS (Dual Preload Valve System) valving carried over from the HIPERMAX S
WR Needle damping adjuster, with a noticeable change from each click
Shock-body length adjustable construction with height-adjustable lower brackets
Spherical bearing upper mounts front and rear, supplied as standard with no rubber mount option before shipping
Upper Spring Retainer, exclusive to Hipermax R, keeps the damper axis and spring load line aligned for less friction
SRF Super Response Fluid, a high-viscosity damper oil that resists heat sag
LVS Low Vibration Springs wound from 210k-grade wire, with a shorter wire length that saves weight and sharpens steering response
PNE coating that stops parts sticking from rust and reduces the effort needed to adjust ride height

Specifications

Spring rate, front: 88 N/mm (9 kgf/mm)
Spring rate, rear: 98 N/mm (10 kgf/mm)
Helper spring rate, rear: 19.8 N/mm
Spring length: 150mm straight, front and rear
Ride height as delivered, front: 24mm below stock (adjustable from stock height to 41mm below)
Ride height as delivered, rear: 29mm below stock (adjustable from stock height to 55mm below)
Damping force at 0.1 m/s, front: 961 N rebound, 481 N compression
Damping force at 0.1 m/s, rear: 510 N rebound, 471 N compression
Damping adjustment: 30 steps front and rear
Shipping weight: 24.3 kg (53.6 lb)

Applications

Subaru BRZ: ZD8 | 2022-present | FA24

Notes

HKS registers this part number to the ZD8 Subaru BRZ only, and the ZN8 Toyota GR86 has its own Hipermax R part number, 80310-AT006
The HKS HIPERMAX S Pillow Coilover Kit for ZD8 Subaru BRZ (80330-AF020P) is the HIPERMAX S kit for the same car, without the three parts exclusive to the Hipermax R Coilovers for ZD8
HKS lists 215/45R17 tires at 240kPa for 17-inch wheels and 235/40R18 tires at 200kPa for 18-inch wheels with this kit
HKS warns that the lowest ride height may not be road legal and that body or arm contact can occur even inside the adjustable range
HKS covers Hipermax R for 2 years or 40,000 km, and damper oil leakage or other problems caused by lowering below the HKS delivered height can void that warranty
Have the Hipermax R Coilovers for ZD8 installed by a qualified shop and follow up with a full alignment

Frequently Asked Questions

Do the Hipermax R Coilovers for ZD8 fit the Toyota GR86? No. HKS registers part number 80310-AF005 to the ZD8 Subaru BRZ only and lists a separate Hipermax R kit, part number 80310-AT006, for the ZN8 GR86. GR86 owners should order the kit HKS lists for their own car rather than the Hipermax R Coilovers for ZD8.
Is this kit comfortable enough for a daily driven BRZ? Yes, for most owners. HKS built the Hipermax R line for drivers who want circuit performance without giving up everyday comfort, and from its Fuji Speedway testing HKS recommends a damping setting of about 5 to 10 clicks. The spherical bearing upper mounts do pass more road noise into the cabin than rubber mounts.
How low does the kit sit compared with a stock BRZ? As delivered, HKS sets the kit 24mm below stock height at the front and 29mm below at the rear. The front adjusts from stock height to 41mm lower and the rear to 55mm lower. HKS recommends the delivered setting and warns that body or arm contact can occur even inside the range.
How is this kit different from the HKS GR86/BRZ Cup kit? The Cup kit is a designated professional series product developed for the GR86/BRZ Cup one-make race series, with settings HKS optimized for circuit driving. The Hipermax R Coilovers for ZD8 are aimed at owners who want track ability while keeping comfort on the road. Bulletproof Automotive carries the HKS Hipermax R GR86/BRZ Cup Coilover Kit as well.
How does the Hipermax R compare with the HIPERMAX S for the BRZ? The Hipermax R keeps the HIPERMAX S single-tube dampers, Dual PVS valving and 30-step adjustment, then adds three parts exclusive to the R line: SRF damper oil, LVS high-strength springs and an upper spring retainer. HKS aims the R at owners who put track performance first. Bulletproof Automotive carries both kits for the ZD8.
Can HKS change the spring rates on this kit? Yes. HKS can fit different springs at its factory before the kit ships. The front can go 10 N/mm softer or firmer, and the rear 10 N/mm softer or up to 20 N/mm firmer, although an 11 kgf/mm rear spring in the 150mm length is not available. The upper mounts cannot be changed before shipping.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
