Name: HKS Head Gasket and Exhaust Manifold Gasket Kit for R35 Nissan GT-R [23009-AN010] - Bulletproof Automotive
Brand: HKS Performance Parts
SKU: 23009-AN010
Price: 390.00 USD
Availability: InStock

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

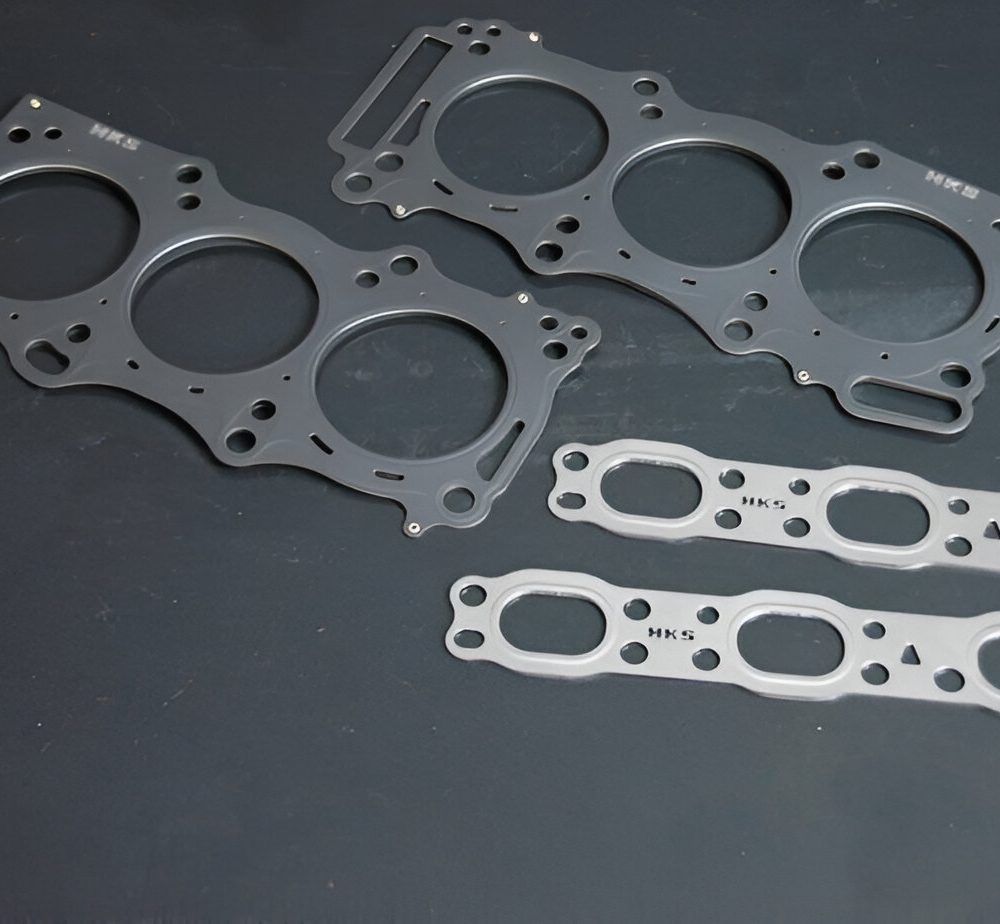

HKS Head Gasket and Exhaust Manifold Gasket Kit for R35 Nissan GT-R [23009-AN010]

HKS offers a Head Gasket designed to enhance the performance of the R35 GT-R, addressing the limitations of the factory bore sealing proof stress found in the stock head gasket. By replacing the factory gasket with the HKS Head Gasket, the GT800 Package can achieve higher performance levels. This HKS Head Gasket also includes an Exhaust Manifold Gasket and is recommended for use with the GT800 Package to ensure proper engine upgrades.

Enhanced Sealing and Durability

HKS has enhanced bore seal proof stress by increasing the stopper height from 0.10mm to 0.15mm, while narrowing the width to maintain high proof stress with the factory Head Bolt axial tension. The bead plate angle was optimized to improve seal pressure at the oil and coolant contact surfaces without compromising bore seal integrity. Unlike the factory gasket, which only coats the bead area, HKS fully coats the gasket surface, improving the rigid connection between the cylinder head and block during installation. Additionally, the Exhaust Manifold Gasket is upgraded with a 4-layer bead plate, compared to the factory’s 3-layer design, providing improved seal durability under high exhaust pressure conditions.

Optimized Bore Stopper Design

HKS separates the bore stopper and bead, positioning the stopper to concentrate tightening force around the bore and the bead around the stopper. This design increases bore stopper load, which is not achievable with the factory combined type, while preventing deformation of the cylinder head and cylinder by placing the stopper within the hard bead plate.

Features

High engine output part, designed to replace the factory head gasket.
Improved the bore seal proof stress at high output and high boost by the redesigning the structure without upgrading the Head Bolt. (Bore seal pressure of the contacted surface was improved by 30%)
In-house test at 900PS confirmed the durability and safety.
The compression ratio of HKS Head Gasket is 9.0 which is the same as the factory ratio.
The Exhaust Manifold Gasket uses the 4-layer seal bead design (t=0.8). The factory is 3-layer design (t=0.6)

Applications

Nissan GT-R: CBA-R35, DBA-R35, EBA-R35 (2009-present) – 3.8L TT V6 VR38DETT

Notes

The bore diameter, thickness, and exhaust gasket shape match the factory gasket

ABOUT HKS

HKS Co., Ltd. is a highly renowned Japanese automotive tuning and performance company. Founded in 1973 by Hiroyuki Hasegawa and Goichi Kitagawa, the company’s initials HKS are also derived from the name of its third partner, Sigma Automotive. With a reputation built on high-quality performance parts, HKS specializes in aftermarket components for a wide array of vehicles. The company has played a significant role in popularizing automotive tuning culture around the world. HKS is known for producing various performance-enhancing parts including turbochargers, exhaust systems, suspension components, and engine parts. Their products are engineered to provide maximum performance gains without sacrificing reliability or drivability.

Over the decades, HKS has expanded its reach by participating in various motorsport events, ranging from drag racing to drift competitions and circuit racing. Their expertise in tuning and enhancing vehicles has led them to significant successes in different motorsport arenas. The commitment to research, development, and innovation has cemented HKS’s place as a leader in the automotive aftermarket industry. By maintaining rigorous quality control and focusing on the precise engineering of performance products, HKS has established strong relationships with automobile manufacturers, dealers, and enthusiasts worldwide. Sustainability and environmental considerations are also part of HKS’s commitment. They continue to innovate in ways that enhance performance while considering environmental impact. With a rich history and an unrelenting passion for pushing automotive performance to its limits, HKS continues to be a sought-after brand for automotive enthusiasts seeking top-tier performance upgrades and tuning solutions.
