Does the FK8 Civic Type R need an oil cooler for track use?

On sustained track sessions, yes. HKS recorded oil temperature above 125°C on a standard FK8 at Fuji Speedway in 22°C ambient air, still climbing at the end of the run. The factory car carries no dedicated oil cooler, so heat leaves the oil through the coolant and raises water temperature with it. The Oil Cooler Kit for FK8 holds both in check.

Will the Oil Cooler Kit for FK8 fit a car with Honda Sensing?

No. HKS states the kit does not fit vehicles equipped with Honda Sensing, because the radar hardware sits where the air duct runs. Honda Sensing is standard on the 2020 and 2021 US Civic Type R, so check the car before ordering. The 2017 through 2019 cars were built without the system.

Where does the oil cooler core mount?

In the right front fender area, behind the front bumper and clear of the radiator. HKS chose that position so the core draws clean air through its own duct rather than sharing the radiator opening, and so the front of the car looks standard once the bumper is refitted.

How long does installation take, and what has to be modified?

HKS estimates about four hours. The front bumper, the inner fender and the brake duct all need modification to route the air duct and the oil lines, so this is workshop work rather than a driveway job. Everything else bolts to existing points, and the hoses and fittings arrive preassembled with swivel ends that clock as the lines are routed.

Does the kit work with the factory fog lights?

Yes. HKS designed the duct and core placement around the factory fog lamp position, so cars fitted with fog lamps keep them. No lighting hardware is removed or relocated to make room for the Oil Cooler Kit for FK8, and the bumper returns to its original position once the core and ducting are in place.

What is included, and is an oil filter part of the kit?

The Oil Cooler Kit for FK8 ships with the S-Type core, the aluminum air guide, black mesh hoses and fittings, the filter mount, thermostat, pulsation insulator, mounting brackets and hardware, and an HKS oil filter. The filter mount carries a PT1/8 port for an oil temperature or pressure sender, which is not included.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS Black S-Type Oil Cooler Kit for FK8 Honda Civic Type R

HKS’s Black S-Type Oil Cooler Kit for FK8 Honda Civic Type R answers the limit owners meet first on a hot lap, which is oil temperature. HKS mounts a nine-row, 48mm S-Type core in the right front fender area, clear of the radiator, and feeds it through a dedicated aluminum air guide that sends fresh air straight into the matrix. A thermostat keeps oil out of the core until the engine is warm, so street driving is unaffected, and a floating mount with an insulator keeps oil pump pulsation out of the cabin. This is the black-hose revision of the kit, built with black mesh hose and black and silver swivel fittings that weigh less than the stainless steel mesh HKS used before, supplied preassembled so the angled ends can be clocked by hand as the lines are routed.

Development and Testing

HKS logged the kit at Fuji Speedway short course on 12 April 2018 in 22°C ambient air, running a standard FK8 against one fitted with the Oil Cooler Kit for FK8 over a sustained session. Oil temperature on the standard car climbed past 125°C and was still creeping upward at the end of the run; with the kit fitted it settled near 113°C and held there. Coolant temperature fell with it, from roughly 105°C to roughly 97°C, because pulling heat out of the oil takes load off the radiator as well.

Construction

The core is a nine-row S-Type unit, 48mm wide, packaged behind the bumper so the front of the car looks standard. Hoses are high pressure black mesh, terminated in black and silver swivel fittings that HKS supplies preassembled. The aluminum air guide is shaped to feed the core and to let air out cleanly behind it, which is what holds the temperature line flat over a long session rather than letting it drop away after one cool lap. An HKS oil filter and a filter mount with a PT1/8 sensor port complete the plumbing of the Oil Cooler Kit for FK8.

Features

Complete oil cooling system with core, air guide, hoses, filter and mounting hardware
Core mounted in the front fender area, clear of the radiator
Dedicated aluminum air guide feeds the core and clears air behind it
Black mesh hose weighs less than the stainless steel mesh it replaces
Black and silver swivel fittings, supplied preassembled and clockable during installation
Thermostat prevents overcooling on the street
Floating mount with insulator reduces oil pump pulsation noise
Compatible with the factory fog lamps
PT1/8 sensor port in the filter mount for an oil temperature or pressure sender
HKS oil filter included

Specifications

Core Type: S-Type air-cooled
Core Size: 200mm x 122.5mm x 48mm
Core Rows: 9
Core Location: Right front fender area
Hose Size: #10
Hose Weight: 250g/m black mesh, against 310g/m for stainless steel mesh
Thermostat: Opens at 70°C, fully open at 80°C
Engine Oil Capacity: 5.9 liters with the kit fitted
Estimated Installation Time: 4 hours

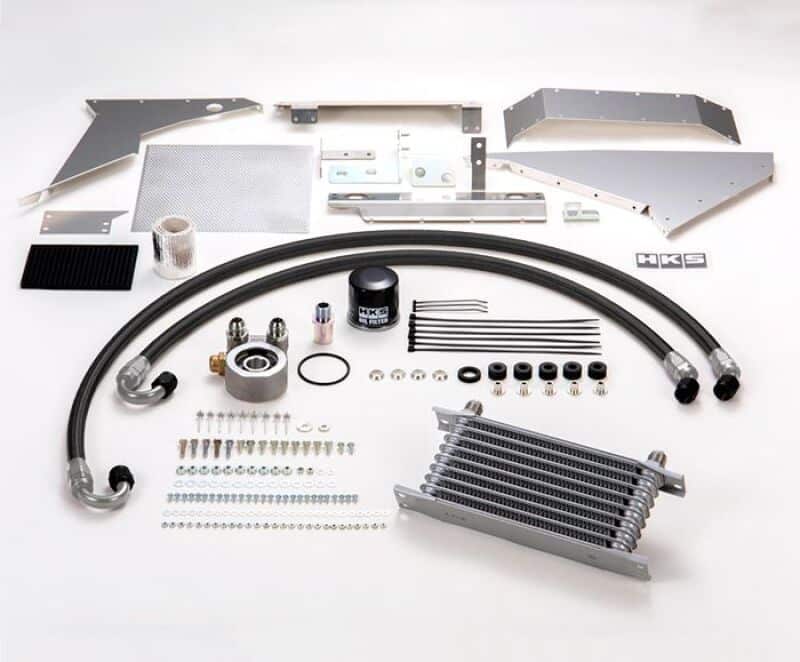

What’s Included

S-Type oil cooler core
Aluminum air guide
Black mesh hoses with fittings
Filter mount with sensor port
HKS oil filter
Thermostat
Pulsation insulator
Mounting brackets and hardware

Applications

Honda Civic Type R: FK8 | 2017-2021 | K20C1 2.0L I4 turbo

Notes

Does not fit vehicles equipped with Honda Sensing, which is standard on the 2020 and 2021 US Civic Type R
Installation requires modification to the front bumper, inner fender and brake duct
Engine oil capacity increases with the kit fitted, so fill to the figure given in Specifications rather than the factory capacity
A PT1/8 sensor port is provided in the filter mount; senders and gauges are sold separately

Frequently Asked Questions

Does the FK8 Civic Type R need an oil cooler for track use? On sustained track sessions, yes. HKS recorded oil temperature above 125°C on a standard FK8 at Fuji Speedway in 22°C ambient air, still climbing at the end of the run. The factory car carries no dedicated oil cooler, so heat leaves the oil through the coolant and raises water temperature with it. The Oil Cooler Kit for FK8 holds both in check.
Will the Oil Cooler Kit for FK8 fit a car with Honda Sensing? No. HKS states the kit does not fit vehicles equipped with Honda Sensing, because the radar hardware sits where the air duct runs. Honda Sensing is standard on the 2020 and 2021 US Civic Type R, so check the car before ordering. The 2017 through 2019 cars were built without the system.
Where does the oil cooler core mount? In the right front fender area, behind the front bumper and clear of the radiator. HKS chose that position so the core draws clean air through its own duct rather than sharing the radiator opening, and so the front of the car looks standard once the bumper is refitted.
How long does installation take, and what has to be modified? HKS estimates about four hours. The front bumper, the inner fender and the brake duct all need modification to route the air duct and the oil lines, so this is workshop work rather than a driveway job. Everything else bolts to existing points, and the hoses and fittings arrive preassembled with swivel ends that clock as the lines are routed.
Does the kit work with the factory fog lights? Yes. HKS designed the duct and core placement around the factory fog lamp position, so cars fitted with fog lamps keep them. No lighting hardware is removed or relocated to make room for the Oil Cooler Kit for FK8, and the bumper returns to its original position once the core and ducting are in place.
What is included, and is an oil filter part of the kit? The Oil Cooler Kit for FK8 ships with the S-Type core, the aluminum air guide, black mesh hoses and fittings, the filter mount, thermostat, pulsation insulator, mounting brackets and hardware, and an HKS oil filter. The filter mount carries a PT1/8 port for an oil temperature or pressure sender, which is not included.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
