Do the Pistons and Rods for G16E-GTS include a crankshaft or add displacement?

No. The HKS Pistons and Rods for G16E-GTS keep the factory 87.5mm bore and 89.7mm stroke, so displacement stays at 1,618cc. HKS sells its 1.75L capacity upgrade kits, with an 88.0mm bore and a 95.7mm stroke crankshaft, as separate products.

Can the pistons or rods be installed on their own?

Yes, but HKS does not recommend it. HKS states that the piston kit or the connecting rod set can be installed alone, but either combination causes vibration from imbalance. This kit supplies the BCD pistons, the STEP3 rods and the matching pins together.

What compression ratio does the kit produce?

With the factory cylinder head and the stock 0.69mm head gasket, HKS lists a compression ratio of 10.7. An HKS 0.8mm gasket gives 10.6 and an HKS 1.0mm gasket gives 10.3, so the gasket choice lets the builder set the ratio for the planned fuel and boost.

Does the block need machining?

No boring is needed. HKS states that boring and honing are not required at the factory 87.5mm bore, although honing is allowed to reach a piston clearance of 0.029 to 0.054mm. Each cylinder needs a small chamfer at the bottom edge of the bore.

Is a tune required after installation?

Yes. The new pistons change the crown shape and compression ratio of the G16E-GTS, so the engine management must be tuned by a qualified tuner. The kit includes no ECU or tune, and HKS specifies a break-in of about 620 to 1,860 miles. The HKS Pro Head Stud Kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS BCD HC-TT STEP3 Pistons and Rods for G16E-GTS Toyota GR Corolla

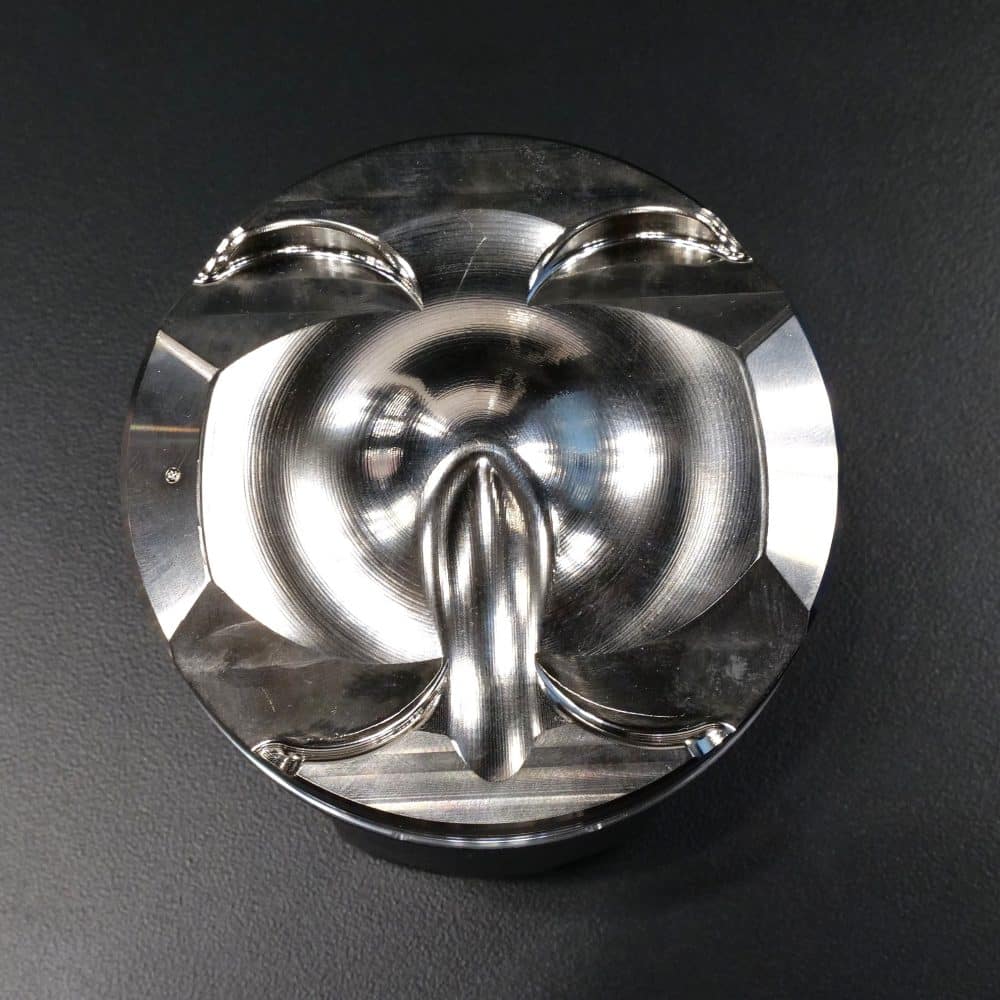

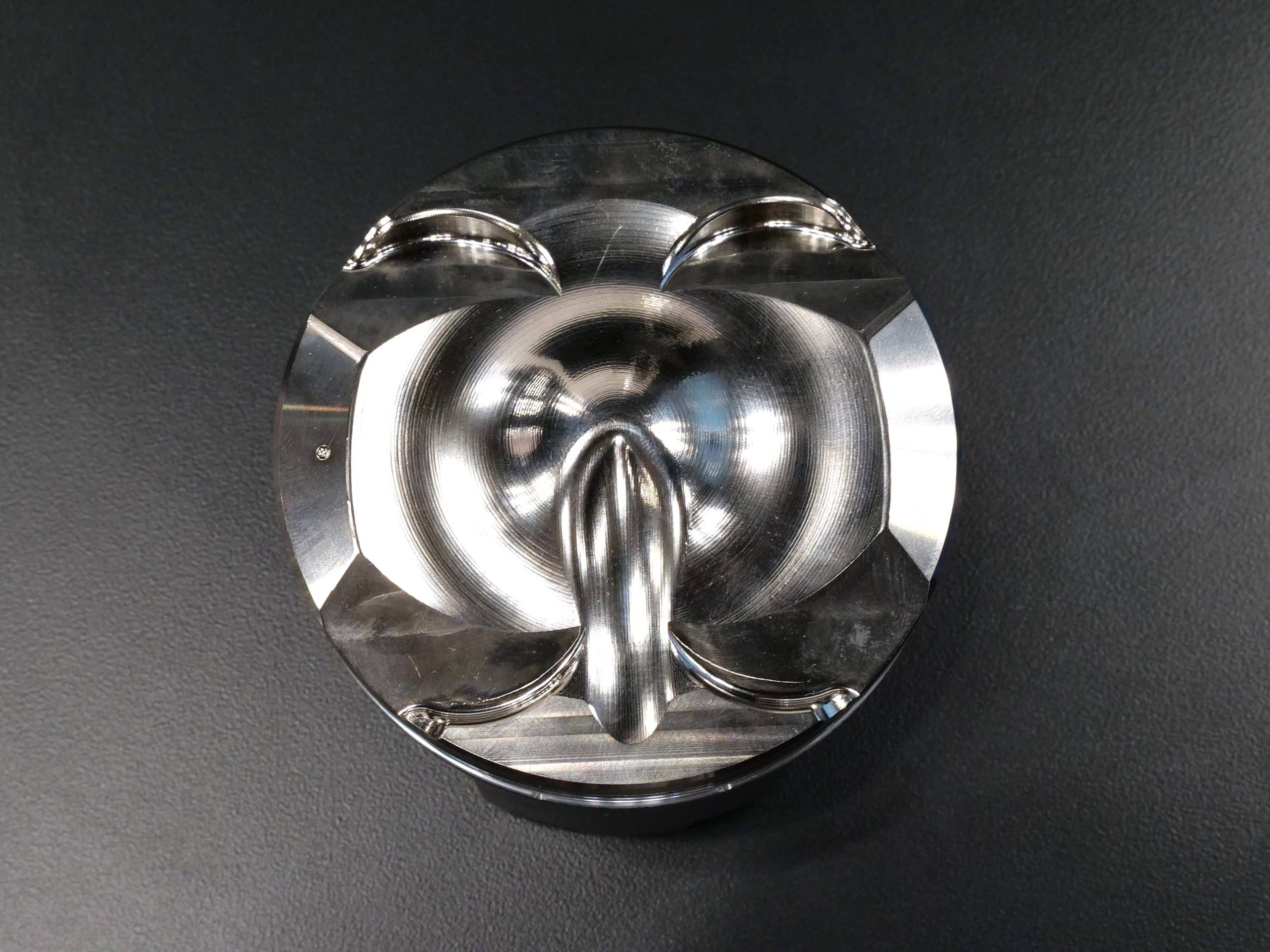

HKS’s BCD HC-TT STEP3 Pistons and Rods for G16E-GTS Toyota GR Corolla pair three billet BCD pistons with HKS I-beam connecting rods and matching pins for the three-cylinder engine in the GZEA14H GR Corolla, keeping the factory 87.5mm bore and 89.7mm stroke. The pistons are A2618 high-temperature alloy with a Triple Tumble crown for knock resistance, and HKS rates the machined nickel-chrome steel rods 25% stronger than stock. It suits an owner who wants stronger internals at the factory 1,618cc.

Development and Testing

HKS shaped the Triple Tumble crown so that, as the piston rises, a third tumble flow forms on the intake side and spreads the flame quickly near the edge of the chamber, where knock tends to start. That lets HKS run a slightly higher compression ratio than stock, and three oil jets carry cooling oil through the piston.

Features

Billet Bridge Concept Design pistons for rigidity with reduced weight
Nickel plating above the top ring groove, a two-layer anti-seizure coating and a titanium coated top ring
Shortened piston pin bosses and machined edges to remove heat spots
Machined nickel-chrome steel I-beam rods with WPC treatment for fatigue strength
Matching 24mm piston pins supplied with the set

Specifications

Bore: 87.5mm (factory size)
Stroke: 89.7mm (factory crankshaft)
Displacement: 1,618cc
Piston weight: 352g
Piston pin: 24mm diameter, 56mm long
Compression ratio: 10.7 on the factory 0.69mm gasket, 10.6 on the HKS 0.8mm gasket, 10.3 on the HKS 1.0mm gasket
Piston-to-wall clearance: 0.029 to 0.054mm

Applications

Toyota GR Corolla: GZEA14H | 2023-2025 | G16E-GTS

Notes

No crankshaft is included and displacement does not change
Professional installation by an experienced engine builder is required
Engine management tuning is required, and no ECU or tune is included
Boring and honing are not required, but HKS specifies a chamfer on the bottom edge of each cylinder
HKS states that the piston kit or rod set can be fitted alone, but either causes vibration from imbalance, which is why the Pistons and Rods for G16E-GTS are supplied together
HKS lists its 0.8mm and 1.0mm G16E head gaskets as 23002-AT003 and 23002-AT006
HKS developed the kit on a Japanese-market car and has not yet tested it in other markets
This part is intended for off-road or competition use where emissions laws apply, and the buyer is responsible for checking local regulations

Frequently Asked Questions

Do the Pistons and Rods for G16E-GTS include a crankshaft or add displacement? No. The HKS Pistons and Rods for G16E-GTS keep the factory 87.5mm bore and 89.7mm stroke, so displacement stays at 1,618cc. HKS sells its 1.75L capacity upgrade kits, with an 88.0mm bore and a 95.7mm stroke crankshaft, as separate products.
Can the pistons or rods be installed on their own? Yes, but HKS does not recommend it. HKS states that the piston kit or the connecting rod set can be installed alone, but either combination causes vibration from imbalance. This kit supplies the BCD pistons, the STEP3 rods and the matching pins together.
What compression ratio does the kit produce? With the factory cylinder head and the stock 0.69mm head gasket, HKS lists a compression ratio of 10.7. An HKS 0.8mm gasket gives 10.6 and an HKS 1.0mm gasket gives 10.3, so the gasket choice lets the builder set the ratio for the planned fuel and boost.
Does the block need machining? No boring is needed. HKS states that boring and honing are not required at the factory 87.5mm bore, although honing is allowed to reach a piston clearance of 0.029 to 0.054mm. Each cylinder needs a small chamfer at the bottom edge of the bore.
Is a tune required after installation? Yes. The new pistons change the crown shape and compression ratio of the G16E-GTS, so the engine management must be tuned by a qualified tuner. The kit includes no ECU or tune, and HKS specifies a break-in of about 620 to 1,860 miles. The HKS Pro Head Stud Kit is sold separately.
