Does the StealthBox intake for VA Subaru WRX models need a tune?

Yes. GrimmSpeed lists the StealthBox intake for VA Subaru WRX models as Tuning Required and not compatible with the factory tune or any off-the-shelf map. Plan on a custom tune at installation, both to keep the FA20DIT safe and to collect the gains GrimmSpeed measured.

How much power does the GrimmSpeed StealthBox add?

On a 2015 WRX retuned at matched boost and air-fuel ratios, GrimmSpeed recorded gains of 32 ft-lb at 3000 rpm and 21 whp at 5500 rpm, or 14.3 and 9.6 percent. That dyno read low, with a stock baseline of 174 whp, so gains matter more than peaks.

Can the intake be run without the heat shield?

No. GrimmSpeed chose not to sell the StealthBox without its heat shield, because the shield keeps engine bay heat off the filter and MAF sensor and channels air from the factory scoop. Running the tube alone would undo the design work behind the intake.

Is the StealthBox louder than the factory airbox?

Yes, under load. GrimmSpeed set out to make an intake that stays quiet during normal driving and becomes noticeably louder at wide open throttle, so the extra induction sound mainly appears when the turbo is working hard rather than at highway cruise.

Does the StealthBox keep the factory air scoop?

Yes. GrimmSpeed testing showed the factory ram air scoop feeds the filter with air that would otherwise sit stagnant in front of the fender, so the StealthBox heat shield is shaped to mate with that scoop and with the factory turbo inlet connection.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GrimmSpeed StealthBox Cold Air Intake for VA Subaru WRX

GrimmSpeed’s StealthBox cold air intake for VA Subaru WRX models runs a CNC-bent 6061 aluminum tube with a 1/8 inch wall and only 74 degrees of total bend from the fender-mounted filter to the FA20DIT turbo, with the MAF sensor sealed inside an angular heat shield modeled on the F-117 Nighthawk. It belongs on a WRX that already has, or is about to get, a custom tune: GrimmSpeed states it is not compatible with the factory calibration or any off-the-shelf map.

Development and Testing

GrimmSpeed modeled the intake path and fender area in 3D, balancing MAF diameter and placement, total bend angle, filter height and shield shape. Because the factory ram air scoop proved important, the shield follows its outline and promotes swirl to avoid dead air on the cold side. Six months of Minnesota winter and spring driving then confirmed the dyno results.

Features

MAF flange placed on the straight nearest the filter, where GrimmSpeed measured the most consistent flow
Thick aluminum wall adds thermal mass that damps rapid swings in engine bay temperature
Filter raised clear of road spray and tucked inside the fender
Heat shield laser cut, CNC bent and assembled by hand
Made in the USA

Specifications

Tube Material: 6061 aluminum, CNC bent and laser cut
Tube Wall Thickness: 1/8 inch
Total Bend Angle: 74 degrees
Mounting Brackets: 3/16 inch aluminum plate
MAF Harness Extension: 12 inch

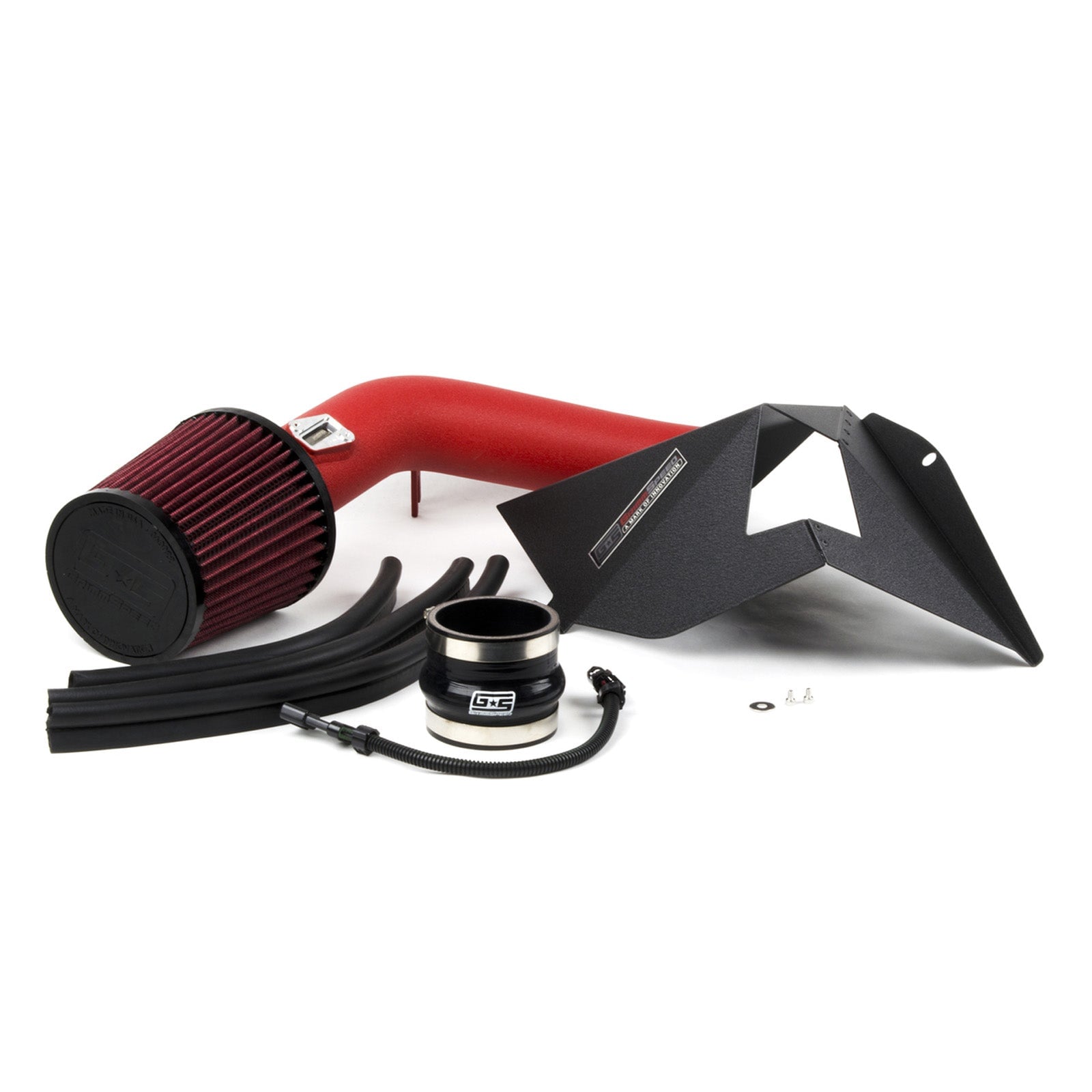

What’s Included

CNC bent intake tube with MAF flange
GrimmSpeed high-flow dry air filter
Aluminum heat shield
MAF harness extension (12 inch)
Silicone hump coupler
Stainless steel worm gear clamps (x3)
Rubber gasket material, cut to length (x3)
MAF sensor machine screws (x2)

Applications

Subaru WRX: VA | 2015-2021 | 2.0L FA20DIT

Notes

Tuning required: GrimmSpeed lists this intake for VA Subaru WRX models as not compatible with the factory tune or any off-the-shelf maps
Dyno figures come from a 2015 WRX retuned after installation at the same boost and air-fuel ratios as its baseline pull, on a dyno that read 174 whp for a stock car, so they are not bolt-on results
Also available as part of the GrimmSpeed Stage 1 Power Package for VA Subaru WRX

Frequently Asked Questions

Does the StealthBox intake for VA Subaru WRX models need a tune? Yes. GrimmSpeed lists the StealthBox intake for VA Subaru WRX models as Tuning Required and not compatible with the factory tune or any off-the-shelf map. Plan on a custom tune at installation, both to keep the FA20DIT safe and to collect the gains GrimmSpeed measured.
How much power does the GrimmSpeed StealthBox add? On a 2015 WRX retuned at matched boost and air-fuel ratios, GrimmSpeed recorded gains of 32 ft-lb at 3000 rpm and 21 whp at 5500 rpm, or 14.3 and 9.6 percent. That dyno read low, with a stock baseline of 174 whp, so gains matter more than peaks.
Can the intake be run without the heat shield? No. GrimmSpeed chose not to sell the StealthBox without its heat shield, because the shield keeps engine bay heat off the filter and MAF sensor and channels air from the factory scoop. Running the tube alone would undo the design work behind the intake.
Is the StealthBox louder than the factory airbox? Yes, under load. GrimmSpeed set out to make an intake that stays quiet during normal driving and becomes noticeably louder at wide open throttle, so the extra induction sound mainly appears when the turbo is working hard rather than at highway cruise.
Does the StealthBox keep the factory air scoop? Yes. GrimmSpeed testing showed the factory ram air scoop feeds the filter with air that would otherwise sit stagnant in front of the fender, so the StealthBox heat shield is shaped to mate with that scoop and with the factory turbo inlet connection.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
