Does the GrimmSpeed intake require a tune on a Legacy GT?

Yes. GrimmSpeed marks this intake Tuning Required and states that it is not compatible with the factory tune or any off-the-shelf maps. GrimmSpeed designed it to be as predictable to tune as the factory airbox and recommends a professional tune, so arrange the tune before you drive the vehicle hard.

Does the Cold Air Intake for BL / BP Legacy GT models also fit the Outback XT?

Yes. GrimmSpeed lists the Cold Air Intake for BL / BP vehicles on the 2005-2009 Legacy GT sedan and wagon and on the 2005-2009 Outback XT. It does not cover the non-turbo Legacy or Outback, or the 2010 and later Legacy GT.

Is the factory MAF sensor reused?

Yes. The kit does not include a MAF sensor. The factory sensor fastens to the CNC-machined 6061 flange on the GrimmSpeed tube with the two supplied screws, and GrimmSpeed sized the tube and straightener around it so the airflow readings stay consistent for the tuner.

Can water reach the filter in heavy rain?

GrimmSpeed made filter height one of its design requirements, placing the filter far enough from the ground that water and hydrolock are not a concern in normal driving. The sealed shield also keeps spray off the filter, though deep standing water remains a risk for any vehicle.

How long does installation take?

GrimmSpeed quotes about 30 minutes using its written and video guides. The job involves removing the factory airbox, moving the MAF sensor to the new tube, fitting the heat shield with its sealing strip and connecting the hump hose to the turbo inlet.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

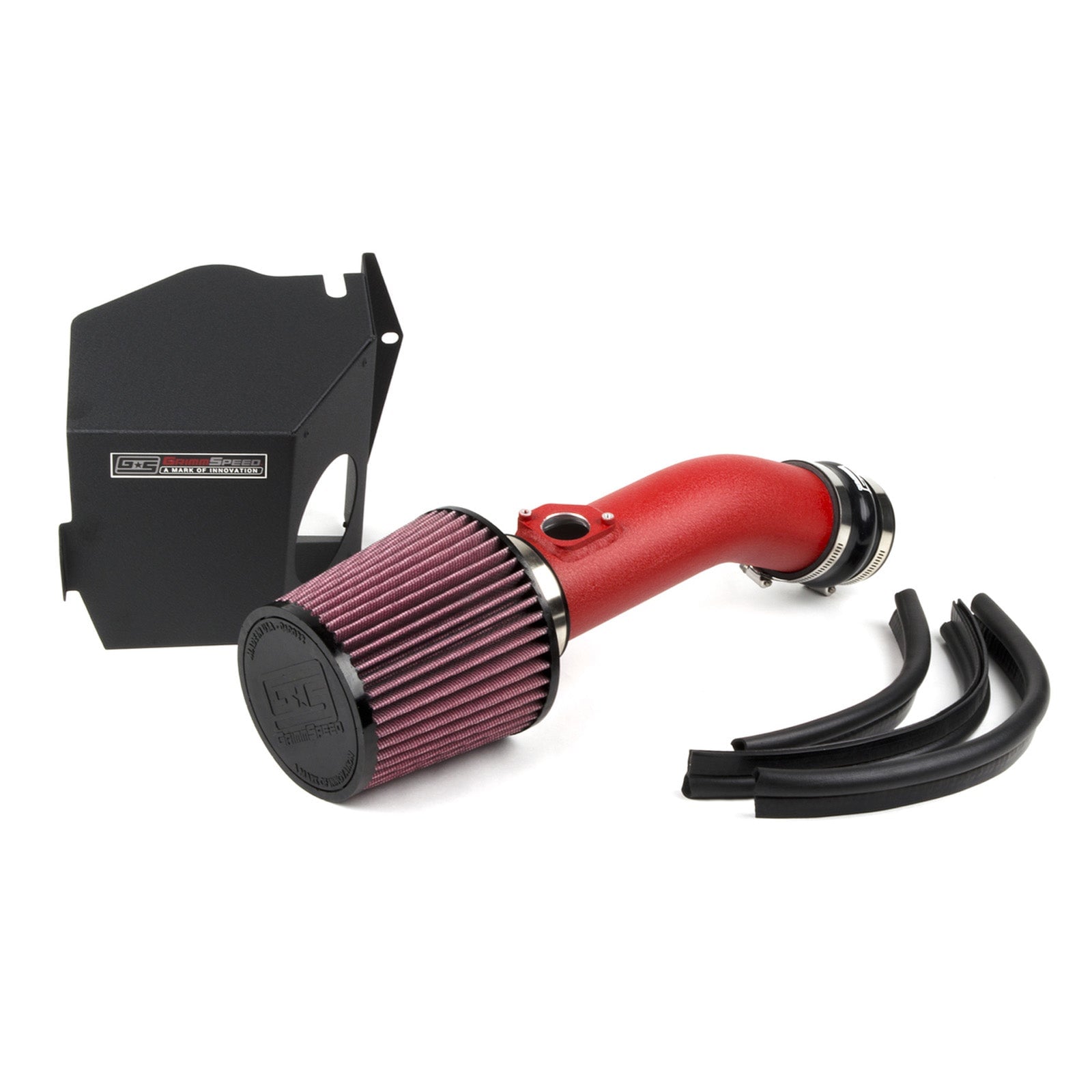

GrimmSpeed Cold Air Intake for BL / BP Subaru Legacy GT and Outback XT

GrimmSpeed’s Cold Air Intake for BL / BP Subaru Legacy GT and Outback XT replaces the factory airbox on the 2005-2009 2.5L EJ255 with a TIG-welded aluminum tube, a CNC-machined 6061 MAF flange and a riveted aluminum heat shield, in black or red. GrimmSpeed calls it a hybrid of cold air and short ram designs, with the filter behind a sealed shield and a short tube. It is not compatible with the factory calibration, so it suits a Legacy GT or Outback XT with a protune booked.

Engineering

Inside the heat shield, GrimmSpeed shaped the geometry so incoming air does not collect in sharp corners and reaches the filter evenly. That uniform loading helps MAF accuracy, lowers filter restriction and stretches the time between cleanings. The tube is bent specifically for this application to give the MAF diameter the design calls for, and the straightener is tumbled before the assembly is TIG welded, powdercoated, inspected and cleaned.

Features

Riveted aluminum heat shield seals the induction area from engine bay heat
MAF flanges CNC machined from 6061 aluminum
Air straightener dimensioned like the factory piece for consistent MAF readings
Filter kept high enough that GrimmSpeed rules out water and hydrolock in its design brief
Reusable high-flow dry filter with an integrated velocity stack
Made in the USA; GrimmSpeed quotes a 30-minute install

What’s Included

Intake tube
High-flow dry filter
Hump hose connector
Heat shield assembly
Hose clamps (x3)
MAF flange screws (x2)
Precut rubber sealing strips (x3)
MAF wire grommet

Applications

Subaru Legacy GT: BL / BP | 2005-2009 | 2.5L EJ255
Subaru Outback XT: BP | 2005-2009 | 2.5L EJ255

Notes

Tuning is required: GrimmSpeed lists this intake as not compatible with the factory tune or off-the-shelf maps and recommends a professional tune
The factory MAF sensor is reused and transfers to the GrimmSpeed tube
GrimmSpeed ran its published dyno comparison for this intake design on a tuned 2012 WRX, so no power figure is quoted for the Cold Air Intake for BL / BP vehicles
Also available as part of the GrimmSpeed Stage 1 Power Package for BL / BP Subaru Legacy GT and Outback XT

Frequently Asked Questions

Does the GrimmSpeed intake require a tune on a Legacy GT? Yes. GrimmSpeed marks this intake Tuning Required and states that it is not compatible with the factory tune or any off-the-shelf maps. GrimmSpeed designed it to be as predictable to tune as the factory airbox and recommends a professional tune, so arrange the tune before you drive the vehicle hard.
Does the Cold Air Intake for BL / BP Legacy GT models also fit the Outback XT? Yes. GrimmSpeed lists the Cold Air Intake for BL / BP vehicles on the 2005-2009 Legacy GT sedan and wagon and on the 2005-2009 Outback XT. It does not cover the non-turbo Legacy or Outback, or the 2010 and later Legacy GT.
Is the factory MAF sensor reused? Yes. The kit does not include a MAF sensor. The factory sensor fastens to the CNC-machined 6061 flange on the GrimmSpeed tube with the two supplied screws, and GrimmSpeed sized the tube and straightener around it so the airflow readings stay consistent for the tuner.
Can water reach the filter in heavy rain? GrimmSpeed made filter height one of its design requirements, placing the filter far enough from the ground that water and hydrolock are not a concern in normal driving. The sealed shield also keeps spray off the filter, though deep standing water remains a risk for any vehicle.
How long does installation take? GrimmSpeed quotes about 30 minutes using its written and video guides. The job involves removing the factory airbox, moving the MAF sensor to the new tube, fitting the heat shield with its sealing strip and connecting the hump hose to the turbo inlet.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
