Does the Silver TMIC for BT Subaru Outback need a tune on the Outback XT?

No. COBB states that no tuning changes are required, and the Silver TMIC for BT Subaru Outback runs safely on the stock Subaru calibration. If an Accessport with a COBB map or a custom tune is added later, the same intercooler stays in place and keeps supplying cooler charge air.

Which Subaru Outback models does it fit?

It fits the 2020 to 2025 Outback XT and the 2022 to 2025 Outback Wilderness with the 2.4 liter turbocharged engine and CVT, US market only. Non-turbo Outback models have no intercooler, so they are not compatible with this part.

Is it legal to install in California?

Yes. This intercooler carries California Air Resources Board Executive Order numbers, including D-660-119 and D-660-252, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide for the listed models.

Why choose a top mount instead of a front mount intercooler?

A front mount usually offers more total cooling capacity, but the longer piping adds volume between turbo and throttle body and slows response. The top mount keeps the short factory path, so response stays crisp while the Garrett core lowers charge temperatures.

How does the silver version differ from the black one?

They are the same COBB design, with the same Garrett core, Thrust Tunnel, couplers, fitment list and CARB Executive Orders. Only the finish differs. Choose silver for a bright look under the hood scoop, or black for a darker, lower key engine bay.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Silver TMIC for BT Subaru Outback

COBB Tuning’s Silver TMIC for BT Subaru Outback replaces the factory top mount intercooler on the turbocharged Outback with a 20 x 7 x 4 in Garrett core fed by cast aluminum end tanks, and COBB rates its airflow 30% above the stock intercooler. It keeps the charge path short, so the Outback XT and Wilderness hold their quick throttle response while intake temperatures stay lower on long grades and repeated pulls. Because it runs safely on the stock Subaru calibration and carries CARB Executive Orders, it is a sensible first cooling upgrade for an owner who tows, climbs or simply drives hard in summer heat.

Design and Fitment

The core sits where the original intercooler lives, on top of the engine under the hood scoop. On the inlet side the Silver TMIC for BT Subaru Outback reuses the factory charge pipe and its o-ring seal, and on the outlet the stock o-ring seals over the throttle body inlet, so nothing in the intake tract has to be cut or re-routed. Reinforced silicone couplers come in the box to finish the connections from turbocharger to throttle body.

Features

Garrett bar-and-plate style core measuring 20 x 7 x 4 in
Cast aluminum end tanks shaped to guide charge air evenly through the core
Rated by COBB at a 30% airflow increase over the stock intercooler
COBB Thrust Tunnel in wrinkle black powder coated aluminum that mates to the factory hood ducting
Direct replacement for the OEM intercooler using factory mounting and seals
Compatible with the stock tune; no calibration change required
Silver finish, made in the USA

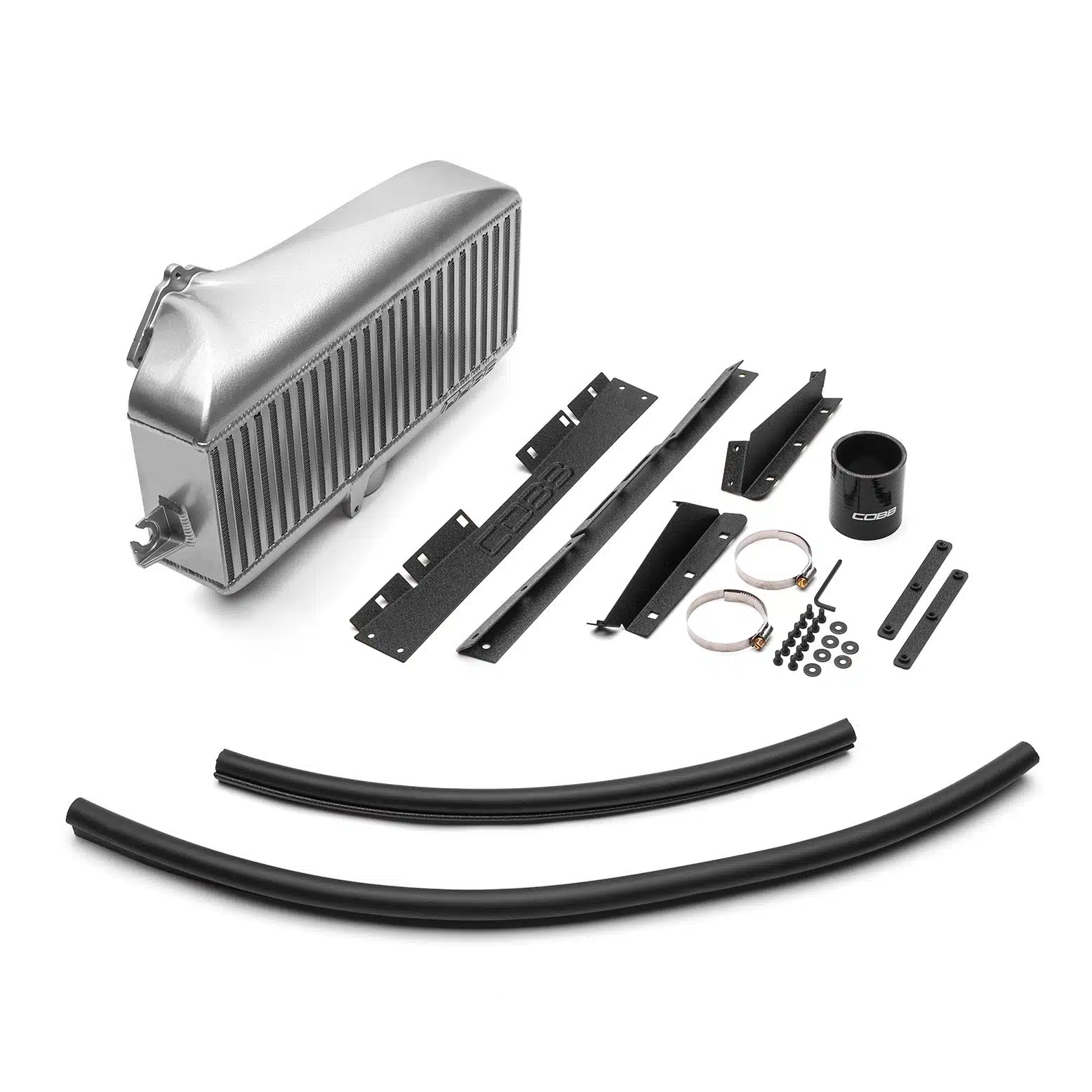

What’s Included

Silver top mount intercooler with cast aluminum end tanks
COBB Thrust Tunnel
Reinforced silicone couplers

Applications

Subaru Outback: BT | 2020-2025 | XT, 2.4L turbo, CVT, USDM
Subaru Outback Wilderness: BT | 2022-2025 | 2.4L turbo, CVT, USDM

Notes

50-state legal with CARB EO D-660-119, D-660-154, D-660-155, D-660-156 and D-660-252
No Accessport or tune is included, and none is required to run this intercooler
Fits USDM CVT models only
The factory charge pipe and o-ring seals are reused and are not supplied

Frequently Asked Questions

Does the Silver TMIC for BT Subaru Outback need a tune on the Outback XT? No. COBB states that no tuning changes are required, and the Silver TMIC for BT Subaru Outback runs safely on the stock Subaru calibration. If an Accessport with a COBB map or a custom tune is added later, the same intercooler stays in place and keeps supplying cooler charge air.
Which Subaru Outback models does it fit? It fits the 2020 to 2025 Outback XT and the 2022 to 2025 Outback Wilderness with the 2.4 liter turbocharged engine and CVT, US market only. Non-turbo Outback models have no intercooler, so they are not compatible with this part.
Is it legal to install in California? Yes. This intercooler carries California Air Resources Board Executive Order numbers, including D-660-119 and D-660-252, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide for the listed models.
Why choose a top mount instead of a front mount intercooler? A front mount usually offers more total cooling capacity, but the longer piping adds volume between turbo and throttle body and slows response. The top mount keeps the short factory path, so response stays crisp while the Garrett core lowers charge temperatures.
How does the silver version differ from the black one? They are the same COBB design, with the same Garrett core, Thrust Tunnel, couplers, fitment list and CARB Executive Orders. Only the finish differs. Choose silver for a bright look under the hood scoop, or black for a darker, lower key engine bay.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
