Does the GrimmSpeed 2-bolt EJ25 up-pipe need a tune?

No. GrimmSpeed lists the 2-bolt EJ25 up-pipe as requiring no tune. It bolts to the OEM-style 2-bolt header and the turbo using the supplied Fire Ring gaskets, turbo studs and yellow zinc hardware, so the vehicle can be driven on its existing calibration once the installation is complete.

Is the GrimmSpeed up-pipe legal in California?

Yes. GrimmSpeed states that California Air Resources Board Executive Order D-896 covers this up-pipe for every listed fitment, from the 2004 to 2021 STI to the 2007 to 2009 Legacy GT and Outback XT. It is also SEMA Certified under SC-GRM01-0145.

Will this up-pipe fit a 2004 Forester XT or a 2005 WRX?

No. GrimmSpeed designed this up-pipe for USDM EJ25 engines with an OEM-style 2-bolt header. The listed Forester XT fitment starts with the 2006 model year, and the 2002 to 2005 WRX uses the 2.0L EJ205, so neither is covered. The STI is covered from 2004 through 2021.

Should I choose raw stainless or the black ceramic coated up-pipe?

Both share the same 14 gauge 304 stainless pipe, flanges and flex joint. The black ceramic thermal coating adds heat control, which GrimmSpeed says lowers engine bay temperatures and helps prevent heat soak, and it gives a darker look under the hood. The raw stainless version costs less.

What hardware comes with the up-pipe?

Each up-pipe ships with an up-pipe to turbo gasket, a lower up-pipe gasket, five M10 turbo mounting studs, five JIS flange nuts, two 40mm bolts, two serrated flange nuts, two washers and a GrimmSpeed sticker. Nothing else is needed for installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

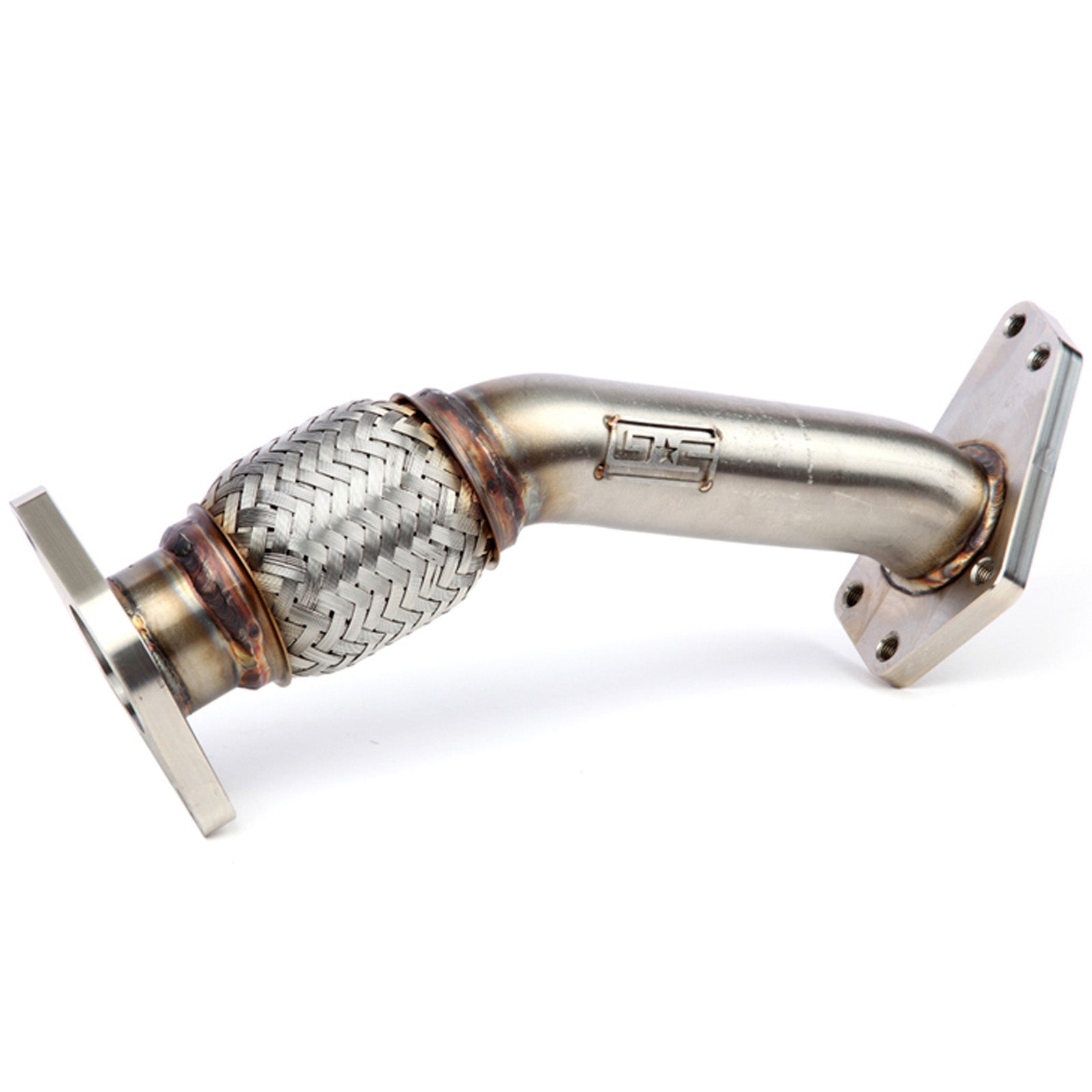

GrimmSpeed 2-Bolt EJ25 Up-Pipe for GD / GR / GV / VA Subaru STI and GD / GR / GV WRX

GrimmSpeed’s 2-bolt EJ25 up-pipe is a CARB EO certified, no-tune upgrade for USDM EJ25 vehicles that run the OEM-style 2-bolt header, from the 2004-2021 STI to the 2006-2014 WRX. It is mandrel bent from 14 gauge 304 stainless, with CNC-milled 1/2 in flanges and a 321 stainless flex joint, and GrimmSpeed quotes roughly 300 to 400 rpm quicker spool. For a street EJ owner wanting sharper response with a CARB EO behind it, few early upgrades make more sense.

Design and Construction

GrimmSpeed developed the pipe in-house with a FARO Arm and SolidWorks CAD, so it lines up exactly with the OEM header. Certified welders hand-weld each pipe inside and outside the flange, and the pipe-to-flange joint is ported flush. The black ceramic thermal coating adds heat control, lowering engine bay temperatures and helping against heat soak.

Features

CNC mandrel bent 14 gauge 304 stainless tubing
CNC-milled 1/2 in 304 stainless flanges for accurate sealing
321 stainless tuned-bellow flex joint with interlocking liner
GrimmSpeed Fire Ring multi-layer steel gaskets included
Yellow zinc coated hardware and turbo studs included
Raw stainless or black ceramic thermal coated finish
No tune required

What’s Included

GrimmSpeed 2-Bolt EJ Up-Pipe (x1)
GrimmSpeed up-pipe to turbo gasket (x1)
GrimmSpeed lower up-pipe gasket (x1)
M10x1.25 turbo mounting studs (x5)
M10x1.25 yellow zinc JIS flange nuts (x5)
M10x1.25x40mm yellow zinc bolts (x2)
M10x1.25 serrated flange nuts and M10 washers (x2 each)
GrimmSpeed sticker (x1)

Applications

Subaru Forester XT: SG / SH | 2006-2013 | 2.5L EJ255
Subaru Legacy GT: BL / BP | 2007-2009 | 2.5L EJ255
Subaru Outback XT: BP | 2007-2009 | 2.5L EJ255
Subaru WRX: GD / GR / GV | 2006-2014 | 2.5L EJ255
Subaru WRX STI: GD / GR / GV / VA | 2004-2021 | 2.5L EJ257

Notes

CARB Executive Order D-896 and SEMA Certification SC-GRM01-0145 cover the listed fitments
Fits USDM EJ25 engines with the OEM-style 2-bolt header only; the 2002-2005 WRX is not a listed fitment
GrimmSpeed does not publish the test vehicle behind its spool figure
The black 2-bolt EJ25 up-pipe is also sold with the GrimmSpeed Unequal Length EJ Header in the GrimmSpeed Header and Up-Pipe Package

Frequently Asked Questions

Does the GrimmSpeed 2-bolt EJ25 up-pipe need a tune? No. GrimmSpeed lists the 2-bolt EJ25 up-pipe as requiring no tune. It bolts to the OEM-style 2-bolt header and the turbo using the supplied Fire Ring gaskets, turbo studs and yellow zinc hardware, so the vehicle can be driven on its existing calibration once the installation is complete.
Is the GrimmSpeed up-pipe legal in California? Yes. GrimmSpeed states that California Air Resources Board Executive Order D-896 covers this up-pipe for every listed fitment, from the 2004 to 2021 STI to the 2007 to 2009 Legacy GT and Outback XT. It is also SEMA Certified under SC-GRM01-0145.
Will this up-pipe fit a 2004 Forester XT or a 2005 WRX? No. GrimmSpeed designed this up-pipe for USDM EJ25 engines with an OEM-style 2-bolt header. The listed Forester XT fitment starts with the 2006 model year, and the 2002 to 2005 WRX uses the 2.0L EJ205, so neither is covered. The STI is covered from 2004 through 2021.
Should I choose raw stainless or the black ceramic coated up-pipe? Both share the same 14 gauge 304 stainless pipe, flanges and flex joint. The black ceramic thermal coating adds heat control, which GrimmSpeed says lowers engine bay temperatures and helps prevent heat soak, and it gives a darker look under the hood. The raw stainless version costs less.
What hardware comes with the up-pipe? Each up-pipe ships with an up-pipe to turbo gasket, a lower up-pipe gasket, five M10 turbo mounting studs, five JIS flange nuts, two 40mm bolts, two serrated flange nuts, two washers and a GrimmSpeed sticker. Nothing else is needed for installation.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
