Which Corvette is the GiroDisc ZR1 Rear Iron Rotor Conversion for?

GiroDisc lists the GiroDisc ZR1 Rear Iron Rotor Conversion for the C6 generation Corvette ZR1. It replaces the factory rear discs with a two-piece iron and aluminum assembly, sold as a pair, and is matched by a separate GiroDisc front iron conversion for the same car.

Does the ZR1 keep its factory brake bias and ABS?

Yes. Because GiroDisc upgrades the brakes with lightweight replacement discs instead of a big brake kit, the factory brake bias is maintained and the ABS keeps working as designed. The rotors bolt directly to the car and use the original calipers.

How many drive pins hold the ZR1 rear ring?

Twelve high-strength alloy steel drive pins, made by GiroDisc to its own specification and cadmium plated against corrosion. They take the braking load while allowing axial and radial float between the hat and the disc, and class 12.9 cap screws secure them.

What needs replacing after the conversion is fitted?

Only the cast iron rings, when they wear to the minimum thickness marked on the hat and ring edge or develop a crack to the edge. The replacement part for the rear is GiroDisc D2-184, sold as a pair with hardware for the existing hats.

Why choose replacement discs over a big brake kit on a ZR1?

A big brake kit changes calipers and often the brake balance. GiroDisc instead replaces only the discs with lighter two-piece assemblies, so the ZR1 keeps its factory calipers, bias and ABS behavior while gaining a disc that is serviced by changing the iron rings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

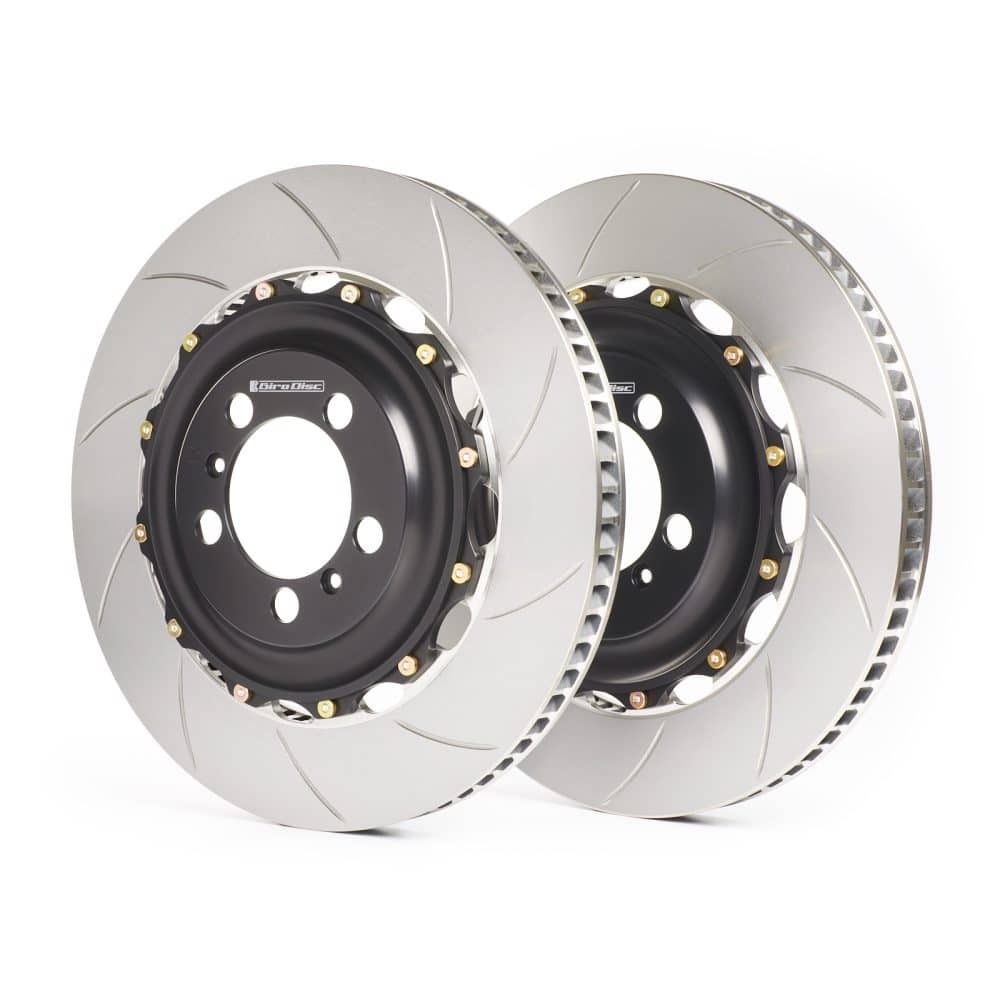

GiroDisc ZR1 Rear Iron Rotor Conversion for C6 Chevrolet Corvette

GiroDisc’s ZR1 Rear Iron Rotor Conversion lets a C6 Corvette ZR1 run two-piece iron discs at the rear in place of the factory parts. The aluminum hat is 6061-T6 aircraft-specification alloy, the curved vane disc is cast iron, and twelve alloy steel drive pins join the two. GiroDisc positions it as the alternative to a big brake kit: lighter replacement discs that keep the factory brake bias and ABS working as Chevrolet calibrated them. That makes it a natural fit for a ZR1 owner who is moving the car onto track duty.

Bolt-On and Go

No modifications are needed. The rotors bolt directly to the car and work with the factory calipers, and once the system is in place only the cast iron ring is replaced when it wears. Class 12.9 cap screws with hardened washers secure the drive pins.

Features

Twelve cadmium-plated high-strength alloy steel drive pins
Class 12.9 cap screws with hardened washers
Anti-noise spring washers that stop cold rattle
Curved vane iron disc that pumps cooling air through
6061-T6 aircraft-specification aluminum hat
Factory brake bias and ABS retained

What’s Included

Rear rotor assemblies (L/R)

Applications

Chevrolet Corvette ZR1: C6 | 6.2L supercharged LS9 V8

Notes

The GiroDisc ZR1 Rear Iron Rotor Conversion is sold and priced as a pair for the rear axle
Worn rings are renewed with the GiroDisc C6 ZR1 rear replacement rings
At the front, the GiroDisc C6 ZR1 and C7 Z07 front iron rotor conversion completes the car
Stock photography may not depict the actual product

Frequently Asked Questions

Which Corvette is the GiroDisc ZR1 Rear Iron Rotor Conversion for? GiroDisc lists the GiroDisc ZR1 Rear Iron Rotor Conversion for the C6 generation Corvette ZR1. It replaces the factory rear discs with a two-piece iron and aluminum assembly, sold as a pair, and is matched by a separate GiroDisc front iron conversion for the same car.
Does the ZR1 keep its factory brake bias and ABS? Yes. Because GiroDisc upgrades the brakes with lightweight replacement discs instead of a big brake kit, the factory brake bias is maintained and the ABS keeps working as designed. The rotors bolt directly to the car and use the original calipers.
How many drive pins hold the ZR1 rear ring? Twelve high-strength alloy steel drive pins, made by GiroDisc to its own specification and cadmium plated against corrosion. They take the braking load while allowing axial and radial float between the hat and the disc, and class 12.9 cap screws secure them.
What needs replacing after the conversion is fitted? Only the cast iron rings, when they wear to the minimum thickness marked on the hat and ring edge or develop a crack to the edge. The replacement part for the rear is GiroDisc D2-184, sold as a pair with hardware for the existing hats.
Why choose replacement discs over a big brake kit on a ZR1? A big brake kit changes calipers and often the brake balance. GiroDisc instead replaces only the discs with lighter two-piece assemblies, so the ZR1 keeps its factory calipers, bias and ABS behavior while gaining a disc that is serviced by changing the iron rings.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
