Which hats do the GiroDisc Rear Replacement Rings for C6 fit?

The GiroDisc Rear Replacement Rings for C6 fit only the hats of the GiroDisc A2-184 rear iron rotor conversion for the C6 Corvette ZR1. They are not designed for factory rotors or for hats from other brands, so the GiroDisc conversion must already be installed.

Do I need new drive pins for the ZR1 rear rings?

No separate purchase is needed. Each pair of rings comes with new cadmium-plated drive pins, class 12.9 cap screws with hardened washers and anti-noise spring washers. The only parts reused from the worn assemblies are the GiroDisc aluminum hats themselves.

How do I tell when the ZR1 rear rings are worn out?

Measure the rings against the minimum thickness that GiroDisc marks on the hat and on the ring edge. Replace the pair at that figure, or straight away if a crack runs from the friction face to the outer edge of either ring.

Can these rings be fitted to the factory ZR1 rear discs?

No. These rings are machined to bolt to GiroDisc hats only. The factory ZR1 rear discs are not compatible, and GiroDisc states its rings are not designed for other brands or factory two-piece hats, so the A2-184 conversion is the starting point.

Which rings are used at the front of a converted ZR1?

The front of a C6 ZR1 on GiroDisc iron uses the A1-145 front iron rotor conversion, and its replacement rings are GiroDisc D1-145, a 394mm pair. Renewing front and rear rings at the same service keeps all four corners on fresh iron.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GiroDisc Rear Replacement Rings for C6 Chevrolet Corvette ZR1

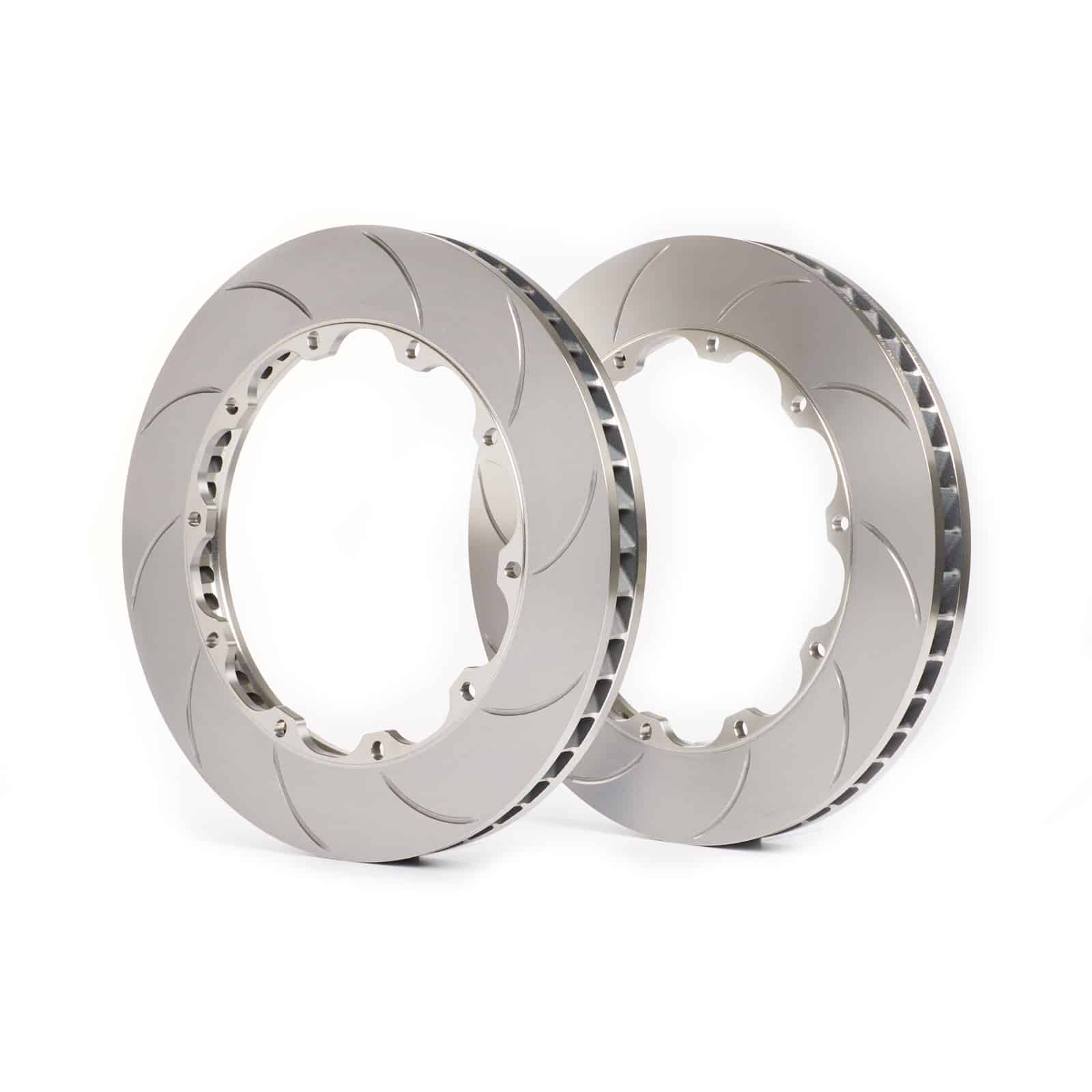

GiroDisc’s Rear Replacement Rings for C6 Corvette ZR1 cars running the GiroDisc rear iron rotor conversion bring the rear discs back to new without replacing the hats. The rings are cast iron with a curved vane core, machined by GiroDisc and supplied as a pair with replacement hardware. They mount to the existing aluminum hats on the twelve-pin floating system. A ZR1 that sees regular track days will wear through rear iron in time, and this is the part that keeps the conversion going for season after season.

Fitment and Installation

The worn rings come off the GiroDisc hats and the new pair goes on with the supplied drive pins, cap screws and anti-noise spring washers. Cap screws are torqued to 60 in-lb, or 7 Nm, at most, so the ring keeps its float. Match each labeled ring to its side.

Features

Cast iron rings with a curved vane core
Mount on the twelve-pin GiroDisc floating system
New cadmium-plated alloy steel drive pins included
Class 12.9 cap screws with hardened washers
Anti-noise spring washers for quiet running when cold

What’s Included

Rear replacement rings (L/R)
Replacement mounting hardware

Applications

Chevrolet Corvette ZR1: C6 | 6.2L supercharged LS9 V8

Notes

The GiroDisc Rear Replacement Rings for C6 fit only the hats of the GiroDisc C6 ZR1 rear iron rotor conversion; hats are not included
The front conversion takes the GiroDisc 394mm front replacement rings
Factory carbon ceramic discs and other brands are not compatible
Stock photography may not depict the actual product

Frequently Asked Questions

Which hats do the GiroDisc Rear Replacement Rings for C6 fit? The GiroDisc Rear Replacement Rings for C6 fit only the hats of the GiroDisc A2-184 rear iron rotor conversion for the C6 Corvette ZR1. They are not designed for factory rotors or for hats from other brands, so the GiroDisc conversion must already be installed.
Do I need new drive pins for the ZR1 rear rings? No separate purchase is needed. Each pair of rings comes with new cadmium-plated drive pins, class 12.9 cap screws with hardened washers and anti-noise spring washers. The only parts reused from the worn assemblies are the GiroDisc aluminum hats themselves.
How do I tell when the ZR1 rear rings are worn out? Measure the rings against the minimum thickness that GiroDisc marks on the hat and on the ring edge. Replace the pair at that figure, or straight away if a crack runs from the friction face to the outer edge of either ring.
Can these rings be fitted to the factory ZR1 rear discs? No. These rings are machined to bolt to GiroDisc hats only. The factory ZR1 rear discs are not compatible, and GiroDisc states its rings are not designed for other brands or factory two-piece hats, so the A2-184 conversion is the starting point.
Which rings are used at the front of a converted ZR1? The front of a C6 ZR1 on GiroDisc iron uses the A1-145 front iron rotor conversion, and its replacement rings are GiroDisc D1-145, a 394mm pair. Renewing front and rear rings at the same service keeps all four corners on fresh iron.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
