Do the GiroDisc Rear Rotors for NC1 need any modification to fit?

No. GiroDisc lists the GiroDisc Rear Rotors for NC1 as a direct replacement for the factory disc. They bolt straight to the hub and work with the original rear calipers, so no spacers, brackets or machining are involved in the installation.

Why keep the factory calipers instead of fitting a big brake kit on the rear?

Upgrading only the discs keeps the brake bias Acura engineered into the NSX and preserves ABS efficiency. A lighter two-piece rotor also trims rotating and unsprung mass, which GiroDisc says helps acceleration and suspension response without upsetting the factory balance.

What are the NSX rear rings made from?

The rings are cast from GiroDisc proprietary iron, poured in the USA and machined from start to finish in-house. They float on a hat machined from strictly US-sourced 6061-T6 aircraft-specification aluminum, joined by cadmium-plated drive pins that GiroDisc makes itself.

How is the floating rear rotor kept quiet on cold mornings?

Anti-noise spring washers sit on the rotor side of each drive pin. They let the ring grow as it heats while removing the rattle that floating rotors can make when cold, so the NSX stays refined on the street as well as on track.

Which part number renews the NSX rear rings later on?

GiroDisc sells the NSX rear replacement rings as part number D2-174, packed in pairs with new hardware. The aluminum hats from these rotors are reused, so only the iron is replaced when it reaches minimum thickness or develops a crack that runs to the edge.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

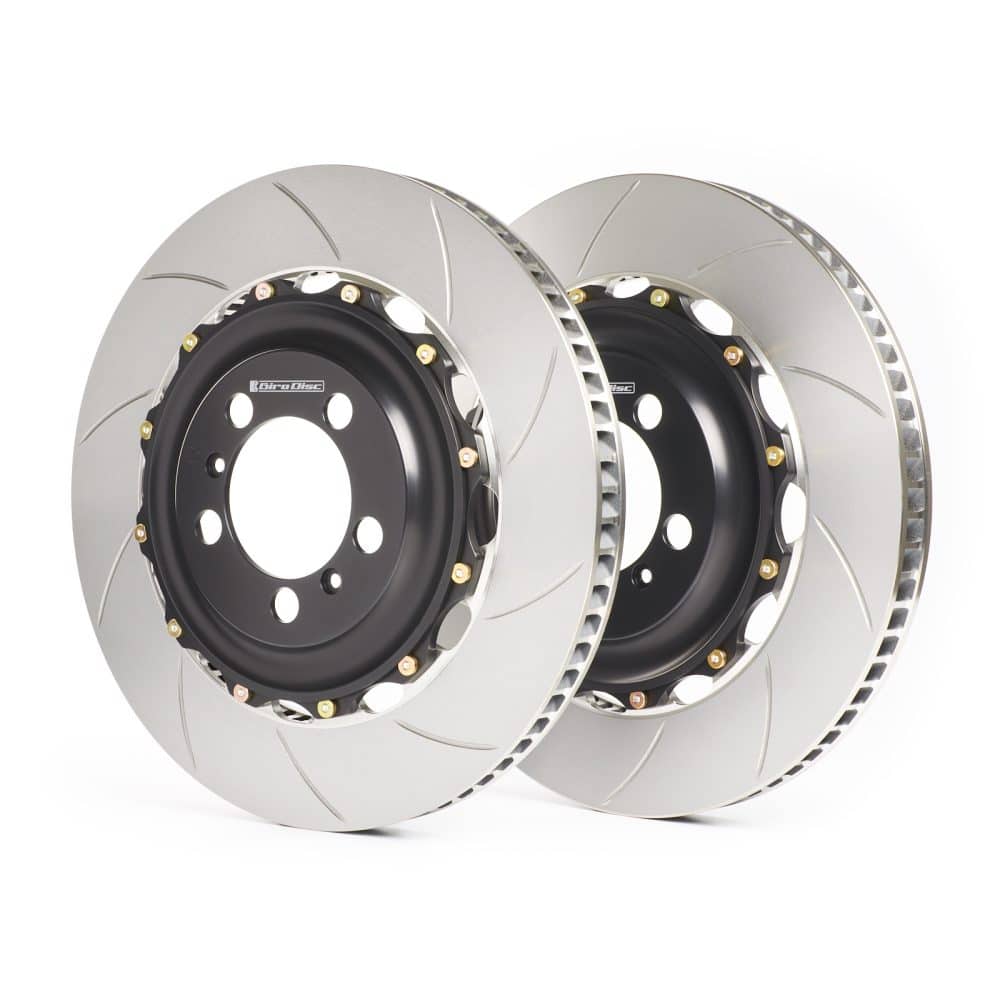

GiroDisc Rear Rotors for NC1 Acura NSX

GiroDisc’s Rear Rotors for NC1 Acura NSX models replace the factory rear discs with two-piece floating assemblies that need no modifications to fit. They bolt directly to the car and run with the original calipers, so the NSX keeps its factory brake balance and ABS efficiency. A 6061-T6 aluminum hat, sourced in the USA, carries a ring cast from GiroDisc’s proprietary iron through 10 cadmium-plated drive pins. Paired with the matching fronts, they give a hard-driven NSX a complete GiroDisc setup that is serviced by changing rings instead of whole rotors.

Bolt-On and Go

Fitting follows the normal rear rotor change: remove the caliper, swap the disc for the GiroDisc assembly and refit the caliper, with no spacers or machining. Each rotor is left or right handed and labeled for its position. The cap screws holding the drive pins can look loose by design and are never tightened past 60 in-lb, or 7 Nm, so the ring keeps its float.

Features

Direct replacement that bolts on with the original rear calipers
Factory brake bias and ABS efficiency retained
10 drive pins in high-strength alloy steel with cadmium plating
Anti-noise spring washers that silence the floating ring when cold
Curved vanes that pump air out through the disc
Iron ring poured in the USA and machined in-house by GiroDisc

What’s Included

Rear rotor assemblies (L/R)

Applications

Acura NSX: NC1

Notes

The GiroDisc Rear Rotors for NC1 replace the factory rear discs with no modifications
Worn rings are renewed with the GiroDisc NSX rear replacement rings, which bolt to these hats
The front axle takes the GiroDisc NSX front rotors
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc Rear Rotors for NC1 need any modification to fit? No. GiroDisc lists the GiroDisc Rear Rotors for NC1 as a direct replacement for the factory disc. They bolt straight to the hub and work with the original rear calipers, so no spacers, brackets or machining are involved in the installation.
Why keep the factory calipers instead of fitting a big brake kit on the rear? Upgrading only the discs keeps the brake bias Acura engineered into the NSX and preserves ABS efficiency. A lighter two-piece rotor also trims rotating and unsprung mass, which GiroDisc says helps acceleration and suspension response without upsetting the factory balance.
What are the NSX rear rings made from? The rings are cast from GiroDisc proprietary iron, poured in the USA and machined from start to finish in-house. They float on a hat machined from strictly US-sourced 6061-T6 aircraft-specification aluminum, joined by cadmium-plated drive pins that GiroDisc makes itself.
How is the floating rear rotor kept quiet on cold mornings? Anti-noise spring washers sit on the rotor side of each drive pin. They let the ring grow as it heats while removing the rattle that floating rotors can make when cold, so the NSX stays refined on the street as well as on track.
Which part number renews the NSX rear rings later on? GiroDisc sells the NSX rear replacement rings as part number D2-174, packed in pairs with new hardware. The aluminum hats from these rotors are reused, so only the iron is replaced when it reaches minimum thickness or develops a crack that runs to the edge.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
