Do the GiroDisc Front Rotors for NC1 fit an NSX with carbon ceramic brakes?

Yes. GiroDisc states the GiroDisc Front Rotors for NC1 work on cars delivered with either iron or carbon ceramic front rotors. Carbon ceramic owners should contact Bulletproof Automotive before ordering so every part needed for the change to iron is confirmed in advance.

Will the NSX keep its factory front calipers and ABS settings?

Yes. The rotors bolt directly to the car with no modifications and work with the original calipers. Because GiroDisc upgrades the discs instead of fitting a big brake kit, the factory brake bias and ABS efficiency are maintained exactly as Acura engineered them.

What makes a two-piece front rotor worth it on an NSX?

Separating the iron ring from an aluminum hat cuts rotating and unsprung mass, which GiroDisc says sharpens acceleration and suspension response. The floating ring can also expand with heat on its own, and later only the ring needs replacing while the hat stays in service.

How many drive pins does each NSX front rotor use?

Each front assembly uses 10 high-strength alloy steel drive pins, built by GiroDisc in the USA and cadmium plated for long-lasting corrosion resistance. Class 12.9 cap screws with hardened washers secure the pins while keeping the axial and radial float between hat and ring.

How tight should the NSX drive pin cap screws be?

Never beyond 60 in-lb, or 7 Nm. The floating mount relies on a small amount of movement, so the screws can look loose by design. Spring washers on the pins stop cold rattle while still allowing the ring to grow with heat during hard driving.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

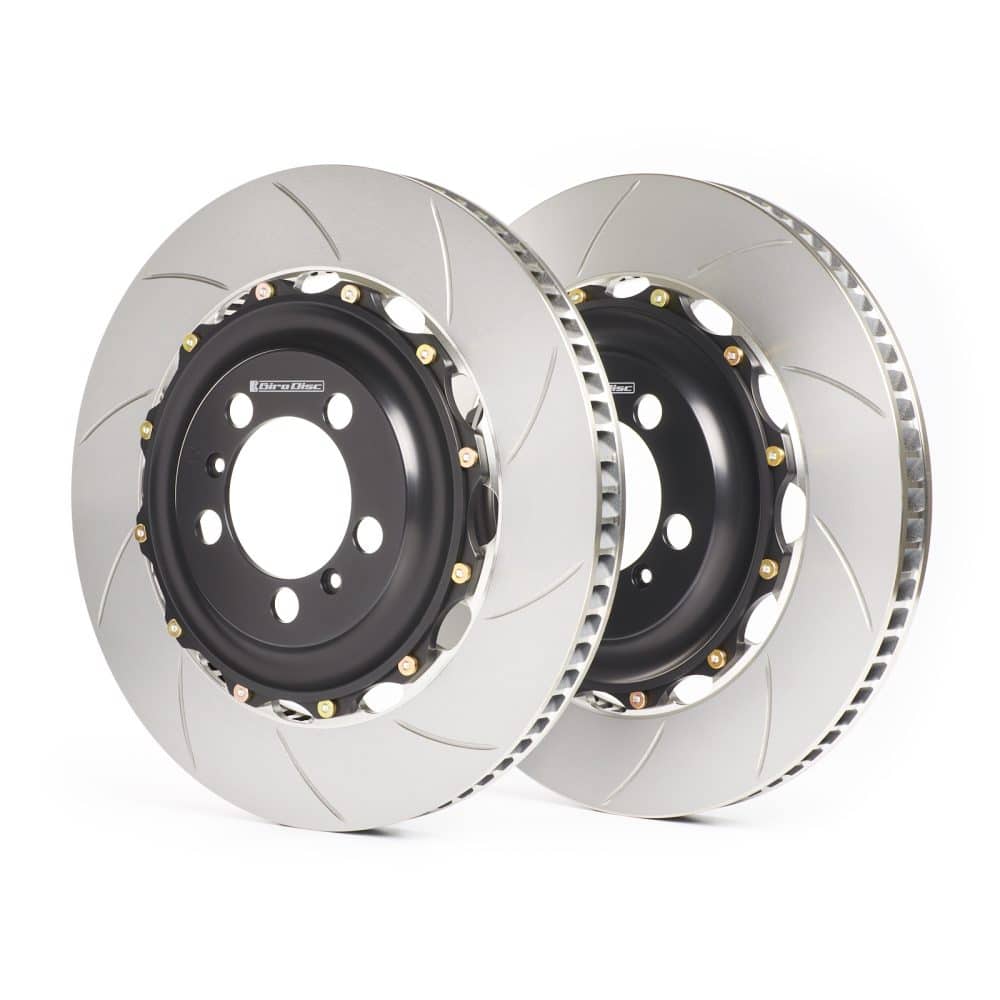

GiroDisc Front Rotors for NC1 Acura NSX

GiroDisc’s Front Rotors for NC1 Acura NSX models bolt on in place of either factory front disc, iron or carbon ceramic, and replace it with a floating two-piece assembly. The ring is GiroDisc’s own cast iron, poured in the USA and machined start to finish in Bellingham, Washington, carried on a strictly US-sourced 6061-T6 aluminum hat by 10 drive pins. Because the factory calipers stay, brake bias and ABS efficiency remain as Acura set them. It is the front upgrade for an NSX owner who wants less rotating mass without a big brake kit.

Design and Performance

Inside the ring, curved vanes act as a centrifugal pump, drawing air in at the hub and driving it out through the disc to shed heat on long braking zones. The slotted face keeps the friction surface clean and stops a water film forming in the rain. Anti-noise spring washers on the drive pins let the ring grow with heat while keeping it quiet when cold, and the float lets it self-center under braking.

Features

Fits NC1 cars that left the factory with iron or carbon ceramic front rotors
10 cadmium-plated alloy steel drive pins, made by GiroDisc in the USA
Class 12.9 cap screws with hardened washers
Strictly US-sourced 6061-T6 aircraft-specification aluminum hat
Reduced rotating and unsprung mass for quicker suspension response
Slotted face that keeps the friction surface clean

What’s Included

Front rotor assemblies (L/R)

Applications

Acura NSX: NC1

Notes

The GiroDisc Front Rotors for NC1 cover iron and carbon ceramic equipped cars alike
Owners of carbon ceramic cars should contact Bulletproof Automotive before ordering to confirm the full parts list
Worn rings are renewed with the GiroDisc NSX front replacement rings, which bolt to these hats
The matching GiroDisc NSX rear rotors complete the set
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc Front Rotors for NC1 fit an NSX with carbon ceramic brakes? Yes. GiroDisc states the GiroDisc Front Rotors for NC1 work on cars delivered with either iron or carbon ceramic front rotors. Carbon ceramic owners should contact Bulletproof Automotive before ordering so every part needed for the change to iron is confirmed in advance.
Will the NSX keep its factory front calipers and ABS settings? Yes. The rotors bolt directly to the car with no modifications and work with the original calipers. Because GiroDisc upgrades the discs instead of fitting a big brake kit, the factory brake bias and ABS efficiency are maintained exactly as Acura engineered them.
What makes a two-piece front rotor worth it on an NSX? Separating the iron ring from an aluminum hat cuts rotating and unsprung mass, which GiroDisc says sharpens acceleration and suspension response. The floating ring can also expand with heat on its own, and later only the ring needs replacing while the hat stays in service.
How many drive pins does each NSX front rotor use? Each front assembly uses 10 high-strength alloy steel drive pins, built by GiroDisc in the USA and cadmium plated for long-lasting corrosion resistance. Class 12.9 cap screws with hardened washers secure the pins while keeping the axial and radial float between hat and ring.
How tight should the NSX drive pin cap screws be? Never beyond 60 in-lb, or 7 Nm. The floating mount relies on a small amount of movement, so the screws can look loose by design. Spring washers on the pins stop cold rattle while still allowing the ring to grow with heat during hard driving.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
