Which hats take the GiroDisc GT500 Rear Replacement Rings?

The GT500 Rear Replacement Rings bolt to the aluminum hats of the GiroDisc A2-091 rear rotors for the 2013-2014 Shelby GT500 with the 350mm rear brake. They will not fit factory rear rotors, factory two-piece hats or hats made by other companies.

When are the GT500 rear rings worn out?

GiroDisc sets the minimum thickness at 20mm, from a new thickness of 22mm. Replace the pair when either ring reaches that figure, or right away if a crack forms and runs to the outer edge of the ring. Measure at several points around the face at each service.

Do the replacement rings keep the thicker 22mm design?

Yes. The new rings match the original GiroDisc rear ring at 22mm thick, compared with 19mm for the factory GT500 rotor. That extra iron adds thermal capacity for repeated stops and still fits the stock calipers without modification, so the swap is a simple bench job.

Is the old hardware reused when rings are changed?

No. A full set of new mounting hardware comes with each pair, so the old fasteners can be discarded with the worn iron. Only the aluminum hats are reused, and the cap screws are tightened to 60 in-lb at the most.

How do I tell the left ring from the right?

GiroDisc marks every ring for its side. The internal vanes curve in one direction, and fitting a ring on the wrong side would make them fight the airflow instead of pumping air outward, so follow the markings carefully during assembly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

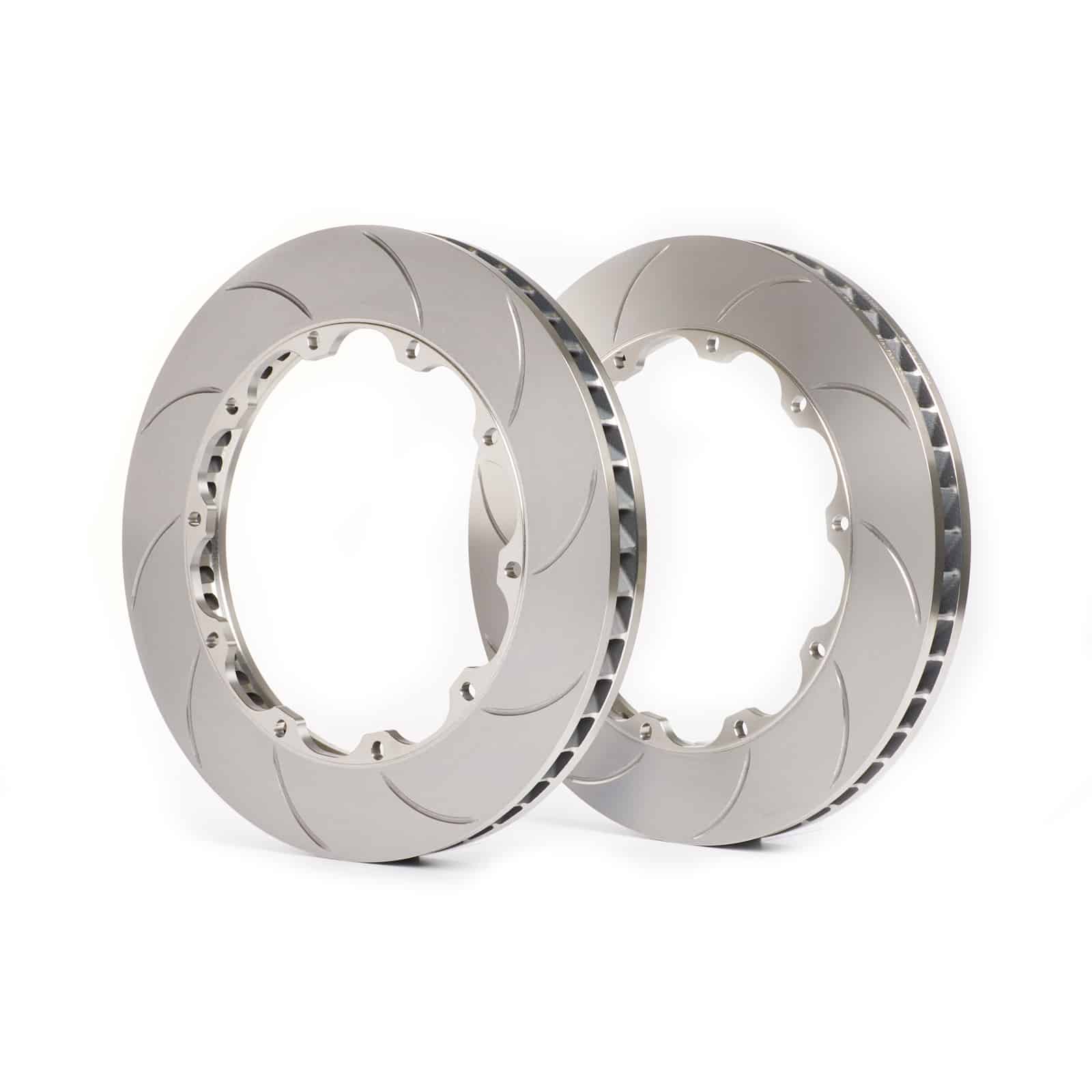

GiroDisc GT500 Rear Replacement Rings for S197 Ford Mustang (2013-2014)

GiroDisc’s GT500 Rear Replacement Rings for the 2013-2014 S197 Ford Mustang Shelby GT500 renew the 350mm rear iron on the A2-091 rotors. Like the originals they are 22mm thick when new, 3mm more than the factory rotor, with 48 curved vanes cast into GiroDisc’s high-carbon iron. They ship in pairs with fresh hardware. Rear rings on a GT500 last a long time, but when they do reach their limit this is the inexpensive way back to full performance.

Fitment and Installation

The rings mount to the GiroDisc A2-091 hats already on the car using the supplied hardware. They are designed for GiroDisc hats only, not factory rotors or other brands. Each ring is handed for its side so the vanes pump air outward, and the cap screws are torqued to no more than 60 in-lb (7 Nm) to preserve the float.

Features

350mm diameter to suit the GiroDisc GT500 rear hat
22mm new thickness with a 20mm service limit
48 curved vanes for steady cooling
High-carbon iron cast in the USA
New mounting hardware included with every pair

Specifications

Outer diameter: 350mm
New thickness: 22mm
Minimum thickness: 20mm
Vane count: 48 curved
Fits hats from: GiroDisc A2-091

What’s Included

Rear replacement rings (L/R)
Replacement mounting hardware

Applications

Ford Mustang Shelby GT500: S197 | 2013-2014 | 5.8L supercharged V8 with GiroDisc A2-091 rear rotors

Notes

The GT500 Rear Replacement Rings fit only the hats of the GiroDisc 2013-2014 GT500 rear rotors
Hats are not included and are carried over from the existing rotors
Front service uses the GiroDisc 2013-2014 GT500 front replacement rings
Stock photography may not depict the actual product

Frequently Asked Questions

Which hats take the GiroDisc GT500 Rear Replacement Rings? The GT500 Rear Replacement Rings bolt to the aluminum hats of the GiroDisc A2-091 rear rotors for the 2013-2014 Shelby GT500 with the 350mm rear brake. They will not fit factory rear rotors, factory two-piece hats or hats made by other companies.
When are the GT500 rear rings worn out? GiroDisc sets the minimum thickness at 20mm, from a new thickness of 22mm. Replace the pair when either ring reaches that figure, or right away if a crack forms and runs to the outer edge of the ring. Measure at several points around the face at each service.
Do the replacement rings keep the thicker 22mm design? Yes. The new rings match the original GiroDisc rear ring at 22mm thick, compared with 19mm for the factory GT500 rotor. That extra iron adds thermal capacity for repeated stops and still fits the stock calipers without modification, so the swap is a simple bench job.
Is the old hardware reused when rings are changed? No. A full set of new mounting hardware comes with each pair, so the old fasteners can be discarded with the worn iron. Only the aluminum hats are reused, and the cap screws are tightened to 60 in-lb at the most.
How do I tell the left ring from the right? GiroDisc marks every ring for its side. The internal vanes curve in one direction, and fitting a ring on the wrong side would make them fight the airflow instead of pumping air outward, so follow the markings carefully during assembly.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
