Do the Front Replacement Rings for B5 S4 and C5 cars need the upright clearanced again?

No. The GiroDisc Front Replacement Rings for B5 S4 and C5 A6 and allroad cars bolt to the existing A1-309 hats, so the clearancing done for the original rotor installation stays as it is. Only the iron rings and their hardware are changed.

Will these rings fit a factory rotor or another brand of hat?

No. GiroDisc designs its replacement rings for GiroDisc hats only. Factory discs have no separate hat, and factory two-piece hats or other brands use a different mounting arrangement, so the A1-309 rotor must be on the car first. That rotor comes first.

What comes in the box?

A left and a right ring with replacement mounting hardware. The aluminum hats from the existing A1-309 rotors are the only parts reused, so the fasteners that secure the drive pins are renewed every time the iron is changed. Nothing else is needed.

How is ring wear judged on a 2.7T?

Measure the ring thickness and compare it with the minimum marked on the hat and the ring edge. Replace the pair at that figure, or at once if a crack reaches the outer edge. Light heat checking across the face is normal.

Do the rings change brake feel?

New rings restore the feel of the system when it was first fitted. After installation, bed them in with a series of moderate stops and a cool-down drive so the fresh iron gives an even, consistent response from the 18Z calipers.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

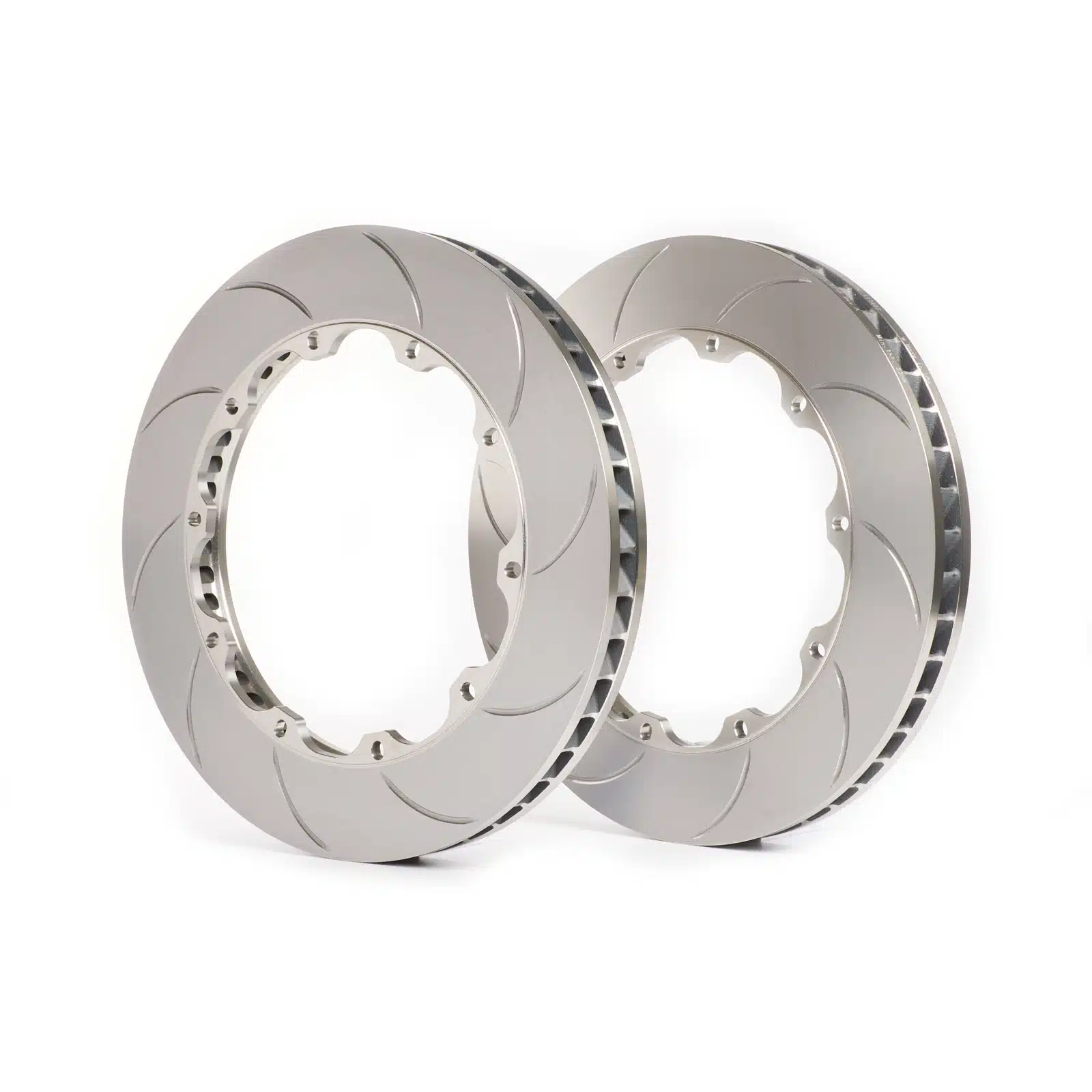

GiroDisc Front Replacement Rings for B5 Audi S4 and C5 A6 and Allroad with Brembo 18Z Calipers

GiroDisc’s Front Replacement Rings for B5 Audi S4 and C5 A6 and allroad cars renew the A1-309 rotors built for the Brembo 18Z six-piston caliper swap. The pair comes with new mounting hardware and bolts to the aluminum hats already on the car, so the upright clearancing and the rest of the installation never need repeating. For a 2.7T that is driven hard, these rings are the long-term running cost of the setup.

Fitment and Installation

The rings fit GiroDisc A1-309 hats only; they are not designed for factory two-piece hats or other brands. Take the rotors off, unbolt the old rings, fit the new pair on their marked sides with the supplied hardware, and torque the cap screws to no more than 60 in-lb.

Features

Replacement iron for GiroDisc A1-309 hats
Suits the Brembo 18Z six-piston caliper setup
Curved internal cooling vanes
Slotted friction face
Replacement mounting hardware included
Iron poured in the USA and machined in Bellingham, Washington

What’s Included

Front replacement rings (L/R)
Replacement mounting hardware

Applications

Audi A6: C5 | with GiroDisc A1-309 front rotors | 2.7L twin-turbo V6
Audi allroad: C5 | with GiroDisc A1-309 front rotors | 2.7L twin-turbo V6
Audi S4: B5 | with GiroDisc A1-309 front rotors | 2.7L twin-turbo V6

Notes

These rings fit the hats of the GiroDisc Brembo 18Z front rotors only
Hats are not included; the Front Replacement Rings for B5 S4 and C5 cars reuse the hats already fitted
4.2L V8 models are not covered, in line with the A1-309 rotor
Minimum thickness is marked on the hat and the ring edge
Stock photography may not depict the actual product

Frequently Asked Questions

Do the Front Replacement Rings for B5 S4 and C5 cars need the upright clearanced again? No. The GiroDisc Front Replacement Rings for B5 S4 and C5 A6 and allroad cars bolt to the existing A1-309 hats, so the clearancing done for the original rotor installation stays as it is. Only the iron rings and their hardware are changed.
Will these rings fit a factory rotor or another brand of hat? No. GiroDisc designs its replacement rings for GiroDisc hats only. Factory discs have no separate hat, and factory two-piece hats or other brands use a different mounting arrangement, so the A1-309 rotor must be on the car first. That rotor comes first.
What comes in the box? A left and a right ring with replacement mounting hardware. The aluminum hats from the existing A1-309 rotors are the only parts reused, so the fasteners that secure the drive pins are renewed every time the iron is changed. Nothing else is needed.
How is ring wear judged on a 2.7T? Measure the ring thickness and compare it with the minimum marked on the hat and the ring edge. Replace the pair at that figure, or at once if a crack reaches the outer edge. Light heat checking across the face is normal.
Do the rings change brake feel? New rings restore the feel of the system when it was first fitted. After installation, bed them in with a series of moderate stops and a cool-down drive so the fresh iron gives an even, consistent response from the 18Z calipers.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
