Does the GiroDisc Challenge Rear Iron Rotor Conversion fit a 488 Challenge Evo?

No. The Challenge Rear Iron Rotor Conversion covers the 458 Challenge and the 488 Challenge without the Evo rear brake upgrade. Cars carrying that upgrade need GiroDisc part A2-285, which is built for the 296 and 488 Challenge Evo rear brake.

How thick are the rear rings and when are they worn out?

The rear rings start at 34mm thick and GiroDisc recommends replacing them at a minimum of 32mm. They should also be replaced at once if a crack runs out to the edge. New rings are GiroDisc part D2-183, sold in pairs with hardware.

Are the factory Ferrari rear calipers retained?

Yes. GiroDisc designs the conversion around the factory rear calipers, and no modifications are required beyond swapping the rotors. That keeps the installation quick between events and avoids any change to the rear brake hydraulics, so the car stays as Ferrari built it.

What does each rear rotor weigh?

GiroDisc quotes about 24 lb for each complete rear rotor assembly, which includes the iron ring, the aluminum hat and the drive hardware. The figure is for the 380mm by 34mm rotor used on the 458 Challenge and the non-Evo 488 Challenge.

Why do GiroDisc rings use curved vanes instead of straight ones?

Curved vanes act like a centrifugal pump. As the rotor spins they draw cool air in at the hub and push it out through the ring, which carries heat away faster during long stints. That is why each rotor is handed for its side of the car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

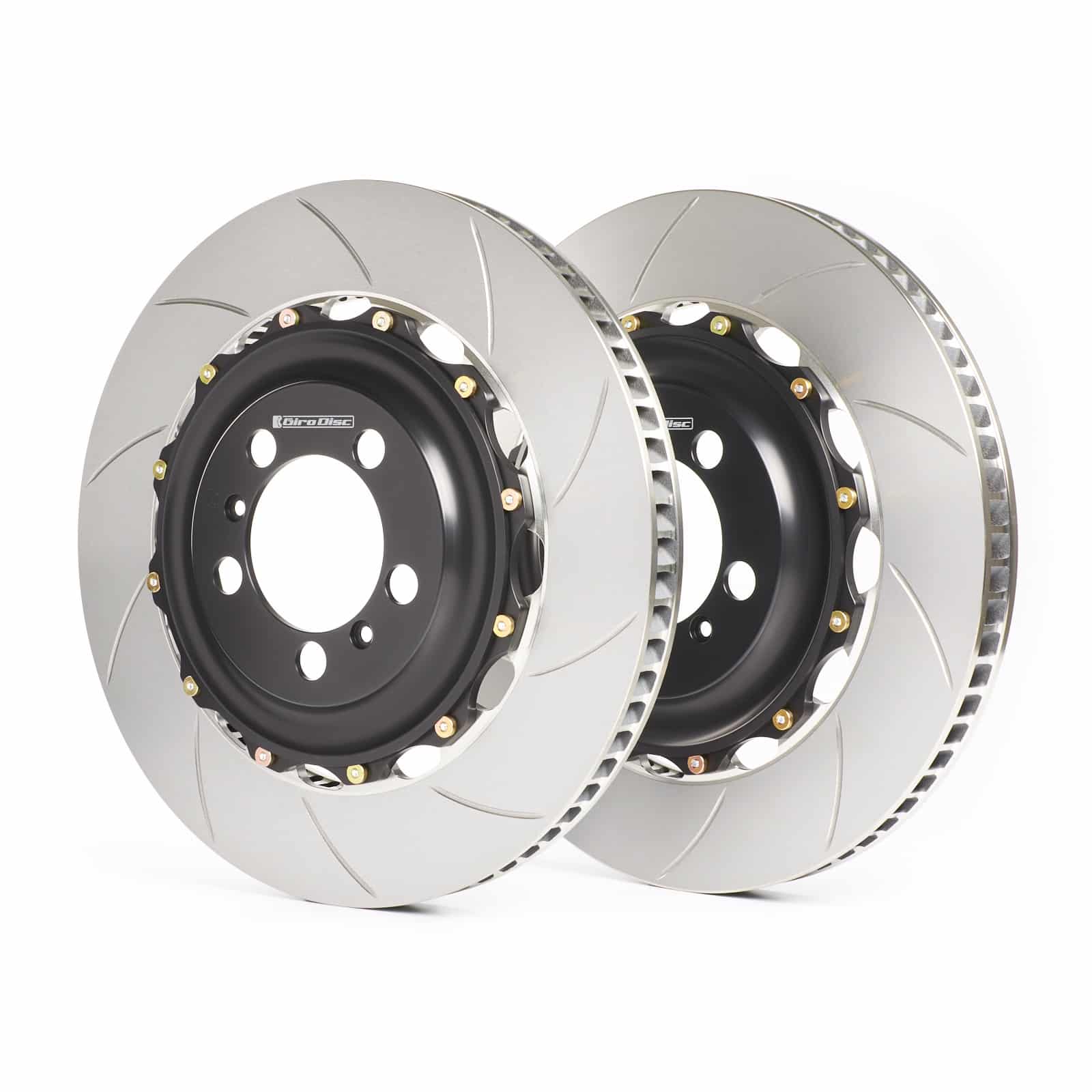

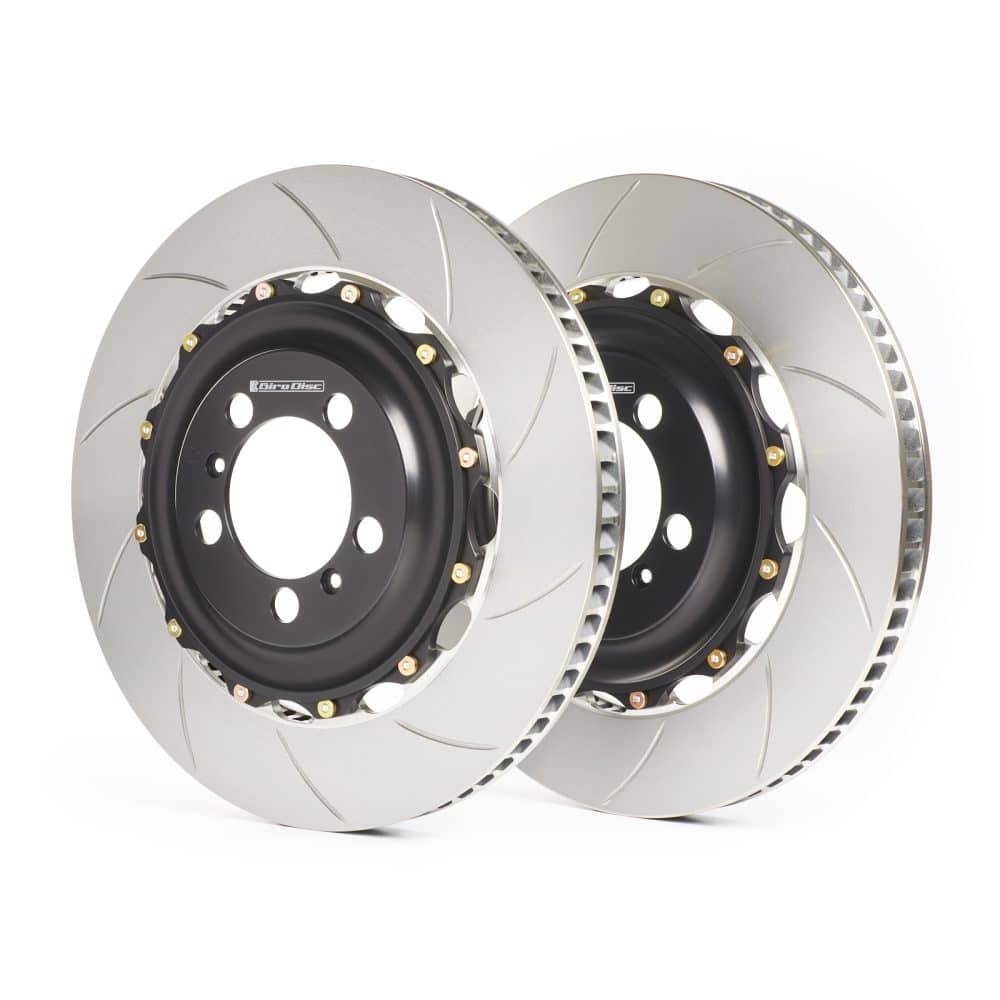

GiroDisc Challenge Rear Iron Rotor Conversion for Ferrari 458 and 488

GiroDisc’s Challenge Rear Iron Rotor Conversion for the Ferrari 458 and 488 takes the rear axle off carbon ceramic and onto 380mm two-piece iron discs. The rings are 34mm thick with 72 curved vanes, cast from GiroDisc’s proprietary high-carbon iron and mounted to clear-anodized 6061-T6 aluminum hats. GiroDisc puts each complete assembly at about 24 lb. It covers the 458 Challenge and 488 Challenge cars without the Evo rear brake upgrade, and it is the natural partner to the A1-183 front conversion for teams that want one consistent brake material on both axles.

Fitment and Installation

The conversion is built for the factory rear calipers and needs no modifications outside the rotor change. Each rotor is handed and marked so the vanes turn the correct way. Cars with the Evo rear brake upgrade take a different GiroDisc rotor, so confirm the rear brake specification before ordering the Challenge Rear Iron Rotor Conversion.

Features

380mm outer diameter with a 34mm thick ring
72 curved vanes that move air from hub to rim
6061-T6 aluminum hat in a type 3 clear anodize
Spring clips and spring washers for quiet race-ready float
About 24 lb per complete rotor assembly, by GiroDisc figures

Specifications

Outer diameter: 380mm
Thickness: 34mm
Minimum thickness: 32mm
Weight: About 24 lb per rotor assembly
Vane count: 72 curved
Replacement rings: D2-183

What’s Included

Rear rotor assemblies (L/R)

Applications

Ferrari 458 Challenge: Factory race car
Ferrari 488 Challenge: Factory race car without the Evo rear brake upgrade

Notes

488 Challenge cars with the Evo rear brake upgrade are not covered; they use the GiroDisc 296 and 488 Challenge Evo rear iron rotor conversion
Rear rings are renewed with the GiroDisc 458 and 488 Challenge rear replacement rings on the existing hats
The front axle is handled by the GiroDisc 458 and 488 Challenge front iron rotor conversion
Stock photography may not depict the actual product

Frequently Asked Questions

Does the GiroDisc Challenge Rear Iron Rotor Conversion fit a 488 Challenge Evo? No. The Challenge Rear Iron Rotor Conversion covers the 458 Challenge and the 488 Challenge without the Evo rear brake upgrade. Cars carrying that upgrade need GiroDisc part A2-285, which is built for the 296 and 488 Challenge Evo rear brake.
How thick are the rear rings and when are they worn out? The rear rings start at 34mm thick and GiroDisc recommends replacing them at a minimum of 32mm. They should also be replaced at once if a crack runs out to the edge. New rings are GiroDisc part D2-183, sold in pairs with hardware.
Are the factory Ferrari rear calipers retained? Yes. GiroDisc designs the conversion around the factory rear calipers, and no modifications are required beyond swapping the rotors. That keeps the installation quick between events and avoids any change to the rear brake hydraulics, so the car stays as Ferrari built it.
What does each rear rotor weigh? GiroDisc quotes about 24 lb for each complete rear rotor assembly, which includes the iron ring, the aluminum hat and the drive hardware. The figure is for the 380mm by 34mm rotor used on the 458 Challenge and the non-Evo 488 Challenge.
Why do GiroDisc rings use curved vanes instead of straight ones? Curved vanes act like a centrifugal pump. As the rotor spins they draw cool air in at the hub and push it out through the ring, which carries heat away faster during long stints. That is why each rotor is handed for its side of the car.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
