Does the GiroDisc Challenge Front Iron Rotor Conversion need caliper changes on a Challenge car?

No. The Challenge Front Iron Rotor Conversion is designed around the factory calipers on the 458 Challenge and 488 Challenge, and GiroDisc states that no modifications are needed apart from changing the rotors themselves. Brackets and hydraulics stay as Ferrari delivered them.

What are the key dimensions of the 458 Challenge front iron rotor?

GiroDisc lists a 398mm outer diameter, a 36mm thickness and a 34mm minimum thickness, with 72 curved vanes inside the ring. Each complete front rotor assembly weighs about 30 lb according to GiroDisc, and the rotors are sold as a left and right pair.

Why would a race team move from carbon ceramic to iron?

Iron rings cost far less to renew than carbon-ceramic discs, and the wear rate is easy to track by measuring thickness. With the two-piece GiroDisc layout only the rings are replaced at service, while the aluminum hats remain in use for season after season.

Which ring part number fits these front hats?

The matching replacement rings are GiroDisc part D1-183. They are sold in pairs with new hardware and bolt to the existing hats. Replace them at 34mm or sooner if a crack runs to the edge of the ring, and keep the cap screws at or below 60 in-lb.

How does the floating mount handle race temperatures?

The iron ring expands with heat while the drive pins hold it centered on the hat, so it does not distort the way a solid disc can. Spring clips and washers maintain that float yet keep the assembly from rattling when it cools in the pits.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

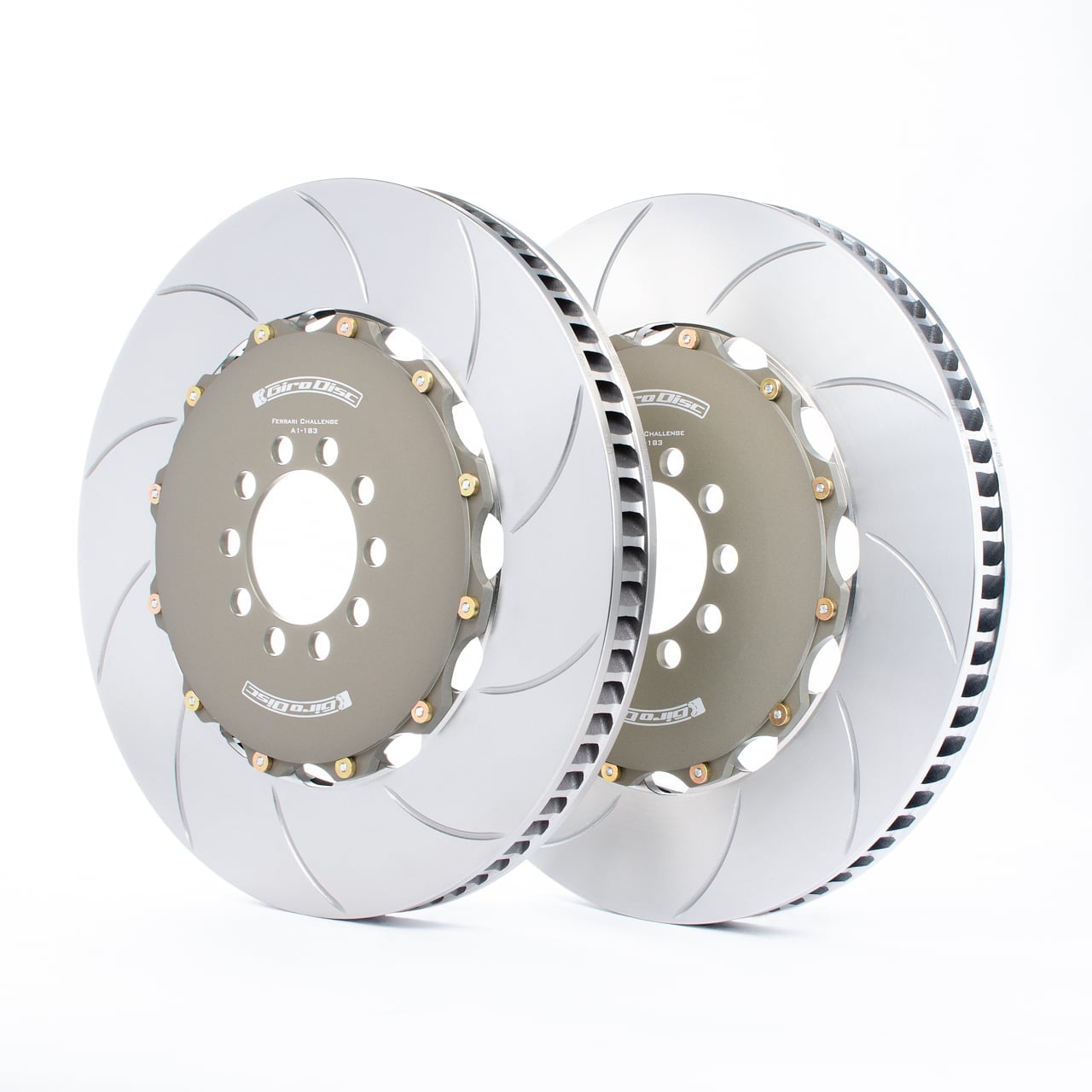

GiroDisc Challenge Front Iron Rotor Conversion for Ferrari 458 and 488

GiroDisc’s Challenge Front Iron Rotor Conversion for the Ferrari 458 and 488 replaces the factory carbon-ceramic front discs on these one-make race cars with 398mm two-piece iron rotors. Each ring is 36mm thick, carries 72 curved vanes and is cast from GiroDisc’s own high-carbon iron, then floated on a 6061-T6 aluminum hat finished in type 3 clear anodize. Iron is cheaper to renew than carbon ceramic and its wear is easy to measure, which matters over a long season. For a Challenge car that lives on track, this is the practical front brake.

Design and Performance

GiroDisc builds the conversion to work with the factory calipers, and it needs no modifications beyond the rotor change itself. Curved vanes pump air from the hub out through the ring, while spring clips and spring washers give the float a race car needs without loose hardware noise in the paddock. When the rings wear to 34mm, new D1-183 rings bolt to the same hats.

Features

398mm outer diameter and 36mm thickness
72 curved vanes for high airflow under sustained braking
Hat machined from 6061-T6 aluminum with a type 3 clear anodize
Cadmium-plated high-strength steel drive pins made in-house
Hats, rings and pins all produced in Bellingham, Washington

Specifications

Outer diameter: 398mm
Thickness: 36mm
Minimum thickness: 34mm
Weight: About 30 lb per rotor assembly
Vane count: 72 curved
Replacement rings: D1-183

What’s Included

Front rotor assemblies (L/R)

Applications

Ferrari 458 Challenge: Factory race car with carbon-ceramic front brakes
Ferrari 488 Challenge: Factory race car with carbon-ceramic front brakes

Notes

The Challenge Front Iron Rotor Conversion is made for the 458 Challenge and 488 Challenge race cars only
Worn rings are replaced with the GiroDisc 458 and 488 Challenge front replacement rings, which reuse these hats
The rear axle is converted with the GiroDisc 458 and 488 Challenge rear iron rotor conversion
Stock photography may not depict the actual product

Frequently Asked Questions

Does the GiroDisc Challenge Front Iron Rotor Conversion need caliper changes on a Challenge car? No. The Challenge Front Iron Rotor Conversion is designed around the factory calipers on the 458 Challenge and 488 Challenge, and GiroDisc states that no modifications are needed apart from changing the rotors themselves. Brackets and hydraulics stay as Ferrari delivered them.
What are the key dimensions of the 458 Challenge front iron rotor? GiroDisc lists a 398mm outer diameter, a 36mm thickness and a 34mm minimum thickness, with 72 curved vanes inside the ring. Each complete front rotor assembly weighs about 30 lb according to GiroDisc, and the rotors are sold as a left and right pair.
Why would a race team move from carbon ceramic to iron? Iron rings cost far less to renew than carbon-ceramic discs, and the wear rate is easy to track by measuring thickness. With the two-piece GiroDisc layout only the rings are replaced at service, while the aluminum hats remain in use for season after season.
Which ring part number fits these front hats? The matching replacement rings are GiroDisc part D1-183. They are sold in pairs with new hardware and bolt to the existing hats. Replace them at 34mm or sooner if a crack runs to the edge of the ring, and keep the cap screws at or below 60 in-lb.
How does the floating mount handle race temperatures? The iron ring expands with heat while the drive pins hold it centered on the hat, so it does not distort the way a solid disc can. Spring clips and washers maintain that float yet keep the assembly from rattling when it cools in the pits.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
