Which Camaros take the GiroDisc BCD 398mm Front Rotors?

The GiroDisc BCD 398mm Front Rotors are for 6th Gen Chevrolet Camaros built with the copper-free brake package, option code BCD. The code appears on the build sheet and the service parts label, so check it before ordering, since other 6th Gen brake packages use different rotors.

Why did Chevrolet make the BCD rotor so wide?

GiroDisc explains that the factory BCD rotor has a large friction band to add mass to the system. That extra iron also adds rotating weight. The GiroDisc ring uses a standard width, which removes that penalty and opens up a wider choice of proven friction parts.

Why is the GiroDisc ring narrower than the BCD disc?

The factory BCD disc is wide and heavy. GiroDisc uses a narrower 398mm by 36mm iron ring on an aluminum hat, which removes rotating mass while the 72 curved vanes keep the disc cool. Bulletproof Automotive confirms the complete parts list for the conversion before the order ships.

What are the dimensions and service limit?

GiroDisc lists 398mm diameter, 36mm thickness and about 29 lb per assembly, with 72 curved vanes. The rings should be replaced at 34mm, or sooner if a crack reaches the outer edge, using D1-320 rings sold in pairs. The limit is marked on the hat.

Can the hats be reused when the rings wear?

Yes. The black anodized aluminum hats stay on the car for life. When the iron is worn, D1-320 rings with new hardware bolt to them, which costs far less than complete rotors and keeps the floating design in service. Only the iron changes.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

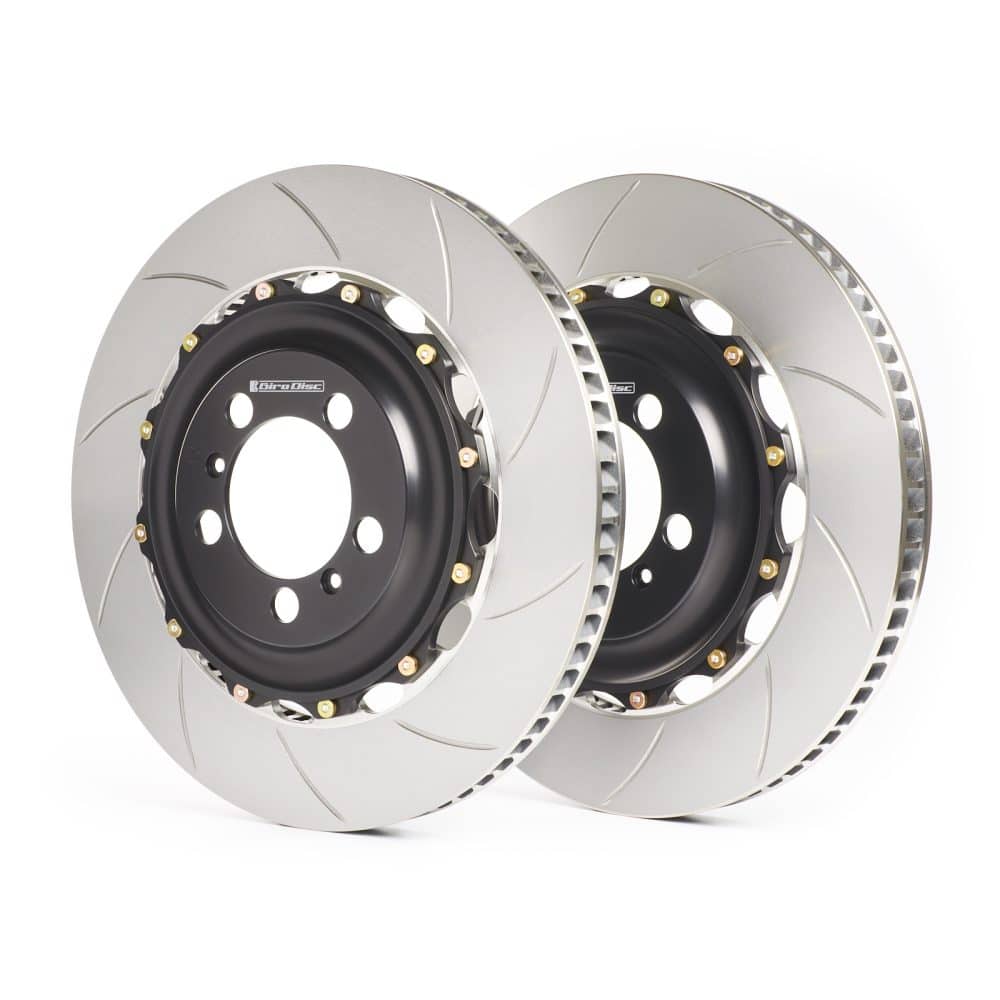

GiroDisc BCD 398mm Front Rotors for 6th Gen Chevrolet Camaro

GiroDisc’s BCD 398mm Front Rotors are made for 6th Gen Chevrolet Camaros built with the copper-free brake package, option code BCD. Chevrolet gave those factory rotors an unusually wide friction band to add thermal mass, and the extra iron is heavy. GiroDisc’s 398mm by 36mm two-piece rotor drops that penalty, weighs about 29 lb per assembly and moves the car onto a standard-width friction setup that is widely available and proven on track.

Fitment and Installation

GiroDisc narrowed the ring compared with the wide BCD factory disc to save rotating mass, and Bulletproof Automotive confirms the complete parts list with every order. The hat is black anodized 6061-T6 aluminum, and worn rings are replaced with D1-320 rings at 34mm.

Features

398mm diameter and 36mm thickness
About 29 lb per complete assembly, by GiroDisc measurement
72 curved vanes pumping air from the hub outward
Removes the rotating mass of the wide factory BCD disc
Black anodized 6061-T6 aluminum hat
High-carbon iron ring poured in the USA

Specifications

Outer diameter: 398mm
Thickness: 36mm
Minimum thickness: 34mm
Weight: About 29 lb per rotor assembly
Vane count: 72 curved vanes
Replacement rings: D1-320

What’s Included

Front rotor assemblies (L/R)

Applications

Chevrolet Camaro: 6th Gen | with BCD copper-free brake package

Notes

The GiroDisc BCD 398mm Front Rotors fit 6th Gen Camaros with option code BCD only
Contact Bulletproof Automotive to confirm the complete parts list before ordering
Worn rings are renewed with the GiroDisc 398mm front replacement rings on these hats
Cap screws are never tightened beyond 60 in-lb (7 Nm)
Stock photography may not depict the actual product

Frequently Asked Questions

Which Camaros take the GiroDisc BCD 398mm Front Rotors? The GiroDisc BCD 398mm Front Rotors are for 6th Gen Chevrolet Camaros built with the copper-free brake package, option code BCD. The code appears on the build sheet and the service parts label, so check it before ordering, since other 6th Gen brake packages use different rotors.
Why did Chevrolet make the BCD rotor so wide? GiroDisc explains that the factory BCD rotor has a large friction band to add mass to the system. That extra iron also adds rotating weight. The GiroDisc ring uses a standard width, which removes that penalty and opens up a wider choice of proven friction parts.
Why is the GiroDisc ring narrower than the BCD disc? The factory BCD disc is wide and heavy. GiroDisc uses a narrower 398mm by 36mm iron ring on an aluminum hat, which removes rotating mass while the 72 curved vanes keep the disc cool. Bulletproof Automotive confirms the complete parts list for the conversion before the order ships.
What are the dimensions and service limit? GiroDisc lists 398mm diameter, 36mm thickness and about 29 lb per assembly, with 72 curved vanes. The rings should be replaced at 34mm, or sooner if a crack reaches the outer edge, using D1-320 rings sold in pairs. The limit is marked on the hat.
Can the hats be reused when the rings wear? Yes. The black anodized aluminum hats stay on the car for life. When the iron is worn, D1-320 rings with new hardware bolt to them, which costs far less than complete rotors and keeps the floating design in service. Only the iron changes.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
