How large is the core in the Redline FMIC Package in Black?

The Redline FMIC Package in Black uses the 7F2500-BK front mount intercooler, whose core measures 24 inches wide, 14 inches tall and 3.5 inches thick. COBB describes it as a significant volume increase over the stock cooler with minimal pressure drop, which makes this kit the pick for owners who see sustained high load.

Will I need to modify the truck to install it?

Yes, slightly. COBB notes that minor trimming on the back side of the grille is needed for the front mount intercooler. The factory Adaptive Cruise Control bracket stays in place as long as you keep the stock bumper, so owners running aftermarket bumpers should confirm clearance before ordering.

Does it need a tune to run?

The tune comes in the box. The Accessport V3 flashes COBB off-the-shelf Stage 2 maps for the Raptor and Limited, or a custom map from a COBB tuner, and the intercooler and intake should be paired with that calibration. The handheld stores up to 100 maps, so switching later takes only a few presses.

Yes. COBB publishes Executive Orders D-660-217 and D-660-245 from the California Air Resources Board for this package, which makes it legal for sale and use on emissions controlled vehicles in every state when it is installed according to the COBB application guide, California included.

Does this version shift differently than stock?

No. This kit includes the standard AP3-FOR-005 Accessport, which tunes the engine but does not flash the transmission control module. Owners who want revised shift points, firmness or torque limits should choose the TCM version, which carries the same intercooler and intake with a transmission capable handheld.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Redline FMIC Package in Black for P552 Ford F-150 Raptor and Limited

COBB Tuning’s Redline FMIC Package in Black takes the bigger-cooler route to Stage 2 on the 2017-2020 Raptor and 2019-2020 F-150 Limited, built around a front mount intercooler with a 24 x 14 x 3.5 inch core. An Accessport V3 handles the engine calibration, and the 7F3160 carbon fiber intake replaces the airbox lid and piping with gloss twill pieces. Expect minor trimming on the back of the grille during installation; owners who will not touch the grille, or who mainly want transmission tuning, should look at the factory location or TCM versions instead.

Design and Performance

The larger core in this Redline FMIC Package in Black adds substantial volume over stock while keeping pressure drop minimal, according to COBB, and the factory Adaptive Cruise Control bracket is retained when the stock bumper stays on. Up top, 3 inch tubing feeds the engine and a carbon lid accepts a reusable dual-inlet filter with 165 percent more surface area than the original.

Features

Front mount intercooler core measuring 24 x 14 x 3.5 in
Retains the factory Adaptive Cruise Control bracket with the stock bumper
Carbon fiber intake pieces in 3k tow, 2×2 twill with a gloss clear coat
Black 4-ply silicone couplers held by black e-coated stainless steel clamps
Full color Accessport V3 screen monitors up to six live parameters

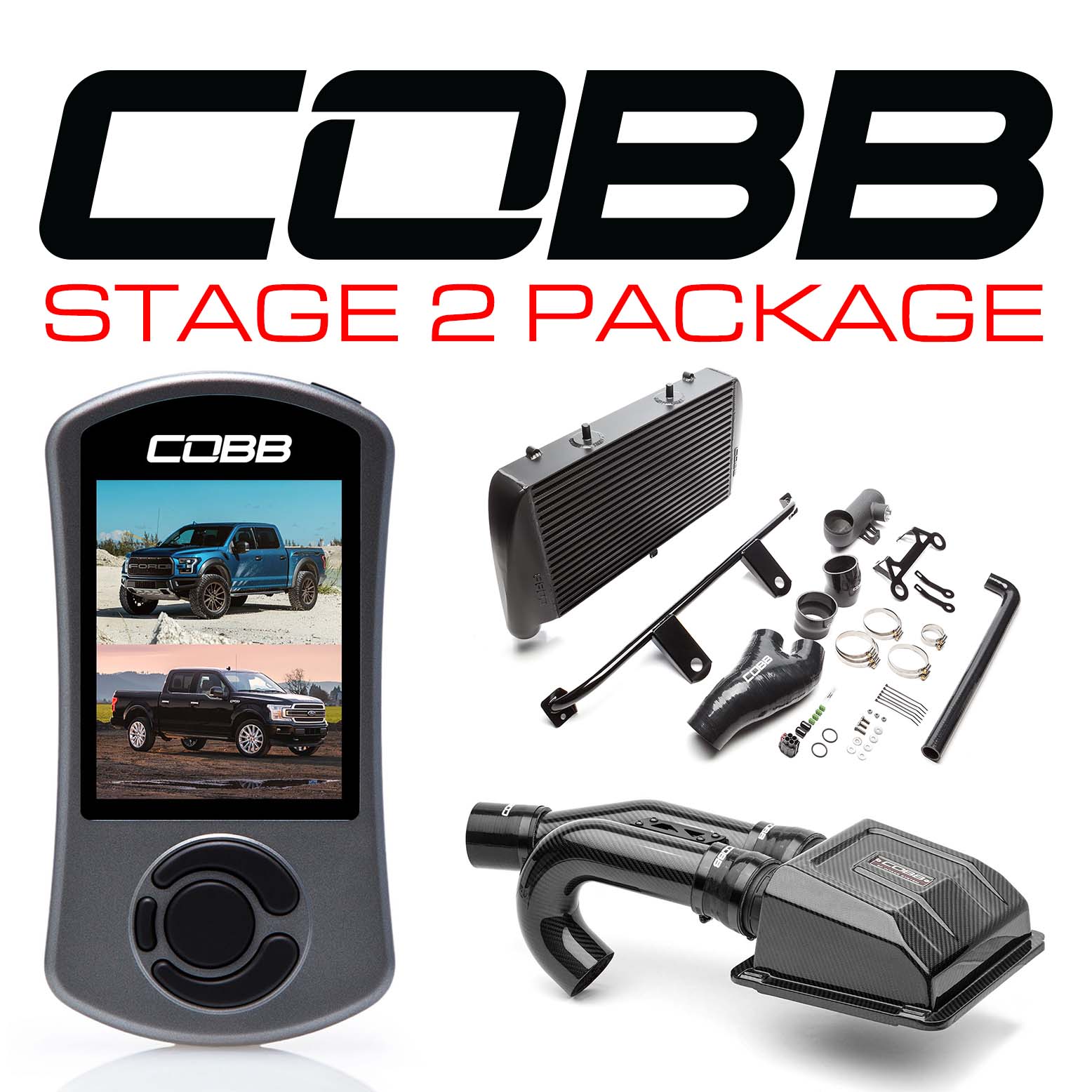

What’s Included

Accessport V3 (AP3-FOR-005)
Redline Carbon Fiber Intake System w/ HCT (7F3160)
Front Mount Intercooler, Black (7F2500-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
Installation requires minor trimming on the back side of the grille
The included Accessport flashes the engine only; transmission tuning requires the TCM version of this package
COBB warns that installing the Accessport over anything other than OEM or COBB software may result in ECU or TCU failure
Does not include CAN Flex Fuel hardware

Frequently Asked Questions

How large is the core in the Redline FMIC Package in Black? The Redline FMIC Package in Black uses the 7F2500-BK front mount intercooler, whose core measures 24 inches wide, 14 inches tall and 3.5 inches thick. COBB describes it as a significant volume increase over the stock cooler with minimal pressure drop, which makes this kit the pick for owners who see sustained high load.
Will I need to modify the truck to install it? Yes, slightly. COBB notes that minor trimming on the back side of the grille is needed for the front mount intercooler. The factory Adaptive Cruise Control bracket stays in place as long as you keep the stock bumper, so owners running aftermarket bumpers should confirm clearance before ordering.
Does it need a tune to run? The tune comes in the box. The Accessport V3 flashes COBB off-the-shelf Stage 2 maps for the Raptor and Limited, or a custom map from a COBB tuner, and the intercooler and intake should be paired with that calibration. The handheld stores up to 100 maps, so switching later takes only a few presses.
Is it CARB legal? Yes. COBB publishes Executive Orders D-660-217 and D-660-245 from the California Air Resources Board for this package, which makes it legal for sale and use on emissions controlled vehicles in every state when it is installed according to the COBB application guide, California included.
Does this version shift differently than stock? No. This kit includes the standard AP3-FOR-005 Accessport, which tunes the engine but does not flash the transmission control module. Owners who want revised shift points, firmness or torque limits should choose the TCM version, which carries the same intercooler and intake with a transmission capable handheld.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
