Is the black PowerMax M3 M4 Intercooler different from the aluminum one?

Only in finish. Garrett lists the black 888883-6002 and the aluminum 888883-6001 under one specification, with the same size, weight, coolant routing and 980 horsepower rating. Choose the black PowerMax M3 M4 Intercooler if you want it to match darker parts in the engine bay; the cooling performance Garrett publishes is the same for both.

Does it fit both the M3 and the M4?

Yes. Garrett lists it for the 2015 and later BMW M3 on the F80 chassis and the M4 on the F82 and F83 chassis, all with the six-cylinder gasoline engine. It installs in the stock location. Garrett does not list fitment for later M3 or M4 generations, so check the chassis code before ordering.

How much power will I gain?

Garrett measured an average of 12.4 horsepower and 4.9 lb-ft after heat soak on the tenth pull, and 18.7 horsepower and 6.4 lb-ft by the fifteenth. The gains come from cooler, denser charge air on repeated runs, so a car that sees track days or back-to-back pulls benefits most.

What does air-to-liquid mean on this car?

The charge air passes through a core cooled by liquid from a coolant circuit rather than by outside air flowing through the grille. The factory BMW cooler works the same way. Garrett kept that layout, enlarged the core by 47 percent and routed the coolant through it twice to pull more heat from the charge air.

Can I reuse my factory hardware?

Yes. Garrett designed it to install with the stock bolts, hoses and clamps, and quotes about an hour and a half for the job. Because it sits in the factory location, no fabrication is involved, and the rest of the intake plumbing on the car stays as it is.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Garrett PowerMax M3 M4 Intercooler for F80 F82 F83 BMW M3 and M4, Black

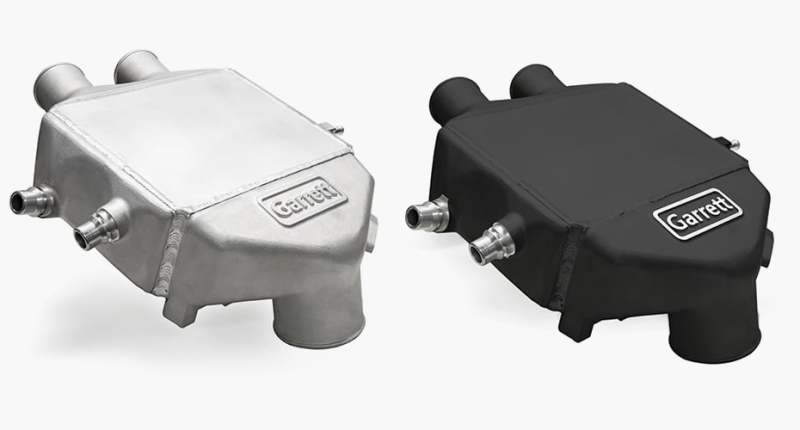

Garrett’s PowerMax M3 M4 Intercooler in black finish is the direct-fit air-to-liquid charge cooler for the 2015 and later BMW M3 (F80) and M4 (F82 and F83), with a core Garrett states is 47 percent larger than the factory part and dual-pass coolant flow. It goes into the stock location, reuses the original bolts, hoses and clamps, and is rated to support up to 980 horsepower. Garrett lists this flat black 888883-6002 and the bare aluminum 888883-6001 under a single specification, so the finish is the only choice to make. It suits a tuned car that loses power to heat soak on back-to-back runs more than a stock car driven gently.

Testing and Results

Garrett measured average gains of 12.4 horsepower and 4.9 lb-ft after heat soak on the tenth dyno pull, rising to 18.7 horsepower and 6.4 lb-ft by the fifteenth. Outlet temperature ran about 5F lower on each run before heat soak and 10F lower once soaked, and Garrett puts instantaneous effectiveness at 92 percent against 90 percent for the factory cooler.

Features

Flat black finish on the same design as the aluminum version
Bar-and-plate core 47 percent larger than stock, with dual-pass coolant flow
Cast aluminum end tanks shaped with computational fluid dynamics
The PowerMax M3 M4 Intercooler installs in about 1.5 hours with the stock bolts, hoses and clamps

Specifications

Garrett part number: 888883-6002
Finish: Flat black
Type: Air-to-liquid, dual-pass coolant flow
Size: 7.2 x 9.8 x 3.6 in (183 x 249 x 92 mm)
Weight: 14.10 lb
Supported power: Up to 980 horsepower (Garrett rating)

Applications

The PowerMax M3 M4 Intercooler is vehicle specific. Garrett lists these models:

BMW M3: F80 | 2015-present | I6
BMW M4: F82, F83 | 2015-present | I6

Notes

Garrett lists the F80 M3 and F82 and F83 M4 only; later M3 and M4 generations are not on its fitment list
Designed to reuse the factory bolts, hoses and clamps
The 980 horsepower figure is the capacity Garrett publishes for the cooler, not a power gain
Also offered in bare aluminum as the aluminum finish version

Frequently Asked Questions

Is the black PowerMax M3 M4 Intercooler different from the aluminum one? Only in finish. Garrett lists the black 888883-6002 and the aluminum 888883-6001 under one specification, with the same size, weight, coolant routing and 980 horsepower rating. Choose the black PowerMax M3 M4 Intercooler if you want it to match darker parts in the engine bay; the cooling performance Garrett publishes is the same for both.
Does it fit both the M3 and the M4? Yes. Garrett lists it for the 2015 and later BMW M3 on the F80 chassis and the M4 on the F82 and F83 chassis, all with the six-cylinder gasoline engine. It installs in the stock location. Garrett does not list fitment for later M3 or M4 generations, so check the chassis code before ordering.
How much power will I gain? Garrett measured an average of 12.4 horsepower and 4.9 lb-ft after heat soak on the tenth pull, and 18.7 horsepower and 6.4 lb-ft by the fifteenth. The gains come from cooler, denser charge air on repeated runs, so a car that sees track days or back-to-back pulls benefits most.
What does air-to-liquid mean on this car? The charge air passes through a core cooled by liquid from a coolant circuit rather than by outside air flowing through the grille. The factory BMW cooler works the same way. Garrett kept that layout, enlarged the core by 47 percent and routed the coolant through it twice to pull more heat from the charge air.
Can I reuse my factory hardware? Yes. Garrett designed it to install with the stock bolts, hoses and clamps, and quotes about an hour and a half for the job. Because it sits in the factory location, no fabrication is involved, and the rest of the intake plumbing on the car stays as it is.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
