What is included in the PowerMax GT1752S Turbo Kit?

Two complete turbochargers: the left side, Garrett 922700-5001W, and the right side, Garrett 922701-5001W, each with a calibrated electric actuator already fitted. Speed sensors and the Garrett G-Smart module are not part of the PowerMax GT1752S Turbo Kit and are sold separately.

How much power will the 2.7L kit support?

Garrett rates the kit at up to 640 horsepower, or 477 kW. The figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower, so it is turbo capability. Garrett lists the stock engine at 330 horsepower, and how much of the gap a truck closes depends on its modifications and calibration.

Will this kit fit my Bronco Raptor?

No. The Bronco Raptor uses the 3.0L V6, and Garrett sells a separate PowerMax kit for that engine, part 926432-5002S. This kit is listed for the 2.7L V6 in the 2021-present Bronco and the 2024-present Ranger only, so check the engine size on the vehicle before ordering either kit.

Do I need a tune with these turbos?

For more power, yes. Garrett states that results depend heavily on the vehicle modifications and the tuning or calibration. Fitted to a truck on its factory calibration, the turbos run stock boost targets and most of the added flow is held in reserve, so plan the calibration with the installation.

What is the maximum turbo speed?

Garrett sets it at 214,900 rpm and states that running faster is at the risk of the owner and can cause damage and premature failure. A machined port in each compressor housing takes the G-Smart Bluetooth module 923586-0003, speed sensor kit 781328-0003 with gauge, or 781328-0004 without a gauge.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Garrett PowerMax GT1752S Turbo Kit for 2021-present Ford Bronco and 2024-present Ranger 2.7L

Garrett’s PowerMax GT1752S Turbo Kit replaces both turbochargers on the 2.7L V6 in the 2021-present Ford Bronco and the 2024-present Ranger, and Garrett is the original turbo supplier for this engine. Garrett lists the factory engine at 330 horsepower and rates this kit at up to 640 horsepower, with 42 percent more compressor flow and 27 percent more turbine flow than the factory turbos. That spread is the point: a tuned 2.7L that has outgrown the stock turbos gets real headroom, while a truck that stays on its factory calibration gains little. It is the wrong kit for a Bronco Raptor, which uses the 3.0L and takes Garrett’s separate 3.0L kit.

Design

The compressor inducer grows from 34mm on the factory turbo to 41mm, and the turbine side runs in a stainless steel housing that Garrett rates to 950C (1742F). Both turbos come as complete assemblies with calibrated electric actuators, sized to the factory footprint. Each compressor housing has a fully machined port for a shaft speed sensor.

Features

Complete left and right GT1752S assemblies with calibrated electric actuators
41mm compressor inducer against 34mm on the factory turbo
Built by Garrett, the original turbocharger supplier for the 2.7L engine
Sensor port accepts the G-Smart module 923586-0003 or speed sensor kits 781328-0003 and 781328-0004

Specifications

Garrett turbo model: GT1752S
Compressor inducer and exducer: 41mm and 52mm
Turbine inducer and exducer: 44mm and 39mm
Turbine housing: Stainless steel, rated to 950C (1742F)
Actuator: Electric, calibrated by Garrett
Maximum turbocharger speed: 214,900 rpm

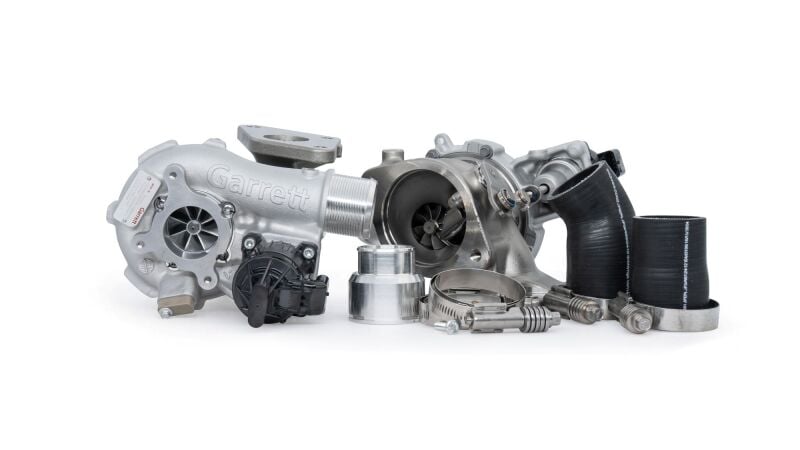

What’s Included

Left turbocharger, Garrett 922700-5001W
Right turbocharger, Garrett 922701-5001W

Applications

Garrett lists the PowerMax GT1752S Turbo Kit for these 2.7L V6 vehicles:

Ford Bronco: 2021-present | 2.7L V6 Twin Turbo
Ford Ranger: 2024-present | 2.7L V6 Twin Turbo

Notes

Each side is also available alone as the 2.7L left turbo or the 2.7L right turbo
The 3.0L Bronco Raptor and Ranger Raptor take the 3.0L PowerMax turbo kit
Garrett states that running above 214,900 rpm is at the owner’s risk and can cause damage and premature failure
Speed sensors and the G-Smart module are sold separately; see Garrett speed sensor kits

Frequently Asked Questions

What is included in the PowerMax GT1752S Turbo Kit? Two complete turbochargers: the left side, Garrett 922700-5001W, and the right side, Garrett 922701-5001W, each with a calibrated electric actuator already fitted. Speed sensors and the Garrett G-Smart module are not part of the PowerMax GT1752S Turbo Kit and are sold separately.
How much power will the 2.7L kit support? Garrett rates the kit at up to 640 horsepower, or 477 kW. The figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower, so it is turbo capability. Garrett lists the stock engine at 330 horsepower, and how much of the gap a truck closes depends on its modifications and calibration.
Will this kit fit my Bronco Raptor? No. The Bronco Raptor uses the 3.0L V6, and Garrett sells a separate PowerMax kit for that engine, part 926432-5002S. This kit is listed for the 2.7L V6 in the 2021-present Bronco and the 2024-present Ranger only, so check the engine size on the vehicle before ordering either kit.
Do I need a tune with these turbos? For more power, yes. Garrett states that results depend heavily on the vehicle modifications and the tuning or calibration. Fitted to a truck on its factory calibration, the turbos run stock boost targets and most of the added flow is held in reserve, so plan the calibration with the installation.
What is the maximum turbo speed? Garrett sets it at 214,900 rpm and states that running faster is at the risk of the owner and can cause damage and premature failure. A machined port in each compressor housing takes the G-Smart Bluetooth module 923586-0003, speed sensor kit 781328-0003 with gauge, or 781328-0004 without a gauge.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
