Will the GT1749V VNT Turbo Upgrade fit my TDI?

Garrett lists the GT1749V VNT Turbo Upgrade for the 1.9L TDI with the BEW engine code in the 2003.5-2006 Beetle and Golf and the 2003.5-2005 Jetta. Check the engine code before ordering. Other TDI engines, including the 2.0L, use different Garrett turbos.

How much power will it support?

About 175 horsepower is the Garrett estimate for this turbo. Garrett derives it from the choke point of the compressor map as potential flywheel power, so it describes the flow ceiling of the GT1749V. A TDI makes its power from fuel, so injector size and the calibration decide how much of that ceiling a car actually uses.

What does the smart actuator do?

The GT1749V comes with a smart actuator and a position sensor, which Garrett calls an industry exclusive. Together they let the turbocharger communicate automatically with the engine control unit, so the engine management can see and control the turbo directly.

Can I use it as a stock replacement?

Yes. Garrett describes the kit as easy to install and suitable either as a performance upgrade or as a replacement turbocharger for the BEW engine. Garrett adds that lower exhaust gas temperatures promote longer turbo and engine life and better reliability.

Which factory turbo does it replace?

Garrett lists VW part numbers 038 253 019 S and 038 253 014 E as the factory turbos it replaces on the BEW engine. Match the number on the old turbo, or confirm the BEW engine code, before ordering, because other TDI engines from the same period take different Garrett turbos.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

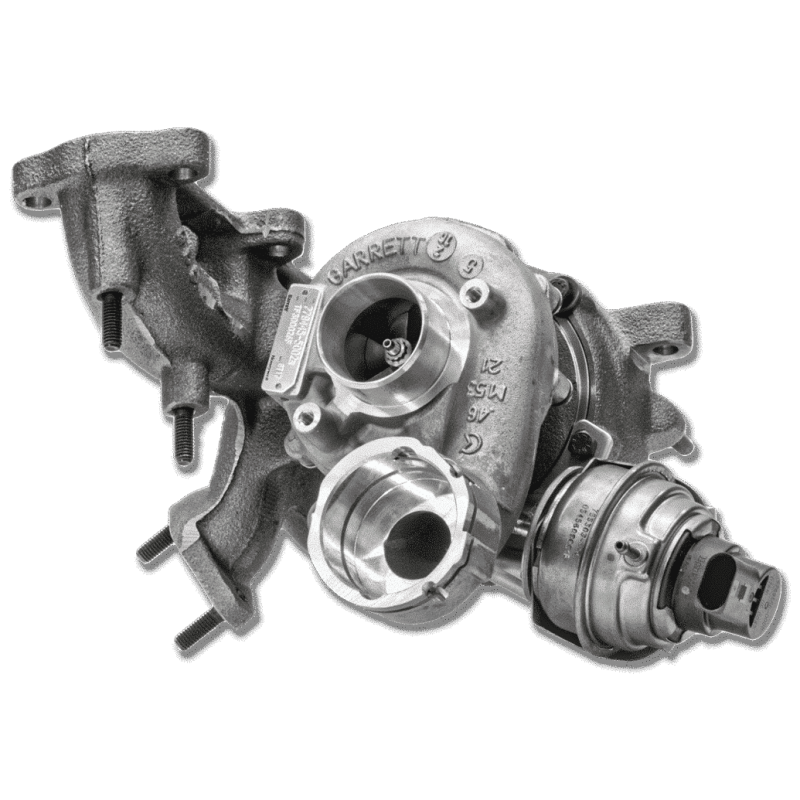

Garrett GT1749V VNT Turbo Upgrade for 2003.5-2006 Volkswagen 1.9L TDI BEW

Garrett’s GT1749V VNT Turbo Upgrade is a performance upgrade and replacement turbocharger for the 1.9L TDI BEW engine in the 2003.5-2006 Volkswagen Beetle and Golf and the 2003.5-2005 Jetta, and Garrett notes it was the first aftermarket upgrade for this engine. It replaces factory turbo VW 038 253 019 S and 038 253 014 E and carries a choke-flow estimate of 175 horsepower. It suits a TDI owner replacing a worn factory turbo who wants some extra capacity and lower exhaust temperatures. It is a modest upgrade, not a big-turbo conversion.

Smart Actuator

The GT1749V comes with a smart actuator and a position sensor, which Garrett describes as an industry exclusive, so the turbo communicates automatically with the engine control unit. Garrett also states that lower exhaust gas temperatures promote longer turbo and engine life and better reliability.

Features

Garrett Variable Nozzle Turbine design
Smart actuator with position sensor that communicates with the ECU
Replaces VW 038 253 019 S and 038 253 014 E
Suitable as a performance upgrade or a replacement turbocharger

Specifications

Garrett turbo model: GT1749V
Compressor inducer and exducer: 36mm and 49mm
Compressor trim and A/R: 55 trim, 0.46 A/R
Turbine inducer and exducer: 43mm and 38mm
Turbine trim and A/R: 76 trim, 0.61 A/R
Garrett power rating: 175 horsepower

Applications

Garrett lists the GT1749V VNT Turbo Upgrade for these 1.9L TDI BEW models:

Volkswagen Beetle TDI: 2003.5-2006 | 1.9L TDI BEW
Volkswagen Golf TDI: 2003.5-2006 | 1.9L TDI BEW
Volkswagen Jetta TDI: 2003.5-2005 | 1.9L TDI BEW

Notes

For BEW engines only; the 2.0L TDI uses a different Garrett turbo
The 175 horsepower figure is Garrett’s estimate from the choke flow of the compressor map; results depend on modifications and calibration
Garrett publishes installation instructions for the 1.9L TDI turbo

Frequently Asked Questions

Will the GT1749V VNT Turbo Upgrade fit my TDI? Garrett lists the GT1749V VNT Turbo Upgrade for the 1.9L TDI with the BEW engine code in the 2003.5-2006 Beetle and Golf and the 2003.5-2005 Jetta. Check the engine code before ordering. Other TDI engines, including the 2.0L, use different Garrett turbos.
How much power will it support? About 175 horsepower is the Garrett estimate for this turbo. Garrett derives it from the choke point of the compressor map as potential flywheel power, so it describes the flow ceiling of the GT1749V. A TDI makes its power from fuel, so injector size and the calibration decide how much of that ceiling a car actually uses.
What does the smart actuator do? The GT1749V comes with a smart actuator and a position sensor, which Garrett calls an industry exclusive. Together they let the turbocharger communicate automatically with the engine control unit, so the engine management can see and control the turbo directly.
Can I use it as a stock replacement? Yes. Garrett describes the kit as easy to install and suitable either as a performance upgrade or as a replacement turbocharger for the BEW engine. Garrett adds that lower exhaust gas temperatures promote longer turbo and engine life and better reliability.
Which factory turbo does it replace? Garrett lists VW part numbers 038 253 019 S and 038 253 014 E as the factory turbos it replaces on the BEW engine. Match the number on the old turbo, or confirm the BEW engine code, before ordering, because other TDI engines from the same period take different Garrett turbos.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
