Will the F-150 EcoBoost Intercooler fit my Raptor?

Yes. Garrett lists the F-150 EcoBoost Intercooler for 2015 and later F-150 trucks with the 2.7L or 3.5L EcoBoost, Raptor included. It goes in the factory location with the stock bolts, hoses and clamps, but the active grille shutters have to come off to install it, so plan for that before starting.

Do I have to remove the active grille shutters?

Yes. Garrett states that the active grille shutters must be removed to install this cooler. Everything else carries over, since the cooler reuses the stock bolts, hoses and clamps. Allow extra time for the shutter removal when planning the job, and keep the parts in case the truck ever returns to stock.

How much cooler will my charge air be?

Garrett estimates a 25F reduction in charge air temperature compared with the factory cooler, along with a 30 percent reduction in pressure drop. Cooler, denser charge air helps a tuned or towing truck hold its power under sustained load, which is where the factory cooler gives up the most.

What is the drain plug for?

Condensation tends to collect in the F-150 charge air system, and Garrett machines a drain plug into the cooler so it can be checked and emptied. The plug comes out with a 3/8 inch open-ended wrench. With the engine running in park, remove it over a catch can and watch for any fluid.

Is 750 horsepower what my truck will make?

No. 750 horsepower is the most Garrett says the cooler can support, which leaves headroom for larger turbochargers and more boost later. The power a truck makes depends on its engine, turbochargers, fuel and calibration, while the intercooler keeps charge air temperature in check as output rises.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

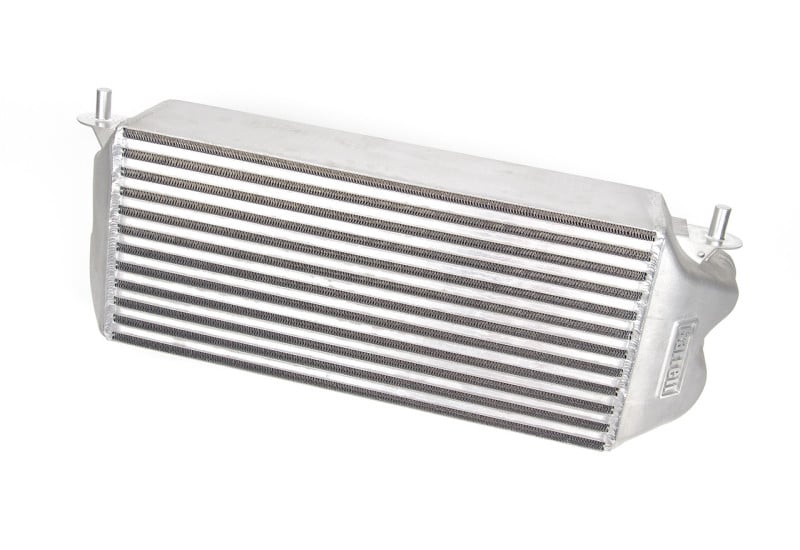

Garrett F-150 EcoBoost Intercooler for 2015+ Ford F-150 and Raptor

Garrett’s F-150 EcoBoost Intercooler replaces the factory charge air cooler on 2015 and later Ford F-150 trucks with the 2.7L or 3.5L EcoBoost, Raptor included, using a TIG welded aluminum assembly with a core Garrett states is 83 percent larger than stock. Garrett estimates a 25F reduction in charge air temperature and a 30 percent cut in pressure drop, and rates the cooler to support up to 750 horsepower. It suits a tuned truck that tows, climbs long grades or works in hot weather, where intake heat costs power; a stock truck driven lightly will notice less.

Drain Plug

Condensation buildup is common on the F-150 platform, and Garrett machines a drain plug into this cooler to relieve it. The bolt comes out with a 3/8 in open-ended wrench. Garrett’s check is to run the engine in park, remove the bolt over a catch can and watch for fluid, revving gently a few times if any appears, then dispose of it at a local waste facility.

Features

Vacuum brazed bar-and-plate core with an advanced offset fin design
Cast aluminum end tanks, TIG welded for strength
End tanks reworked from the factory design to improve air flow through the core
The F-150 EcoBoost Intercooler reuses the stock bolts, hoses and clamps

Specifications

Garrett part number: 870702-6001
Size: 21 x 5.32 x 9.43 in
Core size against stock: 83 percent larger
Charge air temperature: Estimated 25F reduction
Pressure drop: 30 percent lower than stock
Supported power: Up to 750 horsepower (Garrett rating)

Applications

The F-150 EcoBoost Intercooler is vehicle specific. Garrett lists these trucks:

Ford F-150: 2015-present | 2.7L and 3.5L EcoBoost
Ford F-150 Raptor: 2015-present | 3.5L EcoBoost

Notes

Garrett states that the active grille shutters must be removed to install this product
Garrett lists fitment as 2015 and later; contact us to confirm fitment before ordering for a 2021 or later truck
The 750 horsepower figure is the capacity Garrett publishes for the cooler, not a power gain
See our other F-150 performance parts

Frequently Asked Questions

Will the F-150 EcoBoost Intercooler fit my Raptor? Yes. Garrett lists the F-150 EcoBoost Intercooler for 2015 and later F-150 trucks with the 2.7L or 3.5L EcoBoost, Raptor included. It goes in the factory location with the stock bolts, hoses and clamps, but the active grille shutters have to come off to install it, so plan for that before starting.
Do I have to remove the active grille shutters? Yes. Garrett states that the active grille shutters must be removed to install this cooler. Everything else carries over, since the cooler reuses the stock bolts, hoses and clamps. Allow extra time for the shutter removal when planning the job, and keep the parts in case the truck ever returns to stock.
How much cooler will my charge air be? Garrett estimates a 25F reduction in charge air temperature compared with the factory cooler, along with a 30 percent reduction in pressure drop. Cooler, denser charge air helps a tuned or towing truck hold its power under sustained load, which is where the factory cooler gives up the most.
What is the drain plug for? Condensation tends to collect in the F-150 charge air system, and Garrett machines a drain plug into the cooler so it can be checked and emptied. The plug comes out with a 3/8 inch open-ended wrench. With the engine running in park, remove it over a catch can and watch for any fluid.
Is 750 horsepower what my truck will make? No. 750 horsepower is the most Garrett says the cooler can support, which leaves headroom for larger turbochargers and more boost later. The power a truck makes depends on its engine, turbochargers, fuel and calibration, while the intercooler keeps charge air temperature in check as output rises.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
