Will the EcoBoost Mustang Intercooler work with aftermarket charge pipes?

Yes. Garrett gave the EcoBoost Mustang Intercooler slightly elongated inlet and outlet ports, which give hoses a more secure surface on high-power builds while staying compatible with OEM hoses and aftermarket charge pipes. The inlet diameter is 2.75 inches, so check that figure against any charge pipe you plan to use.

How long does it take to install?

Garrett quotes about two and a half hours with basic hand tools. The cooler mounts in the stock location and can reuse the factory hoses, clamps and bolts, so no fabrication is involved on a 2015 or later Mustang with the 2.3L EcoBoost engine.

How much power did Garrett measure?

On the Garrett test car the 2.3L made 216 horsepower at 5000 rpm with the factory intercooler and 237 horsepower at 4891 rpm with the Garrett unit. Results on other cars depend on the tune, boost and conditions, but the larger core mainly helps the engine keep its power over repeated pulls.

Is this the same as the black 857564-6002?

It is the same direct-fit design for the 2.3L Mustang. Garrett shows this part number, 857564-6001, on its product page, and Turn 14 lists the 857564-6002 as the black version. Turn 14 gives the black unit a 5.4 inch core height, which matches the figure in the Garrett tech summary.

Does a stock Mustang need a 600 horsepower intercooler?

Not for power alone. The rating is capacity, and a stock 2.3L sits well below it. Where it helps a stock car is heat soak: in Garrett testing the factory cooler saturated after four pulls while the Garrett unit lasted nine. A tuned car gains more, because it puts more heat into the charge air.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

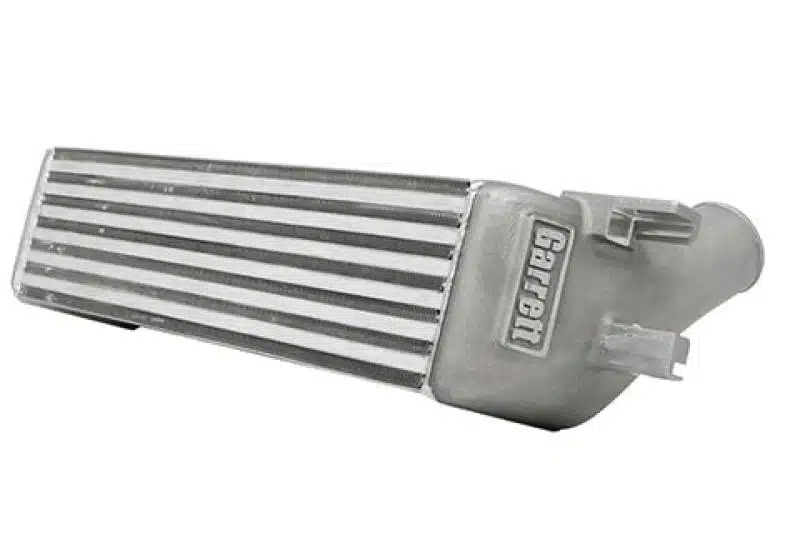

Garrett EcoBoost Mustang Intercooler for 2015+ Ford Mustang 2.3L

Garrett’s EcoBoost Mustang Intercooler, part 857564-6001, is the direct-fit cooler for the 2015 and later Ford Mustang 2.3L EcoBoost, with a vacuum brazed bar-and-plate core Garrett states is 60 percent larger than stock and CFD-optimized cast aluminum end tanks. Garrett rates it to support up to 600 horsepower and quotes up to a 40 degree reduction in charge air temperature with up to 30 percent less pressure drop. A tuned or turbo-upgraded 2.3L that heat soaks on repeated pulls is the target; for an untouched commuter it is more cooling than the engine asks for.

Heat Soak Testing

In Garrett’s dyno testing the factory intercooler reached its peak outlet temperature of 183 degrees on the fourth pull, while the Garrett unit took nine pulls to heat saturate and peaked at 154 degrees. On the same car the 2.3L produced 216 horsepower at 5000 rpm with the factory cooler and 237 horsepower at 4891 rpm with the Garrett intercooler.

Features

Elongated inlet and outlet ports for a secure hose grip, compatible with OEM hoses and aftermarket charge pipes
TIG welded, CFD-optimized cast aluminum end tanks that reduce recirculation
Advanced offset fin design for thermal and fatigue performance
The EcoBoost Mustang Intercooler installs in about 2.5 hours with basic hand tools

Specifications

Garrett part number: 857564-6001
Core length: 21.00 in (533.40 mm)
Core height: 5.75 in (146.05 mm)
Core width: 5.32 in (135.13 mm)
Inlet diameter: 2.75 in (69.85 mm)
Weight: 16.5 lb
Supported power: Up to 600 horsepower (Garrett rating)

Applications

The EcoBoost Mustang Intercooler is vehicle specific. Garrett lists this fitment:

Ford Mustang: 2015-present | 2.3L EcoBoost

Notes

Garrett lists fitment as 2015 and later; contact us to confirm fitment before ordering for a 2024 or later Mustang
Garrett’s page gives the core height as 5.75 in in its specification table and 5.4 in in its tech summary
The 600 horsepower figure is the capacity Garrett publishes for the cooler, not a power gain
A black version is also listed as Garrett 857564-6002

Frequently Asked Questions

Will the EcoBoost Mustang Intercooler work with aftermarket charge pipes? Yes. Garrett gave the EcoBoost Mustang Intercooler slightly elongated inlet and outlet ports, which give hoses a more secure surface on high-power builds while staying compatible with OEM hoses and aftermarket charge pipes. The inlet diameter is 2.75 inches, so check that figure against any charge pipe you plan to use.
How long does it take to install? Garrett quotes about two and a half hours with basic hand tools. The cooler mounts in the stock location and can reuse the factory hoses, clamps and bolts, so no fabrication is involved on a 2015 or later Mustang with the 2.3L EcoBoost engine.
How much power did Garrett measure? On the Garrett test car the 2.3L made 216 horsepower at 5000 rpm with the factory intercooler and 237 horsepower at 4891 rpm with the Garrett unit. Results on other cars depend on the tune, boost and conditions, but the larger core mainly helps the engine keep its power over repeated pulls.
Is this the same as the black 857564-6002? It is the same direct-fit design for the 2.3L Mustang. Garrett shows this part number, 857564-6001, on its product page, and Turn 14 lists the 857564-6002 as the black version. Turn 14 gives the black unit a 5.4 inch core height, which matches the figure in the Garrett tech summary.
Does a stock Mustang need a 600 horsepower intercooler? Not for power alone. The rating is capacity, and a stock 2.3L sits well below it. Where it helps a stock car is heat soak: in Garrett testing the factory cooler saturated after four pulls while the Garrett unit lasted nine. A tuned car gains more, because it puts more heat into the charge air.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
