Do I need to cut the grille to fit the 3.5L Redline Black Factory Intercooler package?

No. The 3.5L Redline Black Factory Intercooler package uses an intercooler shaped to mate with the OEM shutter shroud, and COBB states that it requires no cutting, trimming or permanent modification. It suits owners who want a fully reversible Stage 2 setup.

How does the factory location intercooler compare with stock?

COBB says its core is 70% larger than the stock unit and offers 10% more cooling surface area. The cast aluminum, TIG welded assembly also has CFD shaped end tanks and a chamfered outlet to keep turbulence down on the way to the throttle body tube.

Can I add methanol injection later?

Yes, the intercooler is prepared for it. Two flat sections are cast into the housing; the top one can be drilled and tapped to accept an injection nozzle, and the bottom one can be used as a drain port. The injection kit is sold separately.

Is the package CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245, making the package legal for sale and use on emissions controlled vehicles in all 50 states, California included, as long as it is installed in line with the COBB application guide.

What does the TCM capability of the Accessport do?

It flashes the transmission control module in addition to the engine computer. The included off-the-shelf transmission tunes alter shift points, shift firmness, skip shift behavior and torque limits. COBB cautions that loading it over anything other than OEM or COBB software may cause ECU or TCU failure.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning 3.5L Redline Black Factory Intercooler Stage 2 Package with TCM for P552 Ford F-150 (2017-2019)

COBB Tuning’s 3.5L Redline Black Factory Intercooler package is for the F-150 owner who wants Stage 2 hardware without taking a blade to the grille. The black intercooler sits in the factory location and mates to the OEM shutter shroud, and its cast aluminum, TIG welded core is 70% larger than the stock unit. The Redline intake replaces the factory lid and piping with gloss 2×2 twill carbon fiber and 3 inch tubing, while an Accessport V3 with TCM flashing calibrates engine and transmission. CARB EO D-660-217 and D-660-245 keep it legal in every state. Owners after the largest core should compare the 24 inch front mount package.

Intercooler Engineering

COBB used computational fluid dynamics to shape end tanks that spread flow evenly with no areas of significant turbulence. Two flat sections cast into the housing allow for future water or methanol injection: the top flat can be drilled and tapped for a nozzle, and the bottom one can serve as a drain.

Features

Accessport V3 with TCM Flashing and a full color screen showing up to six live parameters
Redline carbon fiber airbox lid in 3k, 2×2 twill weave with a gloss clear coat
Reusable dual inlet filter with 165% more surface area than stock
Black 4-ply silicone couplers secured by black e-coated stainless steel clamps
Black factory location intercooler with 10% more cooling surface area than stock
No cutting, trimming or permanent modification required

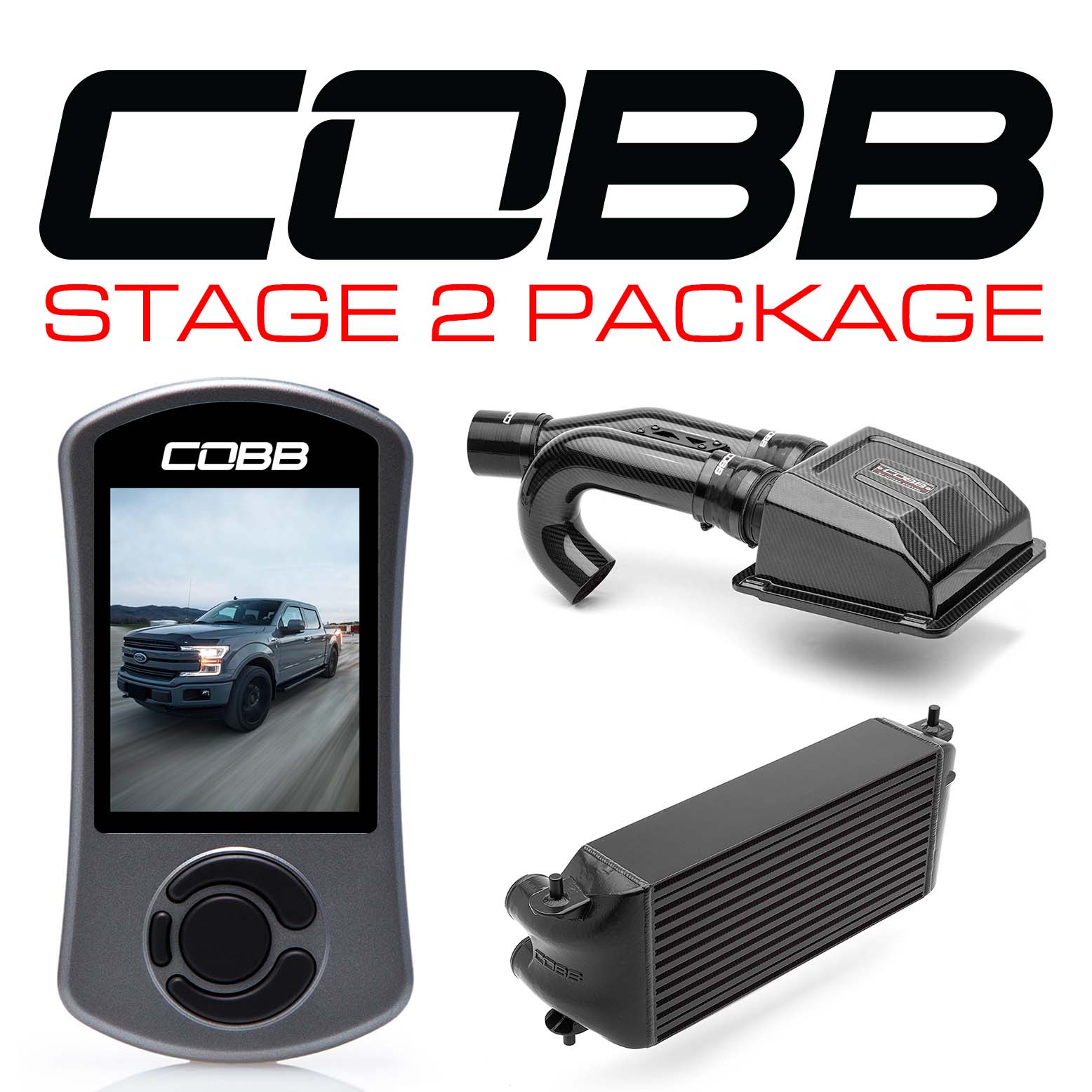

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-006-TCM)
Redline Carbon Fiber Intake System with HCT (7F3160)
Front Mount Intercooler, Black, Factory Location (7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150: P552 | 2017-2019 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
The 3.5L Redline Black Factory Intercooler package fits behind the stock grille with no trimming
Installing the Accessport over software other than OEM or COBB files may result in ECU or TCU failure
Water or methanol injection hardware is not included; the intercooler only provides the mounting flats
Confirmed for USDM 2017-2019 F-150 trucks with the 3.5L EcoBoost only

Frequently Asked Questions

Do I need to cut the grille to fit the 3.5L Redline Black Factory Intercooler package? No. The 3.5L Redline Black Factory Intercooler package uses an intercooler shaped to mate with the OEM shutter shroud, and COBB states that it requires no cutting, trimming or permanent modification. It suits owners who want a fully reversible Stage 2 setup.
How does the factory location intercooler compare with stock? COBB says its core is 70% larger than the stock unit and offers 10% more cooling surface area. The cast aluminum, TIG welded assembly also has CFD shaped end tanks and a chamfered outlet to keep turbulence down on the way to the throttle body tube.
Can I add methanol injection later? Yes, the intercooler is prepared for it. Two flat sections are cast into the housing; the top one can be drilled and tapped to accept an injection nozzle, and the bottom one can be used as a drain port. The injection kit is sold separately.
Is the package CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245, making the package legal for sale and use on emissions controlled vehicles in all 50 states, California included, as long as it is installed in line with the COBB application guide.
What does the TCM capability of the Accessport do? It flashes the transmission control module in addition to the engine computer. The included off-the-shelf transmission tunes alter shift points, shift firmness, skip shift behavior and torque limits. COBB cautions that loading it over anything other than OEM or COBB software may cause ECU or TCU failure.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
