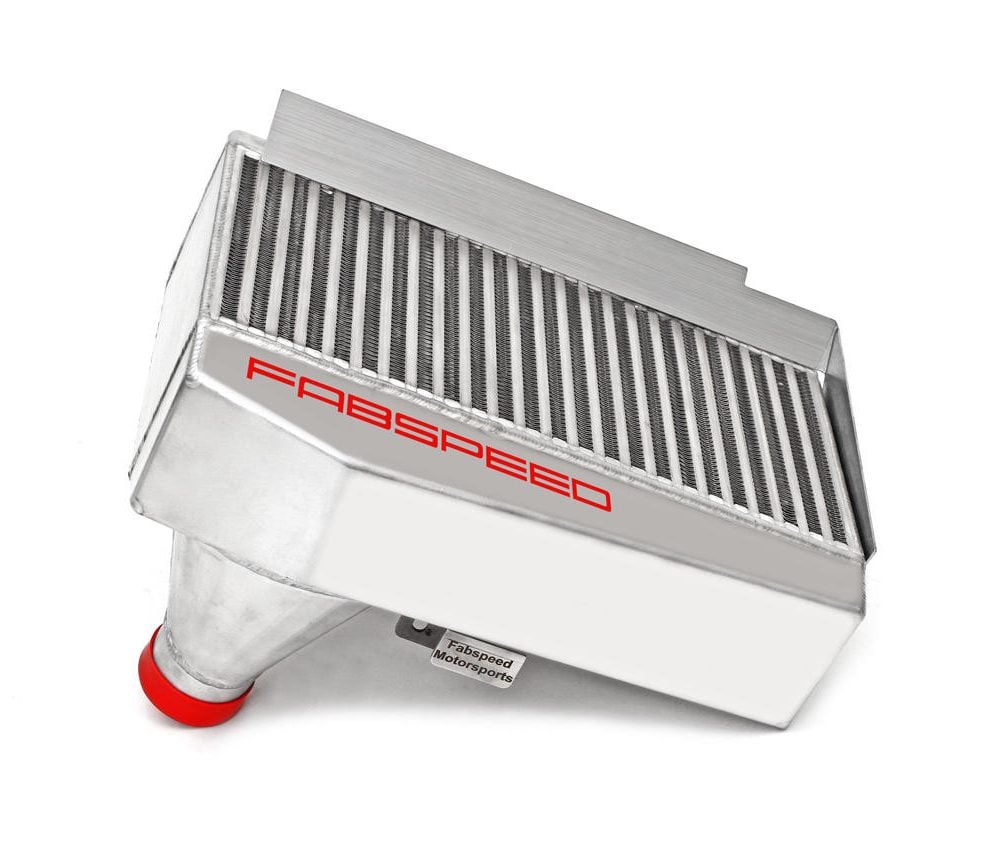

Fabspeed Long-Neck Intercooler for 930 Porsche 911 Turbo [FS.POR.911T.ICOEM/FS.POR.911T.ICK27]

Fabspeed Long-Neck Intercooler for 930 Porsche 911 Turbo [FS.POR.911T.ICOEM/FS.POR.911T.ICK27]

The Fabspeed Long-Neck Intercooler for the 930 Porsche 911 Turbo is a high-performance upgrade engineered to optimize flow efficiency and provide maximum cooling. By lowering intake temperatures and improving airflow, this intercooler boosts power gains while preventing heat soak, ensuring sustained performance. With an increased surface area and internal volume, it offers superior heat dissipation, making it ideal for both track and street applications. Unlike the factory OEM intercooler, which falls short in maintaining consistent power, this intercooler shines in both daily driving and high-performance scenarios. The included silicone hoses eliminate the risk of tearing and smooth air flow, while the performance-designed bypass valve enhances reliability, power, and sound. The “Long-Neck” design refers to an outlet that extends and connects directly to the throttle body, bypassing the original equipment air by-pass valve system for a more efficient boost delivery. With silicone tubes that eliminate leaky O-rings, this intercooler ensures maximum boost retention, keeping the 930 Porsche 911 Turbo running at peak performance.

Air Bypass Valve System

• These large and heavy systems were originally found on the 930 Turbo models and were later updated or removed by the factory. The housings acted as an intermediary component between the intercooler and the intake manifold, integrating with the Bosch K-Jetronic emissions control system. This assembly regulated and bypassed excess pressure back into the intake circuit using a vacuum-actuated piston, compression spring, and diaphragm regulator. These wearable components are often responsible for common drivability issues and sluggish engine response. The assembly also includes input ports for the boost gauge and limiting sensors. The 1991-1994 965 C2 Turbo models were updated with a simpler, lightweight boost control valve. The Fabspeed intercooler system replaces this assembly and converts to the long-neck design along with the newer style boost control valves. This upgrade significantly enhances drivability, providing sharper boost response and allowing the turbocharger to spool more quickly.

Features

• Available for factory OEM turbo model LDZ or upgraded K27 turbos
• Increases horsepower and torque by 40whp and 29ft-lbs
• Flow as much as 900 CFM @ 2.6/1 pr ratio with less than 1-psi drop
• Cubic inch volume mass increase from 258 stock to 650 cubic inches
• C2 Turbo long-neck style with no o-rings for a leak proof charge
• Utilizes factory fitting location with water/methanol injection port included
• Includes gaskets and shields to seal intercooler to stock deck lid like the factory system
• Direct bolt-on replacement for OEM intercooler
• Includes bypass valve, bypass sleeve, rubber elbow, 5-ply silicone hoses, and all hardware necessary
• All Fabspeed performance products are backed by the Fabspeed lifetime warranty

Applications

• Porsche 911 Turbo: 930 (1976-1989) [3.0L F6 turbo, 3.3L F6 turbo]
