What makes the MONO6 TA and MONO4r TA Big Brake Kit for RZ34 the top set?

Both calipers are the TA versions of the Endless Racing MONO family: forged monoblocs with no external fluid pipe, 3D-cut surfaces for cooling and stainless pistons. All four rotors are E-slit units on Tufram-coated bells. No other Endless Big Brake Kit for RZ34 goes further.

Which pad compound is supplied with the Racing MONO6 TA and MONO4r TA set for the RZ34 Z?

Endless Japan lists SR01, MX72 and MX72 PLUS for the Racing MONO6 TA and supplies MX72 if no compound is chosen. MX72 is a semi-metallic street and light track pad rated from 50 to 700 degrees C. Tell us how the car is used and we will advise on both axles.

Why are the rotor bells Tufram coated on the Racing MONO6 TA and MONO4r TA set for the RZ34 Z?

Endless coats the aluminium bells on its TA kits with Tufram, which it says holds adhesion and resists corrosion better than anodising at circuit temperatures. The bells carry the rotor rings, so a finish that survives repeated heat cycles keeps them in good condition.

Will factory wheels clear the front calipers?

Plan to check. Endless gives an 18 inch minimum for the Racing MONO6 TA and notes most factory wheels will not clear its calipers. Send us your wheel size, brand and offset and we will check them against the Endless template before ordering.

What is included in the Endless MONO6 TA and MONO4r TA set?

Two Racing MONO6 TA front calipers, two Racing MONO4r TA rear calipers, pads for both axles, mounting brackets, two 370mm front rotors, two 355mm three-piece rear rotors, all on Tufram bells, and four brake lines. DOT4 or higher fluid is needed for the bleed and is not supplied.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless Racing MONO6 TA / Racing MONO4r TA Front and Rear Big Brake Kit for RZ34 Nissan Z with 370mm Front Rotors

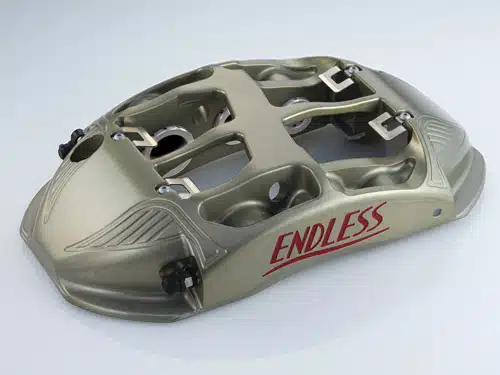

Endless’s Racing MONO6 TA / Racing MONO4r TA Front and Rear Big Brake Kit for RZ34 Nissan Z is the most advanced set Endless lists for the car, with pipeless forged monobloc calipers at every corner. The front Racing MONO6 TA drops the external fluid pipe, is 3D cut over its surface to help it cool, uses stainless pistons, and Endless rates it at 110 percent of the original Racing MONO6 rigidity. It runs 370mm x 34mm two-piece E-slit rotors on Tufram-coated bells.

Features

Pipeless forged monobloc Racing MONO6 TA front caliper
3D-cut surface and stainless steel pistons
370mm x 34mm two-piece E-slit front rotors
Racing MONO4r TA pipeless rear caliper, 2,100g
355mm x 32mm three-piece E-slit rear rotors
Tufram-coated bells on all four rotors

Specifications

Front caliper: Endless Racing MONO6 TA, six-piston forged monobloc, pipeless
Front caliper weight: 2,880g (Endless USA; Endless Japan lists 3,015g)
Front rotors: 370mm x 34mm, two-piece
Rear caliper: Endless Racing MONO4r TA, four-piston forged monobloc, pipeless
Rear caliper weight: 2,100g
Rear rotors: 355mm x 32mm, three-piece
Pad shapes: RCP121 front, RCP197 rear
Minimum wheel size: 18 inch front, per Endless

What’s Included

Endless Racing MONO6 TA front calipers (2)
Endless Racing MONO4r TA rear calipers (2)
Front and rear Endless brake pad sets
Caliper mounting brackets, front and rear
Front rotors (2), 370mm x 34mm two-piece
Rear rotors (2), 355mm x 32mm three-piece
Brake lines (4)

Applications

Nissan Z: RZ34 | 2023-present

Notes

Covers both axles. This Big Brake Kit for RZ34 is identical to the listing led by the 355mm rear rotors
Endless USA lists the front caliper at 2,880g and Endless Japan at 3,015g
Endless Japan supplies MX72 pads on the MONO6 TA unless SR01 or MX72 PLUS is chosen
The front caliper needs an 18 inch wheel at minimum; check clearance against the template
The three-piece rear rotors retain the factory parking brake
Made to order in Japan. Standard RZ34 only, not the NISMO

Frequently Asked Questions

What makes the MONO6 TA and MONO4r TA Big Brake Kit for RZ34 the top set? Both calipers are the TA versions of the Endless Racing MONO family: forged monoblocs with no external fluid pipe, 3D-cut surfaces for cooling and stainless pistons. All four rotors are E-slit units on Tufram-coated bells. No other Endless Big Brake Kit for RZ34 goes further.
Which pad compound is supplied with the Racing MONO6 TA and MONO4r TA set for the RZ34 Z? Endless Japan lists SR01, MX72 and MX72 PLUS for the Racing MONO6 TA and supplies MX72 if no compound is chosen. MX72 is a semi-metallic street and light track pad rated from 50 to 700 degrees C. Tell us how the car is used and we will advise on both axles.
Why are the rotor bells Tufram coated on the Racing MONO6 TA and MONO4r TA set for the RZ34 Z? Endless coats the aluminium bells on its TA kits with Tufram, which it says holds adhesion and resists corrosion better than anodising at circuit temperatures. The bells carry the rotor rings, so a finish that survives repeated heat cycles keeps them in good condition.
Will factory wheels clear the front calipers? Plan to check. Endless gives an 18 inch minimum for the Racing MONO6 TA and notes most factory wheels will not clear its calipers. Send us your wheel size, brand and offset and we will check them against the Endless template before ordering.
What is included in the Endless MONO6 TA and MONO4r TA set? Two Racing MONO6 TA front calipers, two Racing MONO4r TA rear calipers, pads for both axles, mounting brackets, two 370mm front rotors, two 355mm three-piece rear rotors, all on Tufram bells, and four brake lines. DOT4 or higher fluid is needed for the bleed and is not supplied.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
