What's the difference between the Dinan G80 xDrive sway bar set and Dinan's other M3/M4 set?

This set (26mm front / 26mm rear) is engineered specifically for the all-wheel-drive xDrive M3 and M4. Dinan sells a separate RWD-only set (28mm front / 26mm rear) for cars without xDrive. The two aren't interchangeable, since the AWD chassis has different front-end geometry.

Does the Dinan G80 xDrive sway bar set fit the RWD M3 or M4?

No. This bar set is built specifically around the AWD xDrive chassis and is not designed for RWD models. If your M3 or M4 is RWD, Dinan's separate RWD-specific sway bar set is the correct fit.

What does the rear bar's adjustability do on the Dinan G80 xDrive sway bar set?

The rear bar has two mounting holes, letting you shift roll stiffness between the front and rear of the car. A softer setting keeps a more neutral balance, while a stiffer setting sharpens rotation for aggressive driving or track days.

How much stiffer is the Dinan G80 xDrive sway bar set than stock?

The front bar is about 16% stiffer than the factory xDrive unit, and the rear bar ranges from 35-48% stiffer than stock depending on which hole you select, giving a real tuning range without touching springs or dampers.

Can I install the Dinan G80 xDrive sway bar set myself?

Dinan's documented labor time is 9.9 hours, and the job requires dropping the subframe to reach the mounting points. Given that, professional installation with a follow-up alignment is strongly recommended over a driveway install.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

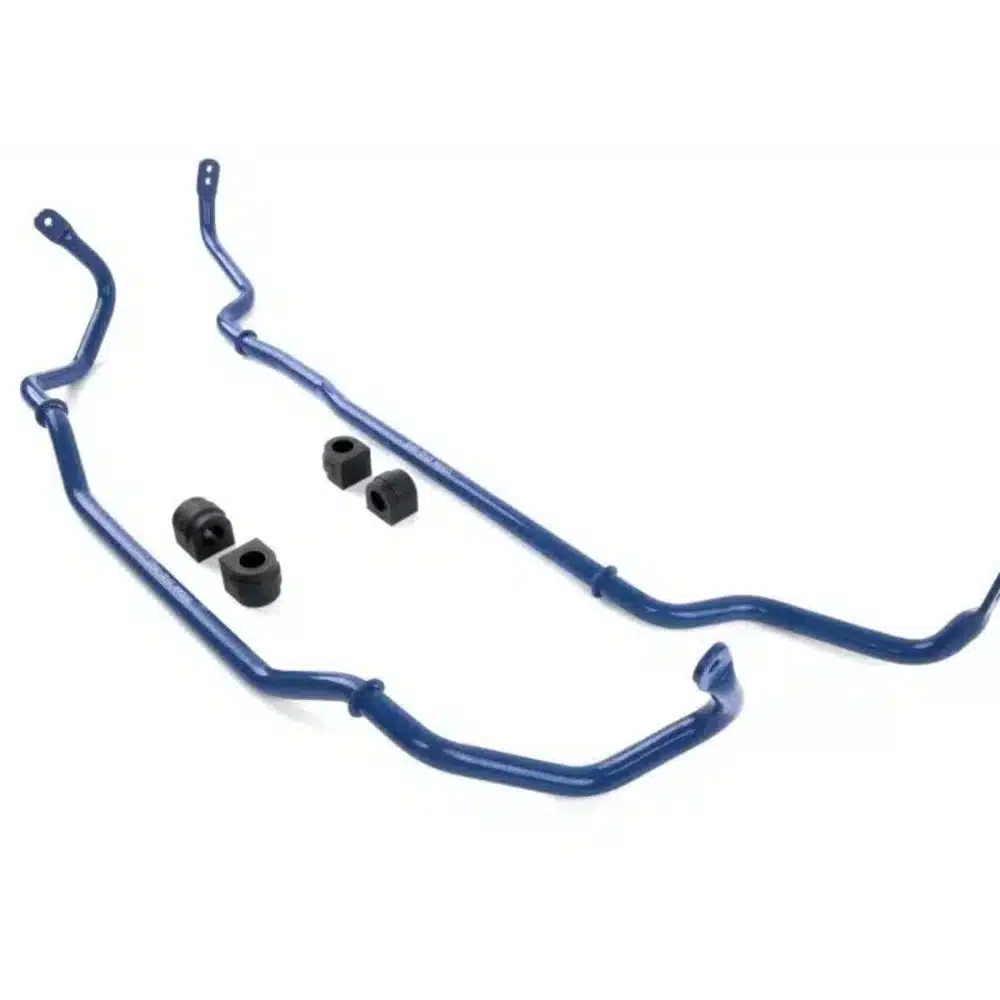

Dinan Front and Rear Sway Bar Set 26mm / 26mm for G80 BMW M3 and G82 / G83 M4 xDrive

Dinan G80 xDrive sway bar set is purpose-built for the all-wheel-drive G80 M3 and G82/G83 M4, replacing the stock front and rear anti-roll bars with stiffer, AWD-specific units that tighten body control without disturbing the factory-tuned all-wheel-drive balance. The rear bar’s two-hole adjustability lets you fine-tune the front-to-rear roll split to suit your driving style.

Built for the AWD Chassis, Not Just Ported Over

The xDrive M3 and M4 carry a different front-end layout than their RWD siblings, so a generic sway bar isn’t a direct fit. Dinan engineered this set specifically around the AWD chassis: the front bar steps up to 26mm (a 16% stiffness increase over the factory bar), and the rear bar also lands at 26mm, adjustable for a 35-48% stiffness increase over stock depending on the hole selected. The result is flatter cornering and sharper transitions while keeping the xDrive system’s traction advantage intact.

Features

Direct-fit front and rear anti-roll bars engineered specifically for the AWD G80/G82/G83 chassis
Rear bar offers 2-hole adjustable mounting to tune the roll stiffness balance
Black polyurethane bushings included, along with the correct grease for installation
Emissions Code 5, meaning the set is legal for street and track use across all 50 states

Applications

BMW M3 xDrive: G80 | 2022-present | 3.0L Twin-Turbo I6 S58
BMW M4 xDrive: G82, G83 | 2022-present | 3.0L Twin-Turbo I6 S58

Notes

This is the xDrive-specific version of Dinan’s M3 / M4 sway bar set, distinct from the RWD-only set sold under a separate SKU
Installation requires dropping the subframe; Dinan’s documented labor estimate is 9.9 hours, including a post-install alignment, so professional installation is strongly recommended

Frequently Asked Questions

What’s the difference between the Dinan G80 xDrive sway bar set and Dinan’s other M3/M4 set? This set (26mm front / 26mm rear) is engineered specifically for the all-wheel-drive xDrive M3 and M4. Dinan sells a separate RWD-only set (28mm front / 26mm rear) for cars without xDrive. The two aren’t interchangeable, since the AWD chassis has different front-end geometry.
Does the Dinan G80 xDrive sway bar set fit the RWD M3 or M4? No. This bar set is built specifically around the AWD xDrive chassis and is not designed for RWD models. If your M3 or M4 is RWD, Dinan’s separate RWD-specific sway bar set is the correct fit.
What does the rear bar’s adjustability do on the Dinan G80 xDrive sway bar set? The rear bar has two mounting holes, letting you shift roll stiffness between the front and rear of the car. A softer setting keeps a more neutral balance, while a stiffer setting sharpens rotation for aggressive driving or track days.
How much stiffer is the Dinan G80 xDrive sway bar set than stock? The front bar is about 16% stiffer than the factory xDrive unit, and the rear bar ranges from 35-48% stiffer than stock depending on which hole you select, giving a real tuning range without touching springs or dampers.
Can I install the Dinan G80 xDrive sway bar set myself? Dinan’s documented labor time is 9.9 hours, and the job requires dropping the subframe to reach the mounting points. Given that, professional installation with a follow-up alignment is strongly recommended over a driveway install.

About Dinan

Founded in 1979, Dinan is North America’s leading BMW tuner, developing, manufacturing, and marketing a full line of high-performance products for BMW, MINI, and Mercedes-Benz. Dinan works through a nationwide network of Authorized Dinan Performance Centers, including select BMW dealerships and independent BMW service and performance shops. The company’s warranty program, introduced in 1996 with BMW of North America’s cooperation, matches BMW’s new car warranty and covers Dinan enhancements and the vehicle itself for up to 4 years or 50,000 miles. That coverage lets BMW owners add real performance without risking their factory warranty. Automotive publications have tested Dinan-enhanced BMWs against some of the world’s most exotic sports cars for three decades, and the results consistently hold up. Despite that performance, Dinan BMWs keep the reliability and everyday civility BMW owners expect. The product line spans engine, driveline, and chassis components across the full BMW lineup, covering acceleration, cornering, and stopping power. Every Authorized Dinan Performance Center can help build anything from a single upgrade to a complete Dinan BMW.
