Why do Ferrari F12 and FF radiators fail?

The factory unit crimps an aluminum core onto plastic end tanks over a gasket. Heat cycling breaks the plastic down, and the bond between tanks and core commonly begins to fail around the ten to twelve year mark. Every hose removal during a service flakes more plastic off the inlet and outlet necks and into the coolant. The CSF Radiator for Ferrari F12 is TIG-welded aluminum throughout, with no plastic in it to degrade.

Does one CSF part number really cover the FF, GTC4Lusso, F12, 812 and Monza?

Yes. Ferrari used three OE part numbers across these cars, 263427, 333926 and 319867, and CSF replaced all three with a single unit, part number 7250. It covers the FF from 2011 to 2016, the GTC4Lusso from 2017 to 2020, the F12 Berlinetta and F12tdf, the 812 Superfast and 812 GTS, and both Monza SP models. The GTC4Lusso T is the one exception and is not covered.

What is CSF B-Tube technology?

B-Tube is the cooling tube profile CSF developed in place of the conventional oval welded tube. The seam-brazed B section creates two laminar flow paths inside one tube, adding internal surface area without adding core thickness. CSF measures roughly 15 percent more heat transfer from the tube alone, and up to 25 percent once the 5mm multi-louvered fin is counted.

Is the Radiator for Ferrari F12 a direct fit?

Yes. It goes into the OE location and uses the factory ducting, shrouds, brackets and hardware, with CNC-machined mounts and OE-style double-barbed inlet and outlet connections. No modification is needed. Getting to it means removing the front bumper and ducting, so CSF recommends a qualified installation facility if that is beyond what you want to take on.

How much bigger is the CSF core than the factory one?

The CSF core is 2-row and 42mm thick against a single-row factory core of 33mm on the FF and GTC4Lusso and 37mm on the F12, 812 and Monza. That works out to 28 percent more core volume on the shooting brakes and 14 percent more on the coupes, along with an extra cooling tube and an extra fin row.

What warranty does CSF provide?

CSF covers the Radiator for Ferrari F12 and its sibling models with a 2-year limited warranty against defects under normal use and service, to the original purchaser of the vehicle it was installed in. Every unit is individually leak and pressure tested before it ships, and warranty claims require the original product to be returned to CSF for inspection.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

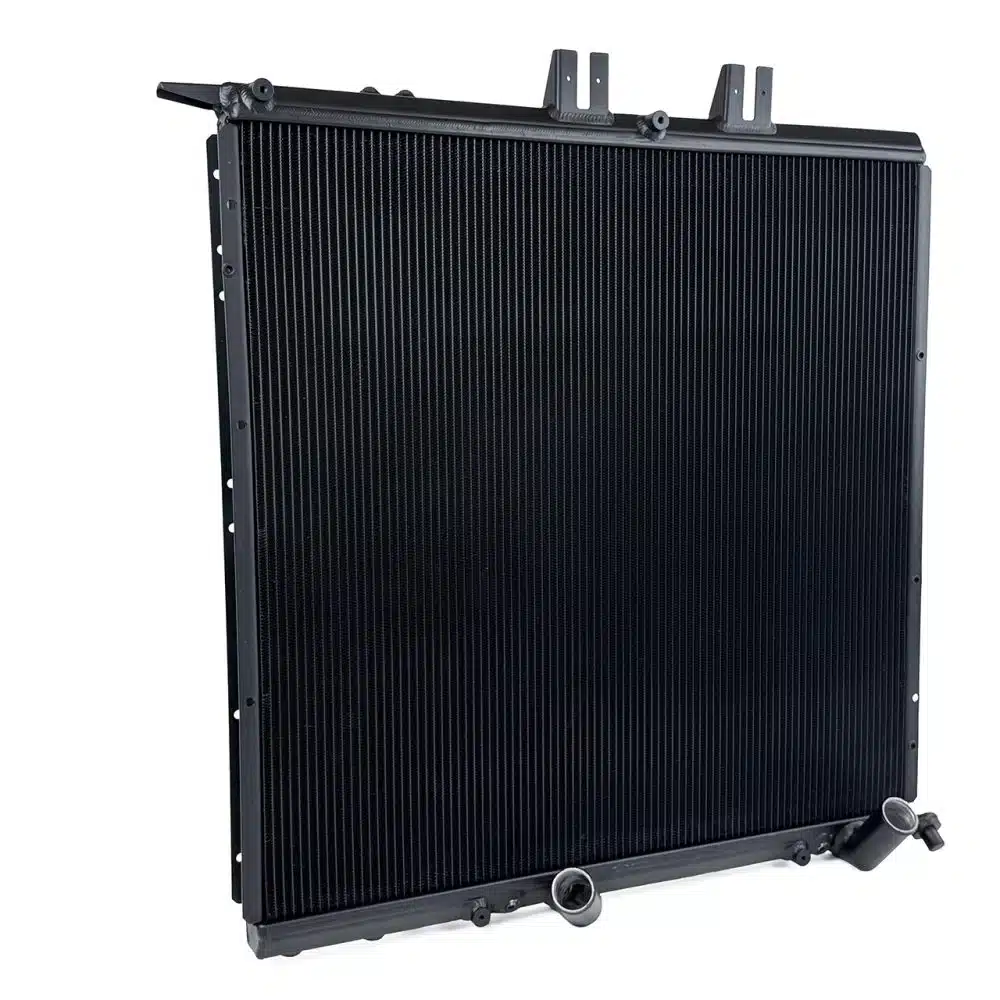

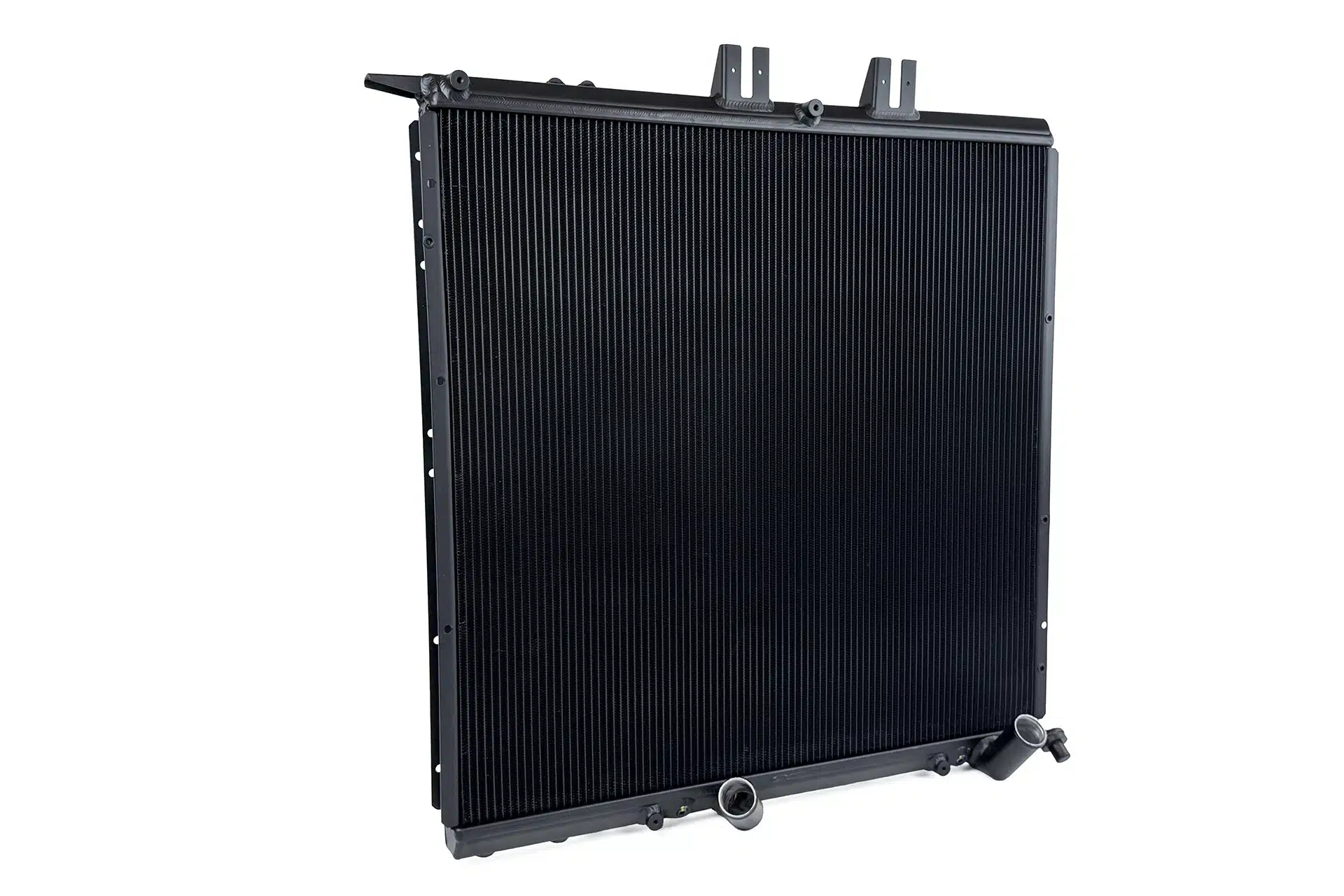

CSF High-Performance Aluminum Radiator for Ferrari F12, 812, FF, GTC4Lusso and Monza

CSF’s High-Performance Aluminum Radiator for Ferrari F12, 812, FF, GTC4Lusso and Monza is the first serious alternative to a factory part that costs well over $1,200 and ages on a timer. Ferrari crimps an aluminum core onto plastic end tanks, and on a V12 grand tourer now ten to fifteen years old that bond is living on borrowed time. The annual fouling inspection makes it worse rather than better, because the plastic inlet and outlet necks flake onto the hoses every time they come away, seeding the cooling system with debris that eventually finds the water pump. CSF developed this radiator with Hollywood Mechanic and welded the whole of it in aluminum: a 2-row 42mm core, 28% larger than the FF and GTC4Lusso original and 14% larger than the F12, 812 and Monza unit, running 87 cooling tubes and 88 fin rows with CSF’s exclusive B-Tube profile behind a 5mm multi-louvered fin. Heat transfer climbs by up to 25%. These are cars built to cross a continent quickly, and this is a radiator that will still be doing its job when the next owner takes delivery.

Design and Engineering

CSF set out with four priorities: OEM fit and finish, more cooling capacity, better reliability and easier servicing. The 2-row 42mm core is the headline, adding a cooling tube and a fin row over the factory count and lifting coolant volume as well as surface area. B-Tube technology does most of the rest; the seam-brazed B-section tube divides flow into two laminar paths inside a single tube, adding internal surface area without adding thickness, and it moves roughly 15% more heat than a conventional oval welded tube. Combined with the 5mm multi-louvered fin CSF introduced at the end of 2023, the Radiator for Ferrari F12 and its sibling grand tourers gain up to 25% in total heat transfer.

Construction

The original radiators on these cars use an aluminum core crimped to plastic tanks over a gasket. It is acceptable engineering when new and a liability at fifteen years. The plastic in the tanks and hose fittings breaks down, and the bond to the core typically starts failing somewhere around the ten to twelve year mark. Ferrari asks for a fouling check every year and a coolant flush every four, and both are important to the health of the system, yet both accelerate the decay of the part they are meant to protect. The CSF Radiator for Ferrari F12, 812, FF, GTC4Lusso and Monza is TIG-welded 100% aluminum from tank to fitting, so servicing it does not shorten its life.

Bolt-On and Go

Everything lines up. CNC-machined mounting brackets and OE-style double-barbed inlet and outlet connections put the Radiator for Ferrari F12 exactly where the factory unit sat, and the standard ducting, shrouds and mounting hardware bolt straight back to it. The engine oil cooler on the left-hand side and the A/C condenser at the front both return to their original positions. The satin black finish reads as original equipment once the bumper is on.

Features

Exclusive B-Tube cooling tubes split coolant into two laminar paths for more heat transfer in the same core footprint
5mm tall multi-louvered fins pull heat out of the core without choking the airflow through it
CNC-machined mounting brackets and OE-style double-barbed inlet and outlet connections
100% all-aluminum TIG-welded tanks and fittings in place of the factory crimped plastic
Satin black finish that reads as original equipment behind the bumper
Drop-in fit in the OE location using the factory ducting and mounting system, with no modification
Every Radiator for Ferrari F12 and its sibling grand tourers is individually leak and pressure tested before it leaves CSF

Specifications

Core Rows: 2-Row (factory: 1-Row)
Core Thickness: 42mm (factory: 33mm on FF and GTC4Lusso, 37mm on F12, 812 and Monza)
Cooling Tubes: 87 (factory: 86)
Cooling Fin Rows: 88 (factory: 87)
Fin Height: 5mm, multi-louvered
Core Volume: 28% larger than the FF and GTC4Lusso radiator, 14% larger than the F12, 812 and Monza radiator
Heat Transfer: up to 25% greater than the factory radiator
Tank Material: Aluminum (factory: plastic)
Construction: 100% TIG-welded
Finish: Satin black
Warranty: 2-year limited

Applications

Ferrari 812: F152M | 2024 | 6.5L V12
Ferrari 812 GTS: F152M | 2020-2024 | 6.5L V12
Ferrari 812 Superfast: F152M | 2018-2022 | 6.5L V12
Ferrari F12 Berlinetta: F152 | 2013-2017 | 6.3L V12
Ferrari F12tdf: F152 | 2016-2017 | 6.3L V12
Ferrari FF: F151M | 2011-2016 | 6.3L V12
Ferrari GTC4Lusso: F151M | 2017-2020 | 6.3L V12
Ferrari Monza SP1: 2023 | 6.5L V12
Ferrari Monza SP2: 2023 | 6.5L V12

Notes

Sold individually; the Radiator for Ferrari F12, 812, FF, GTC4Lusso and Monza is a single unit, not a pair
Does not fit the GTC4Lusso T, which uses the turbocharged V8 and a different cooling package
Replaces Ferrari OE part numbers 263427 (FF and GTC4Lusso), 333926 (F12 and GTC4Lusso) and 319867 (812 and Monza)
Ferrari calls for a cooling system fouling inspection annually and a coolant flush every four years; both are far kinder to an all-aluminum radiator than to the factory plastic-tank unit
CSF recommends a qualified installation facility if removing the front bumper and ducting is outside your comfort zone
Browse the wider CSF cooling range on Bulletproof Automotive

Frequently Asked Questions

Why do Ferrari F12 and FF radiators fail? The factory unit crimps an aluminum core onto plastic end tanks over a gasket. Heat cycling breaks the plastic down, and the bond between tanks and core commonly begins to fail around the ten to twelve year mark. Every hose removal during a service flakes more plastic off the inlet and outlet necks and into the coolant. The CSF Radiator for Ferrari F12 is TIG-welded aluminum throughout, with no plastic in it to degrade.
Does one CSF part number really cover the FF, GTC4Lusso, F12, 812 and Monza? Yes. Ferrari used three OE part numbers across these cars, 263427, 333926 and 319867, and CSF replaced all three with a single unit, part number 7250. It covers the FF from 2011 to 2016, the GTC4Lusso from 2017 to 2020, the F12 Berlinetta and F12tdf, the 812 Superfast and 812 GTS, and both Monza SP models. The GTC4Lusso T is the one exception and is not covered.
What is CSF B-Tube technology? B-Tube is the cooling tube profile CSF developed in place of the conventional oval welded tube. The seam-brazed B section creates two laminar flow paths inside one tube, adding internal surface area without adding core thickness. CSF measures roughly 15 percent more heat transfer from the tube alone, and up to 25 percent once the 5mm multi-louvered fin is counted.
Is the Radiator for Ferrari F12 a direct fit? Yes. It goes into the OE location and uses the factory ducting, shrouds, brackets and hardware, with CNC-machined mounts and OE-style double-barbed inlet and outlet connections. No modification is needed. Getting to it means removing the front bumper and ducting, so CSF recommends a qualified installation facility if that is beyond what you want to take on.
How much bigger is the CSF core than the factory one? The CSF core is 2-row and 42mm thick against a single-row factory core of 33mm on the FF and GTC4Lusso and 37mm on the F12, 812 and Monza. That works out to 28 percent more core volume on the shooting brakes and 14 percent more on the coupes, along with an extra cooling tube and an extra fin row.
What warranty does CSF provide? CSF covers the Radiator for Ferrari F12 and its sibling models with a 2-year limited warranty against defects under normal use and service, to the original purchaser of the vehicle it was installed in. Every unit is individually leak and pressure tested before it ships, and warranty claims require the original product to be returned to CSF for inspection.

About CSF

The Racing & High Performance Division of CSF Inc. is dedicated to designing and producing the world’s most advanced, efficient, and dependable cooling solutions. CSF offers a broad range of state-of-the-art cooling systems, with over 250 distinct applications. These include high-performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, as well as bespoke manufacturing tailored for racecars, power sports, off-road vehicles, marine, and industrial applications. Every cooling solution from CSF is meticulously crafted to ensure optimal engine temperature management, even in the most rigorous driving scenarios. With a legacy spanning over 50 years and more than 40 million cooling units distributed worldwide, CSF is widely regarded as a luminary in the industry.
