What is included in the Intake and FMIC Package for the S550 Mustang?

The Intake and FMIC Package includes four COBB items: the Accessport V3 for Ford Mustang EcoBoost, part AP3-FOR-003, the Cold Air Intake with airbox, part 7M1100, the Front Mount Intercooler, part 7M1500, and a COBB Vehicle Badge, part 800200. The Accessport comes loaded with Stage 2 maps for this combination.

Will this package fit a 2018 or newer Mustang EcoBoost?

No. COBB confirms this package for 2015, 2016 and 2017 Mustang EcoBoost models only, since the cold air intake is listed for those years. Owners of 2018 through 2023 cars should choose part 6M1X02-NI, which pairs the same intercooler and Accessport with the factory intake.

Is the Stage 2 package legal in California?

Yes. The COBB listing shows California Air Resources Board Executive Order numbers D-660-6 and D-660-149, which permit sale and use on emissions controlled vehicles in all 50 states when the parts are installed following the COBB application guide. Keep both numbers with the vehicle records.

Does the intake change how the Mustang sounds?

Yes, inside the engine bay. COBB says the intake adds more audible feedback from the turbocharger and the bypass valve. The package contains no exhaust parts, so the exhaust note stays as Ford built it. A louder car would need a separate exhaust and a matching map.

Do Launch Control and Flat Foot Shift work with this package?

Yes, on 2015-2017 cars. COBB lists Launch Control, Adjustable Traction Control and Burnout Mode for these model years, and Flat Foot Shift on manual cars only. Launch Control offers six RPM slots on the Accessport, so the launch can be matched to the surface.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Intake and FMIC Package for S550 Ford Mustang EcoBoost

COBB Tuning’s Intake and FMIC Package is the complete Stage 2 kit for the 2015-2017 S550 Mustang EcoBoost, combining an Accessport V3, a cold air intake with airbox and a larger front mount intercooler. COBB identified heat as the main limit on the 2.3 liter engine, so the intercooler does the heavy lifting while the intake adds airflow and turbo sound. CARB EO D-660-6 and D-660-149 make it legal in every state; 2018 and later cars need the No Intake version.

Design and Performance

Air diverting fins inside the cast aluminum end tanks, developed by COBB with CFD analysis, push charge air across the entire core. The cold side runs through 3 inch mandrel bent aluminum piping and a 4-ply silicone coupler to the throttle body. COBB quotes charge temperatures down by as much as 100 degrees, and the Intake and FMIC Package maps are written for exactly this hardware.

Ford Features on the Accessport

For 2015-2017 cars, COBB lists Adjustable Traction Control, Launch Control and, on manual cars, Flat Foot Shift, which holds engine RPM steady during gear changes. Burnout Mode is enabled in the Off The Shelf maps.

Features

COBB cold air intake with airbox replaces the factory induction
Larger front mount intercooler fits without modification to the car and keeps the factory MAP sensor
Accessport V3 flashes Stage 2 Off The Shelf maps and shows live ECU data as gauges
Uninstall option returns the ECU to its factory calibration

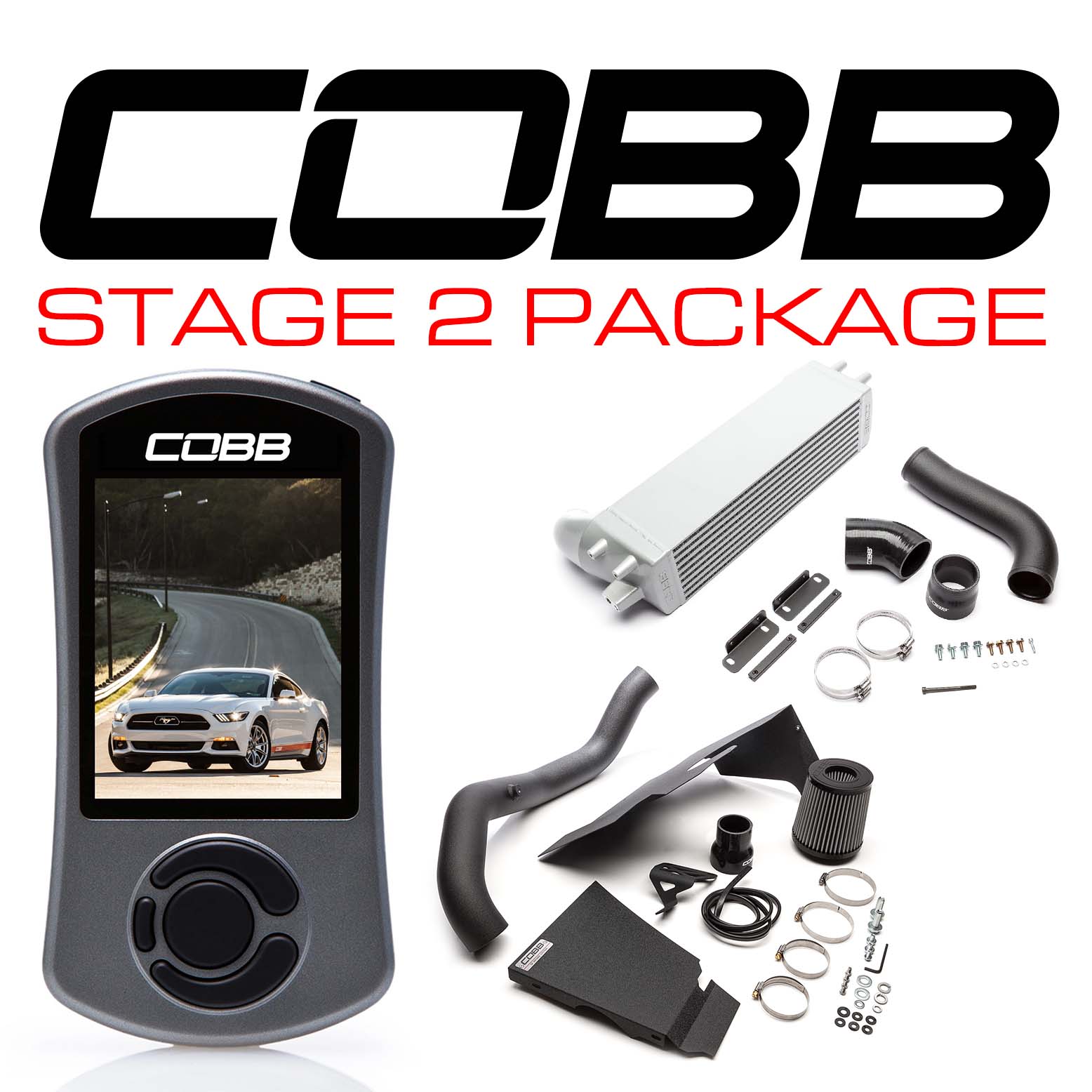

What’s Included

COBB Accessport V3 for Ford Mustang EcoBoost (AP3-FOR-003)
COBB Cold Air Intake for Ford Mustang EcoBoost 2015-2017 (7M1100)
COBB Front Mount Intercooler for Ford Mustang EcoBoost (7M1500)
COBB Vehicle Badge (800200)

Applications

Ford Mustang EcoBoost: S550 | 2015-2017 | Manual or automatic | USDM
Ford Mustang EcoBoost: S550 | 2016-2017 | Manual | EDM
Ford Mustang EcoBoost: S550 | 2015-2017 | Automatic | CHDM, EDM and SKDM

Notes

Fits the 2015-2017 Mustang EcoBoost only; 2018-2023 cars take the No Intake package, 6M1X02-NI
No exhaust parts are included
COBB lists this package on backorder; confirm lead time before ordering
50-state legal with CARB EO D-660-6 and D-660-149

Frequently Asked Questions

What is included in the Intake and FMIC Package for the S550 Mustang? The Intake and FMIC Package includes four COBB items: the Accessport V3 for Ford Mustang EcoBoost, part AP3-FOR-003, the Cold Air Intake with airbox, part 7M1100, the Front Mount Intercooler, part 7M1500, and a COBB Vehicle Badge, part 800200. The Accessport comes loaded with Stage 2 maps for this combination.
Will this package fit a 2018 or newer Mustang EcoBoost? No. COBB confirms this package for 2015, 2016 and 2017 Mustang EcoBoost models only, since the cold air intake is listed for those years. Owners of 2018 through 2023 cars should choose part 6M1X02-NI, which pairs the same intercooler and Accessport with the factory intake.
Is the Stage 2 package legal in California? Yes. The COBB listing shows California Air Resources Board Executive Order numbers D-660-6 and D-660-149, which permit sale and use on emissions controlled vehicles in all 50 states when the parts are installed following the COBB application guide. Keep both numbers with the vehicle records.
Does the intake change how the Mustang sounds? Yes, inside the engine bay. COBB says the intake adds more audible feedback from the turbocharger and the bypass valve. The package contains no exhaust parts, so the exhaust note stays as Ford built it. A louder car would need a separate exhaust and a matching map.
Do Launch Control and Flat Foot Shift work with this package? Yes, on 2015-2017 cars. COBB lists Launch Control, Adjustable Traction Control and Burnout Mode for these model years, and Flat Foot Shift on manual cars only. Launch Control offers six RPM slots on the Accessport, so the launch can be matched to the surface.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
