COBB Tuning Redline Carbon Intake for DE5 Acura Integra Type S / FL5 Honda Civic Type R [7H2160]

COBB Tuning Redline Carbon Intake for DE5 Acura Integra Type S / FL5 Honda Civic Type R [7H2160]

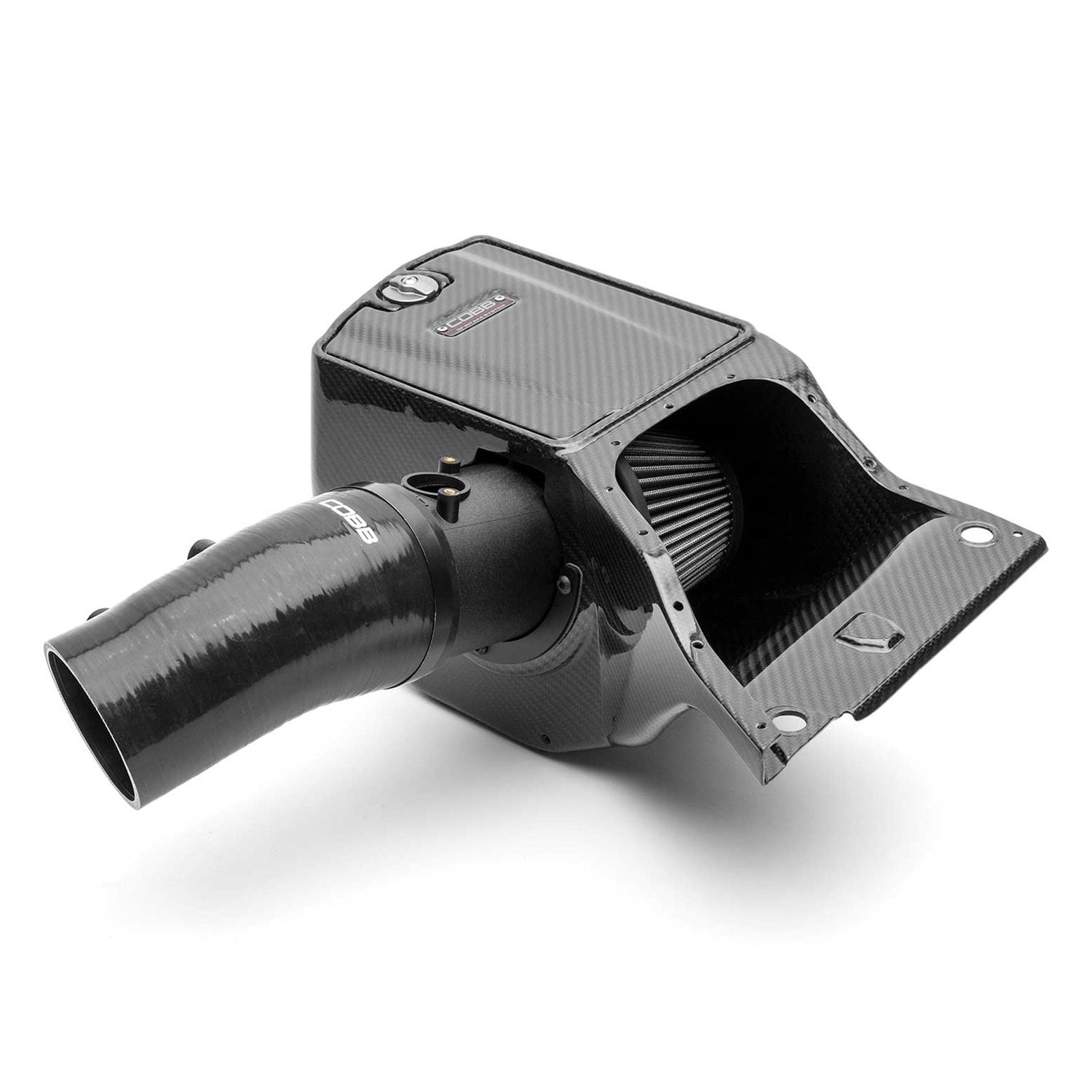

The Redline Carbon Intake blends performance and aesthetics to deliver a premium solution for Honda and Acura applications. Constructed from 2×2 twill carbon with a high-gloss clearcoat, it makes a striking visual statement in the engine bay.

Construction

• The main airbox is built from multiple layers of 2×2 twill carbon, creating a true carbon intake with a high-gloss clearcoat for heat and UV fade resistance. A bespoke black Redline badge accents the front of the integrated duct, while a billet knob allows quick removal of the lid for service. Incoming air passes through a large, pre-oiled filter into the MAF housing, which mounts to the airbox via a black-anodized billet aluminum adapter. A wire-reinforced black silicone coupler, secured with black-anodized clamps at both ends, completes a clean, high-end installation.

Velocity Stack MAF Housing

• This intake system incorporates purpose-built features to preserve optimal flow while minimizing turbulence. A CFD-developed velocity stack and an airflow-straightener grid smooth incoming air across the MAF sensor for precise measurement, while the one-piece, high-temperature plastic composite construction reduces weight and heat transfer. The COBB MAF housing increases cross-section by 36% over stock to accommodate greater airflow.

Installation

• Installation of the Redline Intake is straightforward for an intake with an integrated airbox and scoop. By following the detailed instructions to fit the supplied brackets, the entire assembly drops in within minutes, and once installed, servicing the intake air filter remains simple.

Features

• 2×2 twill carbon weave
• Premium gloss finish
• Bespoke COBB badging
• Integrated carbon scoop
• Compatible with COBB OTS maps

Applications

• Acura Integra Type S: DE5 (2024-present) [2.0L I4 turbo K20C1]
• Honda Civic Type R: FL5 (2023-present) [2.0L I4 turbo K20C1]

Notes

• Carbon is hand laid, slight imperfections or variances can be expected
• Requires tuning, compatible with COBB stage 1+ or stage 2 off the shelf maps (OTS)
