Do the COBB Tuning Turbo Inlets for P552 Ford trucks need a tune?

No. COBB lists these inlets as tuning not required, so they can be installed on a stock 3.5L EcoBoost F-150 or Raptor without an Accessport. Owners who already run a COBB map or a custom tune can keep using it with the inlets fitted.

Are these turbo inlets legal in California?

Yes. The kit carries California Air Resources Board Executive Order numbers D-660-274 and D-660-296, which makes it legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide on the 2017 to 2020 trucks listed above.

Which trucks do the Turbo Inlets for P552 Ford fit?

The Turbo Inlets for P552 Ford fit the 2017 to 2020 F-150 with the 3.5L EcoBoost, the 2019 and 2020 F-150 Limited, and the 2017 to 2020 F-150 Raptor, all USDM. They do not fit the 2.7L EcoBoost, the 5.0L V8 or the 2021 and newer P702 trucks, which use different inlet routing.

Will they work with Garrett PowerMax upgraded turbochargers?

Yes, with a separate part. The couplers supplied in this kit match the factory turbochargers. COBB offers an alternate coupler kit for trucks that have been upgraded to Garrett PowerMax turbochargers, and that coupler kit is sold separately. Order it with the inlets if your truck has the PowerMax units.

Why replace the factory turbo inlet tubes?

The factory inlet tubes on the 3.5L EcoBoost are plastic, and repeated heat cycles can leave them brittle and prone to cracking, which lets unmetered air into the system. They also narrow sharply on the way to the turbos. Carbon fiber tubes remove that failure point and give the turbochargers a less restricted path for intake air.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Redline Carbon Fiber Turbo Inlets for P552 Ford F-150 / Raptor

COBB Tuning’s Turbo Inlets for P552 Ford F-150 and Raptor trucks replace the plastic inlet tubes that feed each turbocharger on the 3.5L EcoBoost with a pair of gloss 2×2 twill carbon fiber tubes, and the kit holds CARB EO numbers D-660-274 and D-660-296, so it stays legal in all 50 states. The factory tubes tend to crack with age and neck down before the compressors, so this is a sensible fix on a high-mileage truck, and no tune is needed. Trucks already on Garrett PowerMax turbos need the separate coupler kit.

Tuning and Compatibility

The Turbo Inlets for P552 Ford trucks bolt to the factory turbochargers with the couplers in the box, and COBB lists them as tuning not required, so a stock truck can run them as delivered. They also pair well with an Accessport map or a custom tune. Trucks running Garrett PowerMax upgraded turbochargers need COBB’s alternate coupler kit, sold separately.

Features

2×2 twill weave carbon fiber inlet tubes with a gloss finish
Black 5-ply reinforced silicone couplers held with quality clamps
Larger airflow path than the factory tubes, which neck down before the turbos
Replaces plastic factory tubes that can crack with repeated heat cycles
Compatible with stock turbochargers, no tuning required
Alternate couplers for upgraded turbochargers available separately

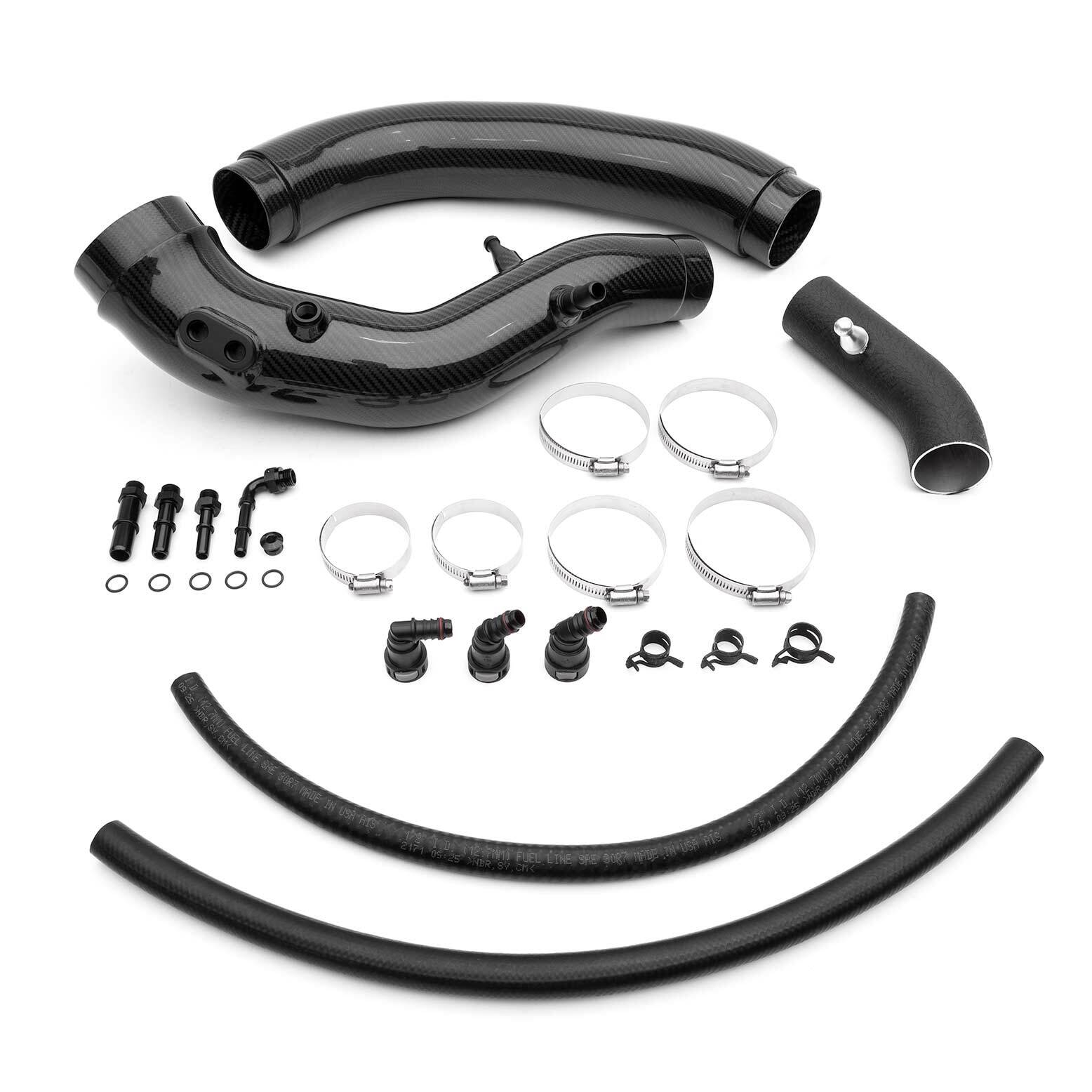

What’s Included

Driver side carbon fiber turbo inlet tube
Passenger side carbon fiber turbo inlet tube
Black 5-ply reinforced silicone couplers for the factory turbochargers
Coupler clamps

Applications

Ford F-150: P552 | 2017-2020 | 3.5L EcoBoost | USDM
Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-274 and D-660-296
Couplers supplied fit the factory turbochargers; the coupler kit for Garrett PowerMax turbos is sold separately
Accessport and tune are not included and are not required for this part
Does not fit 2.7L EcoBoost or 5.0L F-150 models, or 2021 and newer P702 trucks

Frequently Asked Questions

Do the COBB Tuning Turbo Inlets for P552 Ford trucks need a tune? No. COBB lists these inlets as tuning not required, so they can be installed on a stock 3.5L EcoBoost F-150 or Raptor without an Accessport. Owners who already run a COBB map or a custom tune can keep using it with the inlets fitted.
Are these turbo inlets legal in California? Yes. The kit carries California Air Resources Board Executive Order numbers D-660-274 and D-660-296, which makes it legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide on the 2017 to 2020 trucks listed above.
Which trucks do the Turbo Inlets for P552 Ford fit? The Turbo Inlets for P552 Ford fit the 2017 to 2020 F-150 with the 3.5L EcoBoost, the 2019 and 2020 F-150 Limited, and the 2017 to 2020 F-150 Raptor, all USDM. They do not fit the 2.7L EcoBoost, the 5.0L V8 or the 2021 and newer P702 trucks, which use different inlet routing.
Will they work with Garrett PowerMax upgraded turbochargers? Yes, with a separate part. The couplers supplied in this kit match the factory turbochargers. COBB offers an alternate coupler kit for trucks that have been upgraded to Garrett PowerMax turbochargers, and that coupler kit is sold separately. Order it with the inlets if your truck has the PowerMax units.
Why replace the factory turbo inlet tubes? The factory inlet tubes on the 3.5L EcoBoost are plastic, and repeated heat cycles can leave them brittle and prone to cracking, which lets unmetered air into the system. They also narrow sharply on the way to the turbos. Carbon fiber tubes remove that failure point and give the turbochargers a less restricted path for intake air.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
