Does the COBB Tuning Hard Pipe Kit for C346 Focus RS require an aftermarket intercooler?

No. COBB designed the Hard Pipe Kit for C346 Focus RS owners who want to keep the factory intercooler core. The pipes connect to the OE core and also suit OE replacement cores, so there is no need to buy a new intercooler alongside them.

Is this hard pipe kit legal in California?

Yes. COBB lists the kit under California Air Resources Board Executive Order D-660-73, which makes it legal for sale and use on emissions-controlled vehicles in all 50 states when it is installed according to the application guide published by the manufacturer.

Which vehicles does the kit fit?

The confirmed application list covers the 2016, 2017 and 2018 Ford Focus RS in USDM, EDM and CHDM market specifications. It is not listed for the Focus ST or any other Ford model, so owners of those vehicles need a different part.

What parts come in the box?

The kit replaces the factory plastic charge tubing on both sides of the intercooler. It contains a one-piece hot side pipe running from the turbo outlet to the intercooler inlet, a one-piece cold side pipe running from the intercooler outlet to the throttle body, black 4-ply silicone couplers and heavy duty worm gear hose clamps.

Does the Focus RS need a tune after installing these pipes?

No tune is listed as a requirement. COBB does not name one in its product information for the Hard Pipe Kit for C346 cars, and the kit carries its own CARB EO number. An Accessport or custom tune is sold separately and is not part of this kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Intercooler Hard Pipe Kit for C346 Ford Focus RS

COBB Tuning’s Intercooler Hard Pipe Kit for C346 Focus RS swaps the factory plastic charge tubing for single-piece pipes bent from 2.5 inch mandrel aluminum, on both the hot and cold sides of the intercooler. It keeps the stock intercooler core in place, a sensible first step for an owner who wants firmer plumbing without committing to a front mount upgrade. It carries CARB EO D-660-73, so it can go on a street car in any state. Owners planning a larger aftermarket core should confirm it is an OE replacement design first.

Design and Construction

Each side of the system is a single length of mandrel-bent aluminum, so there are no welds between the turbo outlet and the intercooler inlet, or between the intercooler outlet and the throttle body. COBB credits the mandrel-bent path with removing restriction and freeing up airflow compared with the stock tubing. The connections are made with COBB 4-ply silicone couplers and heavy duty worm gear clamps chosen to keep the pipes seated under boost.

Fitment and Compatibility

COBB confirms the Hard Pipe Kit for C346 Focus RS on 2016 through 2018 cars in USDM, EDM and CHDM market specifications. The pipes mate to the original intercooler and to OE replacement cores, so the kit stays useful if the stock core is later swapped for a direct replacement.

Features

2.5 inch mandrel bent aluminum hot side and cold side pipes
One-piece, weld-free construction on each side of the intercooler
Wrinkle black powder coat finish
Black 4-ply silicone couplers
Heavy duty worm gear hose clamps
Compatible with OE and OE replacement intercooler cores
Made in the US

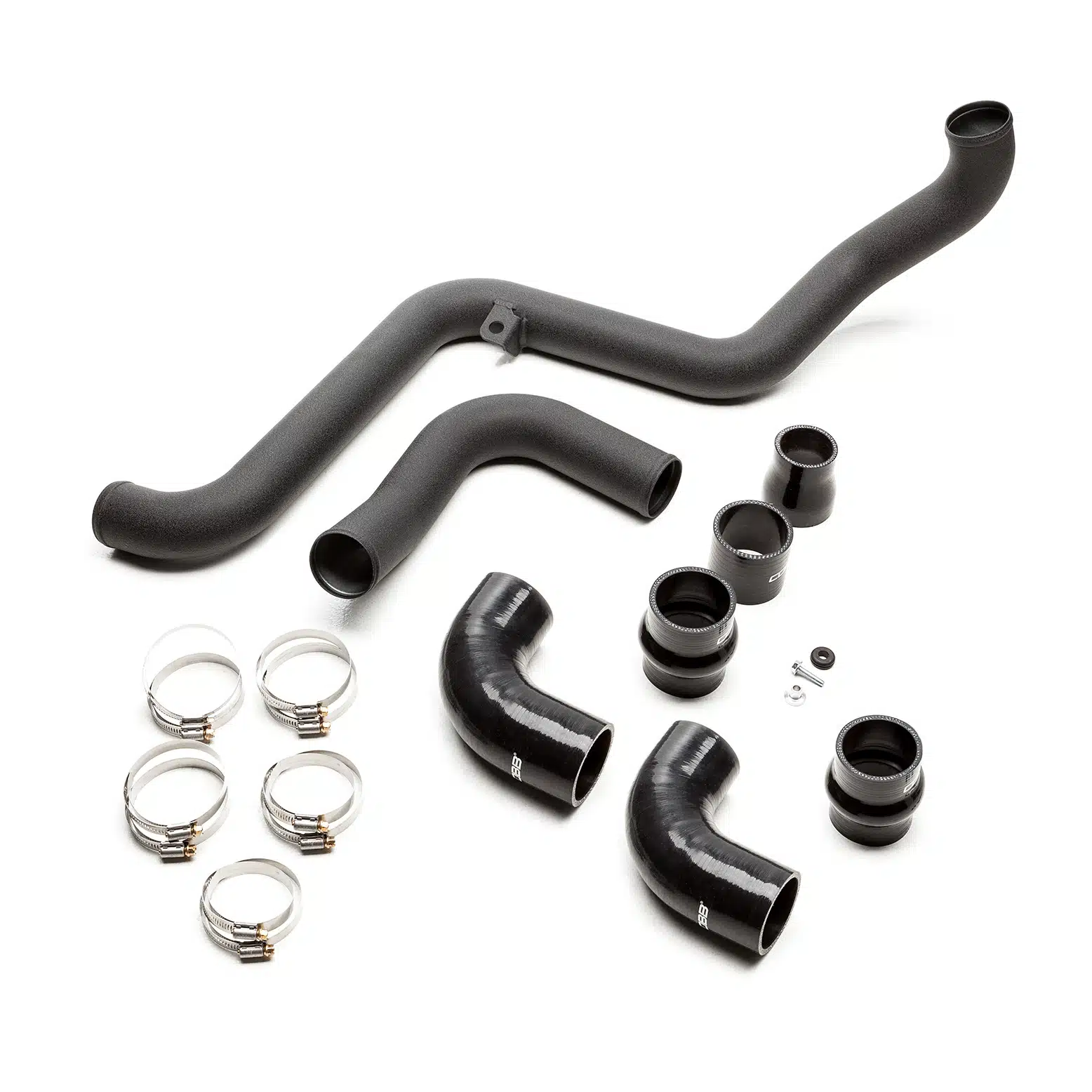

What’s Included

Hot side pipe (turbo outlet to intercooler inlet)
Cold side pipe (intercooler outlet to throttle body)
Black 4-ply silicone couplers
Heavy duty worm gear hose clamps

Applications

Ford Focus RS: C346 | 2016-2018 | USDM, EDM and CHDM

Notes

Intercooler core not included; the kit reuses the factory core or an OE replacement core
Accessport and tuning are sold separately
50-state legal with CARB EO D-660-73 when installed per the manufacturer application guide

Frequently Asked Questions

Does the COBB Tuning Hard Pipe Kit for C346 Focus RS require an aftermarket intercooler? No. COBB designed the Hard Pipe Kit for C346 Focus RS owners who want to keep the factory intercooler core. The pipes connect to the OE core and also suit OE replacement cores, so there is no need to buy a new intercooler alongside them.
Is this hard pipe kit legal in California? Yes. COBB lists the kit under California Air Resources Board Executive Order D-660-73, which makes it legal for sale and use on emissions-controlled vehicles in all 50 states when it is installed according to the application guide published by the manufacturer.
Which vehicles does the kit fit? The confirmed application list covers the 2016, 2017 and 2018 Ford Focus RS in USDM, EDM and CHDM market specifications. It is not listed for the Focus ST or any other Ford model, so owners of those vehicles need a different part.
What parts come in the box? The kit replaces the factory plastic charge tubing on both sides of the intercooler. It contains a one-piece hot side pipe running from the turbo outlet to the intercooler inlet, a one-piece cold side pipe running from the intercooler outlet to the throttle body, black 4-ply silicone couplers and heavy duty worm gear hose clamps.
Does the Focus RS need a tune after installing these pipes? No tune is listed as a requirement. COBB does not name one in its product information for the Hard Pipe Kit for C346 cars, and the kit carries its own CARB EO number. An Accessport or custom tune is sold separately and is not part of this kit.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
