What comes in the TCM Black Intercooler Power Package?

The TCM Black Intercooler Power Package contains four COBB parts: the Accessport V3 with TCM Flashing, the Intake System w/ HCT, the black factory location front mount intercooler, part number 7F1527-BK, and a COBB vehicle badge. Together they make up the COBB Stage 2 hardware for the 2017-2019 F-150 3.5L EcoBoost, with transmission tuning added through the Accessport.

Do I have to cut the bumper or shroud for the intercooler?

No. This is the factory location intercooler, which mates snugly to the OEM shutter shroud and needs no cutting, trimming or permanent modification. COBB also makes a larger front mount intercooler for owners willing to accept light modification, but that unit is sold in a different package.

Is this Stage 2 package CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package. That makes it legal for sale and use on emissions controlled vehicles in all 50 states, provided the parts are installed and the Accessport is used according to the COBB application guide.

Can I add water or methanol injection later?

Yes. COBB cast two flat sections into the intercooler for that purpose. The upper flat can be drilled and tapped to accept an injection nozzle, and the lower flat can serve as a drain port. The injection kit, nozzle and fittings are not part of this package and are sourced separately when the owner is ready to add them.

What does TCM flashing add?

It lets the Accessport reflash the transmission controller with off-the-shelf tunes that adjust shift points, shift firmness, skip-shift behavior and torque limits. On 2017-2019 trucks this is done separately from the engine map. COBB offers Simulated Stock, the sporty but refined COBB OEM+, and the performance-first COBB Sport.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

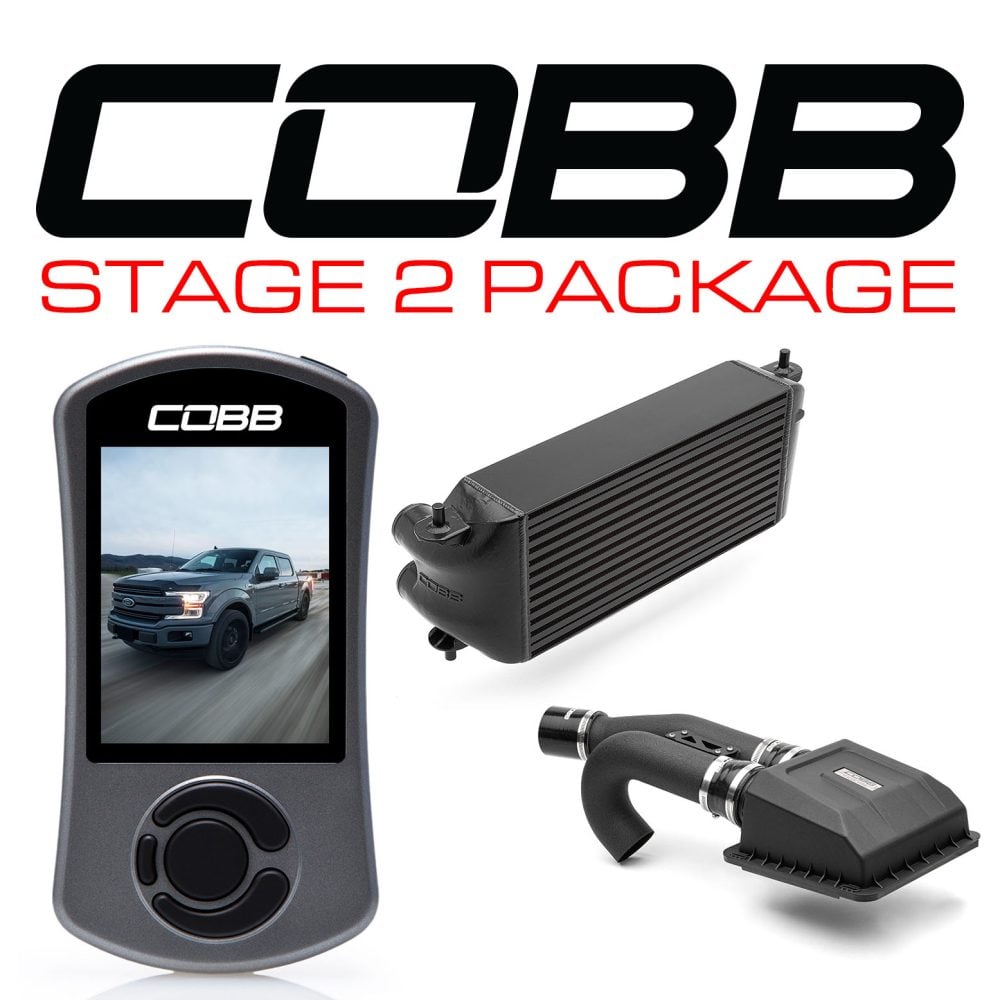

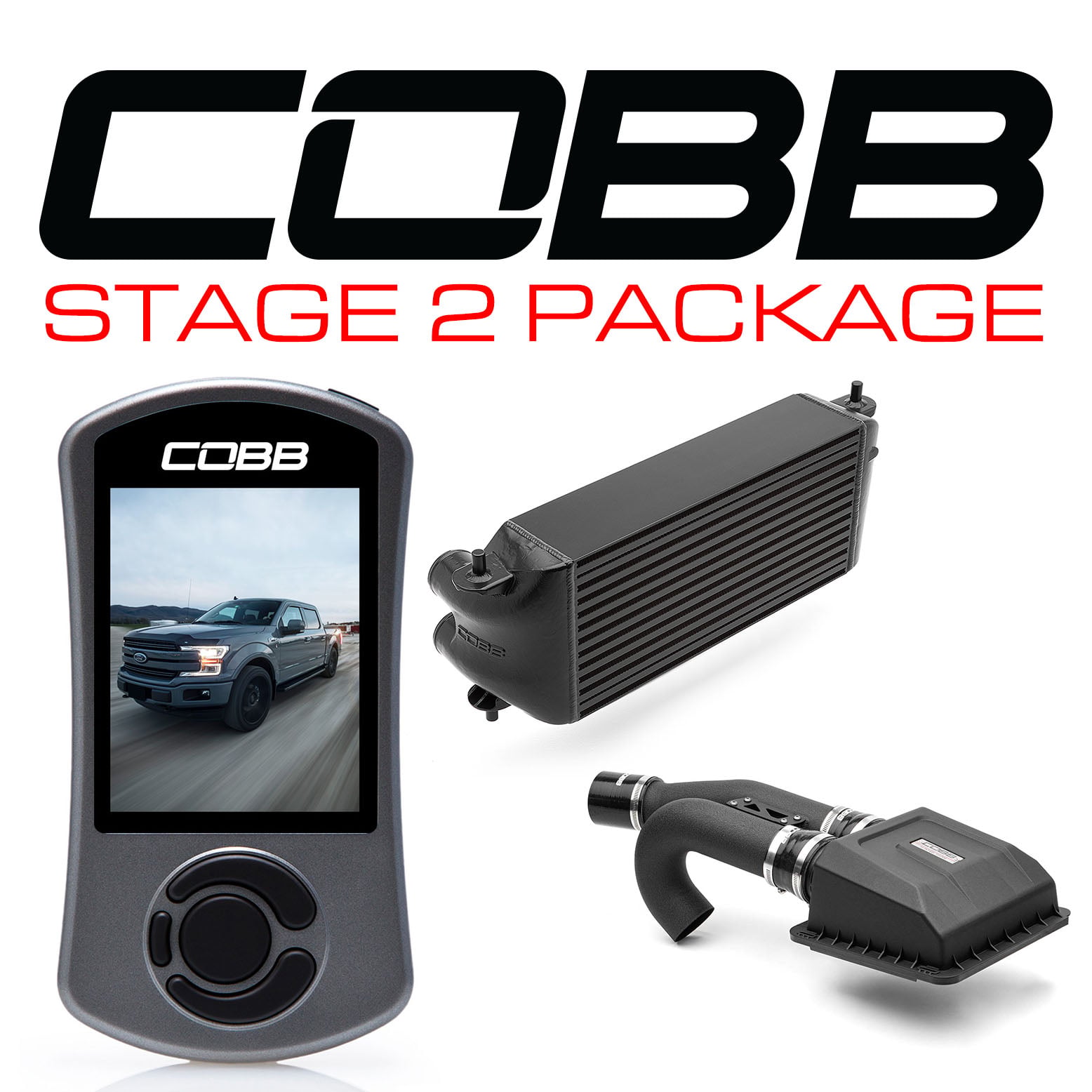

COBB Tuning Stage 2 TCM Black Intercooler Power Package (Factory Location) for P552 Ford F-150 3.5L EcoBoost

COBB Tuning’s TCM Black Intercooler Power Package is the complete Stage 2 bolt-on set for the 2017-2019 F-150 3.5L EcoBoost: the Accessport V3 with TCM Flashing, the COBB Intake System w/ HCT, and a black cast aluminum intercooler that sits in the factory location. COBB rates the intercooler core at 70 percent more volume than stock with 10 percent more cooling surface area, and CARB EO D-660-217 and D-660-245 cover the set. If the factory intake suits you, the No Intake version keeps the cooling and tuning for less.

Intercooler Design

The intercooler is cast aluminum and TIG welded, with end tanks shaped through computational fluid dynamics and a large chamfer on the outlet to ease air into the throttle body tube. It mates snugly to the OEM shutter shroud with no cutting or trimming.

Intake and Tuning

The intake in the TCM Black Intercooler Power Package swaps factory piping for dual 3 inch mandrel bent aluminum tubes and a dual-inlet filter with 165 percent more surface area.

Features

Accessport V3 with TCM Flashing for separate ECU and TCM maps
Factory location intercooler in black, cast aluminum and TIG welded
Core with about 70 percent more volume and 10 percent more cooling surface area than stock
Dual 3 inch mandrel bent aluminum intake tubing

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-006-TCM)
Intake System w/ HCT (7F2125)
Front Mount Intercooler, Factory Location, Black (7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150: P552 | 2017-2019 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when used per the COBB application guide
The intercooler installs in the factory location with no cutting, trimming or permanent modification
Water or methanol injection hardware is not included
Fits USDM 2017-2019 F-150 3.5L EcoBoost trucks only; Raptor and Limited trucks use separate COBB packages
Installing the Accessport over anything other than factory or COBB software may result in ECU or TCU failure

Frequently Asked Questions

What comes in the TCM Black Intercooler Power Package? The TCM Black Intercooler Power Package contains four COBB parts: the Accessport V3 with TCM Flashing, the Intake System w/ HCT, the black factory location front mount intercooler, part number 7F1527-BK, and a COBB vehicle badge. Together they make up the COBB Stage 2 hardware for the 2017-2019 F-150 3.5L EcoBoost, with transmission tuning added through the Accessport.
Do I have to cut the bumper or shroud for the intercooler? No. This is the factory location intercooler, which mates snugly to the OEM shutter shroud and needs no cutting, trimming or permanent modification. COBB also makes a larger front mount intercooler for owners willing to accept light modification, but that unit is sold in a different package.
Is this Stage 2 package CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-217 and D-660-245 for this package. That makes it legal for sale and use on emissions controlled vehicles in all 50 states, provided the parts are installed and the Accessport is used according to the COBB application guide.
Can I add water or methanol injection later? Yes. COBB cast two flat sections into the intercooler for that purpose. The upper flat can be drilled and tapped to accept an injection nozzle, and the lower flat can serve as a drain port. The injection kit, nozzle and fittings are not part of this package and are sourced separately when the owner is ready to add them.
What does TCM flashing add? It lets the Accessport reflash the transmission controller with off-the-shelf tunes that adjust shift points, shift firmness, skip-shift behavior and torque limits. On 2017-2019 trucks this is done separately from the engine map. COBB offers Simulated Stock, the sporty but refined COBB OEM+, and the performance-first COBB Sport.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
