Is the Redline Silver Factory Location Intercooler package a bolt-on install?

Yes. COBB designed the silver intercooler to mount in the stock position against the OEM shutter shroud with no cutting, trimming or permanent modification. The carbon fiber intake replaces the factory airbox lid and intake tubes directly. Trucks keeping the factory snorkel also need bracket 8G4625.

Why does the Raptor benefit from a larger intercooler?

COBB notes that the factory intercooler on EcoBoost F-150 trucks is undersized and becomes heat soaked quickly, which reduces available power. The Redline Silver Factory Location Intercooler package addresses this with a cooler offering about 70 percent more core volume and 10 percent more surface area, keeping charge temperatures steadier while towing.

Is the package legal for street use in California?

Yes. COBB lists CARB Executive Order numbers D-660-135, D-660-245 and D-660-289 for this package, which makes it legal for sale and use on emissions controlled vehicles in all 50 states, California included, when installed according to the COBB application guide for 2021-2023 Raptor trucks.

What is the difference between the silver and black versions?

Only the intercooler finish changes. The silver package uses part 7F1527-SL and the black package uses 7F1527-BK; both are the same cast aluminum factory location design. The Redline intake, the Accessport V3, the badge and the CARB EO numbers are identical across both.

Which transmission maps does the Accessport include?

The Accessport V3 in this package carries three Off The Shelf transmission maps for the Raptor: Simulated Stock, OEM+ and Sport. They adjust shift points, shift firmness, skip shift behavior and torque limits. They pair with Stage 0 through Stage 2 engine maps.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Redline Silver Factory Location Intercooler Package for P702 Ford F-150 Raptor

COBB Tuning’s Redline Silver Factory Location Intercooler package pairs a silver cast aluminum cooler with the gloss weave of the Redline carbon intake, giving the 2021-2023 Raptor a complete Stage 2 setup that installs without modification. COBB notes the factory intercooler on EcoBoost F-150 trucks heat soaks quickly. The replacement offers about 70 percent more core volume and 10 percent more cooling surface area in the original location. With the Accessport V3 flashing engine and transmission, and CARB EO numbers D-660-135, D-660-245 and D-660-289 on file, it is a strong fit for daily driven trucks; owners chasing every degree of cooling should compare the front mount version.

Design and Performance

The cooler is a cast aluminum, TIG welded assembly with end tanks refined through computational fluid dynamics and a chamfered outlet that eases air into the throttle body tube. It mates snugly to the OEM shutter shroud so air is funneled through the fins much like the stock part. The Redline Silver Factory Location Intercooler setup is matched by the Stage 2 maps on the Accessport.

Features

Accessport V3 with ECU and TCM flashing, no ECU removal needed
Stage 2 maps for 91 or 93 octane fuel and a Performance Tow calibration
Silver cast aluminum, TIG welded intercooler for the factory location
About 70 percent more core volume and 10 percent more cooling surface area
Gloss carbon fiber Redline intake with integrated HydroCarbon Trap
COBB vehicle badge

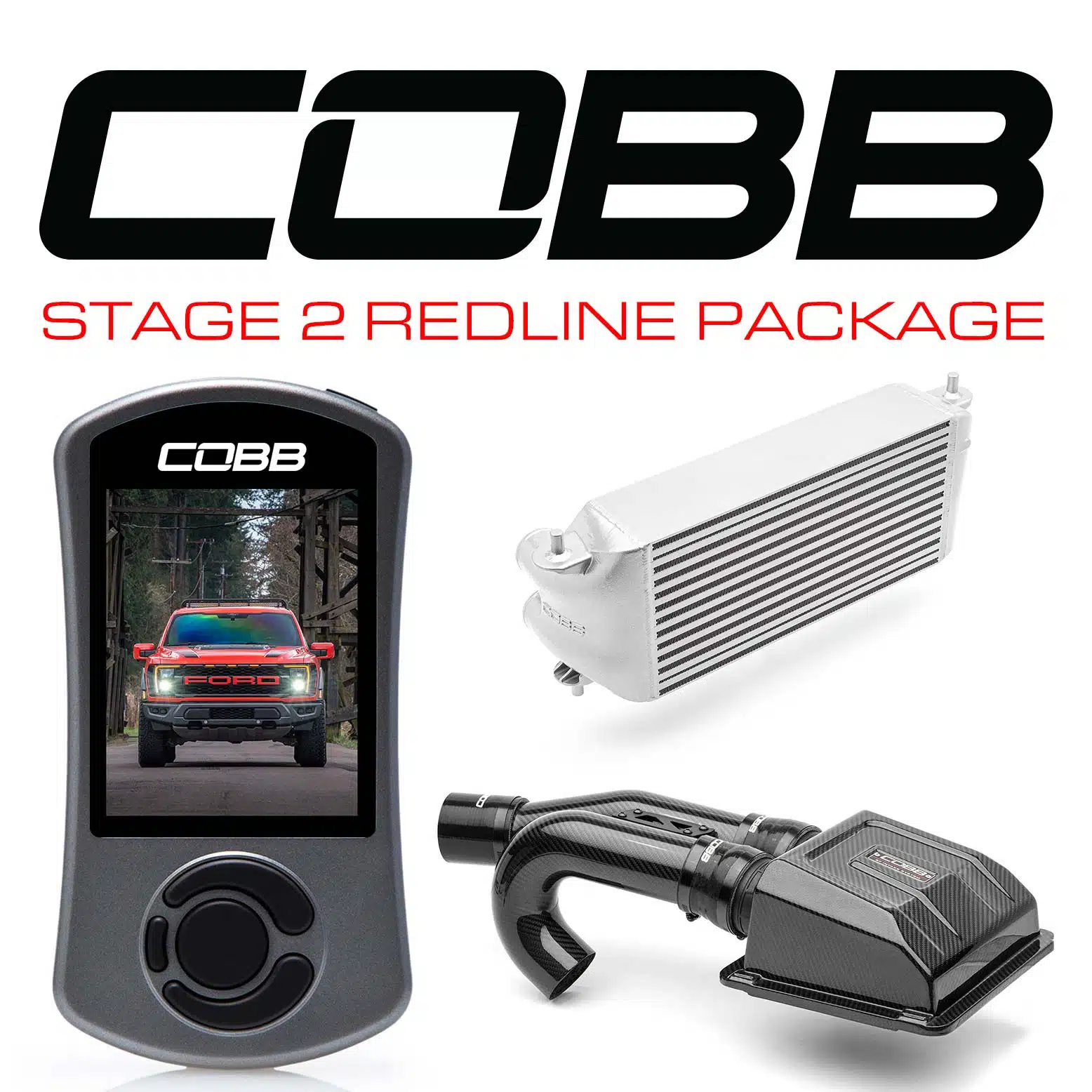

What’s Included

Accessport V3 with TCM Flashing for 2021-2023 Ford F-150 Raptor (AP3-FOR-010)
COBB Redline Carbon Fiber Intake System with HCT for Ford F-150 EcoBoost Raptor 2021+ (7F4160)
COBB Front Mount Intercooler, Silver, Factory Location (7F1527-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2021-2023 | 3.5L EcoBoost | USDM

Notes

Does not include the COBB Intake Snorkel bracket 8G4625, which trucks keeping the factory intake snorkel need
The 8G4625 bracket also ships with the COBB Redline Carbon Fiber Air Scoop
50-state legal with CARB EO D-660-135, D-660-245 and D-660-289
All Off The Shelf maps have Auto Start/Stop disabled by default

Frequently Asked Questions

Is the Redline Silver Factory Location Intercooler package a bolt-on install? Yes. COBB designed the silver intercooler to mount in the stock position against the OEM shutter shroud with no cutting, trimming or permanent modification. The carbon fiber intake replaces the factory airbox lid and intake tubes directly. Trucks keeping the factory snorkel also need bracket 8G4625.
Why does the Raptor benefit from a larger intercooler? COBB notes that the factory intercooler on EcoBoost F-150 trucks is undersized and becomes heat soaked quickly, which reduces available power. The Redline Silver Factory Location Intercooler package addresses this with a cooler offering about 70 percent more core volume and 10 percent more surface area, keeping charge temperatures steadier while towing.
Is the package legal for street use in California? Yes. COBB lists CARB Executive Order numbers D-660-135, D-660-245 and D-660-289 for this package, which makes it legal for sale and use on emissions controlled vehicles in all 50 states, California included, when installed according to the COBB application guide for 2021-2023 Raptor trucks.
What is the difference between the silver and black versions? Only the intercooler finish changes. The silver package uses part 7F1527-SL and the black package uses 7F1527-BK; both are the same cast aluminum factory location design. The Redline intake, the Accessport V3, the badge and the CARB EO numbers are identical across both.
Which transmission maps does the Accessport include? The Accessport V3 in this package carries three Off The Shelf transmission maps for the Raptor: Simulated Stock, OEM+ and Sport. They adjust shift points, shift firmness, skip shift behavior and torque limits. They pair with Stage 0 through Stage 2 engine maps.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
