Does the Silver Factory Intercooler Power Package require cutting?

No. The intercooler in the Silver Factory Intercooler Power Package mates to the OEM shutter shroud, and COBB specifies no cutting, trimming or permanent modification to the truck. Buyers who want the larger 24 inch front mount core accept minor grille trimming instead.

Does this package tune the transmission?

No. This version includes the AP3-FOR-005 Accessport V3, which flashes the engine ECU only. COBB sells the same hardware with the AP3-FOR-005-TCM Accessport, which adds off-the-shelf transmission tunes for shift points, shift firmness, skip shift behavior and torque limits, for owners who want the gearbox recalibrated too.

How much larger is the intercooler than stock?

COBB states the core is 70 percent greater than the stock unit and offers 10 percent more cooling surface area. The cast aluminum end tanks were shaped with computational fluid dynamics for even flow, and the outlet has a large chamfer that smooths the path into the throttle body tube.

Is the package legal in California?

Yes. COBB lists California Air Resources Board Executive Order numbers D-660-217 and D-660-245 for this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide.

Which trucks does it fit?

COBB confirms fitment for USDM Ford F-150 Raptor trucks from 2017 through 2020 and USDM F-150 Limited trucks from 2019 and 2020, both P552 models with the 3.5L EcoBoost. The P702 Raptor that arrived for 2021 is not on the confirmed applications list.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Silver Factory Intercooler Power Package for P552 Ford F-150 Raptor and Limited

COBB Tuning’s Silver Factory Intercooler Power Package is the no-cut route to Stage 2 on a P552 Raptor or F-150 Limited, combining an Accessport V3, the 7F2125 dual 3 inch intake and a silver cast aluminum intercooler that sits in the stock location. Its core is 70 percent larger than stock, and it mates to the OEM shutter shroud without cutting or trimming. CARB Executive Orders cover the package in all 50 states. It tunes the engine only, so owners who also want shift recalibration should buy the TCM version.

Intercooler Design

COBB designed this intercooler in house, using computational fluid dynamics to shape end tanks that spread flow evenly, and chamfered the outlet port. Two flats are cast into the housing for future water or methanol injection: the top one can be drilled and tapped for a nozzle, the bottom one used as a drain port.

Accessport V3

The handheld in the Silver Factory Intercooler Power Package mounts in the cabin, shows up to six live parameters on a full color screen and stores up to 100 maps from the COBB off-the-shelf database or a COBB tuner. Raptor extras include Auto Start-Stop retention, Dynamic Pedal Control and Valet Mode.

Features

Silver cast aluminum, TIG welded intercooler in the factory location
Core 70 percent greater than stock with 10 percent more cooling surface
Dual 3 inch mandrel bent aluminum intake tubes with silicone couplers
Multi-channel datalogging with up to 10 hours of storage
Performance timer for 0-60 mph, 60 foot, quarter mile ET and trap speed
Uninstall option that returns the ECU to its original state

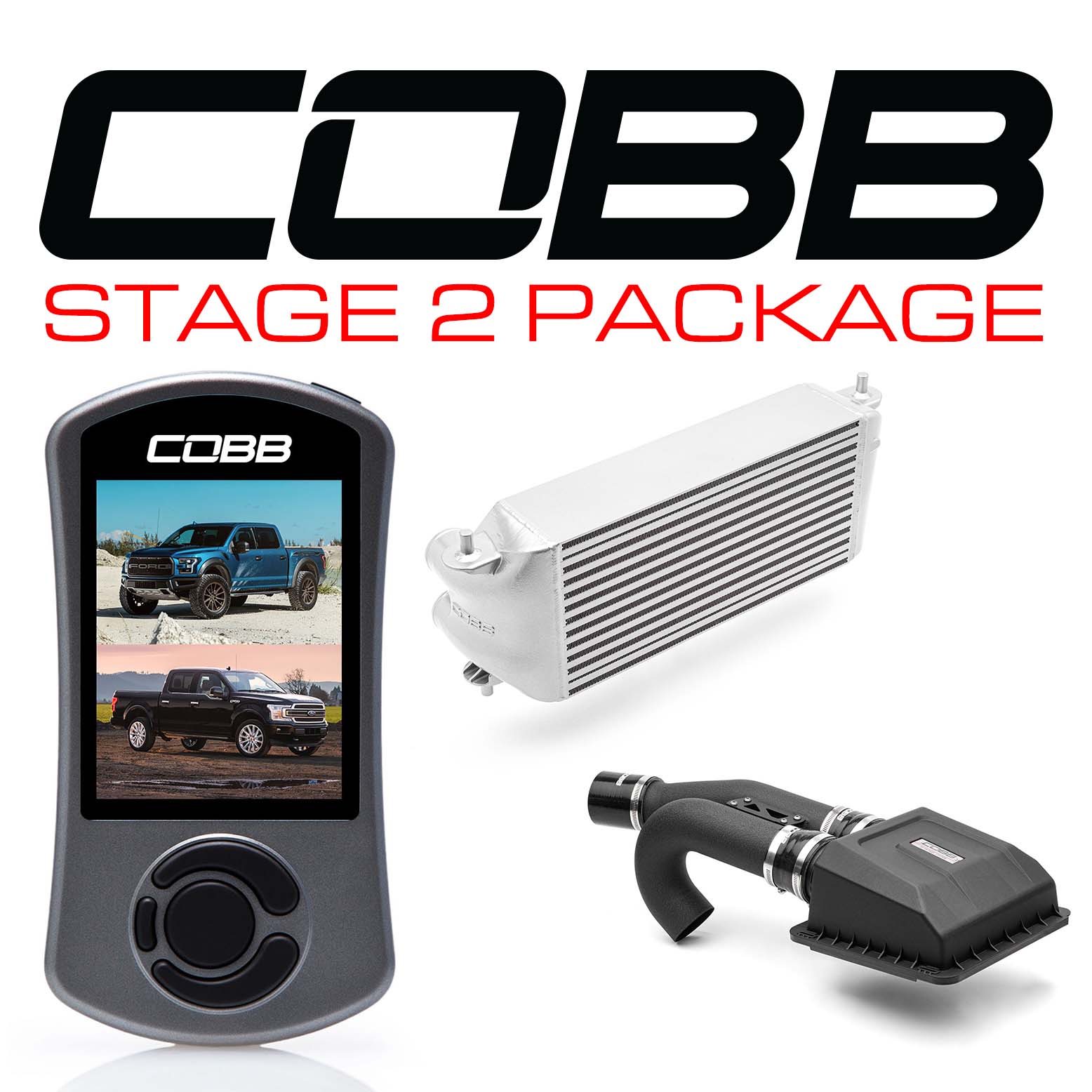

What’s Included

Accessport V3 (AP3-FOR-005)
Intake System w/ HCT (7F2125)
Factory Location Intercooler, Silver (7F1527-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed according to the COBB application guide
Transmission tuning is not included; COBB sells this package with the AP3-FOR-005-TCM Accessport
No flex fuel hardware is included
Fitment is confirmed only for USDM 2017-2020 F-150 Raptor and 2019-2020 F-150 Limited trucks

Frequently Asked Questions

Does the Silver Factory Intercooler Power Package require cutting? No. The intercooler in the Silver Factory Intercooler Power Package mates to the OEM shutter shroud, and COBB specifies no cutting, trimming or permanent modification to the truck. Buyers who want the larger 24 inch front mount core accept minor grille trimming instead.
Does this package tune the transmission? No. This version includes the AP3-FOR-005 Accessport V3, which flashes the engine ECU only. COBB sells the same hardware with the AP3-FOR-005-TCM Accessport, which adds off-the-shelf transmission tunes for shift points, shift firmness, skip shift behavior and torque limits, for owners who want the gearbox recalibrated too.
How much larger is the intercooler than stock? COBB states the core is 70 percent greater than the stock unit and offers 10 percent more cooling surface area. The cast aluminum end tanks were shaped with computational fluid dynamics for even flow, and the outlet has a large chamfer that smooths the path into the throttle body tube.
Is the package legal in California? Yes. COBB lists California Air Resources Board Executive Order numbers D-660-217 and D-660-245 for this package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed according to the COBB application guide.
Which trucks does it fit? COBB confirms fitment for USDM Ford F-150 Raptor trucks from 2017 through 2020 and USDM F-150 Limited trucks from 2019 and 2020, both P552 models with the 3.5L EcoBoost. The P702 Raptor that arrived for 2021 is not on the confirmed applications list.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
