Is the Black Factory-Location Intercooler Redline Package street legal in California?

Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for the Black Factory-Location Intercooler Redline Package, making it legal for sale and use on emissions controlled vehicles in all 50 states. Install the Accessport V3, the Redline intake and the intercooler following the COBB application guide to keep that status.

Does installing this intercooler require cutting the truck?

No. The intercooler mates snugly to the OEM shutter shroud, and COBB states that it needs no cutting, trimming or permanent modification. The Redline intake swaps out the factory airbox piping and lid. That suits owners who want the front of the truck left as Ford built it.

How does the factory location intercooler compare to the front mount version?

The factory location unit offers a core 70 percent larger than stock with 10 percent more cooling surface area. The front mount version uses a much larger 24 x 14 x 3.5 inch core but needs minor grille trimming. Pick on whether grille trimming is acceptable.

Can I add water or methanol injection later?

Yes. COBB cast two flat sections into the intercooler with that in mind. The top flat can be drilled and tapped to accept an injection nozzle, and the bottom flat can be used as a drain port. The injection system and its nozzle are not part of this package and must be sourced separately.

Which trucks does this package fit?

COBB confirms the package for the USDM 2020 Ford F-150 with the 3.5L EcoBoost. The included AP3-FOR-007 Accessport V3 is specific to that year and engine, so it does not suit 2.7L trucks, Raptors or other model years. Check your engine and year first.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning 3.5L Stage 2 Black Factory-Location Intercooler Redline Package with Carbon Fiber Intake for P552 Ford F-150 (2020)

COBB Tuning’s Black Factory-Location Intercooler Redline Package brings Stage 2 to the 2020 F-150 3.5L EcoBoost with no cutting. It combines the AP3-FOR-007 Accessport V3, the 7F3160 Redline Carbon Fiber Intake System and the black 7F1527-BK intercooler, which sits in the factory location. CARB EO D-660-217 and D-660-245 cover every part for all 50 states. Owners chasing the biggest possible core should compare the FMIC version; for a clean upgrade with no permanent modification, this is the sensible pick.

Factory Location Intercooler

COBB designed this cast aluminum, TIG welded intercooler in house, using computational fluid dynamics to shape end tanks that spread flow evenly without significant turbulence. Two flat sections are cast into the housing: the top one can be drilled and tapped for a water or methanol injection nozzle, and the bottom one can serve as a drain. In the Black Factory-Location Intercooler Redline Package the core also offers 10 percent more cooling surface area than stock.

Features

Black cast aluminum, TIG welded intercooler in the factory location
Core 70% larger than stock with 10% more cooling surface area
End tanks shaped with computational fluid dynamics analysis
Cast flats ready for a water or methanol injection nozzle and drain
Gloss 3k 2×2 twill carbon fiber intake with bespoke airbox lid
Reusable dual inlet filter with 165% more surface area than stock
Accessport V3 compatible with COBB Off The Shelf maps

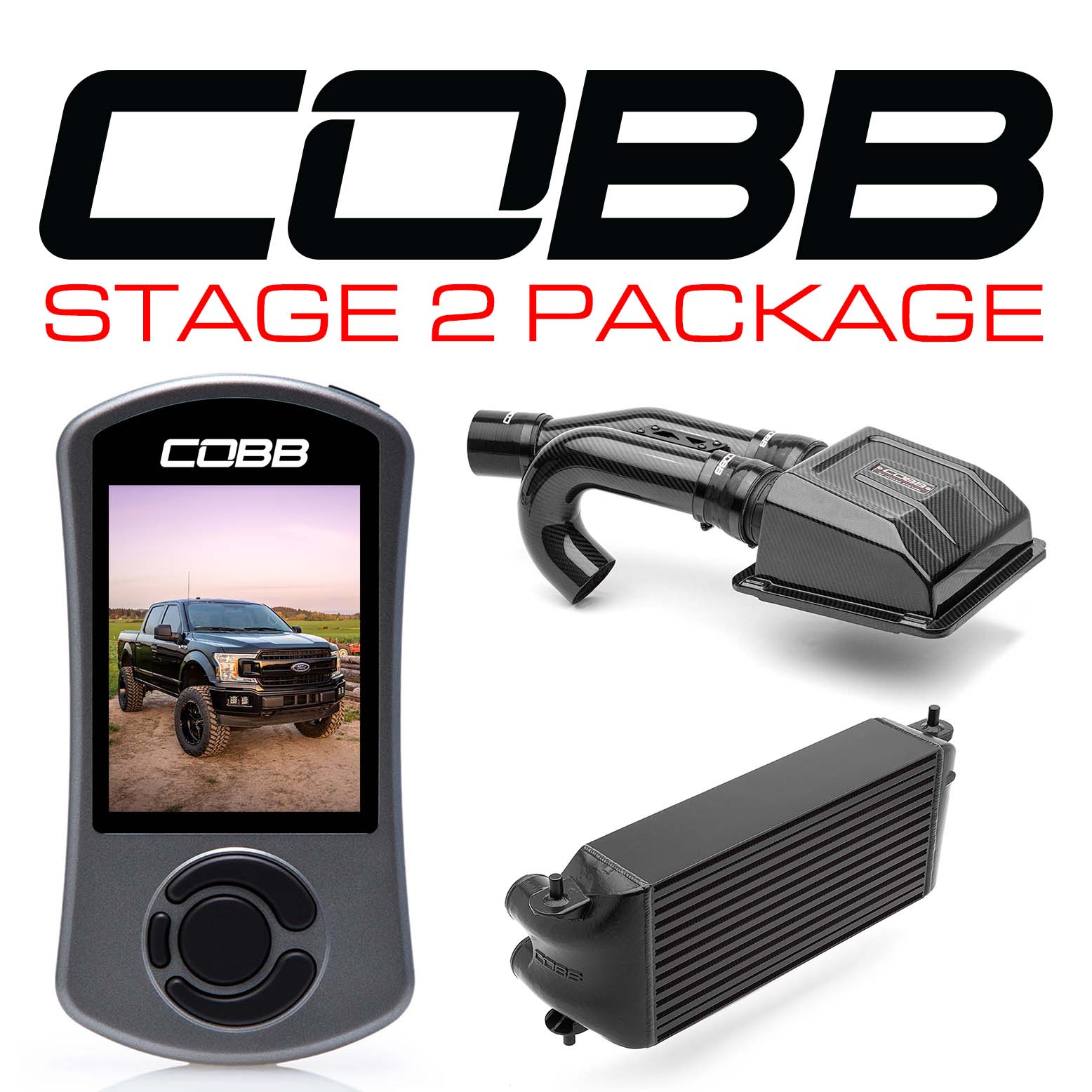

What’s Included

Accessport V3 (AP3-FOR-007)
Redline Carbon Fiber Intake System (7F3160)
Factory Location Intercooler, Black (7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150: P552 | 2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
The intercooler needs no cutting, trimming or permanent modification to the truck
Water or methanol injection hardware is not included
Listed for the USDM 2020 F-150 with the 3.5L EcoBoost only
Installing the Accessport over anything other than OEM or COBB software may result in ECU or TCU failure

Frequently Asked Questions

Is the Black Factory-Location Intercooler Redline Package street legal in California? Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for the Black Factory-Location Intercooler Redline Package, making it legal for sale and use on emissions controlled vehicles in all 50 states. Install the Accessport V3, the Redline intake and the intercooler following the COBB application guide to keep that status.
Does installing this intercooler require cutting the truck? No. The intercooler mates snugly to the OEM shutter shroud, and COBB states that it needs no cutting, trimming or permanent modification. The Redline intake swaps out the factory airbox piping and lid. That suits owners who want the front of the truck left as Ford built it.
How does the factory location intercooler compare to the front mount version? The factory location unit offers a core 70 percent larger than stock with 10 percent more cooling surface area. The front mount version uses a much larger 24 x 14 x 3.5 inch core but needs minor grille trimming. Pick on whether grille trimming is acceptable.
Can I add water or methanol injection later? Yes. COBB cast two flat sections into the intercooler with that in mind. The top flat can be drilled and tapped to accept an injection nozzle, and the bottom flat can be used as a drain port. The injection system and its nozzle are not part of this package and must be sourced separately.
Which trucks does this package fit? COBB confirms the package for the USDM 2020 Ford F-150 with the 3.5L EcoBoost. The included AP3-FOR-007 Accessport V3 is specific to that year and engine, so it does not suit 2.7L trucks, Raptors or other model years. Check your engine and year first.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
