What does the Carbon Fiber Package with TCM flashing add over the standard Redline package?

The Carbon Fiber Package with TCM flashing replaces the engine-only Accessport with the AP3-FOR-005-TCM version. That handheld can also flash the transmission control module and load off-the-shelf tunes for shift points, shift firmness, skip shift behavior and torque limits. The carbon fiber intake is the same 7F3160 system in both packages.

Is it legal to use in California?

Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for this package, making it legal for sale and use on emissions controlled vehicles in all 50 states when it is installed following the COBB application guide. COBB lists both numbers for this package.

Which model years and trims are covered?

The confirmed list covers the USDM Ford F-150 Raptor from 2017 through 2020 and the USDM F-150 Limited for 2019 and 2020, each with the 3.5L EcoBoost. COBB does not list other F-150 trims or the 2021 and later Raptor for this kit.

Can I switch between transmission tunes?

Yes. The Accessport stores up to 100 maps and lets you change between them from the handheld, so a firmer setting for spirited driving and a calmer one for towing or daily use can both live on the device and be swapped in a few presses.

Is the installation reversible?

Yes. The Accessport Uninstall option, found in the main menu, returns the ECU to exactly how it was before the flash. The intake replaces the factory airbox lid and piping, so keep those stock parts if you might sell the truck or need to put it back to original condition later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

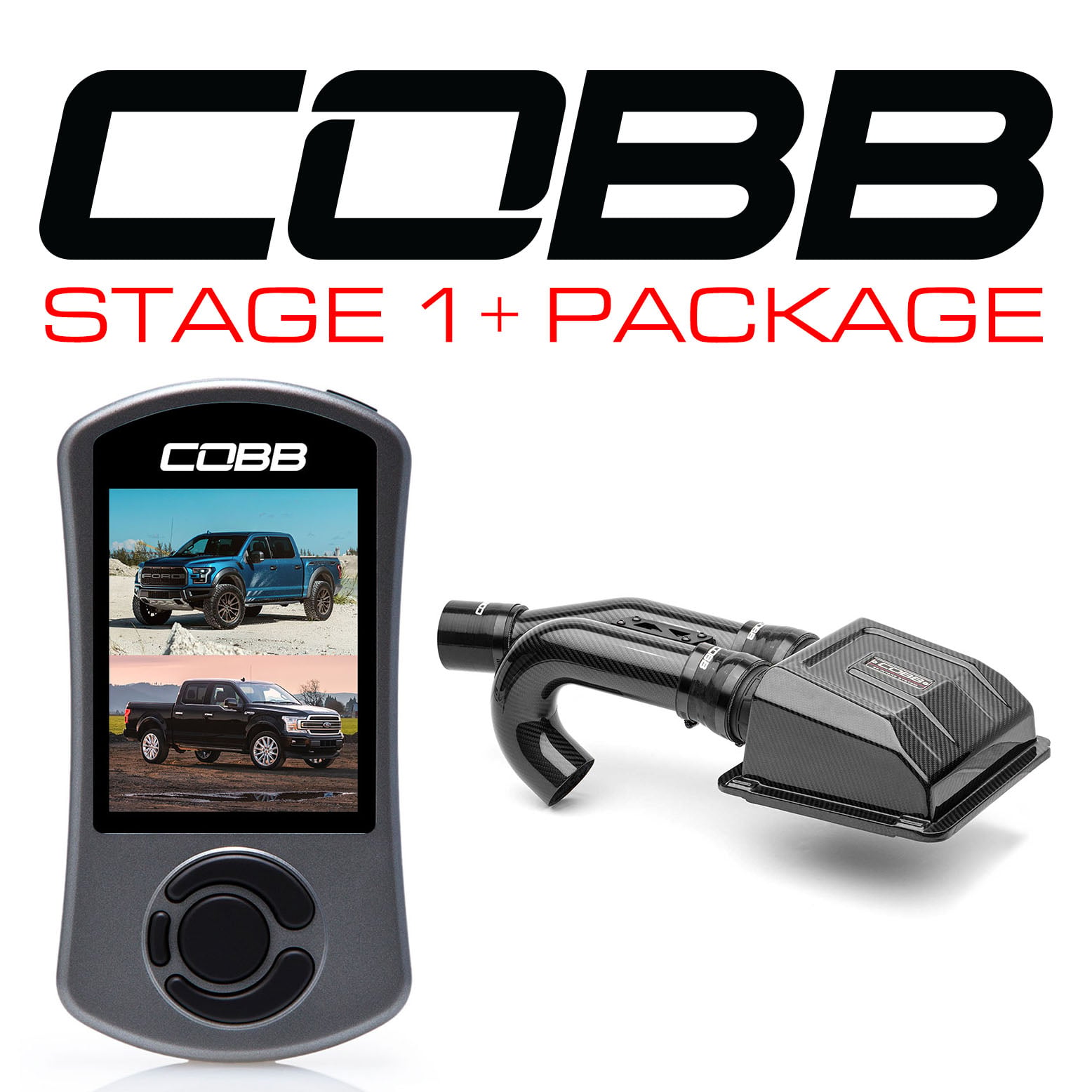

COBB Tuning Stage 1+ Redline Carbon Fiber Package with TCM Flashing for P552 Ford F-150 Raptor and Limited

COBB Tuning’s Carbon Fiber Package with TCM flashing is the most complete Stage 1+ option COBB offers for the P552 Raptor and Limited without stepping into flex fuel. The AP3-FOR-005-TCM Accessport V3 handles both the engine ECU and the transmission control module, and the 7F3160 Redline Carbon Fiber Intake System w/ HCT supplies the airflow and the finish. It carries CARB Executive Orders D-660-217 and D-660-245, so it stays street legal in every state. Buy it if the way the truck shifts bothers you as much as the way it pulls; if the factory shift schedule already suits you, the engine-only version saves money.

Transmission Tuning and Intake

The difference in this Carbon Fiber Package with TCM flashing is in the handheld. Its off-the-shelf transmission tunes adjust shift points, shift firmness, skip shift behavior and torque limits, so the gearbox can suit towing or quicker changes. A bespoke carbon airbox lid holds a reusable dual-inlet filter that COBB rates at 165 percent more surface area than stock, feeding 3 inch tubing held with black 4-ply silicone couplers and black e-coated stainless clamps.

Features

Accessport V3 that flashes both the ECU and the TCM
Off-the-shelf transmission tunes for shift points, firmness and torque limits
Carbon fiber in a 3k tow, 2×2 twill weave with gloss clear coat
Color screen showing up to six live parameters, with datalogging up to 10 hours
Raptor adjustments including Auto Start-Stop, Valet Mode and Dynamic Pedal Control

What’s Included

Accessport V3 with TCM Flashing for Ford F-150 EcoBoost Raptor and Limited (AP3-FOR-005-TCM)
Redline Carbon Fiber Intake System w/ HCT (7F3160)

Applications

Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
Flex fuel hardware is not included
COBB warns that installing the Accessport over anything other than OEM or COBB software may result in ECU or TCU failure
Transmission tunes load from the Accessport; no separate transmission tool is supplied or needed

Frequently Asked Questions

What does the Carbon Fiber Package with TCM flashing add over the standard Redline package? The Carbon Fiber Package with TCM flashing replaces the engine-only Accessport with the AP3-FOR-005-TCM version. That handheld can also flash the transmission control module and load off-the-shelf tunes for shift points, shift firmness, skip shift behavior and torque limits. The carbon fiber intake is the same 7F3160 system in both packages.
Is it legal to use in California? Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for this package, making it legal for sale and use on emissions controlled vehicles in all 50 states when it is installed following the COBB application guide. COBB lists both numbers for this package.
Which model years and trims are covered? The confirmed list covers the USDM Ford F-150 Raptor from 2017 through 2020 and the USDM F-150 Limited for 2019 and 2020, each with the 3.5L EcoBoost. COBB does not list other F-150 trims or the 2021 and later Raptor for this kit.
Can I switch between transmission tunes? Yes. The Accessport stores up to 100 maps and lets you change between them from the handheld, so a firmer setting for spirited driving and a calmer one for towing or daily use can both live on the device and be swapped in a few presses.
Is the installation reversible? Yes. The Accessport Uninstall option, found in the main menu, returns the ECU to exactly how it was before the flash. The intake replaces the factory airbox lid and piping, so keep those stock parts if you might sell the truck or need to put it back to original condition later.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
