Does this package fit the CVT WRX?

Yes. COBB confirms it for the 2015-2021 WRX sedan with either the six-speed manual or the CVT, USDM only. On the CVT the Accessport does not offer Launch Control or Flat Foot Shifting; it provides Launch Mode instead, which works with the factory torque limiters and needs Accesstuner software to dial in.

Is the package legal in California?

Yes. COBB lists it as legal for sale and use on emissions controlled vehicles in all 50 states under CARB Executive Order D-660-100, provided it is installed following the COBB application guide. The matching CARB EO sticker ships in the kit so the engine bay can be labelled.

Do I need anything else to fit the top mount intercooler?

No. COBB requires its Charge Pipe Kit for this intercooler, and that kit is part of the package. The intercooler also arrives with its reinforced silicone couplers, the Thrust Tunnel and a heavy-duty passenger side bracket with an isolating bushing, so the cooling side of the install is complete.

Will the carbon weave be flawless?

Not necessarily. COBB lays each Redline airbox by hand, so slight imperfections or variations in the weave pattern can appear from one intake to the next. These are cosmetic traits of hand built carbon and do not affect fit, filter access or the way the intake flows air into the MAF housing.

How does the Black Top Mount Redline Package differ from the silver version?

Only in the intercooler finish. The Black Top Mount Redline Package carries the same Accessport V3, Redline carbon intake, charge pipes, 3-port boost control solenoid and badge as the silver package, at the same price. Black blends with the dark Redline hardware, while silver stands out against it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning NexGen Stage 2 Black Top Mount Redline Package with Carbon Fiber Intake for VA Subaru WRX

COBB Tuning’s Black Top Mount Redline Package builds the NexGen Stage 2 setup for the 2015-2021 WRX around two showpieces: the hand laid Redline carbon airbox and a Garrett-cored top mount finished in black. The core measures 15.75 x 9.65 x 3.94 in, which COBB calls the largest available for the direct injection WRX, and the charge pipe kit it needs is already in the box with a 3-port boost control solenoid and the Accessport V3. CARB EO D-660-100 covers the package in all 50 states, manual or CVT. Black suits an engine bay already dressed in dark trim and matches the black hardware on the Redline intake. Owners planning a much larger turbocharger should look at a front mount instead.

Features

Garrett core with cast aluminum end tanks, finished in black
Heavy-duty passenger side bracket with a bushing that isolates engine vibration
Thrust Tunnel in wrinkle black powder coated aluminum, fed by the factory hood duct
Redline airbox in multi-layer 2×2 twill carbon fiber with tool-free filter access through a billet lid and dial
Accessport V3 that monitors up to six parameters on a full color screen

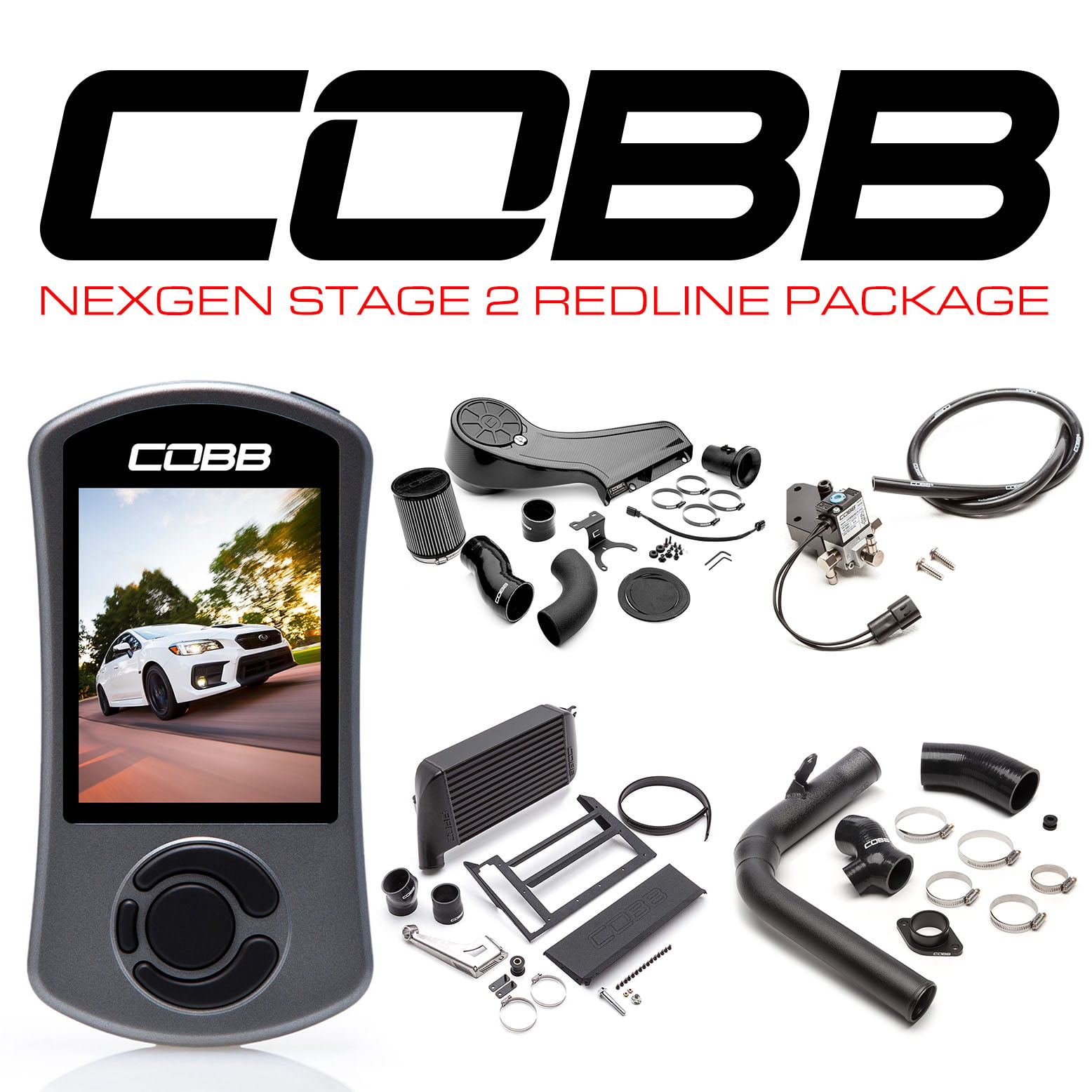

What’s Included

Accessport V3 for Subaru (AP3-SUB-004)
Redline Carbon Fiber Intake, 2015-2021 WRX (742100)
Top Mount Intercooler, Black (B42405-BK)
Charge Pipe Kit (742110)
3-Port Boost Control Solenoid (714750)
COBB Vehicle Badge (800200)
CARB EO Sticker (D-660-100)

Applications

Subaru WRX: VA | 2015-2021 | Sedan | 6-speed manual or CVT | USDM

Notes

50-state legal with CARB EO D-660-100 when installed per the COBB application guide
Launch Control and Flat Foot Shifting are not available on the CVT WRX
The Redline intake does not fit with the COBB Radiator Shroud
The Black Top Mount Redline Package does not include a downpipe, fuel system upgrades or an ethanol sensor

Frequently Asked Questions

Does this package fit the CVT WRX? Yes. COBB confirms it for the 2015-2021 WRX sedan with either the six-speed manual or the CVT, USDM only. On the CVT the Accessport does not offer Launch Control or Flat Foot Shifting; it provides Launch Mode instead, which works with the factory torque limiters and needs Accesstuner software to dial in.
Is the package legal in California? Yes. COBB lists it as legal for sale and use on emissions controlled vehicles in all 50 states under CARB Executive Order D-660-100, provided it is installed following the COBB application guide. The matching CARB EO sticker ships in the kit so the engine bay can be labelled.
Do I need anything else to fit the top mount intercooler? No. COBB requires its Charge Pipe Kit for this intercooler, and that kit is part of the package. The intercooler also arrives with its reinforced silicone couplers, the Thrust Tunnel and a heavy-duty passenger side bracket with an isolating bushing, so the cooling side of the install is complete.
Will the carbon weave be flawless? Not necessarily. COBB lays each Redline airbox by hand, so slight imperfections or variations in the weave pattern can appear from one intake to the next. These are cosmetic traits of hand built carbon and do not affect fit, filter access or the way the intake flows air into the MAF housing.
How does the Black Top Mount Redline Package differ from the silver version? Only in the intercooler finish. The Black Top Mount Redline Package carries the same Accessport V3, Redline carbon intake, charge pipes, 3-port boost control solenoid and badge as the silver package, at the same price. Black blends with the dark Redline hardware, while silver stands out against it.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
