Does the Accessport and Black Intercooler Package include an intake?

No. The Accessport and Black Intercooler Package contains the Accessport V3 with TCM flashing, the black factory location intercooler and a COBB vehicle badge. COBB sells a separate Stage 2 bundle that adds the HCT intake, and snorkel bracket 8G4625 is sold separately.

Will the intercooler fit without cutting the truck?

Yes. COBB states that this intercooler mates snugly to the OEM shutter shroud and needs no cutting, trimming or permanent modification. COBB also offers a larger front mount intercooler for this platform, but that version calls for light modification during installation, which this factory location unit avoids.

How much bigger is it than the factory intercooler?

COBB quotes a core 70 percent larger than the stock unit, with 10 percent more cooling surface area. The cast aluminum end tanks were shaped using computational fluid dynamics to spread flow evenly across the core, and the outlet has a large chamfer to smooth the path into the throttle body tube.

Can I add water or methanol injection later?

Yes. COBB cast two flat sections into the intercooler for exactly that purpose. The top flat can be drilled and tapped to accept an injection nozzle, and the bottom flat can be used as a drain port. The injection system itself is not part of this package.

Is this package legal in California?

For 2021 and 2022 trucks, yes. COBB lists CARB Executive Orders D-660-135 and D-660-245, which cover sale and use in all 50 states on those years. COBB currently lists the 2023 Raptor as 49-state approved only and not available for sale in California, and those Off The Shelf maps are downloaded from the COBB website.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

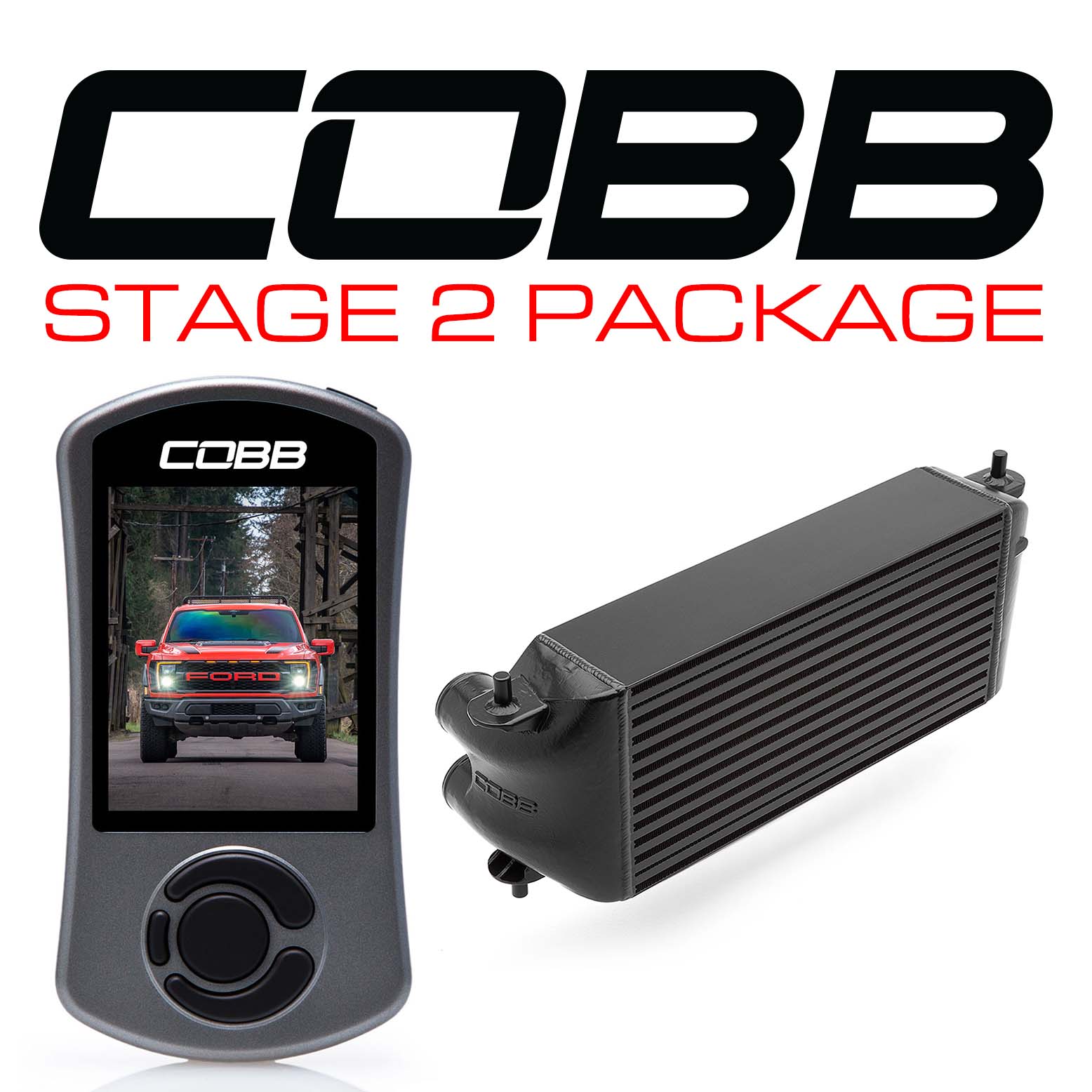

COBB Tuning Stage 2 Accessport and Black Intercooler Package (Factory Location) for P702 Ford F-150 Raptor

COBB Tuning’s Accessport and Black Intercooler Package suits the Raptor owner who already has an intake, or wants Stage 2 cooling without touching the airbox. The black factory location intercooler is a cast aluminum, TIG welded unit with a core 70 percent larger than the stock part and 10 percent more cooling surface, and it mates to the OEM shutter shroud with no cutting or trimming. COBB lists CARB EO D-660-135 and D-660-245, with 2023 trucks currently 49-state only. No intake is in the box, so plan that separately.

Design and Performance

COBB designed the intercooler in house, shaping the end tanks with computational fluid dynamics for even flow, and chamfering the outlet into the throttle body tube. Cast flats allow future water or methanol injection, one for a nozzle and one for a drain. The Accessport and Black Intercooler Package pairs it with Stage 2 maps for 91 or 93 octane.

Features

Black factory location front mount intercooler, cast aluminum and TIG welded
Core 70 percent larger than stock with 10 percent more cooling surface area
End tanks shaped with computational fluid dynamics analysis
Mates to the OEM shutter shroud with no cutting or trimming
Accessport V3 with TCM flashing and Stage 2 engine maps on 91 or 93 octane
COBB vehicle badge

What’s Included

Accessport V3 with TCM Flashing for 2021-2023 Ford F-150 Raptor (AP3-FOR-010)
COBB Front Mount Intercooler, Black, Factory Location (7F1527-BK)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P702 | 2021-2023 | 3.5L EcoBoost | USDM

Notes

Does not include an intake, a filter or the Intake Snorkel bracket 8G4625 needed with the factory snorkel
50-state legal with CARB EO D-660-135 and D-660-245 for 2021 and 2022 trucks
COBB lists the 2023 model year as 49-state approved and not available for sale in California at this time
Off The Shelf maps for 2023 trucks come from the COBB website and are not preloaded on the Accessport

Frequently Asked Questions

Does the Accessport and Black Intercooler Package include an intake? No. The Accessport and Black Intercooler Package contains the Accessport V3 with TCM flashing, the black factory location intercooler and a COBB vehicle badge. COBB sells a separate Stage 2 bundle that adds the HCT intake, and snorkel bracket 8G4625 is sold separately.
Will the intercooler fit without cutting the truck? Yes. COBB states that this intercooler mates snugly to the OEM shutter shroud and needs no cutting, trimming or permanent modification. COBB also offers a larger front mount intercooler for this platform, but that version calls for light modification during installation, which this factory location unit avoids.
How much bigger is it than the factory intercooler? COBB quotes a core 70 percent larger than the stock unit, with 10 percent more cooling surface area. The cast aluminum end tanks were shaped using computational fluid dynamics to spread flow evenly across the core, and the outlet has a large chamfer to smooth the path into the throttle body tube.
Can I add water or methanol injection later? Yes. COBB cast two flat sections into the intercooler for exactly that purpose. The top flat can be drilled and tapped to accept an injection nozzle, and the bottom flat can be used as a drain port. The injection system itself is not part of this package.
Is this package legal in California? For 2021 and 2022 trucks, yes. COBB lists CARB Executive Orders D-660-135 and D-660-245, which cover sale and use in all 50 states on those years. COBB currently lists the 2023 Raptor as 49-state approved only and not available for sale in California, and those Off The Shelf maps are downloaded from the COBB website.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
