Is the 3.5L Silver Factory Location Intercooler kit a bolt-in install?

Yes. The 3.5L Silver Factory Location Intercooler mates snugly to the OEM shutter shroud, and COBB states that no cutting, trimming or permanent modification of the truck is needed. Because the factory intake is retained, the only other step is flashing the Accessport V3, which makes this the simplest Stage 2 package for the 2020 F-150.

Is this kit CARB legal?

Yes. COBB lists California Air Resources Board Executive Orders D-660-32 and D-660-245 for this package, and a CARB sticker ships in the box. The Accessport V3 and the intercooler may be sold and used on emissions controlled vehicles in all 50 states when installed in line with the COBB application guide.

What is the difference between this kit and the version with an intake?

The intake version adds the COBB 7F2125 intake system, with dual 3 inch mandrel bent aluminum tubing and a tapered-oval filter that has 165 percent more surface area than stock. This No Intake kit keeps the factory airbox, so it suits trucks that already run an aftermarket intake or owners who prefer stock induction.

How much larger is the intercooler than stock?

COBB states that the core is 70 percent greater than the factory unit and offers 10 percent more cooling surface area. The housing is cast aluminum and TIG welded, and the end tanks were shaped with computational fluid dynamics for even flow.

Does the kit fit a 2020 F-150 with the 2.7L engine?

No. This package is confirmed for the USDM 2020 F-150 with the 3.5L EcoBoost, and the AP3-FOR-007 Accessport is calibrated for that combination. COBB sells separate Stage 2 packages for the 2.7L EcoBoost F-150, so order the version that matches the engine under the hood of your truck.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning 3.5L Silver Factory Location Intercooler Stage 2 No Intake Kit for P552 Ford F-150 (2020)

COBB Tuning’s 3.5L Silver Factory Location Intercooler Stage 2 No Intake Kit is the least invasive of the 2020 F-150 Stage 2 packages, pairing the AP3-FOR-007 Accessport V3 with the 7F1527-SL cast aluminum intercooler and nothing that requires cutting. CARB Executive Orders D-660-32 and D-660-245 keep it legal in every state. With a core 70 percent larger than stock, it adds charge cooling while the factory airbox stays put, suiting an owner who already has an intake. The front mount kit offers a bigger core, at the cost of grille trimming.

Design and Construction

COBB engineered the 3.5L Silver Factory Location Intercooler in house, using computational fluid dynamics to shape end tanks that spread flow evenly without significant turbulence. It is cast aluminum and TIG welded, adds 10 percent more cooling surface area than stock. Two flats in the casting give a ready location for a future water or methanol nozzle and a drain. The Accessport V3 flashes COBB Off The Shelf maps and doubles as an in-cabin gauge.

Features

Silver cast aluminum intercooler with TIG welded construction
70% larger core and 10% more cooling surface area than stock
Mates to the OEM shutter shroud with no cutting or trimming
Accessport V3 with a full color, higher resolution screen

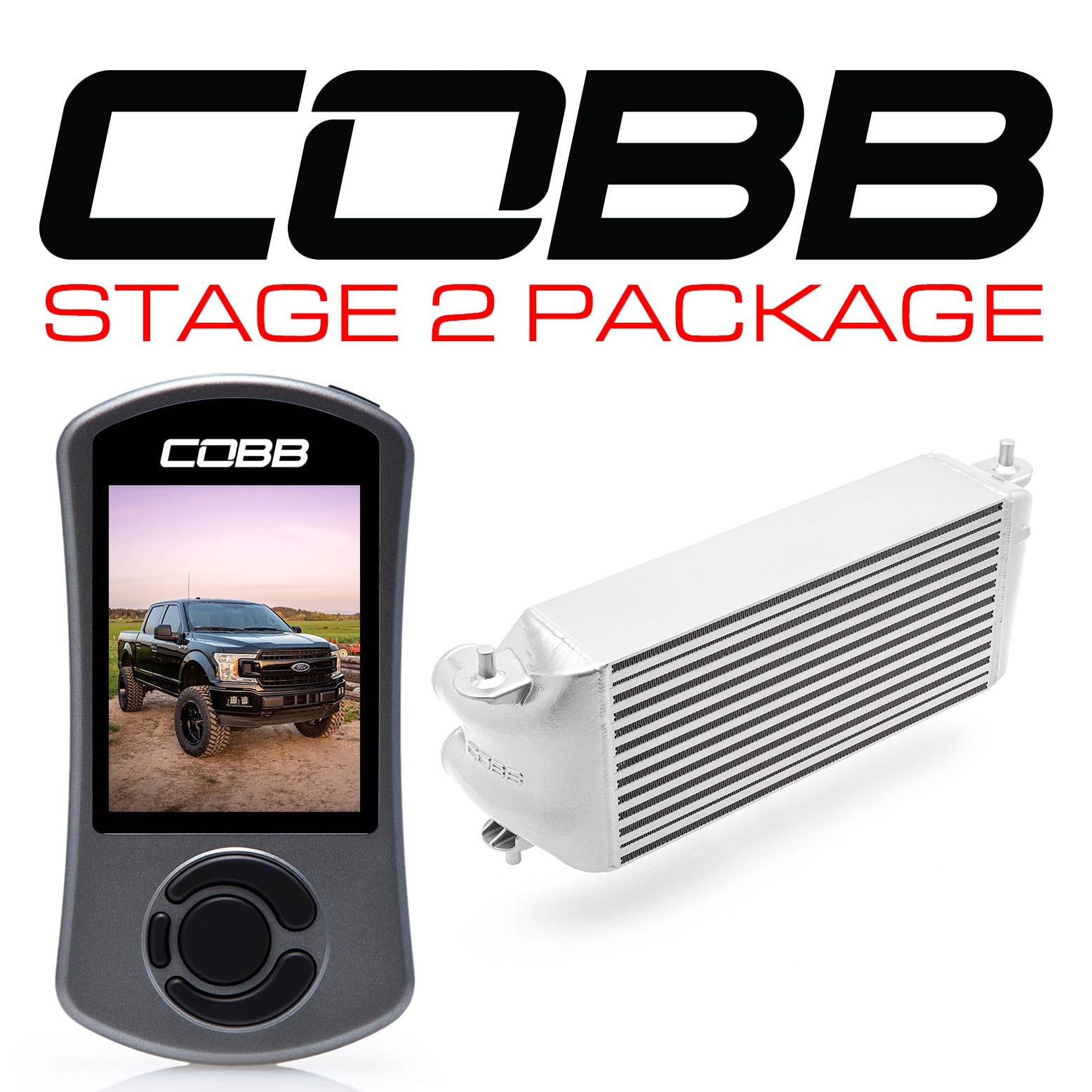

What’s Included

Accessport V3 (AP3-FOR-007)
Factory Location Intercooler, Silver (7F1527-SL)
COBB Vehicle Badge (800200)
COBB CARB Sticker for the Stage 2 Power Package (D-660-32)

Applications

Ford F-150: P552 | 2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-32 and D-660-245 when installed per the COBB application guide
No intake system is included
No cutting, trimming or permanent modification is required
Water or methanol injection parts are not included
Listed for the USDM 2020 F-150 with the 3.5L EcoBoost only
Installing the Accessport over anything other than OEM or COBB software may result in ECU or TCU failure

Frequently Asked Questions

Is the 3.5L Silver Factory Location Intercooler kit a bolt-in install? Yes. The 3.5L Silver Factory Location Intercooler mates snugly to the OEM shutter shroud, and COBB states that no cutting, trimming or permanent modification of the truck is needed. Because the factory intake is retained, the only other step is flashing the Accessport V3, which makes this the simplest Stage 2 package for the 2020 F-150.
Is this kit CARB legal? Yes. COBB lists California Air Resources Board Executive Orders D-660-32 and D-660-245 for this package, and a CARB sticker ships in the box. The Accessport V3 and the intercooler may be sold and used on emissions controlled vehicles in all 50 states when installed in line with the COBB application guide.
What is the difference between this kit and the version with an intake? The intake version adds the COBB 7F2125 intake system, with dual 3 inch mandrel bent aluminum tubing and a tapered-oval filter that has 165 percent more surface area than stock. This No Intake kit keeps the factory airbox, so it suits trucks that already run an aftermarket intake or owners who prefer stock induction.
How much larger is the intercooler than stock? COBB states that the core is 70 percent greater than the factory unit and offers 10 percent more cooling surface area. The housing is cast aluminum and TIG welded, and the end tanks were shaped with computational fluid dynamics for even flow.
Does the kit fit a 2020 F-150 with the 2.7L engine? No. This package is confirmed for the USDM 2020 F-150 with the 3.5L EcoBoost, and the AP3-FOR-007 Accessport is calibrated for that combination. COBB sells separate Stage 2 packages for the 2.7L EcoBoost F-150, so order the version that matches the engine under the hood of your truck.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
