How is the Silver TCM Power Package different from the standard Redline package?

The Silver TCM Power Package swaps the standard Accessport V3 for the AP3-FOR-005-TCM unit, which can also flash the transmission control module. It loads Off The Shelf transmission tunes that adjust shift points, shift firmness, skip shift behavior and torque limits. The other parts match the engine-only Redline kit.

Does the package include a flex fuel kit?

No. This package covers engine and transmission tuning, the Redline carbon intake, the silver intercooler and a COBB badge. COBB offers a separate CAN Flex Fuel version of the Redline TCM package for P552 Raptor owners who want to run ethanol blends.

Which trucks does this package fit?

COBB confirms the package for USDM 2017, 2018, 2019 and 2020 F-150 Raptor trucks and USDM 2019 and 2020 F-150 Limited trucks. Both are P552 generation pickups with the 3.5L EcoBoost. Newer P702 models and other F-150 trims are not on the confirmed application list.

Can it be used on a smog-checked truck in California?

Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for the package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed following the COBB application guide. Keep the EO numbers with the truck records.

Can I return the truck to stock later?

Yes. The Accessport includes an Uninstall option in its main menu that returns the computer to exactly the state it was in before flashing. The intake and intercooler can be removed again, although the minor trimming behind the grille for the intercooler is permanent.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 Redline Carbon Fiber Silver TCM Power Package for P552 Ford F-150 Raptor and Limited

COBB Tuning’s Silver TCM Power Package is the fullest non-flex-fuel Redline set COBB builds for the P552 Raptor and F-150 Limited, combining an Accessport that flashes the transmission computer as well as the engine with the 7F3160 carbon intake and the silver 7F2500-SL intercooler. The TCM capability is what separates it from the standard Redline kit: Off The Shelf transmission tunes change shift points, shift firmness, skip shift behavior and torque limits. Buy it if the factory shift logic feels at odds with the added power; if stock shifting suits you, the engine-only kit costs less. CARB EO D-660-217 and D-660-245 apply.

Transmission and Engine Tuning

The AP3-FOR-005-TCM handheld keeps every engine feature of the standard Accessport V3, from Off The Shelf maps to custom tune support. In the Silver TCM Power Package it also writes the transmission tunes, so gearbox behavior can be matched to the airflow gains instead of being left on the factory settings.

Carbon Intake and Intercooler

The Redline parts are 3k tow carbon in a 2×2 twill under gloss clear, feeding 3 inch tubing from a reusable dual-inlet filter rated at 165% more surface area than stock. The silver intercooler core keeps pressure drop low and retains the Adaptive Cruise Control bracket on the stock bumper.

Features

Accessport with TCM flashing and Off The Shelf transmission tunes
Adjustable shift points, shift firmness, skip shift behavior and torque limits
Raptor Auto Start-Stop, Valet Mode and fuel pump control adjustments
Bespoke carbon airbox lid with a reusable high flow dual-inlet filter
Silver intercooler core measuring 24 x 14 x 3.5 in

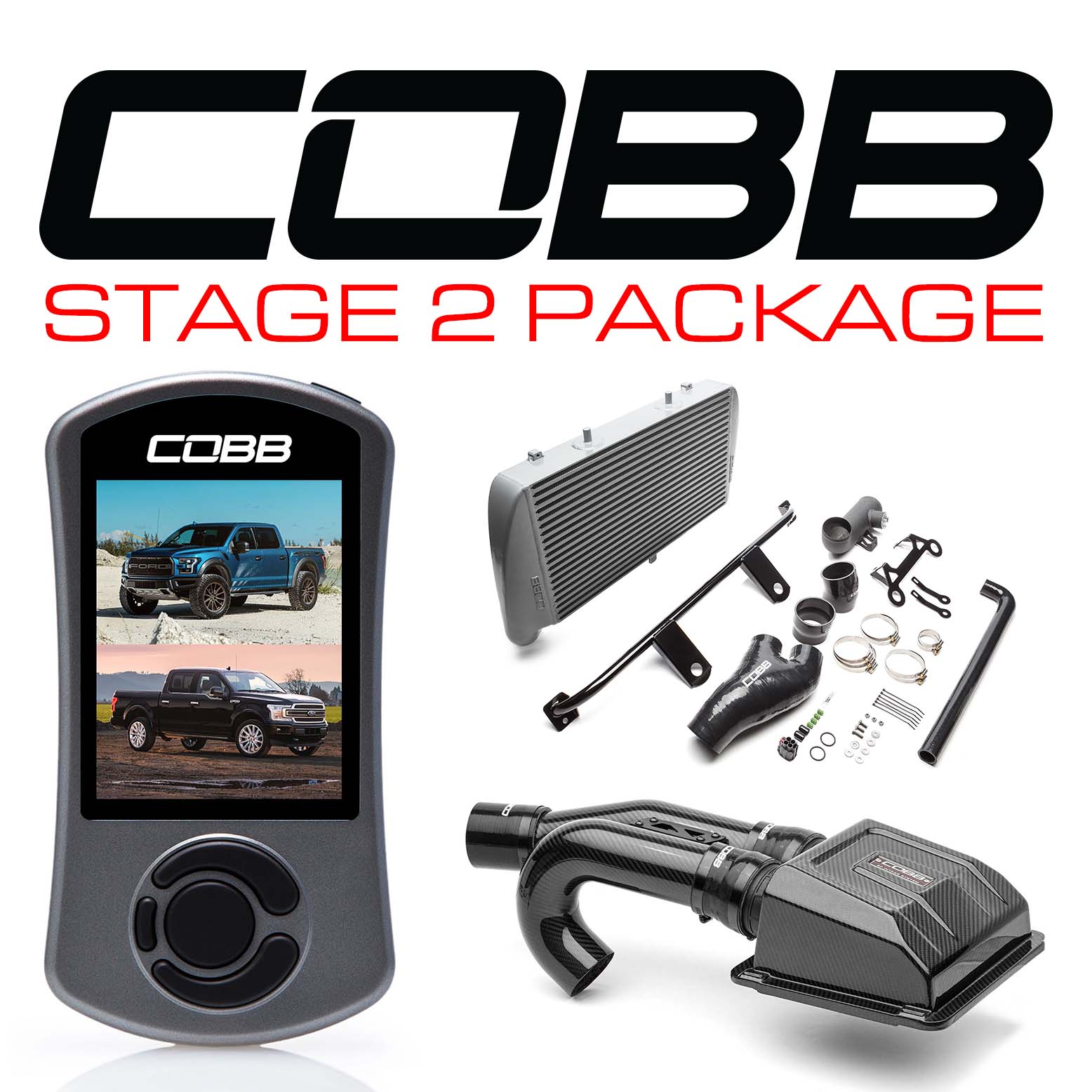

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-005-TCM)
Redline Carbon Fiber Intake System with HCT (7F3160)
Front Mount Intercooler, Silver (7F2500-SL)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Limited: P552 | 2019-2020 | 3.5L EcoBoost | USDM
Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

50-state legal with CARB EO D-660-217 and D-660-245 when installed per the COBB application guide
Flex fuel hardware is not included
Intercooler fitment requires minor grille trimming
Confirmed for USDM 2017-2020 F-150 Raptor and 2019-2020 F-150 Limited trucks only

Frequently Asked Questions

How is the Silver TCM Power Package different from the standard Redline package? The Silver TCM Power Package swaps the standard Accessport V3 for the AP3-FOR-005-TCM unit, which can also flash the transmission control module. It loads Off The Shelf transmission tunes that adjust shift points, shift firmness, skip shift behavior and torque limits. The other parts match the engine-only Redline kit.
Does the package include a flex fuel kit? No. This package covers engine and transmission tuning, the Redline carbon intake, the silver intercooler and a COBB badge. COBB offers a separate CAN Flex Fuel version of the Redline TCM package for P552 Raptor owners who want to run ethanol blends.
Which trucks does this package fit? COBB confirms the package for USDM 2017, 2018, 2019 and 2020 F-150 Raptor trucks and USDM 2019 and 2020 F-150 Limited trucks. Both are P552 generation pickups with the 3.5L EcoBoost. Newer P702 models and other F-150 trims are not on the confirmed application list.
Can it be used on a smog-checked truck in California? Yes. COBB lists CARB Executive Orders D-660-217 and D-660-245 for the package, so it is legal for sale and use on emissions controlled vehicles in all 50 states when installed following the COBB application guide. Keep the EO numbers with the truck records.
Can I return the truck to stock later? Yes. The Accessport includes an Uninstall option in its main menu that returns the computer to exactly the state it was in before flashing. The intake and intercooler can be removed again, although the minor trimming behind the grille for the intercooler is permanent.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
