What does the Brembo Rear Big Brake Kit fit on the Ferrari 550 and 575M Maranello?

This GT System rear kit fits the Ferrari 550 Maranello and 575M Maranello (model year 2002, excluding 575 GTC-equipped cars). It is a rear axle set only; a matching front kit is available separately.

What rotor options come with this Brembo Rear Big Brake Kit?

The kit uses 380mm two-piece rotors available in three configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted. All three share the same 28mm width, 16mm air gap, and 54mm annulus.

What caliper colors are available?

The GT System caliper is available in Red, Black, Silver, or Yellow, each with a machined Brembo logo.

Does the Brembo Rear Big Brake Kit come pre-assembled?

Yes. It ships as a complete, pre-assembled rear axle set with Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware.

What brake pads are included with the GT System rear kit?

The kit includes Brembo High Performance FM1000 compound pads, with a pad volume of 76.4 and surface area of 62.1.

Should the rear GT kit be paired with the matching front kit?

Brembo designs the GT System front and rear kits to work together as a balanced full-axle upgrade, though each is sold separately and can be purchased on its own.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

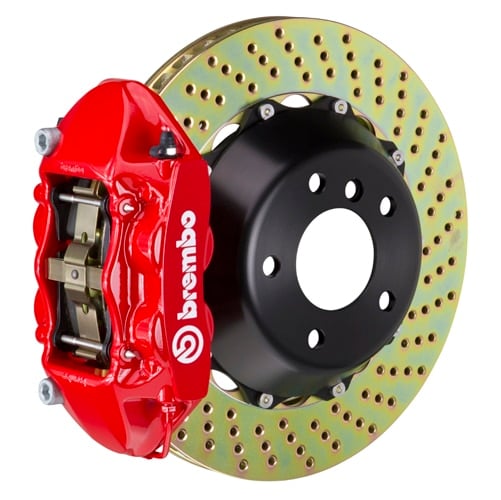

Brembo Rear Big Brake Kit GT System for Ferrari 550 Maranello and 575M Maranello

Brembo’s Rear Big Brake Kit (GT System) for the Ferrari 550 Maranello and 575M Maranello matches the stopping power of the front GT System with a rear axle built to the same standard. Brembo has supplied Maranello’s road and race cars for decades, and the GT System carries that partnership into the aftermarket with a cast monobloc four-piston caliper and a 380mm two-piece rotor, validated for street, track, and race use. It ships as a complete, pre-assembled rear axle set with braided stainless lines and all mounting hardware included, rounding out a full-axle upgrade for owners who want their V12 grand tourer to stop with the same authority it accelerates.

GT Cast Monobloc Caliper

The GT rear kit uses a cast aluminum four-piston monobloc Brembo caliper in a radial mount configuration, with an inner pressure seal and an OEM-approved dust boot. Cast monobloc construction is the same architecture Brembo validates as a Road Car Caliper, giving daily-driver noise and comfort behavior alongside a meaningful upgrade in pad area and rigidity over the factory caliper. Available in Red, Black, Silver, or Yellow with a machined Brembo logo.

Rotor Options: Cross Drilled, Type 1, and Type 3

All three rotor configurations share the same base specifications. Outer diameter is 380mm, width is 28mm, air gap is 16mm, and annulus is 54mm, with a vented curved 48-vane design. Each disc assembly is a two-piece build: an advanced high-carbon alloy iron disc with corrosion-resistant plating mated to a hat, connected through a floating D-Bobbin system with an anti-rattle spring.
Cross Drilled rotors are the street and mild track choice, with the strongest initial bite of the three and reliable wet-weather performance, at the cost of being more prone to thermal cracking under sustained race heat. Type 1 Slotted rotors use Brembo’s straight-slot face pattern and suit drivers who spend more time on track, favoring stable brake feel and thermal resilience with lower wear. Type 3 Slotted rotors are built for competition use, prioritizing maximum initial response and a smooth pedal release at the cost of faster pad and disc wear.

Features

380mm two-piece rear rotors (Cross Drilled, Type 1 Slotted, or Type 3 Slotted)
4-piston cast monobloc radial-mount calipers
Available in Red, Black, Silver, or Yellow caliper finish
Brembo High Performance FM1000 pads included
Pre-assembled complete rear axle set
Level-2 install difficulty

Specifications

Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Disc Diameter: 380mm
Disc Width: 28mm
Disc Air Gap: 16mm
Disc Annulus: 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design: Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 / 62.1

What’s Included

Brembo stainless steel braided brake lines by Goodridge
Brembo-engineered CNC billet caliper adapters
All necessary installation hardware and fasteners

Applications

Ferrari 550 Maranello: 2002
Ferrari 575M Maranello: 2002 (excludes GTC-equipped cars)

Notes

This is a rear axle kit only; the matching GT System front kit is listed separately
Sold as a complete rear pair, two calipers, two rotors, pads, lines, and hardware
Confirm wheel clearance for the 380mm rotor and radial-mount caliper before ordering
Not compatible with 575 GTC-equipped cars

Frequently Asked Questions

What does the Brembo Rear Big Brake Kit fit on the Ferrari 550 and 575M Maranello? This GT System rear kit fits the Ferrari 550 Maranello and 575M Maranello (model year 2002, excluding 575 GTC-equipped cars). It is a rear axle set only; a matching front kit is available separately.
What rotor options come with this Brembo Rear Big Brake Kit? The kit uses 380mm two-piece rotors available in three configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted. All three share the same 28mm width, 16mm air gap, and 54mm annulus.
What caliper colors are available? The GT System caliper is available in Red, Black, Silver, or Yellow, each with a machined Brembo logo.
Does the Brembo Rear Big Brake Kit come pre-assembled? Yes. It ships as a complete, pre-assembled rear axle set with Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware.
What brake pads are included with the GT System rear kit? The kit includes Brembo High Performance FM1000 compound pads, with a pad volume of 76.4 and surface area of 62.1.
Should the rear GT kit be paired with the matching front kit? Brembo designs the GT System front and rear kits to work together as a balanced full-axle upgrade, though each is sold separately and can be purchased on its own.

About Brembo

Brembo is a global leader in high-performance braking systems, renowned for its innovation, engineering excellence, and track-proven technology. Founded in Italy in 1961, the company has become synonymous with advanced brake components for automotive, motorcycle, and motorsport applications. Supplying major OEMs and dominating professional racing circuits worldwide, Brembo combines cutting-edge research, precision manufacturing, and a relentless commitment to safety and performance. From Formula 1 to the street, Brembo continues to set the benchmark in braking technology, trusted by enthusiasts and manufacturers alike.
