What does the Boost Logic Breathing Plate for R35 do?

It adds crankcase ventilation at the center valley of the VR38DETT. The Breathing Plate for R35 has two -12 ports for venting, a -3 port that can feed a crankcase pressure sensor, and an internal mesh filter that separates oil from air so less oil leaves the engine through the vents.

Are hoses and fittings included?

No. The plate is sold on its own, and Boost Logic offers the plumbing as options: -12 hoses with low profile fittings from the catch can to the plate, a -3 ORB swivel fitting to -3 AN for the pressure reference hose, and an M16x1.0 to -8 fitting that replaces the OEM PCV fitting on the back.

Can I monitor crankcase pressure with it?

Yes, once a sensor is added. The plate has a -3 port designed to route to a sensor so crankcase pressure can be measured and logged. The sensor itself is not included, and Boost Logic offers a -3 ORB swivel fitting to -3 AN as an option for the reference hose between the port and the sensor.

Do I need a catch can?

Yes, the -12 vent ports need somewhere to go. Boost Logic describes its optional -12 hoses as running from the catch can to the center valley breathing plate, so the plate is designed to work as part of a catch can setup. Owners without one should plan the complete breathing system before ordering.

Does the plate fit every R35 GT-R?

Boost Logic lists the plate for the GT-R VR38 engine, which covers the 2009 and later R35 Nissan GT-R. Installation needs access to the center valley of the engine, so plan the labor with the installer, and ask Bulletproof Automotive to confirm fitment for engines running an aftermarket intake manifold.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

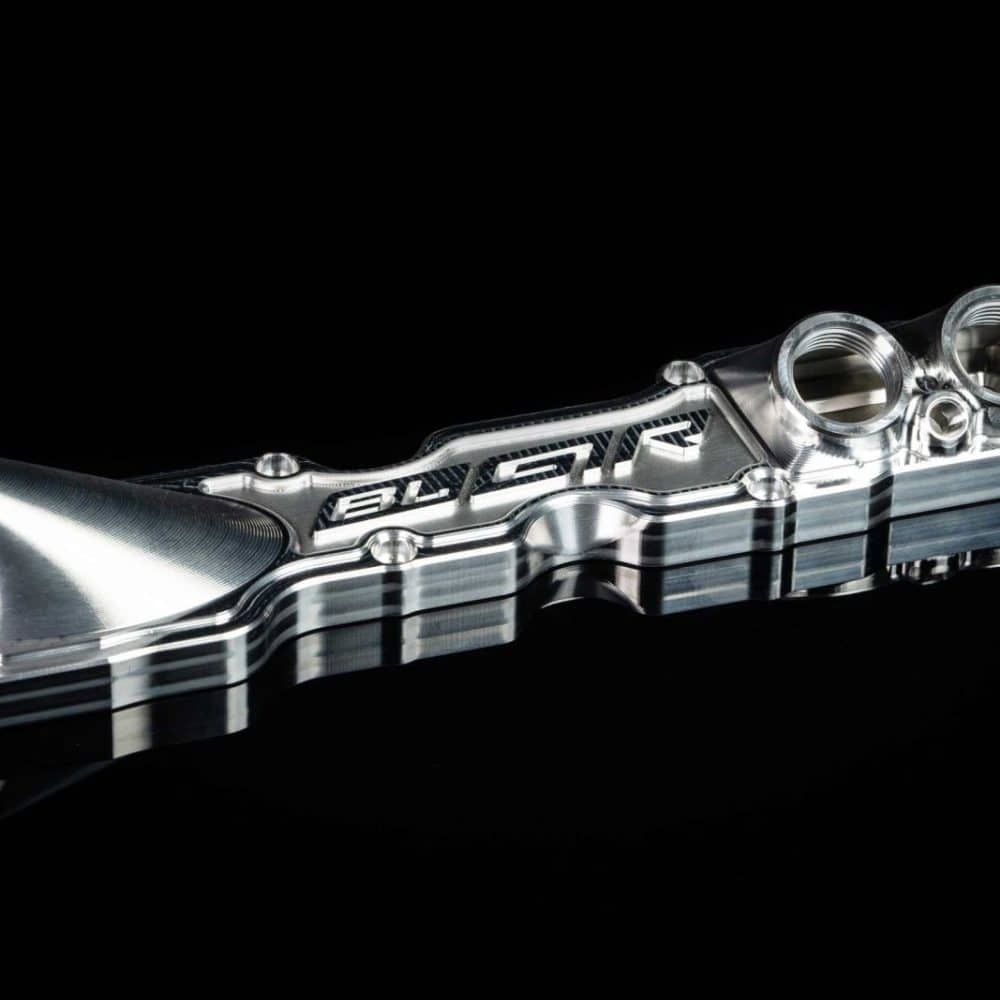

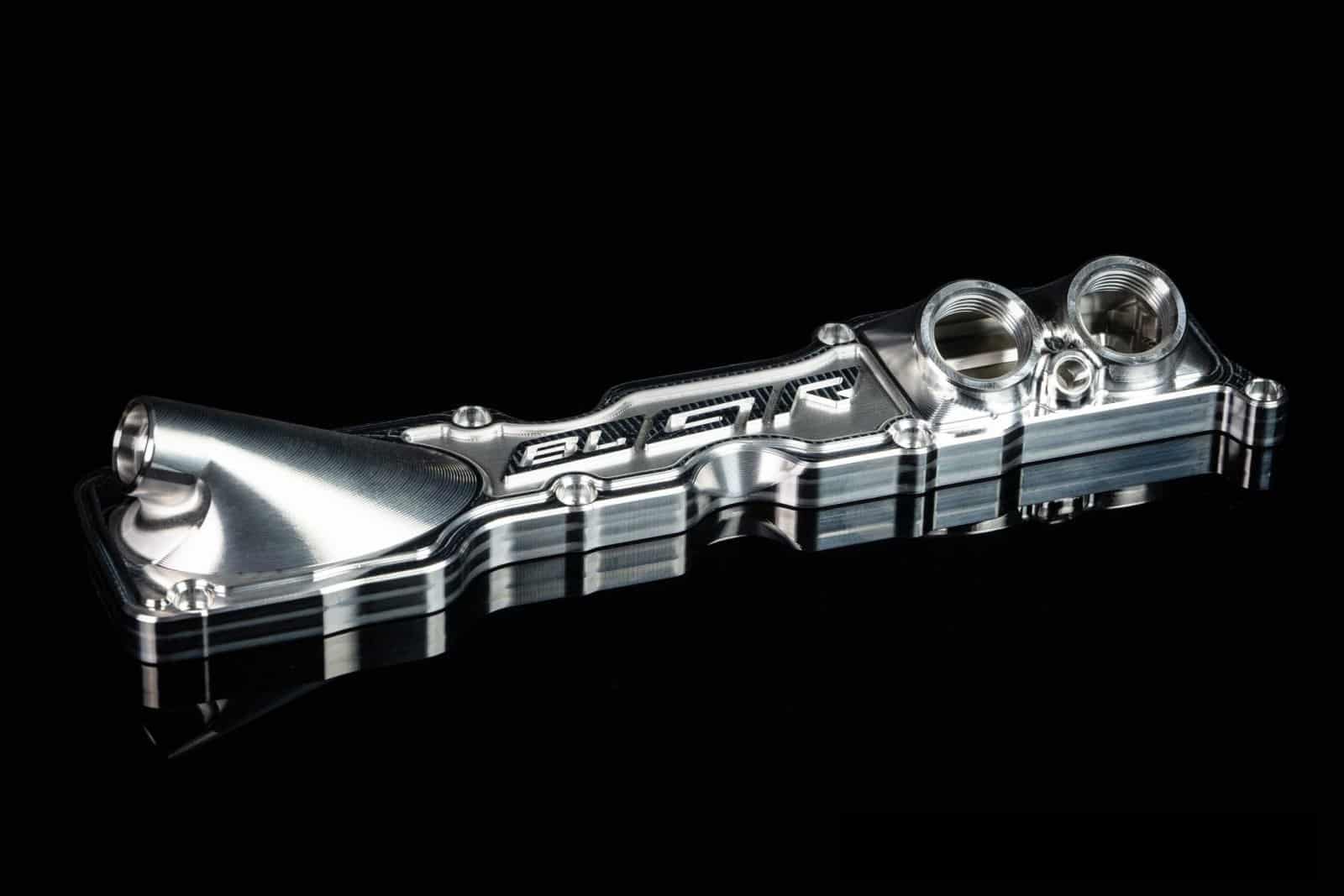

Boost Logic VR38 Center Valley Breathing Plate for R35 Nissan GT-R

Boost Logic’s Breathing Plate for R35 Nissan GT-R is a center valley plate for the VR38DETT that adds two -12 ventilation ports at the valley of the engine, plus a -3 port meant to route to a sensor so crankcase pressure can be measured. A mesh filter inside the plate separates oil from the air, reducing the amount of oil that leaves the engine through the vents. It suits a build already managing crankcase pressure with a catch can that wants more vent area and a way to log the result; on its own it is one part of a breathing system, not the whole of one.

Features

Two -12 ventilation ports at the center valley
-3 port designed to route to a crankcase pressure sensor
Internal mesh filter separates air from oil
Reduces the amount of oil leaving the engine through the vents
Designed for the VR38DETT center valley

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Hoses and fittings are not included with the plate; Boost Logic offers them as options through Bulletproof Automotive
Optional Boost Logic -12 hoses with low profile fittings run from the catch can to the Breathing Plate for R35
Optional -3 ORB swivel fitting to -3 AN connects the crankcase pressure reference hose
Optional M16x1.0 to -8 fitting replaces the OEM PCV fitting on the back of the engine
A crankcase pressure sensor is not included
A catch can is needed at the other end of the -12 hoses; the Boost Logic Engine Breathing System for R35 Nissan GT-R (02010008) is sold separately

Frequently Asked Questions

What does the Boost Logic Breathing Plate for R35 do? It adds crankcase ventilation at the center valley of the VR38DETT. The Breathing Plate for R35 has two -12 ports for venting, a -3 port that can feed a crankcase pressure sensor, and an internal mesh filter that separates oil from air so less oil leaves the engine through the vents.
Are hoses and fittings included? No. The plate is sold on its own, and Boost Logic offers the plumbing as options: -12 hoses with low profile fittings from the catch can to the plate, a -3 ORB swivel fitting to -3 AN for the pressure reference hose, and an M16x1.0 to -8 fitting that replaces the OEM PCV fitting on the back.
Can I monitor crankcase pressure with it? Yes, once a sensor is added. The plate has a -3 port designed to route to a sensor so crankcase pressure can be measured and logged. The sensor itself is not included, and Boost Logic offers a -3 ORB swivel fitting to -3 AN as an option for the reference hose between the port and the sensor.
Do I need a catch can? Yes, the -12 vent ports need somewhere to go. Boost Logic describes its optional -12 hoses as running from the catch can to the center valley breathing plate, so the plate is designed to work as part of a catch can setup. Owners without one should plan the complete breathing system before ordering.
Does the plate fit every R35 GT-R? Boost Logic lists the plate for the GT-R VR38 engine, which covers the 2009 and later R35 Nissan GT-R. Installation needs access to the center valley of the engine, so plan the labor with the installer, and ask Bulletproof Automotive to confirm fitment for engines running an aftermarket intake manifold.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
