What does the Boost Logic Engine Breathing System for R35 do?

It relieves crankcase pressure from the VR38DETT engine. The Engine Breathing System for R35 uses the standard vents from both valve covers and adds a banjo fitting on the oil filler neck, giving the crankcase a third place to vent. Boost Logic designed it to stop oil building up in the intercooler piping and to help the engine breathe under boost.

What is the Race Version option?

The Race Version swaps the standard fittings for high flow titanium fittings. Boost Logic sells it as an upgrade on top of the base system, and it can be combined with the Recirculation Kit. Select the fittings at checkout. Boost Logic does not publish separate flow figures for the two fitting types in its product text.

Is the Recirculation Kit required?

No. The Recirculation Kit is optional, and the base breathing system works without it. Boost Logic sells it as an add-on chosen at checkout, either on its own or together with the Race Version titanium fittings. Owners unsure which layout suits their build can ask Bulletproof Automotive to confirm before ordering.

Has the system been proven at high power?

Yes. Boost Logic states that it has used this breathing system on its 750 packages and on GT-R builds making more than 1,700 horsepower without an issue. That record comes from Boost Logic builds, so results on other cars still depend on the rest of the engine setup, the boost level and how the car is used.

Does it fit every R35 GT-R?

Boost Logic lists the system for the R35 Nissan GT-R with the VR38DETT engine, which covers the 2009 and later cars. It connects to the factory valve cover vents and the oil filler neck, and no engine machining is described. Cars with modified valve covers or unusual intake layouts should confirm fitment with Bulletproof Automotive first.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

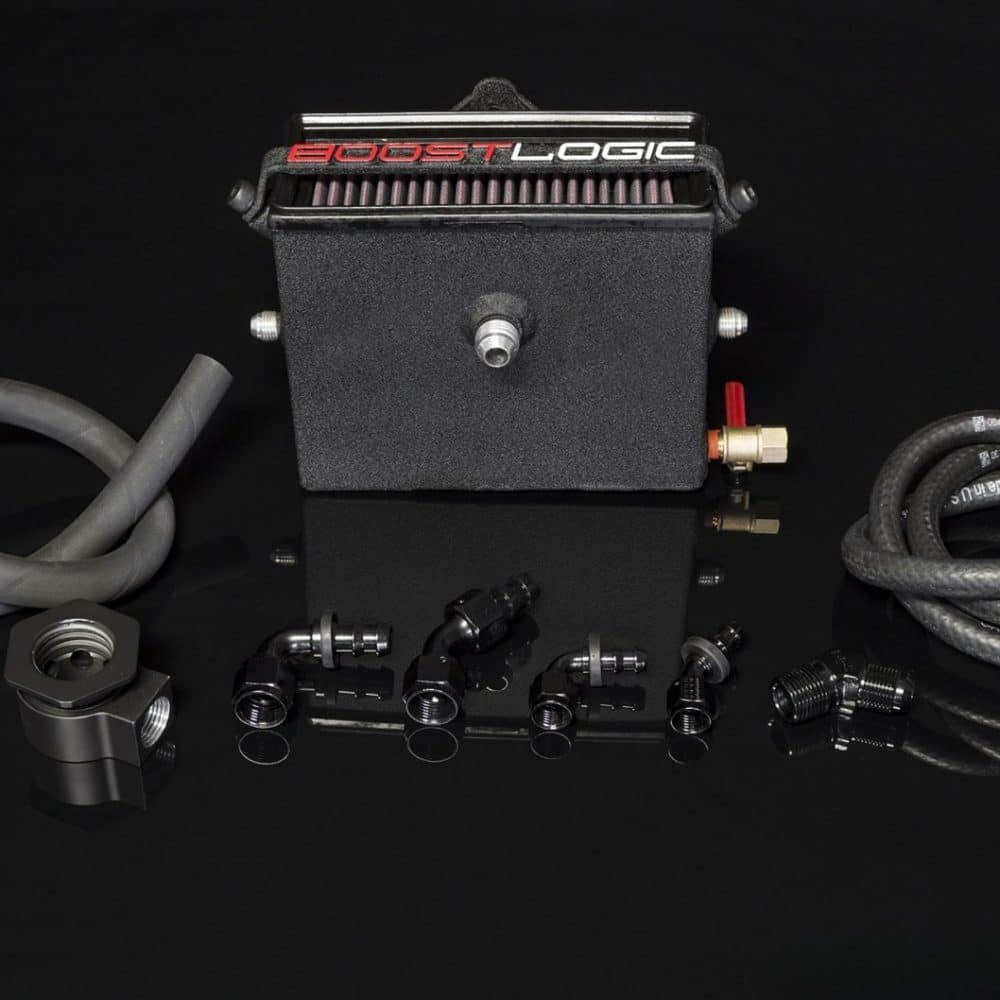

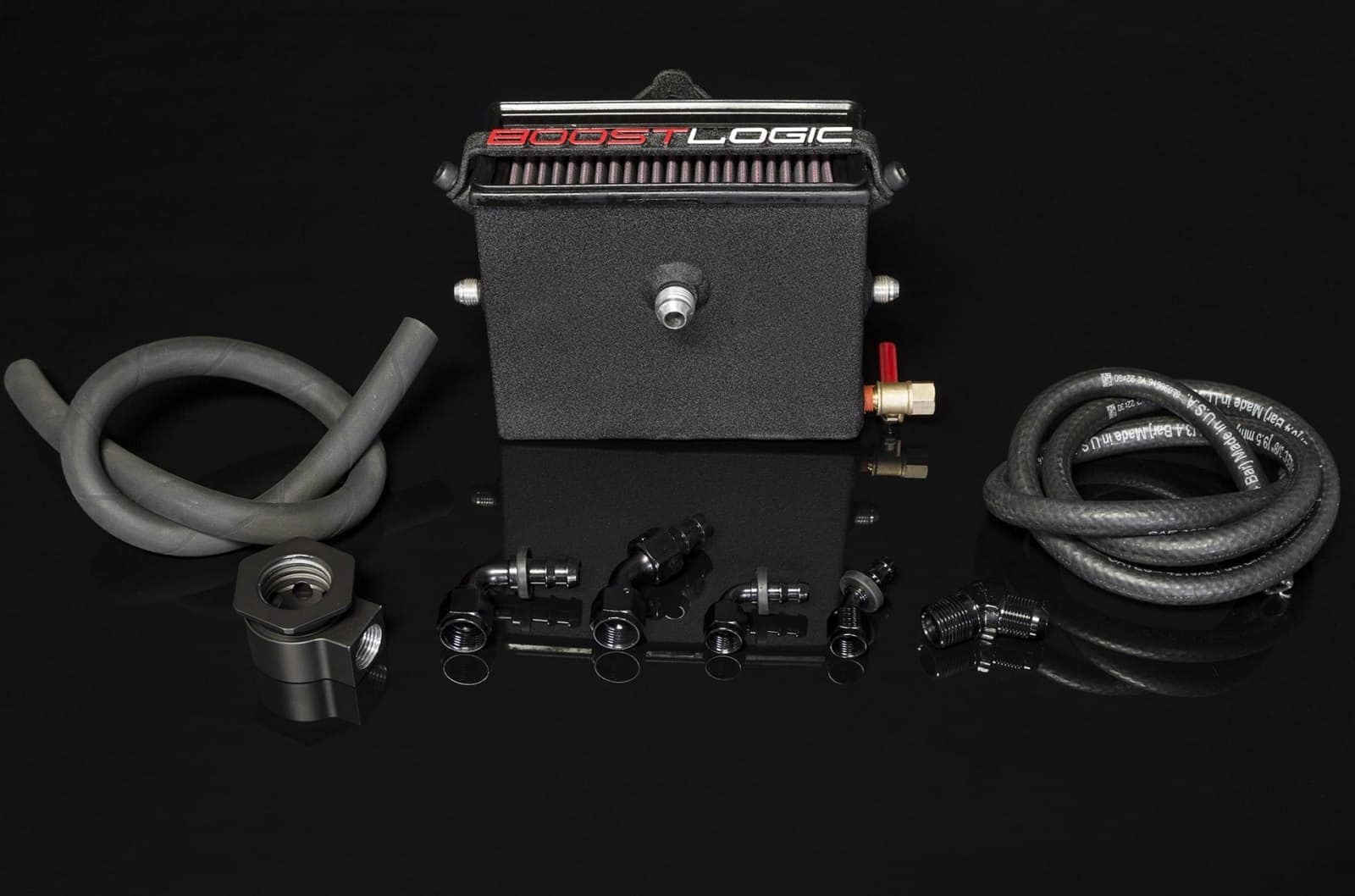

Boost Logic Engine Breathing System for R35 Nissan GT-R

Boost Logic’s Engine Breathing System for R35 Nissan GT-R vents crankcase pressure from the VR38DETT through the standard vents on both valve covers plus an added banjo fitting on the oil filler neck, a third vent path aimed at relieving as much crankcase pressure as possible. Boost Logic built it to stop oil collecting in the intercooler piping and has run it on its 750 packages and on GT-Rs making more than 1,700 horsepower without an issue. That record points it at boosted, modified cars where crankcase pressure climbs with power; it is less of a priority on a car still at factory output.

Design and Performance

The system keeps the factory valve cover vent points and adds a banjo fitting off the oil fill neck, so crankcase gases leave the engine from three places instead of two. Boost Logic offers two upgrades on top of the base kit, a Race Version with high flow titanium fittings and a Recirculation Kit, and both are chosen at checkout.

Features

Additional banjo fitting on the oil filler neck adds a third crankcase vent point
Uses the standard vents from both valve covers
Designed to stop oil building up in the intercooler piping
Run by Boost Logic on its 750 packages and on GT-Rs above 1,700 horsepower
Optional Race Version with high flow titanium fittings
Optional Boost Logic Recirculation Kit

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Choose the Recirculation Kit and the Race Version titanium fittings at checkout; each option adds to the base price
Boost Logic states the Engine Breathing System for R35 has run without issue on its 750 packages and on GT-Rs above 1,700 horsepower; no dyno gain is published
A replacement air filter for the Boost Logic GTR Engine Breathing System is sold separately (BL 02010008-RF)
Boost Logic also builds the Boost Logic Ultimate Engine Breathing System for R35 Nissan GT-R as a separate listing
The Boost Logic VR38 Center Valley Breathing Plate for R35 Nissan GT-R (BL 02010501) adds two -12 vent ports at the engine valley, with optional -12 hoses that run to a catch can
Crankcase ventilation is emissions-related equipment in many states; check local rules before installation

Frequently Asked Questions

What does the Boost Logic Engine Breathing System for R35 do? It relieves crankcase pressure from the VR38DETT engine. The Engine Breathing System for R35 uses the standard vents from both valve covers and adds a banjo fitting on the oil filler neck, giving the crankcase a third place to vent. Boost Logic designed it to stop oil building up in the intercooler piping and to help the engine breathe under boost.
What is the Race Version option? The Race Version swaps the standard fittings for high flow titanium fittings. Boost Logic sells it as an upgrade on top of the base system, and it can be combined with the Recirculation Kit. Select the fittings at checkout. Boost Logic does not publish separate flow figures for the two fitting types in its product text.
Is the Recirculation Kit required? No. The Recirculation Kit is optional, and the base breathing system works without it. Boost Logic sells it as an add-on chosen at checkout, either on its own or together with the Race Version titanium fittings. Owners unsure which layout suits their build can ask Bulletproof Automotive to confirm before ordering.
Has the system been proven at high power? Yes. Boost Logic states that it has used this breathing system on its 750 packages and on GT-R builds making more than 1,700 horsepower without an issue. That record comes from Boost Logic builds, so results on other cars still depend on the rest of the engine setup, the boost level and how the car is used.
Does it fit every R35 GT-R? Boost Logic lists the system for the R35 Nissan GT-R with the VR38DETT engine, which covers the 2009 and later cars. It connects to the factory valve cover vents and the oil filler neck, and no engine machining is described. Cars with modified valve covers or unusual intake layouts should confirm fitment with Bulletproof Automotive first.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
