What is the difference between the Boost Logic Fuel Rail Pair for R35 and the Fuel Rail Kit?

The Fuel Rail Pair for R35 is the two billet rails only. The complete Fuel Rail Kit adds a Weldon fuel pressure regulator, a regulator bracket, a rail to regulator line, a regulator to factory return line, a crossover line, fittings and a return line quick disconnect. Boost Logic recommends the complete kit as its full fueling solution.

Do I need to cut the factory fuel lines?

No. Boost Logic fitted OEM style quick connectors so the rails connect without cutting or splicing the factory fuel system, and it states that no permanent modifications are needed. That keeps the installation reversible for owners who may want to return the car to factory configuration later.

Are the rails safe with E85?

Yes. Boost Logic states that the components are safe with any type of fuel, naming pump gas, E85 and race gas. The rails are machined from high grade T-6 billet aluminum. Running E85 at high power still needs injectors, pumps and a tune sized for the fuel, and those are not part of this pair.

What power level are the rails designed for?

Boost Logic designed the rails for the fueling demands of its higher horsepower GT-R packages, which it describes as cars making 900 to 2,000 horsepower. The rails are one part of the fuel system, so the power a car can support also depends on the injectors, pumps, regulator and tuning.

Does the pair include a regulator?

No. The pair contains the two fuel rails and does not include a fuel pressure regulator. Owners who want the Weldon regulator, bracket and lines should order the complete Boost Logic Fuel Rail Kit, which uses the same billet rails and shrouds the regulator from engine bay heat.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

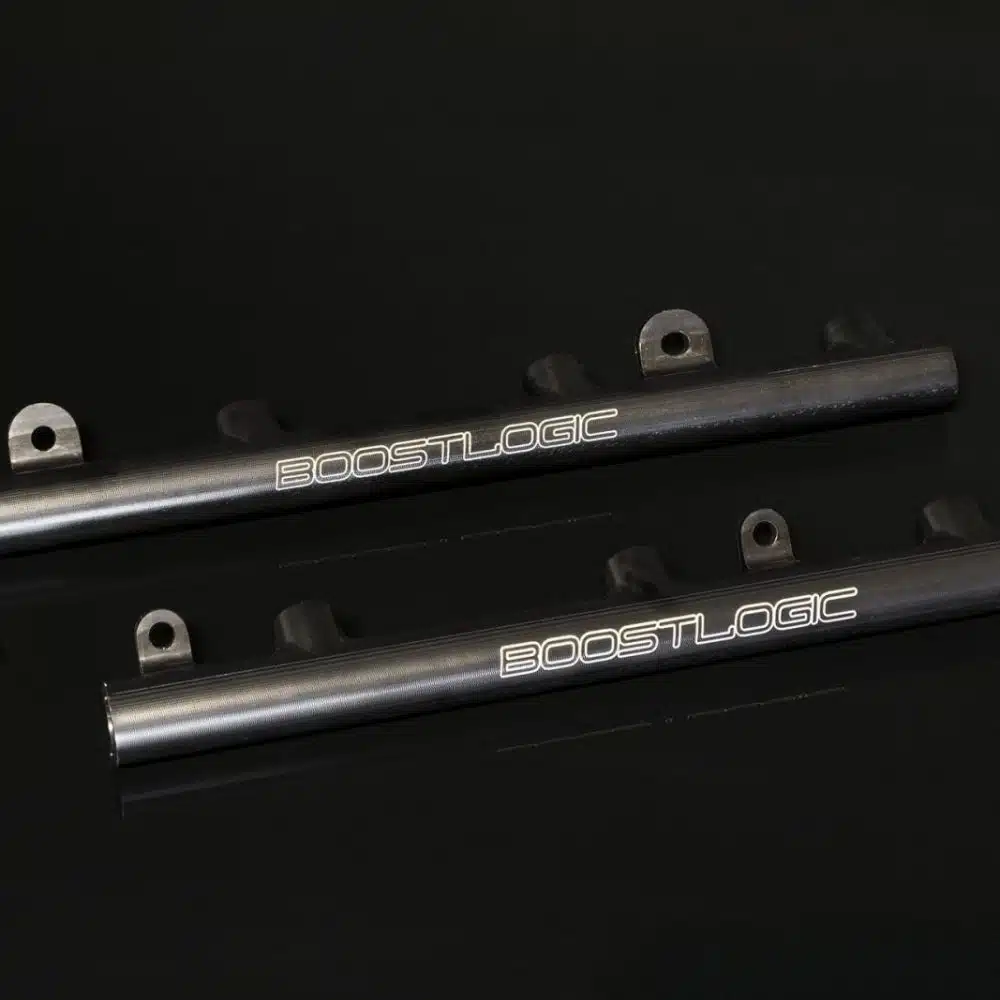

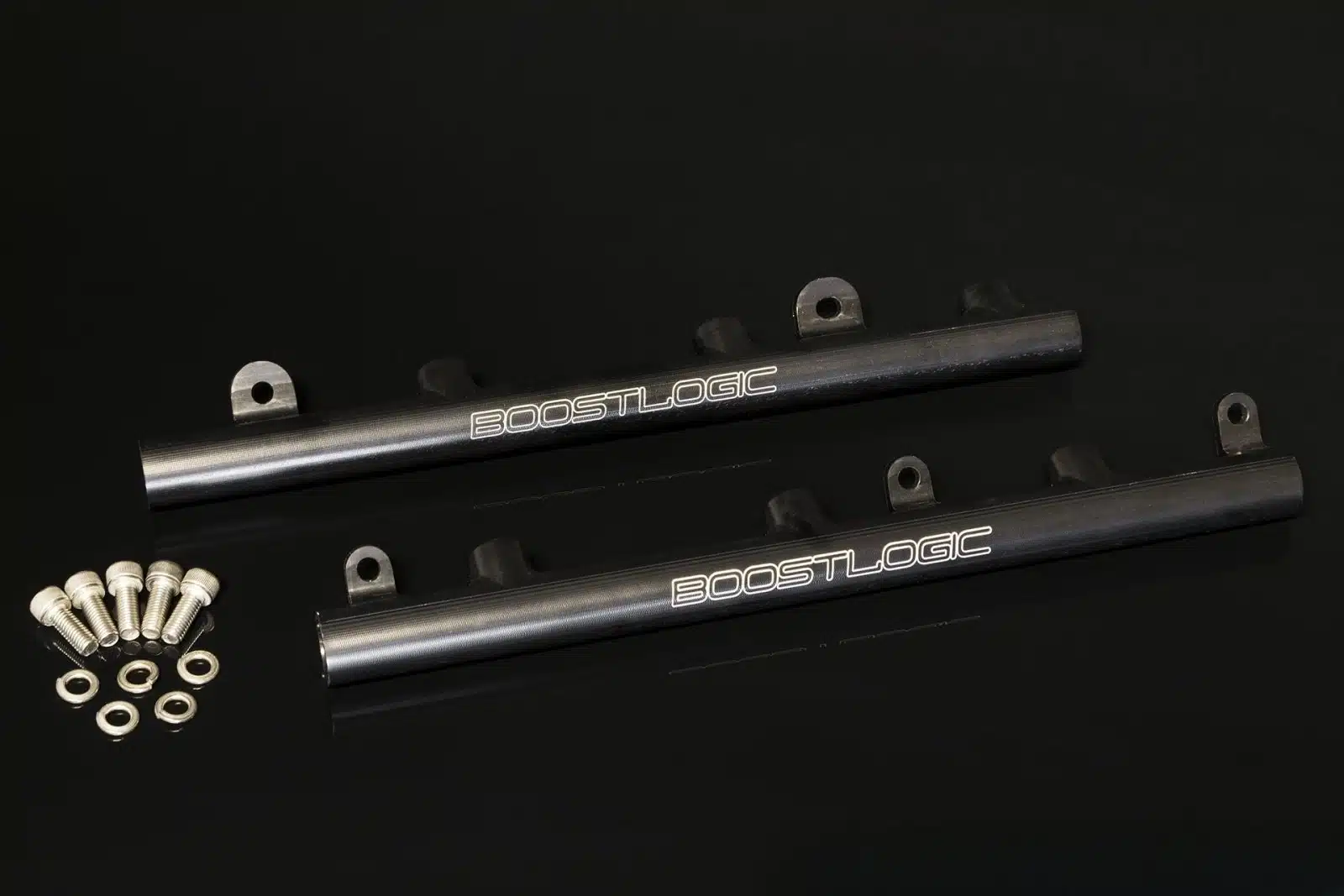

Boost Logic Billet Fuel Rail Pair for R35 Nissan GT-R

Boost Logic’s Fuel Rail Pair for R35 Nissan GT-R is the rail-only version of the fuel system Boost Logic developed for its 900 to 2,000 horsepower GT-R packages: two rails machined from high grade T-6 billet aluminum, sold without a regulator. Boost Logic used its 3D scanning and imaging to design them and fitted OEM style quick connectors, so they install without cutting or splicing the factory fuel system. The rails are safe with pump gas, E85 and race gas. A car that also needs a regulator is better served by the complete kit.

Features

Machined from high grade T-6 billet aluminum
OEM style quick connectors for installation without cutting or splicing
Developed with Boost Logic 3D scanning and imaging
Safe with pump gas, E85 and race gas
No unnecessary fittings or junctions and no permanent modifications
Sold as a pair of fuel rails, one for each cylinder bank

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

No fuel pressure regulator is included; the Weldon regulator comes with the Boost Logic Fuel Rail Kit for R35 Nissan GT-R (BLFRKRNG9)
Boost Logic recommends the complete kit with the Weldon regulator as its full fueling solution
Injectors and fuel pumps are not included
Boost Logic publishes no separate parts list for the Fuel Rail Pair for R35, so confirm hardware with Bulletproof Automotive when ordering

Frequently Asked Questions

What is the difference between the Boost Logic Fuel Rail Pair for R35 and the Fuel Rail Kit? The Fuel Rail Pair for R35 is the two billet rails only. The complete Fuel Rail Kit adds a Weldon fuel pressure regulator, a regulator bracket, a rail to regulator line, a regulator to factory return line, a crossover line, fittings and a return line quick disconnect. Boost Logic recommends the complete kit as its full fueling solution.
Do I need to cut the factory fuel lines? No. Boost Logic fitted OEM style quick connectors so the rails connect without cutting or splicing the factory fuel system, and it states that no permanent modifications are needed. That keeps the installation reversible for owners who may want to return the car to factory configuration later.
Are the rails safe with E85? Yes. Boost Logic states that the components are safe with any type of fuel, naming pump gas, E85 and race gas. The rails are machined from high grade T-6 billet aluminum. Running E85 at high power still needs injectors, pumps and a tune sized for the fuel, and those are not part of this pair.
What power level are the rails designed for? Boost Logic designed the rails for the fueling demands of its higher horsepower GT-R packages, which it describes as cars making 900 to 2,000 horsepower. The rails are one part of the fuel system, so the power a car can support also depends on the injectors, pumps, regulator and tuning.
Does the pair include a regulator? No. The pair contains the two fuel rails and does not include a fuel pressure regulator. Owners who want the Weldon regulator, bracket and lines should order the complete Boost Logic Fuel Rail Kit, which uses the same billet rails and shrouds the regulator from engine bay heat.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
