Will the AWE Touring Edition Exhaust fit my FL5 Honda Civic Type R?

Yes. The AWE Touring Edition Exhaust is built specifically for the FL5 Honda Civic Type R with the 2.0L turbocharged I4 K20C1 engine, model years 2023 through 2026. It is a direct bolt-on install with no motor mount removal required, and AWE guarantees perfect fitment with no check engine light.

How much power does the AWE Touring Edition Exhaust add to the FL5 Civic Type R?

On a stock downpipe, the AWE Touring Edition is dyno-proven to deliver maximum gains of 14hp and 13ft-lb of torque at the wheels. The full 3" catback system also comes in at 46lbs, compared to the OEM exhaust at 50.5lbs, for a modest weight reduction alongside the power gains.

How does the AWE Touring Edition eliminate drone on the FL5 Civic Type R?

The system uses AWE's patented 180 Technology, developed specifically for the FL5. AWE acoustic engineers size and position each port and chamber around the sound targets for the K20C1, controlling when the reflected sound waves rejoin the main exhaust flow. The returning wave runs 180 degrees out of phase with the problem frequencies, canceling them before they reach the cabin; all within a straight-through design that doesn't sacrifice power.

Is the AWE Touring Edition compatible with aftermarket front pipes on the FL5?

The integrated 3" frontpipe uses a unique flange and gasket to maintain a true 3" diameter from inlet to outlet and is engineered exclusively for AWE systems. The Touring Edition is not compatible with front pipes from other aftermarket brands, but it was developed to work with or without an aftermarket catted downpipe.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

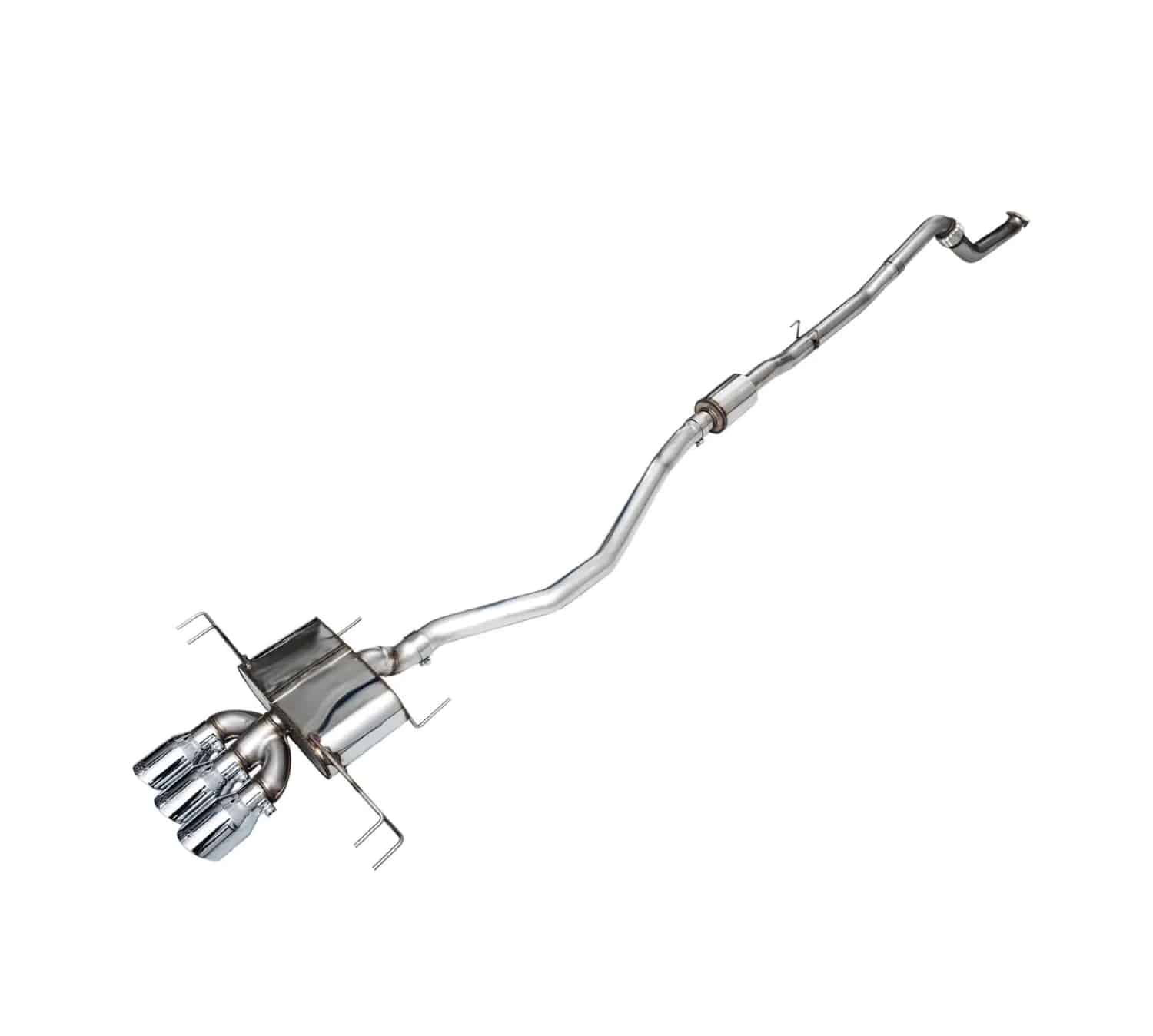

AWE Touring Edition Exhaust with Triple Chrome Silver Tips for the FL5 Honda Civic Type R

The AWE Touring Chrome FL5 cat-back exhaust brings straight-pipe performance to the Honda Civic Type R without the highway drone. Handcrafted from 3″ CNC mandrel-bent, U.S.-sourced .065″ wall T304L stainless steel, this full downpipe-back system routes a true 3″ diameter from inlet to outlet, with an integrated 3″ front pipe that uses a unique flange and gasket to hold that full diameter while mating cleanly to the factory interface. Dyno testing shows max gains of 14hp and 13ft-lb of torque at the wheels on a stock downpipe, while patented 180 Technology and a midpipe resonator cancel in-cabin drone for a deep, rasp-free K20 note. The result is an exhaust that stays civil at cruise and comes alive under boost, finished with triple 4.5″ chrome silver tips that fill the FL5’s factory diffuser.

180 Technology

AWE’s patented 180 Technology cancels the problematic frequencies that cause in-cabin drone, leaving only unlocked performance and an AWE signature note. The Touring Edition carries a midpipe resonator and 180 Technology-equipped mufflers, tuned both with and without a freer-flowing aftermarket catted downpipe. The result is a deep, rasp-free K20 tone that stays comfortable on the highway.

Triple Chrome Silver Tips

A stamped stainless trident merge feeds triple 4.5″ double-walled, slash-cut tips in a chrome silver finish, filling the FL5’s factory diffuser with a purposeful, factory-plus look.

Straightforward Install

The Touring Edition is a direct bolt-on with generous clearances and no motor mount removal required. AWE backs fitment, and the system ships with a Lifetime Warranty.

Features

Full 3″ downpipe-back system with an integrated 3″ front pipe for a true 3″ diameter from inlet to outlet
Dyno-proven max gains of 14hp and 13ft-lb of torque at the wheels (stock downpipe)
Patented 180 Technology cancels in-cabin drone for a deep, rasp-free K20 note
Midpipe resonator tuned for daily comfort, with and without an aftermarket catted downpipe
Triple 4.5″ double-walled, slash-cut tips in a chrome silver finish with a stamped stainless trident merge
Handcrafted from CNC mandrel-bent, U.S.-sourced .065″ wall T304L stainless steel
Direct bolt-on with generous clearances and no motor mount removal required
50-state legal, No Tune Required, and backed by AWE’s No CEL Guarantee and Lifetime Warranty

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L turbocharged K20C1

Notes

AWE exhausts are not designed to mate with other aftermarket front pipes
Installation instructions
This system does not tamper with any emissions control or monitoring devices and is 50-state legal

Frequently Asked Questions

Does the AWE Touring Chrome FL5 exhaust drone on the highway? No. The Touring Edition uses AWE’s patented 180 Technology plus a midpipe resonator to cancel the frequencies that cause cabin drone, so highway cruising stays comfortable while wide-open throttle delivers the AWE signature note.
How much power does the AWE Touring Edition exhaust add to the FL5? Dyno testing shows max gains of 14hp and 13ft-lb of torque at the wheels on a stock downpipe.
Is a tune required, and is the system emissions legal? No tune is required. The system does not tamper with any emissions control or monitoring devices and is 50-state legal, and it is covered by AWE’s No CEL Guarantee.
What is the difference between the Track Edition and Touring Edition? The Touring Edition adds a resonator and 180 Technology for drone-free daily comfort (46lbs). The Track Edition is a lighter, louder, resonator-delete configuration (36.5lbs). AWE offers conversion kits between the two.
Will it fit my FL5? Yes. It is a direct bolt-on for the 2023-present Honda Civic Type R (FL5, 2.0L K20C1) with no motor mount removal.
