Does the AWE Turbo Inlet Tube for FL5 work with the factory airbox?

Yes. The tube ships with two silicone couplers, one for the factory airbox and one for the AWE Carbon Airbox. The carbon airbox is not included; AWE sells it separately as the S-FLO Carbon Fiber Intake, and the two together form the complete S-FLO system.

Does the Civic Type R need a tune after fitting the inlet tube?

No. AWE rates the Turbo Inlet Tube for FL5 and DE5 cars no tune required and covers it with the AWE No Check Engine Light Guarantee when correctly installed. It fits every factory-fitment turbocharger on the K20C1 in both cars.

How much power does a turbo inlet add on the FL5?

AWE publishes no figure for the tube alone. Its 20 hp and 16 lb-ft at the wheels is for the complete S-FLO system, the carbon airbox plus this tube, on a 2023 FL5 Civic Type R with 91 octane software and an AWE exhaust.

Will the AWE carbon inlet tube fit a bigger turbo?

Yes, by design. The machined aluminum turbo flange and its coupler are removable, so the carbon tube can be adapted to larger aftermarket turbochargers with bigger inlets. It suits an FL5 or DE5 build that is heading toward a turbo upgrade.

Does the inlet tube fit the Acura Integra Type S?

Yes. AWE lists the same part number for the 2024 and later DE5 Acura Integra Type S and the 2023 and later FL5 Honda Civic Type R, which share the K20C1 2.0 liter turbo engine and the same factory mounting locations.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

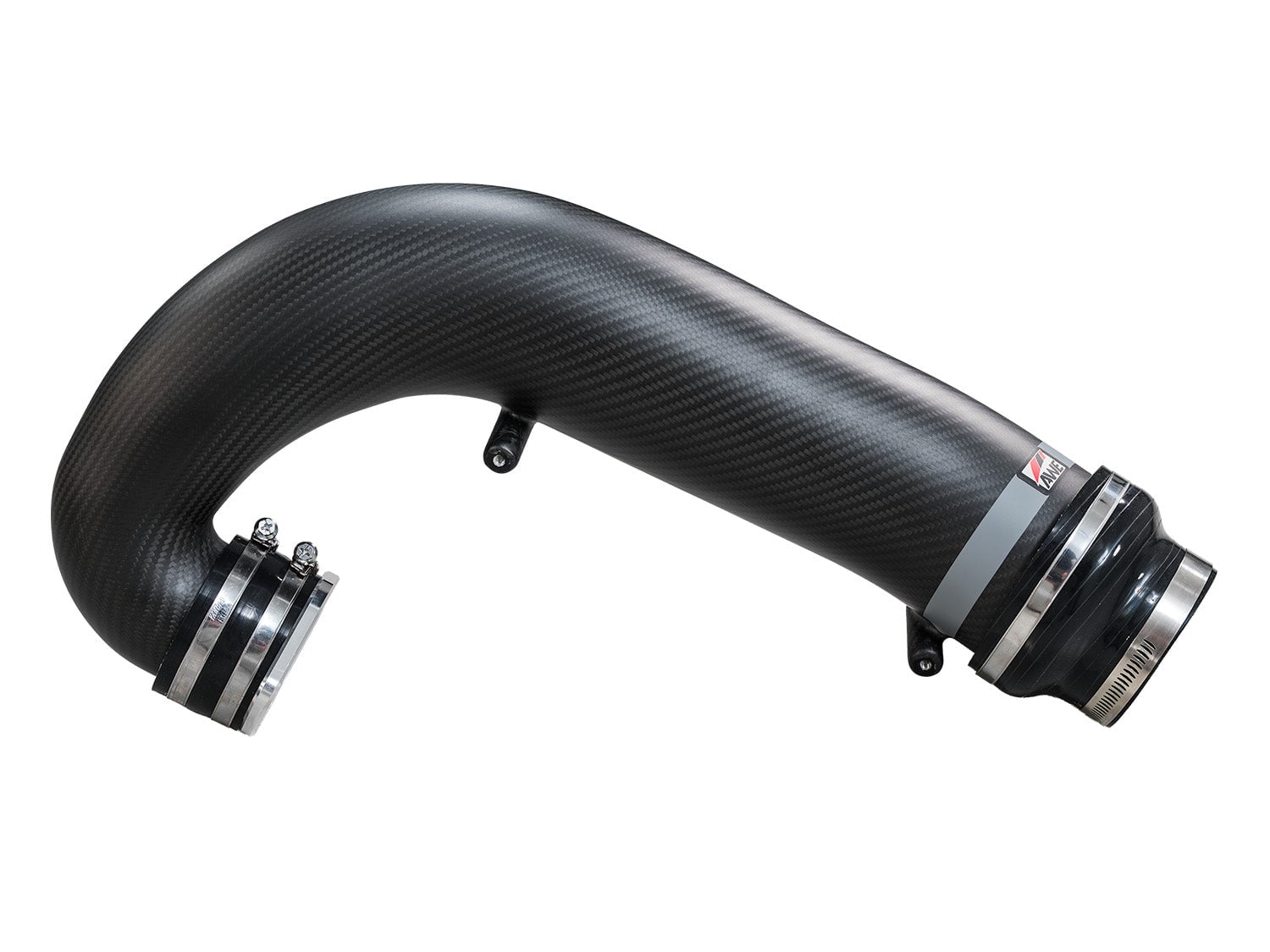

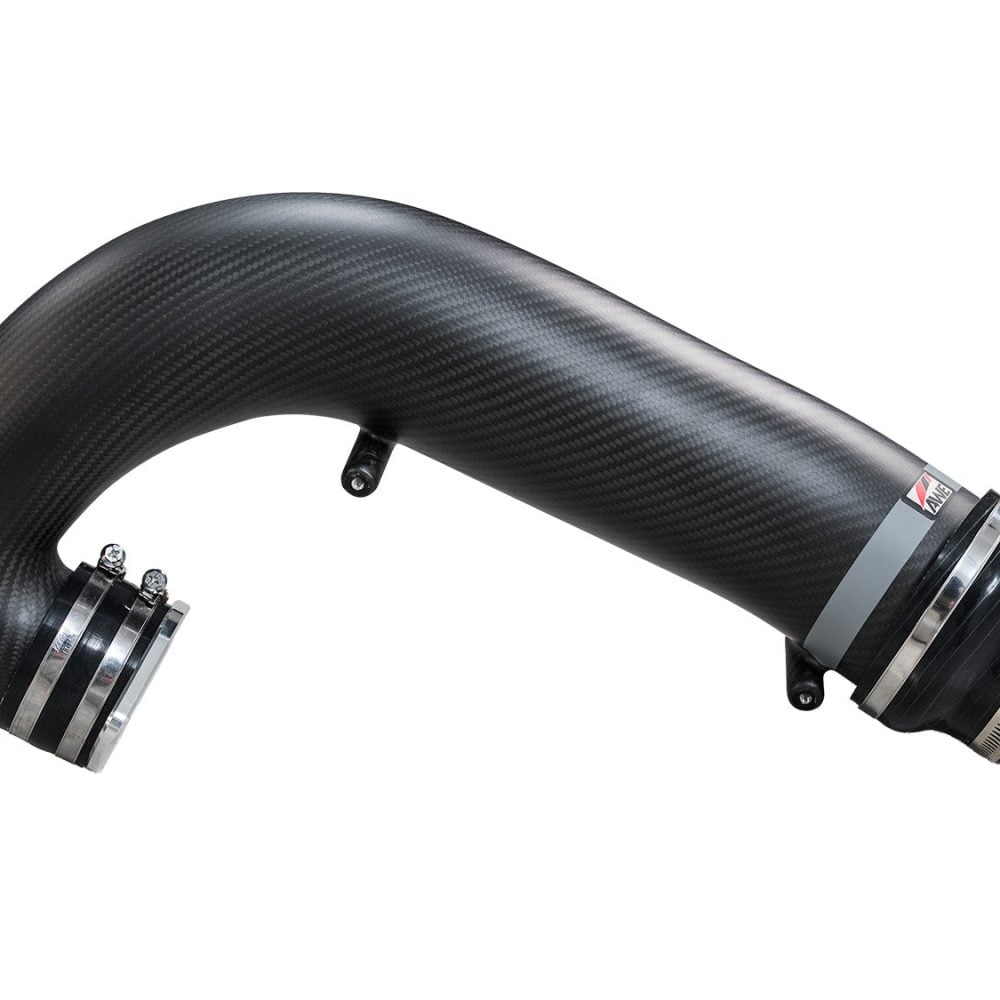

AWE Tuning S-FLO Carbon Turbo Inlet Tube for FL5 Honda Civic Type R and DE5 Acura Integra Type S

AWE Tuning’s S-FLO Carbon Turbo Inlet Tube for FL5 Honda Civic Type R and DE5 Acura Integra Type S takes over the run from airbox to compressor on the K20C1, replacing the factory inlet assembly with a matte 2×2 carbon fiber tube and 39% more cross-sectional area than stock. At the turbo it seats on a machined aluminum flange that comes off by design, so the tube can follow the car to a larger aftermarket turbocharger. AWE engineered it in Pennsylvania alongside its S-FLO carbon airbox, with no tune required. It is for the owner who plans the next stage before the current one is finished.

Modular by Design

Couplers are supplied for the factory airbox and for the AWE Tuning S-FLO Carbon Fiber Intake, so the tube works with either. AWE publishes its power figures for the complete system rather than the tube alone; on a stock turbo, buy it for the larger path, the carbon finish and the headroom it leaves for a turbo upgrade.

Features

Genuine 2×2 carbon fiber tube with UV-stabilized resin
39% larger inlet cross-sectional area than stock
Machined aluminum turbo flange
Removable flange and coupler accept larger turbo inlets
Compatible with all factory-fitment turbochargers
Uses the factory mounting locations
AWE Fitment Guarantee and No Check Engine Light Guarantee

What’s Included

Carbon fiber turbo inlet tube (matte finish)
Silicone couplers for the factory and AWE airboxes
Machined aluminum turbo flange and flange coupler
Hose clamps (x5) and zebra clamp
Corrugated sleeving and split loom tees (x2)
M5 bolts and washers (x2)

Applications

Acura Integra Type S: DE5 | 2024-present | 2.0L Turbo I4 K20C1
Honda Civic Type R: FL5 | 2023-present | 2.0L Turbo I4 K20C1

Notes

This Turbo Inlet Tube for FL5 and DE5 cars is the inlet tube only; the carbon airbox is sold separately as the AWE Tuning S-FLO Carbon Fiber Intake
AWE’s 20 hp and 16 lb-ft wheel gains were recorded on the complete S-FLO system, fitted to a 2023 FL5 Civic Type R running 91-octane software and an AWE exhaust; they are not a bolt-on figure for the tube alone
AWE’s installation guide covers the turbo inlet tube step by step

Frequently Asked Questions

Does the AWE Turbo Inlet Tube for FL5 work with the factory airbox? Yes. The tube ships with two silicone couplers, one for the factory airbox and one for the AWE Carbon Airbox. The carbon airbox is not included; AWE sells it separately as the S-FLO Carbon Fiber Intake, and the two together form the complete S-FLO system.
Does the Civic Type R need a tune after fitting the inlet tube? No. AWE rates the Turbo Inlet Tube for FL5 and DE5 cars no tune required and covers it with the AWE No Check Engine Light Guarantee when correctly installed. It fits every factory-fitment turbocharger on the K20C1 in both cars.
How much power does a turbo inlet add on the FL5? AWE publishes no figure for the tube alone. Its 20 hp and 16 lb-ft at the wheels is for the complete S-FLO system, the carbon airbox plus this tube, on a 2023 FL5 Civic Type R with 91 octane software and an AWE exhaust.
Will the AWE carbon inlet tube fit a bigger turbo? Yes, by design. The machined aluminum turbo flange and its coupler are removable, so the carbon tube can be adapted to larger aftermarket turbochargers with bigger inlets. It suits an FL5 or DE5 build that is heading toward a turbo upgrade.
Does the inlet tube fit the Acura Integra Type S? Yes. AWE lists the same part number for the 2024 and later DE5 Acura Integra Type S and the 2023 and later FL5 Honda Civic Type R, which share the K20C1 2.0 liter turbo engine and the same factory mounting locations.

About AWE Tuning

AWE Tuning began in 1991 as an installer of aftermarket parts, which is why every AWE product carries a written Fitment Guarantee. It designs, machines and tests in-house at its headquarters in Horsham, Pennsylvania, outside Philadelphia, with its own Mustang chassis dynamometer; one recent AWE carbon intake took more than 350 hours of development. AWE is best known for its handcrafted Touring Edition, Track Edition and SwitchPath exhausts, alongside carbon fiber intakes and intercoolers.
