Does the AWE S-FLO Carbon Fiber Intake for FL5 include the turbo inlet tube?

No. This listing is the carbon airbox, S-FLO filter, MAF housing, couplers and hardware; the AWE Carbon Turbo Inlet Tube is sold separately. A silicone coupler in the box mates the airbox to the factory turbo inlet tube, so the carbon tube can be added later.

Does the AWE intake need a tune on the Civic Type R?

No. The Carbon Fiber Intake for FL5 and DE5 cars keeps airflow across the sensor consistent through an 80 mm aluminum MAF housing, so AWE rates it no tune required and covers it with the AWE No Check Engine Light Guarantee when correctly installed.

How much power does the AWE S-FLO intake add?

AWE measured up to 20 hp and 16 lb-ft at the wheels for the complete S-FLO system, this airbox plus the Carbon Turbo Inlet Tube, on a 2023 FL5 Civic Type R with 91 octane software and an AWE exhaust. AWE publishes no figure for the airbox alone.

Is the S-FLO filter washable?

Yes. The S-FLO filter is a washable, oil-less inverted cone element with a 5 inch inlet and 85 percent more surface area than the factory filter. Sealed inside the carbon airbox, it is cleaned and refitted rather than replaced, with no oiling step afterwards.

Does this intake fit the Acura Integra Type S?

Yes. AWE lists the same part number for the 2024 and later DE5 Acura Integra Type S and the 2023 and later FL5 Honda Civic Type R, which share the K20C1 2.0 liter turbo engine and the same factory mounting locations.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

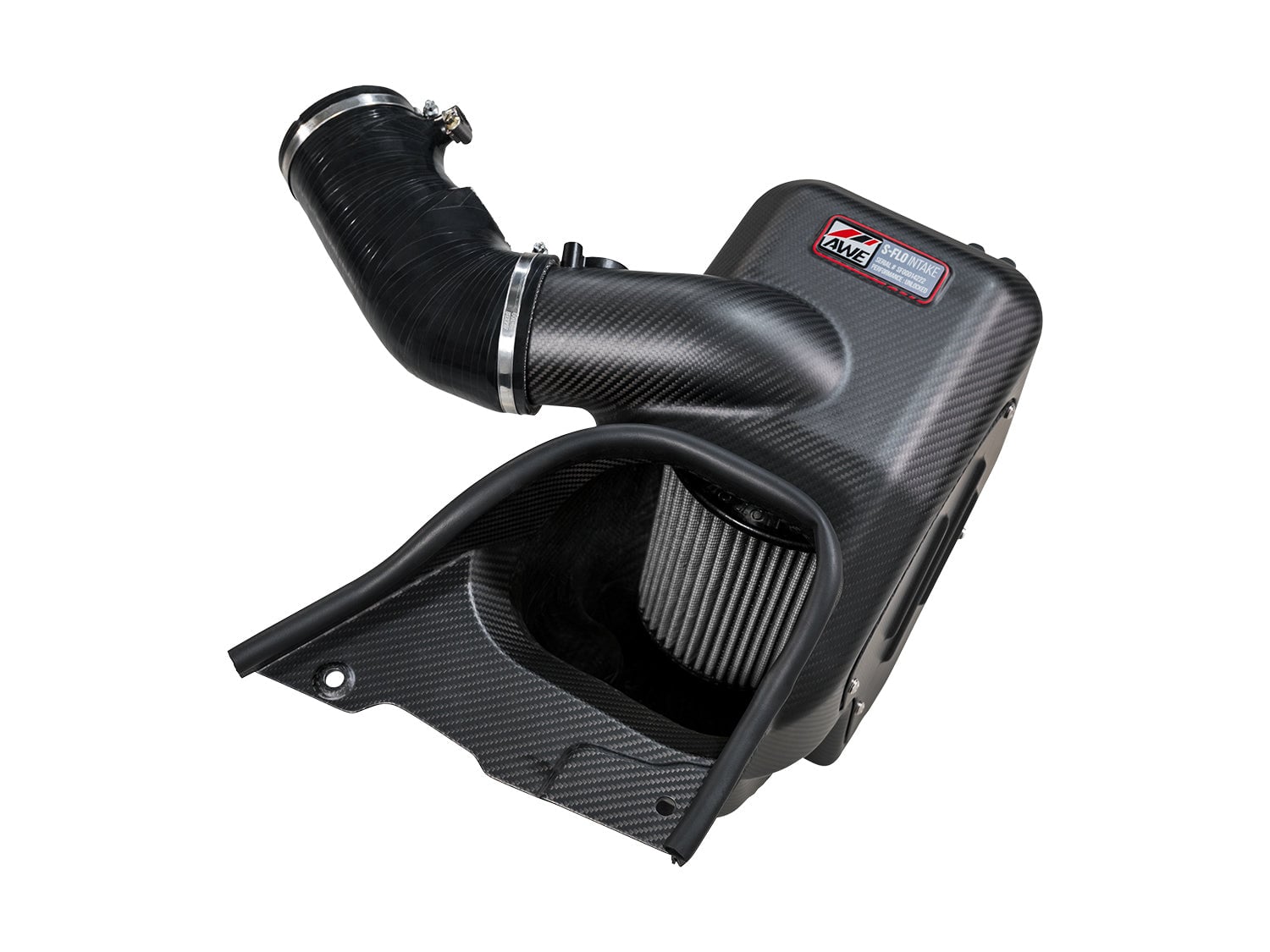

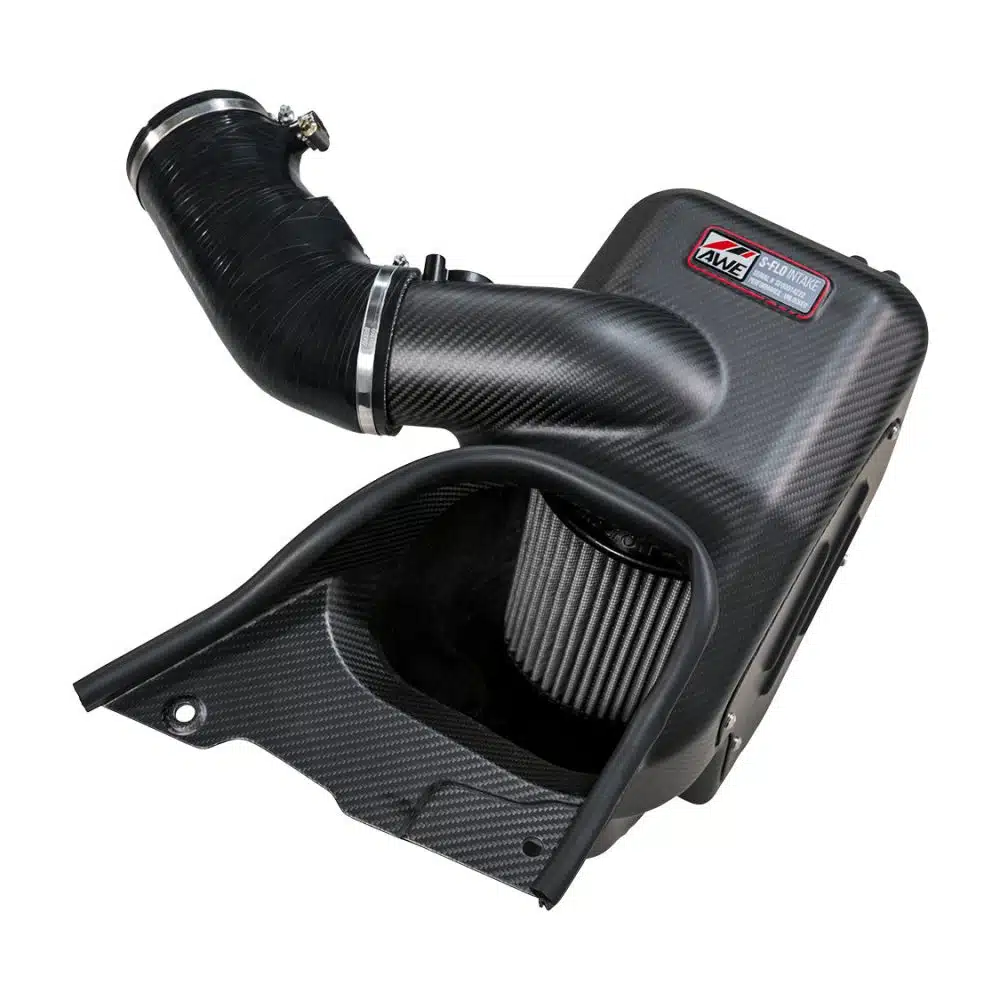

AWE Tuning S-FLO Carbon Fiber Intake for FL5 Honda Civic Type R and DE5 Acura Integra Type S

AWE Tuning’s S-FLO Carbon Fiber Intake for FL5 Honda Civic Type R and DE5 Acura Integra Type S replaces the factory airbox on the K20C1 with a sealed enclosure in genuine 2×2 carbon fiber, finished in UV-stabilized resin and clear coat so the weave keeps its depth under the hood. Inside, a washable S-FLO filter with 85% more surface area than stock feeds an 80 mm aluminum MAF housing, which is how AWE ships it with no tune required. It bolts to the factory mounting points, and it is half of a two-piece system AWE developed on its own dyno in Pennsylvania. For an owner who wants the engine bay as considered as the chassis, it is the place to begin.

Modular by Design

A silicone coupler in the kit joins this airbox to the factory turbo inlet tube, and it mates directly to the AWE Tuning S-FLO Carbon Turbo Inlet Tube when you complete the system. Buy it alone for the larger filter and the carbon finish; add the tube if the published power figures are the goal, because AWE measured those on both parts together.

Features

Sealed carbon fiber airbox and door in genuine 2×2 weave
Washable, oil-less S-FLO inverted cone filter (5.0in inlet)
85% more filter surface area than stock
Precision-engineered 80 mm aluminum MAF housing
Integrates with the factory inlet ducting
No tune required
AWE Fitment Guarantee and No Check Engine Light Guarantee

What’s Included

Carbon fiber airbox and door
S-FLO filter
Silicone coupler for the factory turbo inlet tube
Intake fitting with O-ring
Edge grip seal and corrugated sleeving
Worm-drive clamps (x3) and zebra clamp
Mounting bolts, screws and washers
S-FLO serial tag

Applications

Acura Integra Type S: DE5 | 2024-present | 2.0L Turbo I4 K20C1
Honda Civic Type R: FL5 | 2023-present | 2.0L Turbo I4 K20C1

Notes

This Carbon Fiber Intake for FL5 and DE5 cars is the airbox only; the AWE Tuning S-FLO Carbon Turbo Inlet Tube is sold separately
AWE’s 20 hp and 16 lb-ft wheel gains were recorded on the complete S-FLO system, fitted to a 2023 FL5 Civic Type R running 91-octane software and an AWE exhaust; they are not a bolt-on figure for the airbox alone
AWE’s installation guide covers the airbox step by step

Frequently Asked Questions

Does the AWE S-FLO Carbon Fiber Intake for FL5 include the turbo inlet tube? No. This listing is the carbon airbox, S-FLO filter, MAF housing, couplers and hardware; the AWE Carbon Turbo Inlet Tube is sold separately. A silicone coupler in the box mates the airbox to the factory turbo inlet tube, so the carbon tube can be added later.
Does the AWE intake need a tune on the Civic Type R? No. The Carbon Fiber Intake for FL5 and DE5 cars keeps airflow across the sensor consistent through an 80 mm aluminum MAF housing, so AWE rates it no tune required and covers it with the AWE No Check Engine Light Guarantee when correctly installed.
How much power does the AWE S-FLO intake add? AWE measured up to 20 hp and 16 lb-ft at the wheels for the complete S-FLO system, this airbox plus the Carbon Turbo Inlet Tube, on a 2023 FL5 Civic Type R with 91 octane software and an AWE exhaust. AWE publishes no figure for the airbox alone.
Is the S-FLO filter washable? Yes. The S-FLO filter is a washable, oil-less inverted cone element with a 5 inch inlet and 85 percent more surface area than the factory filter. Sealed inside the carbon airbox, it is cleaned and refitted rather than replaced, with no oiling step afterwards.
Does this intake fit the Acura Integra Type S? Yes. AWE lists the same part number for the 2024 and later DE5 Acura Integra Type S and the 2023 and later FL5 Honda Civic Type R, which share the K20C1 2.0 liter turbo engine and the same factory mounting locations.

About AWE Tuning

AWE Tuning began in 1991 as an installer of aftermarket parts, which is why every AWE product carries a written Fitment Guarantee. It designs, machines and tests in-house at its headquarters in Horsham, Pennsylvania, outside Philadelphia, with its own Mustang chassis dynamometer; one recent AWE carbon intake took more than 350 hours of development. AWE is best known for its handcrafted Touring Edition, Track Edition and SwitchPath exhausts, alongside carbon fiber intakes and intercoolers.
