AMS Performance Alpha Triple Fuel Pump Kit for 4S Audi R8 / Lamborghini Huracán, Evo, Performante and STO

AMS Performance Alpha Triple Fuel Pump Kit for 4S Audi R8 / Lamborghini Huracán, Evo, Performante and STO

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Their award-winning performance systems are the benchmark by which all others are measured.

The AMS Performance Triple Fuel Pump Kit is the ultimate fuel system upgrade for V10 engines, elevating fueling output to extraordinary levels while maintaining OEM-like fit and functionality. Supporting up to 3200hp on gasoline and 2400hp on E85, the full ALPHA Fuel System is expertly designed and crafted by the AMS Snailworks Engineering Team to boost fueling output while retaining or improving all OEM functionalities. This kit eliminates the need for inadequate siphon systems, the necessity of keeping the fuel tank at least half full, or using external fuel surge tanks and loud external fuel pumps mounted in the engine bay. Constructed from CNC-machined, red anodized billet aluminum, the fully sealed Power Distribution Module includes IP67-rated connectors for exceptional weatherproofing of the proprietary electronics that ensure synchronized operation and balanced power distribution across all three brushless pumps. With PTFE-lined hoses for superior flexibility and fuel fume control, AN and quick connect fittings, plug-and-play wiring harnesses, and seamless integration with stock or standalone ECUs, the AMS Performance R8 / Huracán Alpha Fuel System – Triple Pump Kit offers unparalleled performance and ease of assembly, making it the definitive choice for serious enthusiasts.

Engineered to be the Best

• AMS Performance is an engineering company at its core. With nearly 25 years of experience, they have built a reputation as a leading motorsports aftermarket component manufacturer by creating the highest performing parts through a focused engineering approach to design. This design method allows AMS Performance to include features not found in any other kits on the market, such as motorsports quality plug-n-play harnesses, high-end externally corrugated, smooth bore, PTFE-lined fuel lines with AN fitting connections, and CNC machined pump manifold and fuel assembly top hat. Where others may use plastic fittings, low-grade rubber fuel hoses, and leak-prone clamps, AMS Performance has assembled a system that uses the highest quality materials for years of trouble-free operation.
• Elegant solutions are engineered and implemented across the entire Alpha Fuel System Twin Pump Kit. From the CNC machined pump assembly manifold engineered via Solidworks Computer-Aided Design (CAD) software, to the Plug ‘n Play electrical harnesses designed to make installation a breeze, the Triple Pump Kit is a testament to AMS Performance’s engineering excellence. One of the most significant achievements of their engineering team has been retaining a functional siphon system to keep both sides of the fuel system filled with fuel, while still providing substantially increased fuel flow to the engine over the OEM system. This is accomplished by completely redesigning the system from the ground up with a proprietary siphon routing solution. This allows AMS Performance not only to keep the auxiliary side of the tank filled but also to keep the pump assembly itself filled with fuel directly. This enables the Alpha Fuel System to feed the three brushless pumps with fuel when below a half tank full and allows the fuel gauge needle to read as accurately as OEM.
• Attention to detail sets AMS Performance apart from the competition, which is why they include premade PnP wiring harnesses, AN and other quick connect fuel fittings, and IP67-rated electrical connectors wherever possible. Their team has also created a 40-page, full-color, industry-leading instruction guide, making their kit the simplest to install on the market.

Unlimited Power

• The AMS Performance Triple Pump Kit features a Power Distribution Module engineered to evenly distribute power among the three brushless fuel pumps. AMS Performance’s proprietary electronics ensure precise synchronization of the fuel pumps, delivering the exact amount of fuel to the engine at the optimal moment. Additionally, the kit includes two Pierburg pump control units to complement the third OEM controller, and a dedicated 6 AWG power wire draws power directly from the alternator, ensuring clean and uninterrupted voltage is delivered to the pumps. The CNC-machined billet aluminum enclosure is fully sealed and equipped with IP67-rated bulkhead connectors for superior weatherproofing, providing peace of mind in all race conditions.

Delivering A Complete Solution With the Alpha Fuel System

• The Alpha Fuel System has been developed by AMS Performance’s talented Snailworks Engineering Team as a complete system with a modular approach. Recognizing that many enthusiasts prefer custom fuel system builds to their own specifications, AMS Performance has divided the complete vehicle fuel system into four separate subcomponents: the Twin or Triple Pump Kit at the fuel tank, the Fuel Pressure Regulator and Fuel Line Kit in the engine bay, the Fuel Rail Kit on the intake manifold, and an optional Flex Fuel Kit Add-on for those wanting to run ethanol fuels. While these four main subcomponents are available for separate purchase, they are all designed to fit together seamlessly as a complete system.
• This modular development approach allows AMS Performance to optimize how the system fits and functions together, enhancing fuel flow, drivability, and ease of use. The reimagined Alpha Fuel System reroutes, removes, or replaces numerous highly restrictive components within the factory fuel system to vastly increase fuel throughput. A key feature of the Alpha Fuel System is its ability to maintain OEM-like siphon system functionality without the restrictive fuel flow of the OEM system. By re-engineering the entire fuel system as a complete unit, AMS Performance ensures fuel is provided to both sides of the saddle tank equally, keeping the fuel pump assembly full of fuel at all times. Unlike other builder’s kits that use impractical and potentially dangerous external surge tanks or cannot be driven below half a tank without fuel starvation, the Alpha Fuel System resolves these issues through advanced engineering.

Features

• Triple pump system capable of supporting 3200hp or more of fuel delivery on gasoline and 2400hp or more on E85
• Three brushless fuel pumps provide quiet operation and extreme flow capability
• Proprietary electronics to evenly distribute power and synchronize all three pumps
• All materials and components are fully ethanol and methanol compatible
• Fully integrates with stock ECU or standalone ECU software such as Motec M142 for a seamless solution

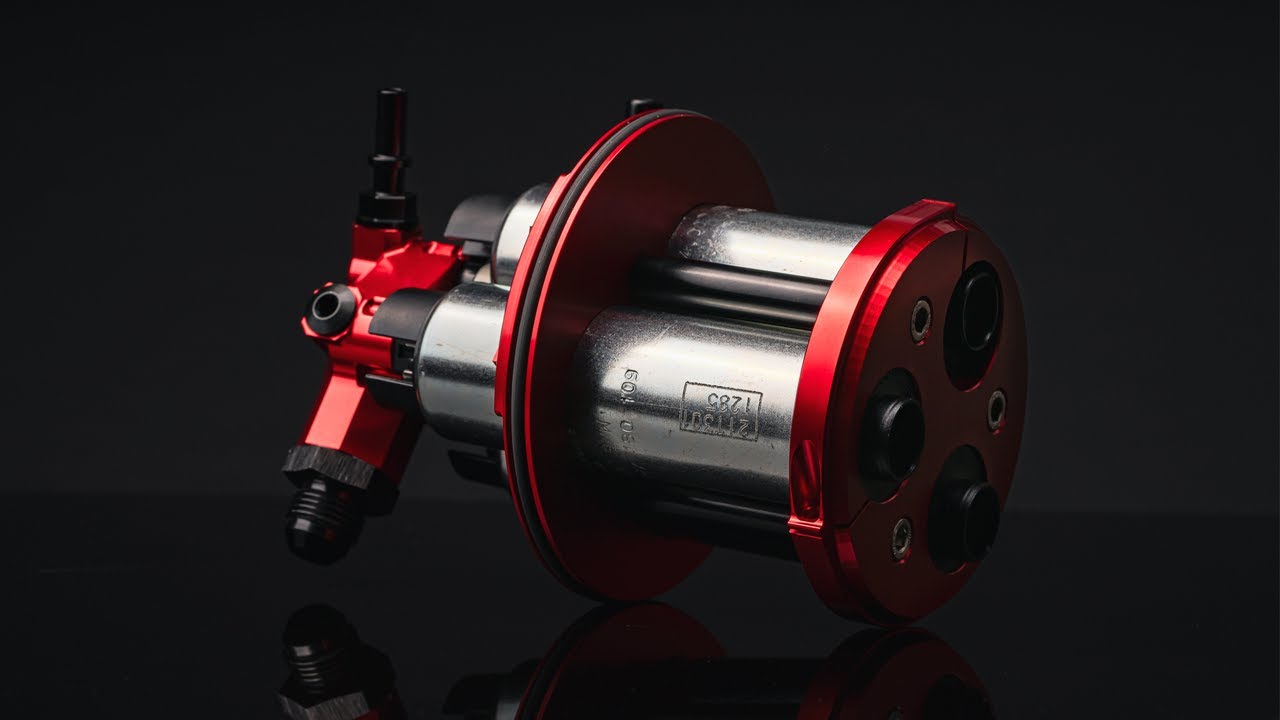

• CNC machined red anodized billet aluminum fuel pump assembly, pump outlet manifold, and top hat
• Fully sealed billet aluminum power distribution module with IP67-rated bulkhead connectors
• Utilizes externally corrugated, smooth bore, PTFE-lined hose for kink-free flexibility, excellent flow, and fuel fume control
• AN fittings, plug ‘n play harnesses, and an industry leading installation guide makes install a snap
• Siphon system functionality retained to allow for OEM-like low fuel level usage and monitoring
• The most advanced plug and play fuel system on the market

Applications

• Audi R8: 4S (2016-2024) – 5.2L V10
• Lamborghini Huracán: LP580-2, LP610-4 (2014-2019) – 5.2L V10
• Lamborghini Huracán Evo: LP610-2, LP640-4 (2019+) – 5.2L V10
• Lamborghini Huracán Performante: LP640-4 (2017-2019) – 5.2L V10
• Lamborghini Huracán STO: LP640-2 (2021+) – 5.2L V10

Notes

• Also fits Plus & Performance Audi R8 models
• Spyder fitment is possible but requires custom mounting of power distribution module
• The subcomponents of the R8 / Huracan Alpha Fuel System are all designed to be used in conjunction with one another. Some custom fitting will be necessary if you are not using the complete Alpha Fuel System.
• Stock ECU compatibility relies heavily upon the software being used to calibrate it. AMS can only guarantee functionality with their custom stock ECU tuning service found in their Alpha packages. Contact your tuner directly for compatibly confirmation.

CARB and / or EPA Compliance Testing Not Completed

• AMS believes that this product is either applicable for a CARB EO exemption or complies with the EPA’s Anti-Tampering Policy, yet the necessary testing and administrative processes have not been completed at this time. Consequently, this product is not available for purchase for emissions-controlled vehicles situated within California, nor can it be shipped to addresses in California, without a completed AMS Race Waiver form. Users outside of the United States are advised to comply with their local laws and regulations.

!WARNING! – By Purchasing This Fuel System Component You Confirm That You Have Read & Understand the Following

• WARNING / DANGER – Serious risk of fire, explosion, bodily injury (including death), and damage to the engine, vehicle, and other property. This flex fuel kit must be installed and removed only by a qualified motorsports technician. The technician must be trained specifically on how to install and remove this kit from this particular vehicle. During installation or removal, the technician must avoid any activity that could ignite a fire and must read the installation instructions beforehand.
