What is the difference between the ARD AT-M3 and the ADRO AT-R3 swan neck wing?

The AT-M3 is the motorsport wing developed specifically within ADRO's ARD (ADRO Racing Division) program for the complete ARD Aero Package. It is a traditional mount wing designed for maximum rear downforce with 8 degrees of angle adjustability across a wide range. The AT-R3 is ADRO's dual-element swan neck wing; a separate product available for the G87 M2 and G42 M240i that uses a swan neck upright configuration for minimized interference with flow over the wing's suction surface. The two wings are distinct products for different buyer priorities.

Why does a 1,650mm span matter compared to a narrower wing?

Span directly determines how much of the rear axle width the wing covers and how evenly the downforce is distributed across it. A narrower wing concentrates its loading at the endplate roots and allows the center section to contribute proportionally less. A 1,650mm span uses the full practical width of the G87 M2's rear, spreading load evenly across the axle and producing consistent rear grip distribution rather than point loading at the corners.

What does the 8-degree angle adjustment range allow the driver to change?

Wing angle directly determines the balance between downforce and drag. More angle produces more rear downforce and more drag; less angle produces less of both. On a circuit with long, fast straights, the drag penalty of high angle costs meaningful lap time. On a short, technical circuit with hard braking zones, more rear downforce builds rear confidence. Eight degrees covers that full spectrum from minimum drag configurations for high-speed circuits to maximum stability for technical tracks, without requiring a different wing for each.

Does the AT-M3 require trunk modification?

Yes. Installation requires modifications to the trunk lid. This is standard practice for a motorsport wing of this type and span; the mounting uprights require access through the trunk lid at specific locations. For any car being prepared for track use at this level, trunk lid modification for wing installation is an expected step in the build process.

What does the 2,555N downforce figure refer to?

That figure refers to the complete ARD Aero Package for the G87 M2 at 180 km/h; not the AT-M3 alone. The AT-M3 provides the rear wing element; ARD's design approach is to maximize front and floor downforce first through the splitter, canards, and undervanes, then use the rear wing to set the balance. The total package produces a 1,254% increase over the stock M2's 189N, with a gain of 2,366N (532 lbs).

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

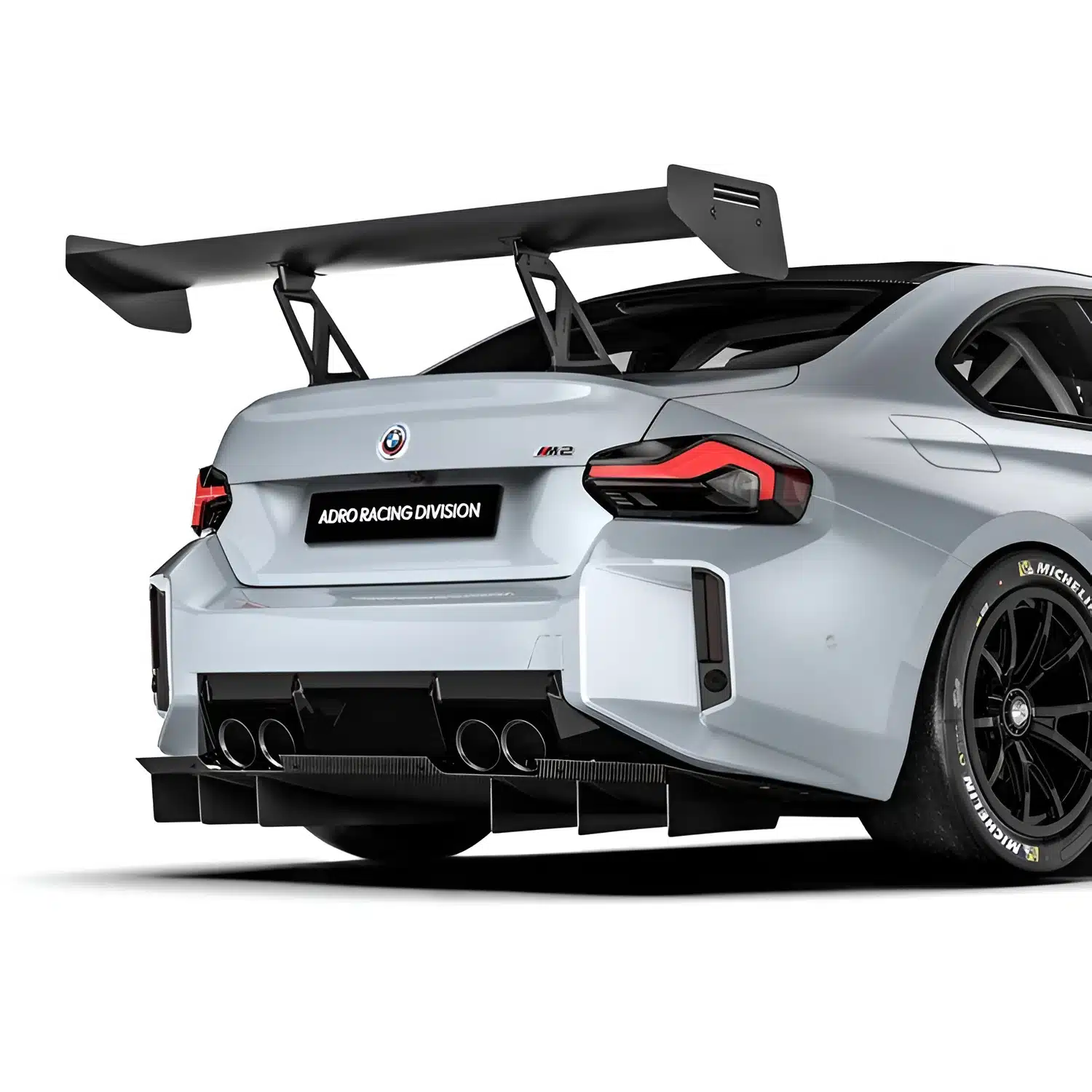

ADRO AT-M3 Carbon Motorsport Wing for G87 BMW M2

The G87 M2 is already a serious performance car. The AT-M3 is for drivers who want to extract more of that performance on track, with rear downforce that is measurable, adjustable, and developed to the same standard as the rest of the ARD lineup by ADRO’s motorsport engineering program. The AT-M3 generates meaningful rear downforce at speed, increasing rear grip and stability through high-speed corners and under hard braking. The wide 1,650mm span maximizes the wing’s effective working area, producing a broad, even downforce distribution across the rear axle rather than concentrating load at the mounting points. A narrow or short span creates high loading at the endplate roots and lets the middle section contribute less to total downforce than the geometry suggests. At 1,650mm, the AT-M3 uses the full width available to spread that load evenly; rear grip increases consistently across the axle rather than peaking at the corners.

What is ARD?

ADRO’s motorsport engineering program, ARD (ADRO Racing Division), is built for drivers who demand more from their car on track. Every ARD component is developed the same way motorsport aerodynamics are: CFD simulation and track-tested before anything reaches a customer. Scott, ADRO’s Head of Aerodynamics, brings an F1 development background to every ARD project. The G87 M2 ARD Aero Package is one of the first full systems to come out of that program.

Features

1,650mm span; maximizes effective working area and distributes rear downforce evenly across the axle rather than concentrating load at mounting points
8 degrees of angle adjustability; covers track day use through time attack competition; dial in balance for specific circuit characteristics and use case
Developed by ADRO’s ARD motorsport engineering program under the direction of Scott, ARD’s Head of Aerodynamics, who brings an F1 development background to every ARD project
Rear wing element of the complete ARD Aero Package for the G87 M2; pairs with the ARD front splitter, canards, and undervanes for the full system
Track-tested before delivery; every ARD component is CFD-simulated and validated on track
Produced in prepreg carbon fiber; holds mainplate geometry under sustained aerodynamic load and heat; consistent angle of attack and downforce delivery from lap one to the last
Compatible with stock trunk lid; trunk lid modification required for installation

Applications

BMW M2: G87 | 2023-present

G87 M2 ARD Aero Package

Frequently Asked Questions

What is the difference between the ARD AT-M3 and the ADRO AT-R3 swan neck wing? The AT-M3 is the motorsport wing developed specifically within ADRO’s ARD (ADRO Racing Division) program for the complete ARD Aero Package. It is a traditional mount wing designed for maximum rear downforce with 8 degrees of angle adjustability across a wide range. The AT-R3 is ADRO’s dual-element swan neck wing; a separate product available for the G87 M2 and G42 M240i that uses a swan neck upright configuration for minimized interference with flow over the wing’s suction surface. The two wings are distinct products for different buyer priorities; the AT-M3 is the ARD program component, the AT-R3 is ADRO’s street/track swan neck offering.
Why does a 1,650mm span matter compared to a narrower wing? Span directly determines how much of the rear axle width the wing covers and how evenly the downforce is distributed across it. A narrower wing concentrates its loading at the endplate roots and allows the center section to contribute proportionally less. A 1,650mm span uses the full practical width of the G87 M2’s rear, spreading load evenly across the axle and producing consistent rear grip distribution rather than point loading at the corners. This is the same reasoning used in motorsport; the wider the wing relative to the car, the more evenly downforce is applied to both rear tires.
What does the 8-degree angle adjustment range allow the driver to change? Wing angle directly determines the balance between downforce and drag. More angle produces more rear downforce and more drag; less angle produces less of both. On a circuit with long, fast straights, the drag penalty of high angle costs meaningful lap time on those sections. On a short, technical circuit with slow to medium-speed corners and hard braking zones, more rear downforce builds rear confidence and allows the driver to brake later. Eight degrees covers that full spectrum; from minimum drag configurations for high-speed circuits to maximum stability for technical tracks, without requiring a different wing for each.
Does the AT-M3 require trunk modification? Yes. Installation requires modifications to the trunk lid. This is standard practice for a motorsport wing of this type and span; the mounting uprights require access through the trunk lid at specific locations. For any car being prepared for track use at this level, trunk lid modification for wing installation is an expected step in the build process.
What does the 2,555N downforce figure refer to? That figure refers to the complete ARD Aero Package for the G87 M2 at 180 km/h; not the AT-M3 alone. The AT-M3 provides the rear wing element; ARD’s design approach is to maximize front and floor downforce first through the splitter, canards, and undervanes, then use the rear wing to set the balance. The total package produces a 1,254% increase over the stock M2’s 189N, with a gain of 2,366N (532 lbs).

About ADRO

Founded in 2020, Aerodynamic Development Race Optimization (ADRO) is dedicated to delivering premium aerodynamic body kits. The company was born from the shared passion for racing of its co-founders, CEO Dongwan Yoo and CTO Sean Yoon, who connected through a mutual friend in 2010 and bonded over their love for race cars. Over several years, they perfected their craft by creating custom body kits for KDMs as a hobby. As demand for their work grew, they established ADRO to expand their offerings. ADRO’s high-quality products are designed in California and meticulously manufactured in South Korea
